Ⅰ Product introduction -- UHF enclosed high temperature resistance 260 degrees metal label
Name: UHF with housing high temperature resistance 260° resistant metal label ZJ4015
Ultrahigh frequency with shell high temperature resistance 260° metal resistance label ZJ4015 is a high temperature label, mainly used in production management, asset management, tool management, etc.
Ultrahigh frequency with shell high temperature resistance 260° metal resistance label ZJ4015 is a high temperature label, mainly used in production management, asset management, tool management, etc.
Ⅱ Technical parameters -- UHF enclosed high temperature resistance 260 degrees metal label resistance
● Functional parameters
| Model | ZJ4015 |
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | 860Mhz-920Mhz |
| Chip | UCODE8 |
| Storage | EPC 128bits , user area 0bits, TID 96bits |
| Write-in times | 100,000 times |
| Function | Read-write |
| Data retention | 50 years |
| Application surface | Metal surface |
| Reading distance (fixed interrogator) | 6.0 m, metal surface 1.7 m, non-metal surface |
| Reading distance (handheld interrogator) | 3.0 m, metal surface 1.2 m, non-metal surface |
| Quality warranty | 1 year |
● Physical parameters

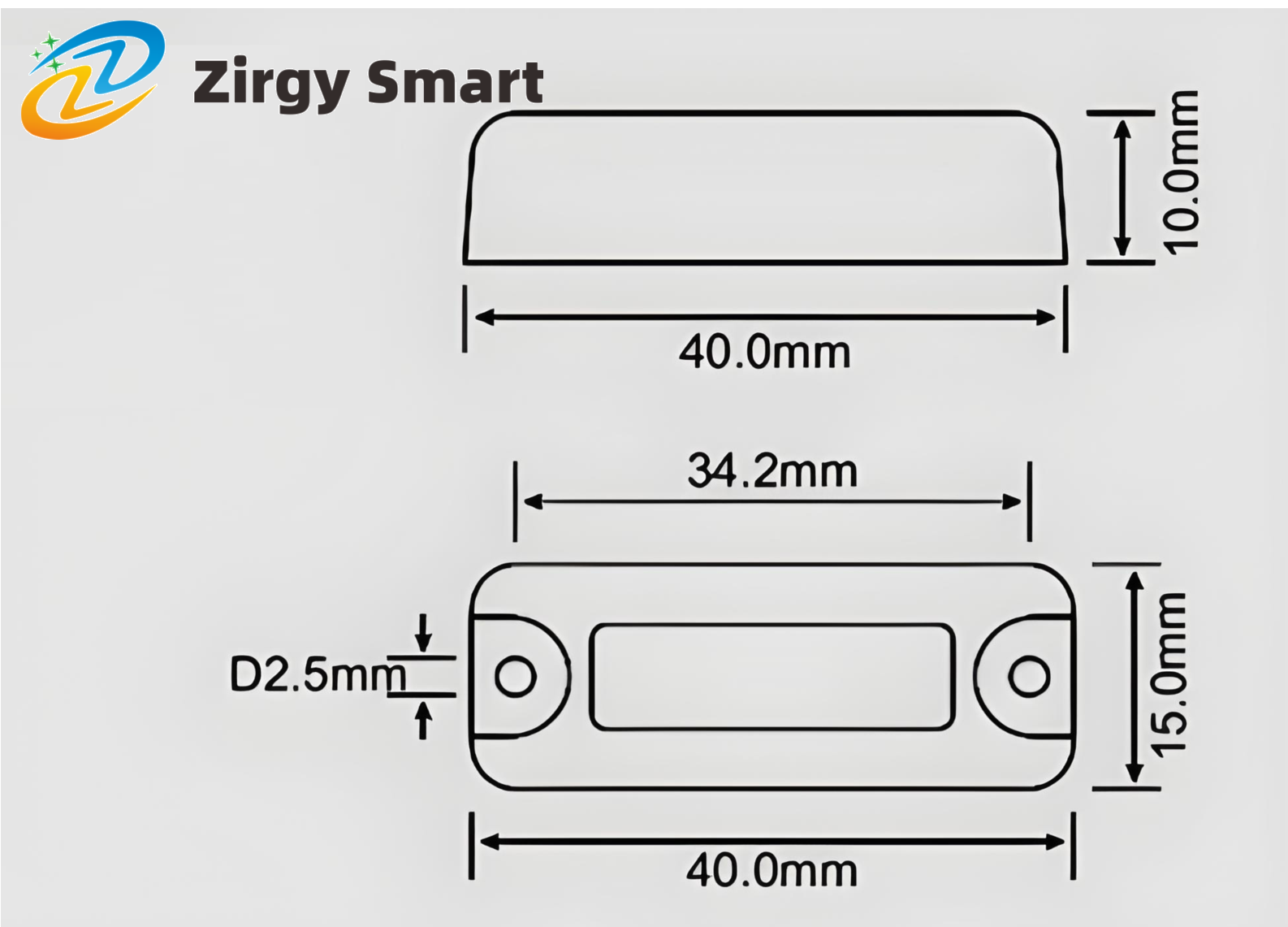

| Dimensions | 40x15mm, hole: diameter 2.5mmx2 |
| Thickness | 10.0mm |
| Material | PEEK |
| Colour | Black |
| Installation method | Screw |
| Weight | 6g |
● Environmental parameters
| Dustproof and waterproof class | IP68 |
| Storage temperature | -40℃ to 260℃; 300 degrees, 100 hours |
| Operating temperature | -25℃ to +150℃ |
| Certification | Reach certification, RoHS certification, CE certification, explosion proof certification. |
● Actual test
Bake at 300℃ for 100 hours continuously, without damage;
280℃ continuous 1000 hours baking, no damage;
260℃ continuous 2000 hours baking, no damage.
Ⅲ Product real shot - UHF enclosed high temperature resistance 260 degrees metal label resistance
Real-shot display
