Ⅰ Product introduction -- 280 degrees high temperature resistant electronic label
Name: 280 degrees high temperature resistant electronic label ZJ3527
280 degree high temperature resistant electronic tag ZJ3527 is a high temperature resistant, acid and alkali resistant RFID tag, mainly used in production management, asset management, tool management, etc.
280 degree high temperature resistant electronic tag ZJ3527 is a high temperature resistant, acid and alkali resistant RFID tag, mainly used in production management, asset management, tool management, etc.
Ⅱ Main features - 280 degrees high temperature resistant electronic tag
● High temperature resistance: maximum temperature 280 degrees, can be used at 230 degrees for a long time;
● Acid and alkali resistance: can be used in harsh environment, strong acid and alkali;
● Can be used on the metal surface: the induction distance on the metal surface can reach 1.5 meters.
● Acid and alkali resistance: can be used in harsh environment, strong acid and alkali;
● Can be used on the metal surface: the induction distance on the metal surface can reach 1.5 meters.
Ⅲ Technical parameters -- 280 degrees high temperature resistant electronic label
● Functional parameters
| Model | ZJ3527 |
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US standard (902-928MHZ), European standard (865-868MHZ) |
| Chip | Alien Higgs-3 |
| Storage | EPC 96bits (expandable to 480bits), user area 512bits, TID64bits |
| Write-in times | 100,000 times |
| Function | Read and write |
| Data retention | 50 years |
| Application surface | Metal surface |
| Reading distance (fixed interrogator) | 1.5 m, US standard (902-928MHZ) 1.5 m, European standard (865-868MHZ) |
| Reading distance (handheld interrogator) | 1.0 m, US standard (902-928MHZ) 0.8m, European standard (865-868MHZ) |
| Quality warranty | 1 year |
● Physical parameters

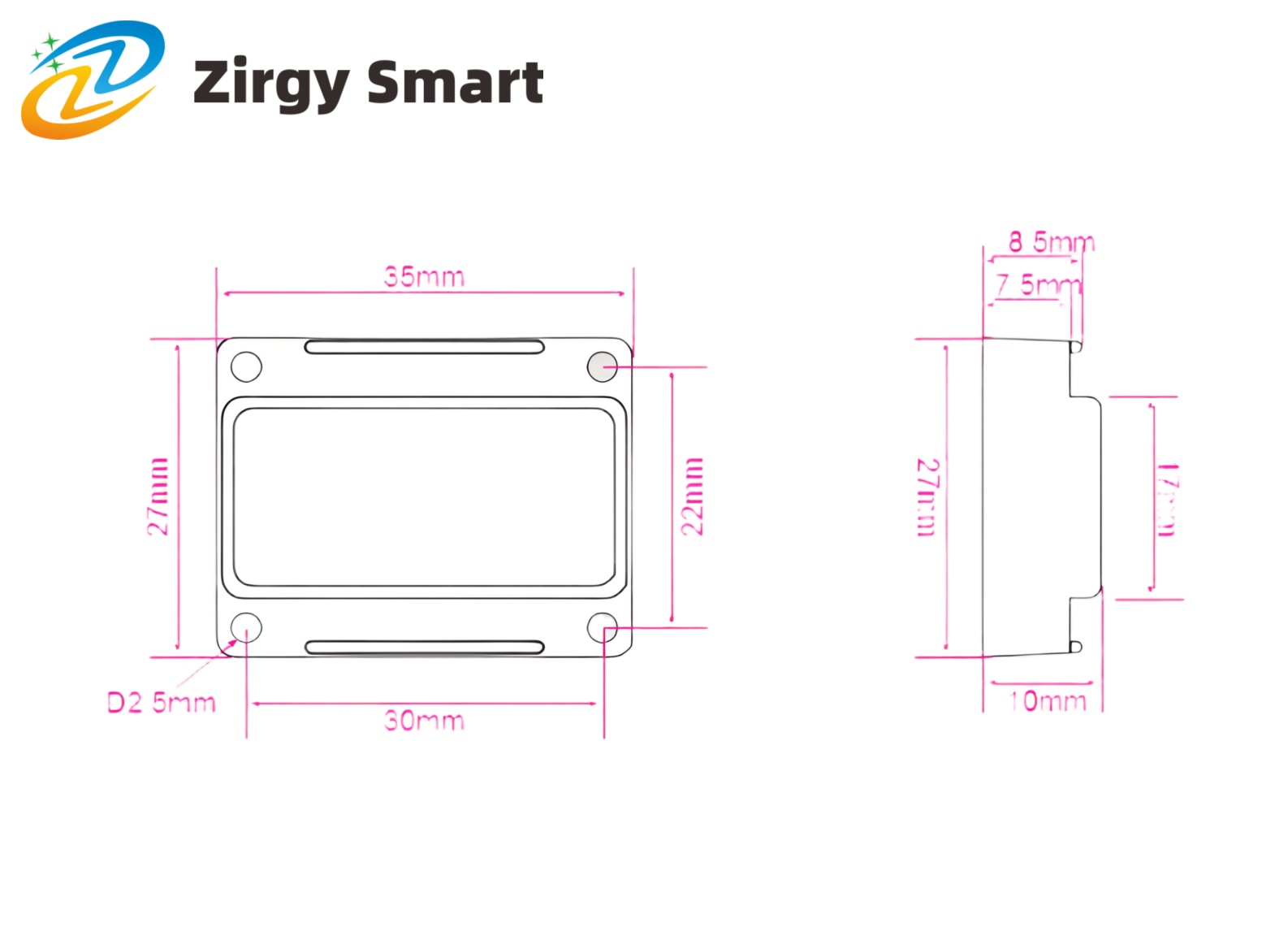

| Dimensions | 35x27mm, hole: diameter 2.5mmx4 |
| Thickness | 10mm |
| Material | PEEK |
| Colour | Black |
| Installation method | Screws - Hex Socket Screws (M2) |
| Weight | 11g |
● Environmental specification
| Dustproof and waterproof rating | IP68, IP69K |
| Withstandable pH value | PH0 to PH14, or other liquids that PEEK materials can withstand |
| Storage temperature | -60℃ to +230℃；+260℃ 1500 hours |
| Operating temperature | -40℃ to +150℃ |
| Actual test | 280℃ continuous 1000 hours baking, no damage; 260℃ continuous 1500 hours baking, no damage; Minus 20℃ for 8 hours a day, 260℃ for 16 hours; 60 consecutive days of testing, no damage; From 150℃ to -40℃, 7.5 times a day repeated cycles; Total 80 days, 600 cycles, no damage; Bake at 260℃ for 100 hours continuously, then soak in 2 meters of water for 48 hours; The label is not damaged by water. |
| Compressive strength | 150Mpa |
| Certification | Reach certification, RoHS certification, CE certification, explosion proof certification |
Ⅳ Product display -- 280 degrees high temperature resistant electronic label
Real-shot display
