Ⅰ Product introduction -- 260 degrees high temperature resistant electronic label
Name: 260 degrees high temperature resistance electronic label ZJ-6229
ZJ-6229 is an industrial label, mainly used in production management, asset management, tool management and so on.
ZJ-6229 is an industrial label, mainly used in production management, asset management, tool management and so on.
Ⅱ Technical parameters -- 260 degrees high temperature resistant electronic label
● Functional parameters
| Model | ZJ-6229 |
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US standard (902-928MHZ), European standard (865-868MHZ) |
| Chip | Alien Higgs-3 |
| Storage | EPC 96bits (expandable to 480bits), user area 512bits, TID64bits |
| Write count | 100,000 times |
| Function | Read and write |
| Data retention | 50 years |
| Application surface | Metal surface |
| Reading distance (fixing machine) | 13m, US standard (902-928MHZ); 12m, European standard (865-868MHZ) |
| Reading distance (handheld) | 7.5 m, US standard (902-928MHZ) 7.0 m, European standard (865-868MHZ) |
| Quality warranty | 1 year |
● Physical parameters
| Dimensions | 62x29mm, hole: diameter 3.5mmx2 |
| Thickness | 12mm |
| Material | PEEK |
| Colour | Black |
| Installation method | Screws - Hex Socket Screws (M3) |
| Weight | 15g |
● Environmental specifications
| Dustproof and waterproof class | IP67 |
| Storage temperature | -60℃ to 260℃; 300℃ for 100 hours. |
| Operating temperature | -40℃ to 150℃ |
| Actual test | Bake at 300℃ for 100 hours continuously, without damage; 280℃ continuous 1000 hours baking, no damage; 260℃ continuous 2000 hours baking, no damage; Minus 20℃ for 8 hours a day, 260℃ for 16 hours; 80 consecutive days of testing, no damage; From 150℃ to -40℃, 7.5 times a day repeated cycles; Total 80 days, 600 cycles, no damage. |
| Certification | Reach certification, RoHS certification, CE certification, explosion proof certification. |

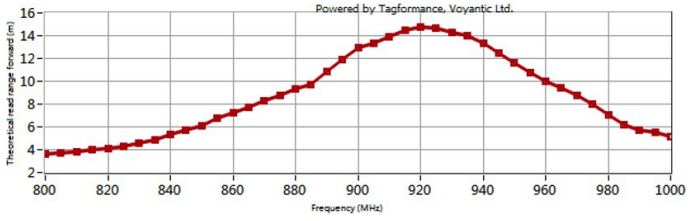

Ⅲ American standard frequency (metal surface) - 260 degrees high temperature resistance electronic tag
Ⅳ European standard frequency (metal surface) - 260 degrees high temperature resistance electronic label
Ⅴ Product display -- 260 degrees high temperature resistance electronic label
Real-shot display
