Ⅰ Main features - high temperature and metal resistant electronic tag

● High temperature and metal resistant electronic tag ZJ-3714 is an RFID electronic tag used for long-term high temperature resistance on metal surfaces.
● This product can be widely used in indoor and outdoor production process management, asset management, and inspection management, installed on the metal surface, can be long-term
High and low temperature resistance, stable and reliable product performance, is similar to the Xiao Xiao of similar products.
● The surface of the product can be pasted with label paper or printed content
● The surface of the label can be silk-screened
● The surface can be marked with laser
● Product installation is flexible and convenient, can use screws, rivets, strong glue, double-sided adhesive; (not standard, optional)
● Can resist weak acid and weak alkali, waterproof, long-term high and low temperature resistance

Ⅱ Technical parameters -- high temperature and metal resistant electronic tag

Name: High temperature and metal resistant electronic label ZJ-3714
Chip type: Alien H3 chip (can be customized according to M4QT, Ucode8, Ucocde7M, R6P chip of the same high temperature label)
Chip storage: H3 chip: EPC 96bits, user area 512bits
Label size: 37mm 14mm 5.9mm
Air protocol: EPC Class1 Gen2; ISO18000-6C
Operating frequency: 902-928MHz (the same size can be customized according to the application frequency)
Read and write performance: read and write (customers can repeatedly write content into the chip)
Data retention: 20 years
Warranty: 1 year
Main material: high temperature injection molding material and ceramic material
Operating temperature: -25 degrees ~ 115 degrees (but the performance is attenuated when it exceeds 70 degrees, and it will return to normal after the temperature drops)
Storage temperature: -40 degrees ~ 200 degrees
Storage humidity: 5% ~ 95%
Surface color: black (when the equivalent is more than 5000 pieces, the color can be customized according to customer requirements)
Drop test: 1 meter high 10 times pass the drop test (there are ceramics, do not support more falls)
Breathalyzer test: Pass 95% concentration test
Gasoline test: No. 92 gasoline wipe through
IP Level: IP67
Positioning hole size: Positioning hole diameter for product fixing 3mm, positioning hole center spacing 30.9mm
Fixed reader (metal) : more than 3 meters (4W EIRP, Alien9900 fixed reader, if other readers, read distance may be different)
Handheld reader (on metal) : more than 1.2m (Read distance of Alien9011 handheld reader in outdoor open space, if other handheld devices are used, the reading distance may be different)

Ⅰ Main features - high temperature and metal resistant electronic tag

Ⅱ Technical parameters -- high temperature and metal resistant electronic tag

Ⅲ Product display -- high temperature and metal resistant electronic label

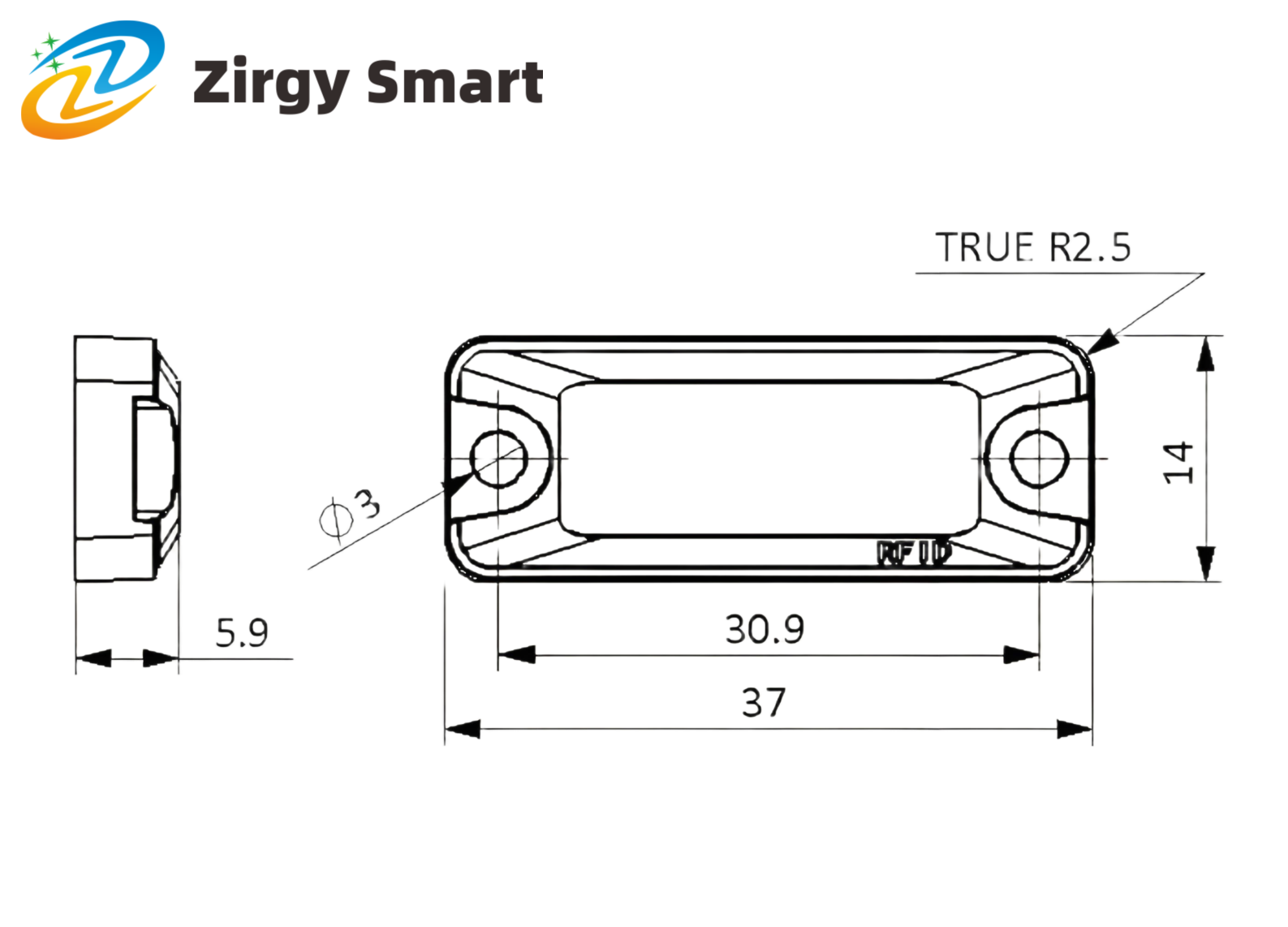

1.Sectional display

2.Real-shot display
