Ⅰ Main features - high temperature resistance UHF metal resistant electronic tag
Name: High temperature UHF metal resistant electronic tag ZJ-2019
High temperature resistance UHF metal resistant electronic tag ZJ-2019, metal surface, high temperature resistance, can work normally at 180℃ high temperature for 10 hours. Applicable to production management, asset management, tool management, etc.
Ⅱ Technical parameters -- high temperature, ultrahigh frequency and metal resistant electronic tag
● Functional parameters
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | (American) 902-928MHz, (European) 865-868MHz |
| Chip | Alien Higgs-4 |
| Storage | EPC 128bits, user area 128bits, TID64bits |
| Write-in times | 100,000 times |
| Function | Read-write |
| Data retention | 50 years |
| Application surface | Metal surface |
|
Reading distance (4-watt fixed interrogator)
|
2.5 m, (US standard) 902-928 MHZ, metal surface; 2.7 m, (European standard) 865-868MHz, metal surface; |
|
Reading distance (2-watt handheld interrogator)
|
1.2 m, (US standard) 902-928 MHZ, metal surface; 1.4 m, (European standard) 865-868MHz, metal surface; |
| Quality warranty | 1 year |
● Physical parameters
| Dimensions | Diameter :20mm, (Hole: 2mmx2) |
| Thickness | 2.1mm (excluding chip protrusion), 2.8mm (including chip protrusion) |
| Material | Industrial high temperature material |
| Colour | Black |
| Installation method | Back glue or screws |
| Weight | 1.0g |
● Environmental specifications
| Dustproof and waterproof class | IP68 |
| Storage temperature | -55 degrees to 200 degrees (280° C for 50 minutes, 250° C for 150 minutes) |
| Operating temperature | -40 degrees to 150 degrees (10 hours at 180° C) |
| Certification | Reach certification, RoHS certification, CE certification |

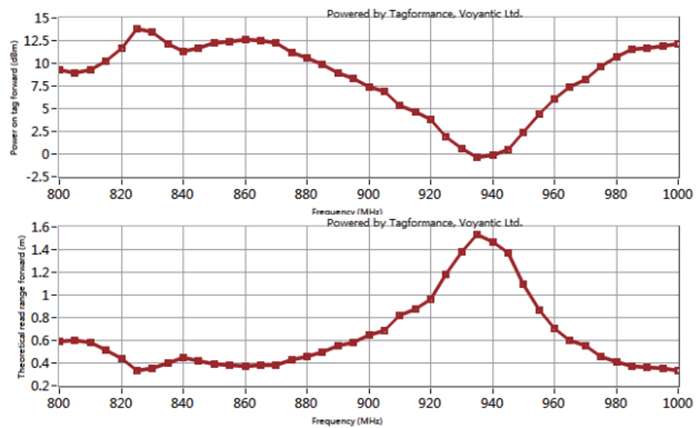

ⅢU1 American standard frequency

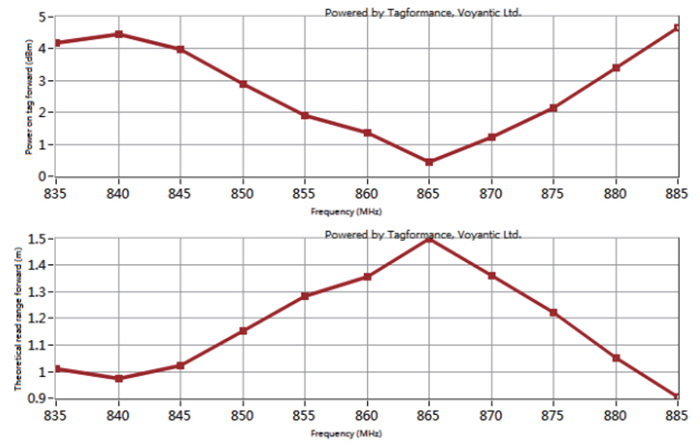

Ⅳ E1 European frequency
Ⅴ Product display -- high temperature UHF metal resistant electronic label
Real-shot display
