Ⅰ Product application - UHF anti-crack fragile flexible printable anti-metal label
Name: Ultrahigh frequency anti-crack fragile flexible printable anti-metal label ZJ-F7025A
* Product certification
* Asset Tracking
* Logistics Tracking
* Security for valuables
* Medical asset management
* Product certification
* Asset Tracking
* Logistics Tracking
* Security for valuables
* Medical asset management
Ⅱ Main features - UHF anti-crack fragile flexible printable anti-metal label
Uhf anti-crack fragile flexible printable anti-metal label ZJ-F7025A is compatible with EPC C1G2(ISO 18000-6C) standards. Suitable for use in metal - and liquid-rich environments, it can be packaged as any type of print label, bar code or graphic label, and its thin, paper-like shape makes it easy to attach to curved objects such as cylinders, pipes, metal containers and fixed assets.
Ⅲ Technical parameters -- UHF anti-crack fragile flexible printable anti-metal label
| Protocol | EPC Class1 Gen2; ISO18000-6C passive UHF RFID tag |
| Operating frequency | 902-928MHz (US band) |
| Chip model | Impinj Monza R6-P |
| Memory | 32-bit User memory 48-bit Serialization TID 128-bits EPC |
| Application temperature | -40°F to +185°F (-40°C to + 85°C) |
| Operating temperature | -40°F to +185°F (-40°C to + 85°C) |
| Weight (roll) | 0.71 kg (500 pcs) |
| Dimensions/tolerance (mm) | 70(+/- 1) x 25(+/- 0.8) x 1.26(+/- 0.1) |
| Width of web | 73(+/- 1)mm |
| Tag | 35(+/- 0.8)mm |
| Blank area between tags | 10(+/- 0.1)mm |
| R-corner dimensions | 1.5(+/- 0.2)mm |
| Printing performance | Excellent |
| Reading distance on metal surface | 9m |
| Reading distance on plastic surface | 4m |
| Reading distance on liquid surface | 4m |
| Surface material | White PET |
| Colour standard | White |
| Backing material | High strength backing adhesive |
| Standard packing | 500 pieces per roll |
| Inner core diameter | 3 in (76.2 mm) |
| Outer roll diameter | 8 in (203 mm) |
| Supported printer | Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
Ⅳ Product display - Ultra-high frequency anti-peel fragile flexible printable anti-metal label
Real-shot display

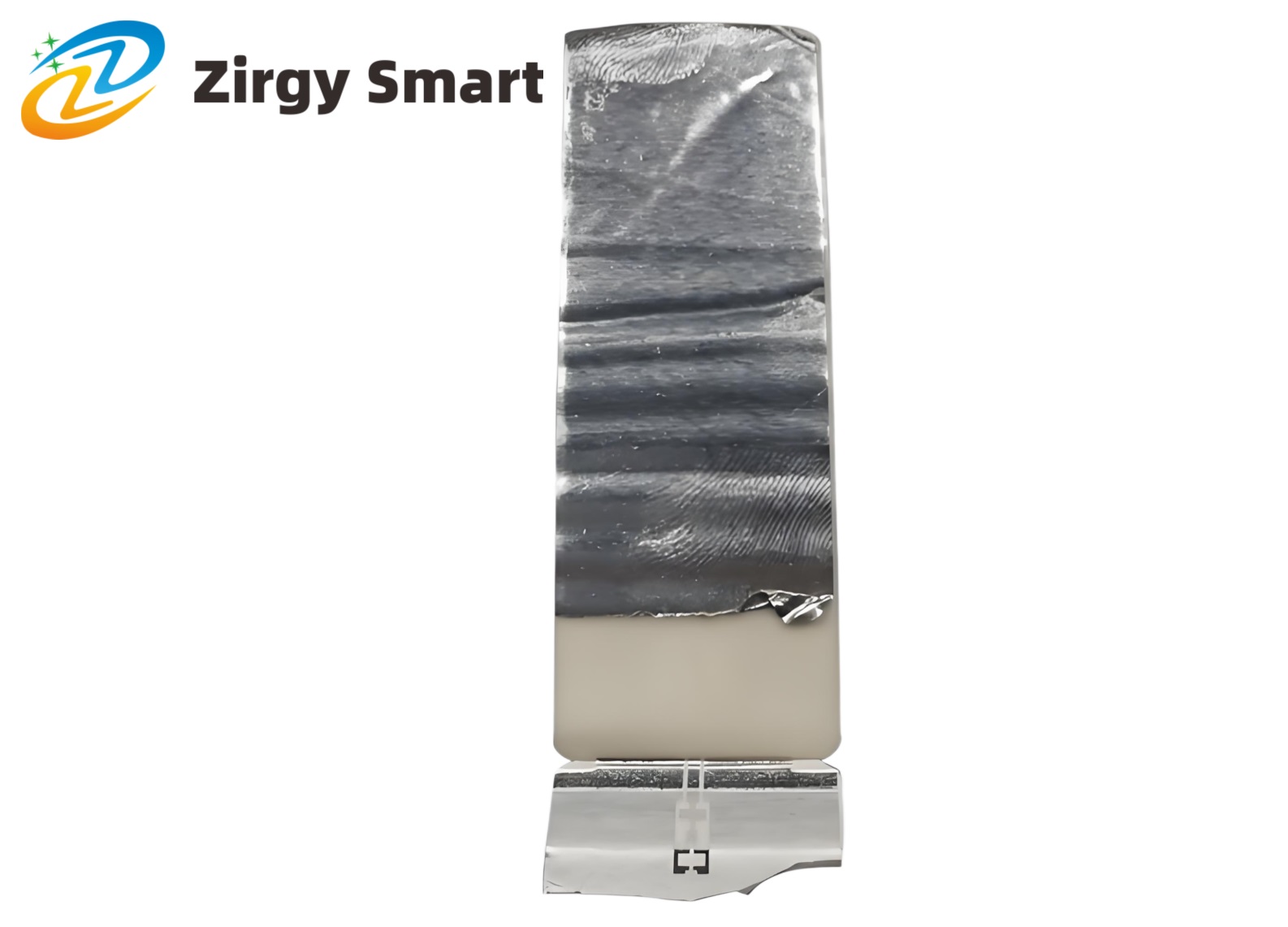

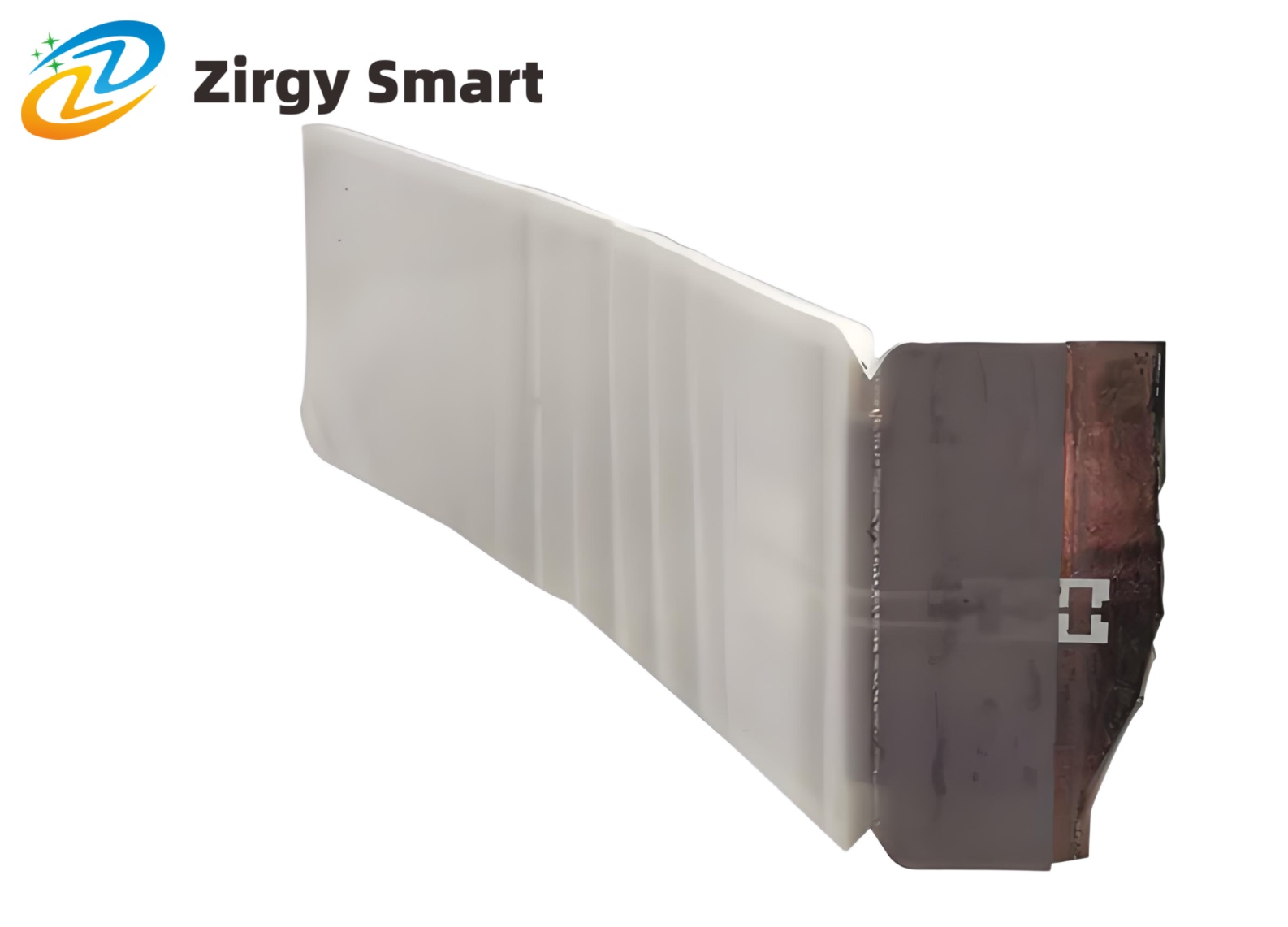

Tamper-proof effect demonstration
