Ⅰ Chip features - high frequency fragile label I-code X 50*50mm
● Non-contact data and energy transmission (no power required)
● Operating frequency: 13.56MHz
● Working distance: up to 1.5m (depending on antenna geometry)
● Fast data transfer: up to 53kbit/s
● High data integrity: 16-bit CRC, frames
● True collision resistance
● Password Protected Electronic Goods (EAS)
● Password Protected Application Series Identifiers (AFI)
Data Storage Format Identifier (DSFID)
Ⅱ Technical parameters -- High frequency fragile label I-code X 50*50mm
Name: High frequency fragile label I-code X 50*50mm
Optional chip: I code X

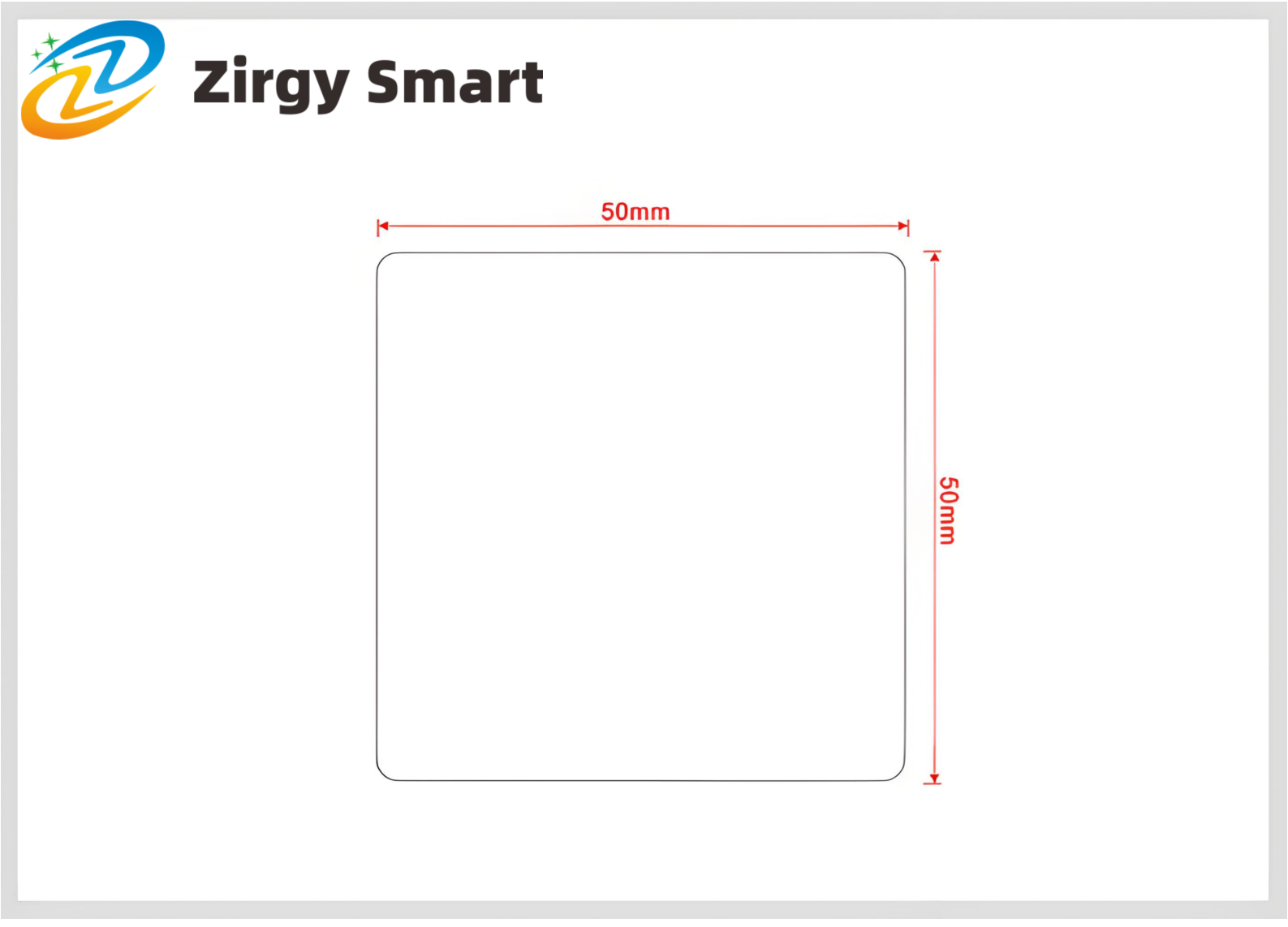

Antenna size: 50*50mm
Label size: None
Communication protocol: 15693 protocol
Operating frequency: 13.56MHz
Storage capacity: 1024bit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-75℃
Ⅲ Product display -- High frequency fragile label I-code X 50*50mm

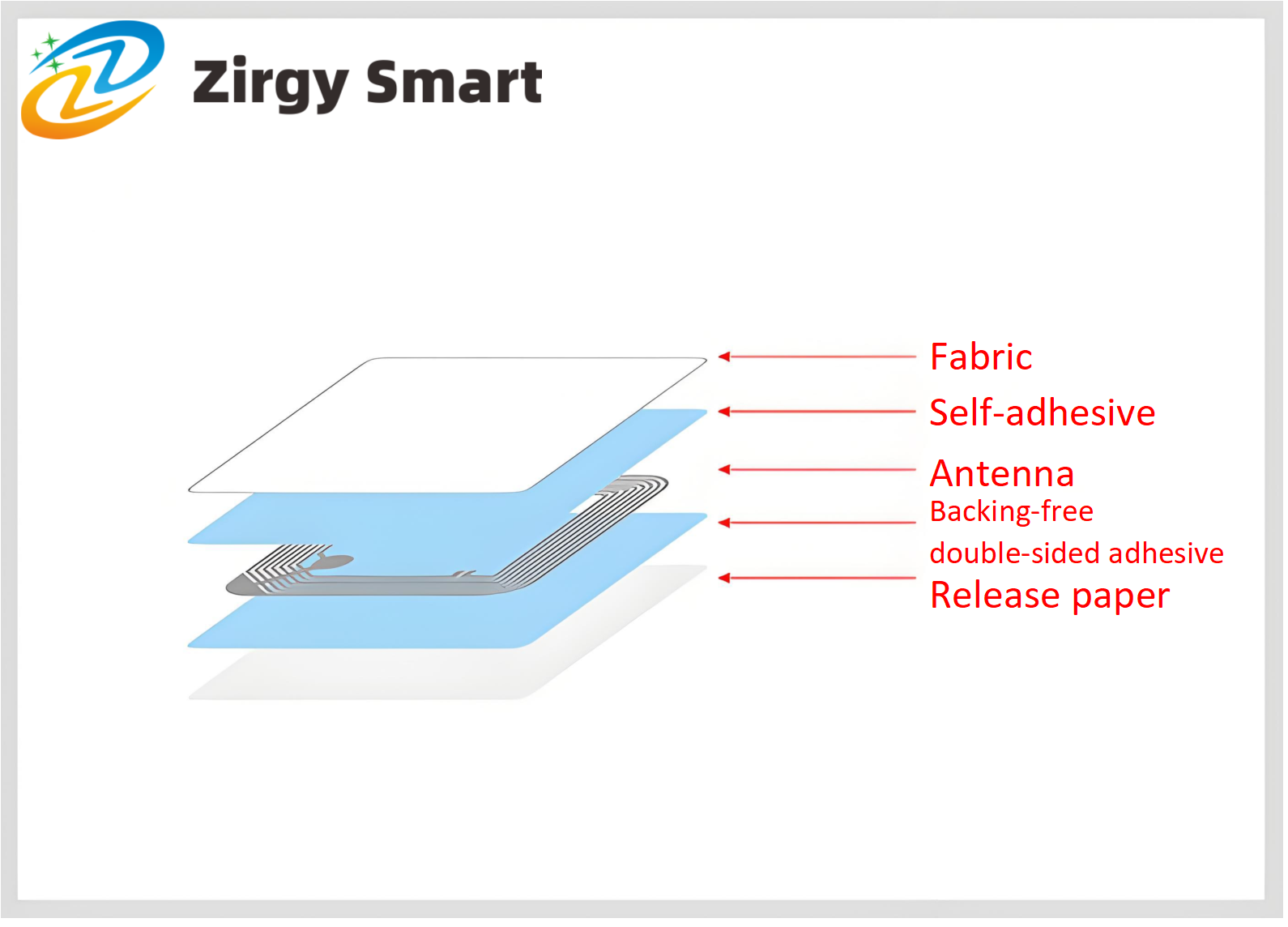

1.Sectional display

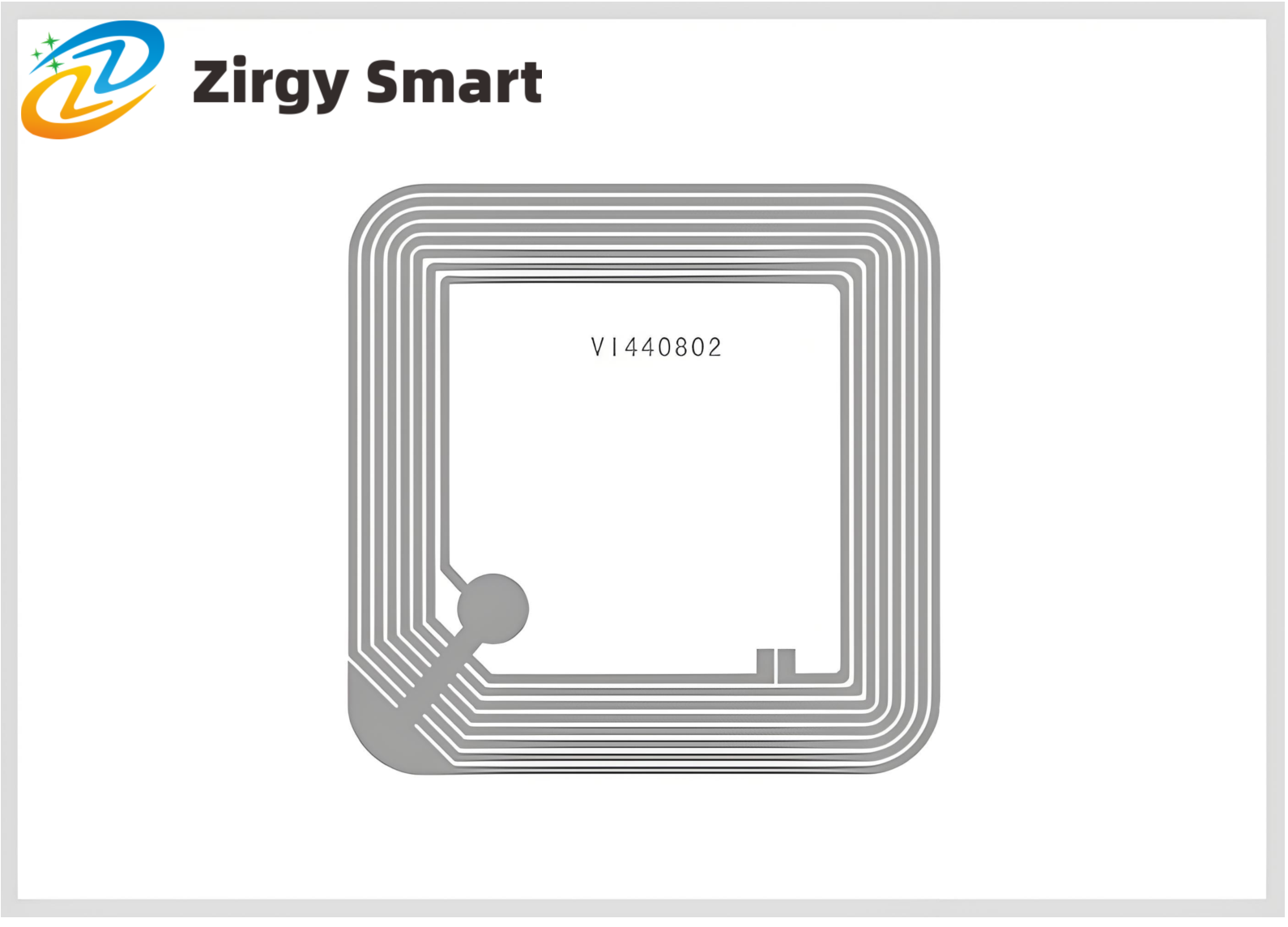

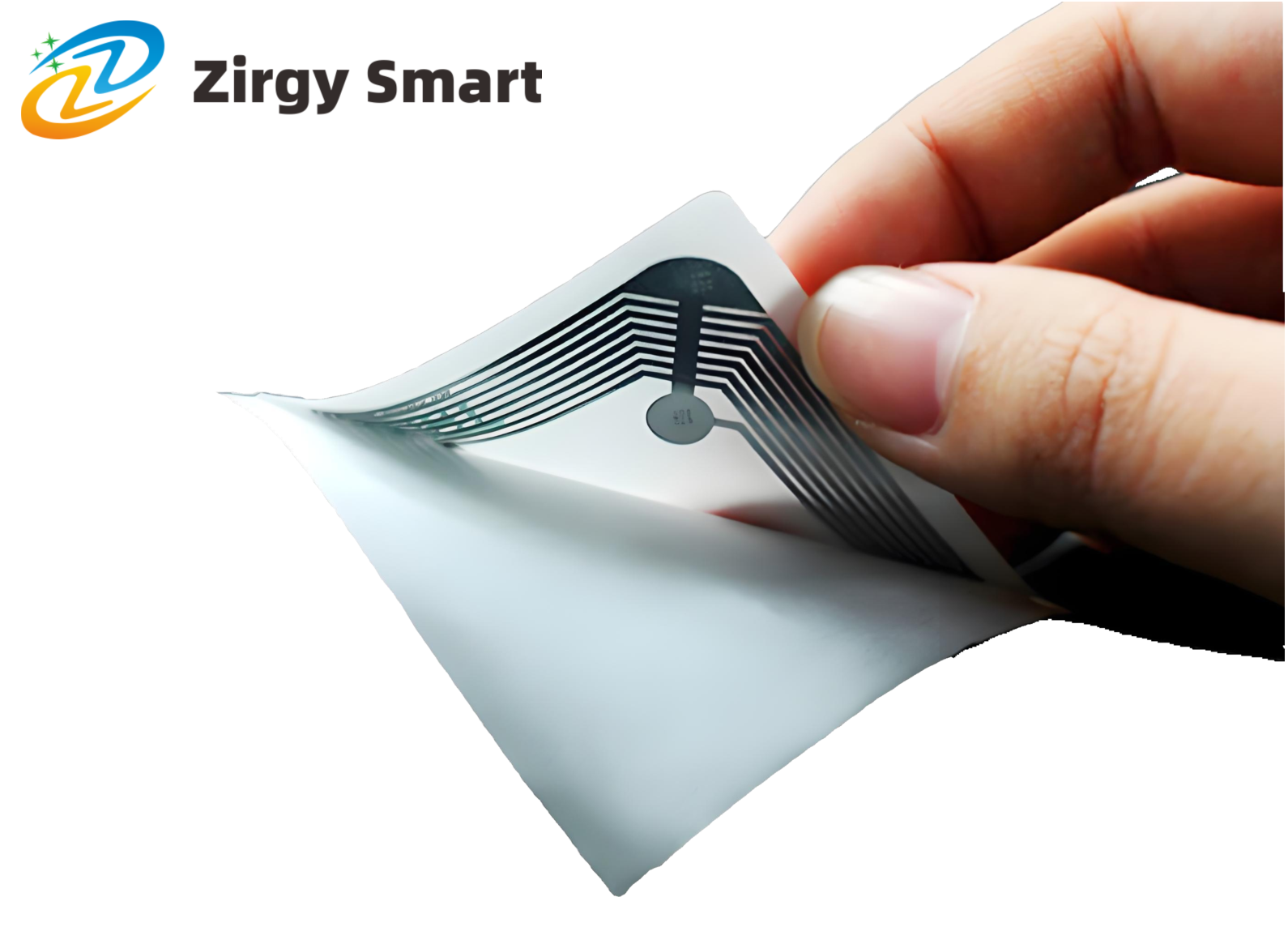

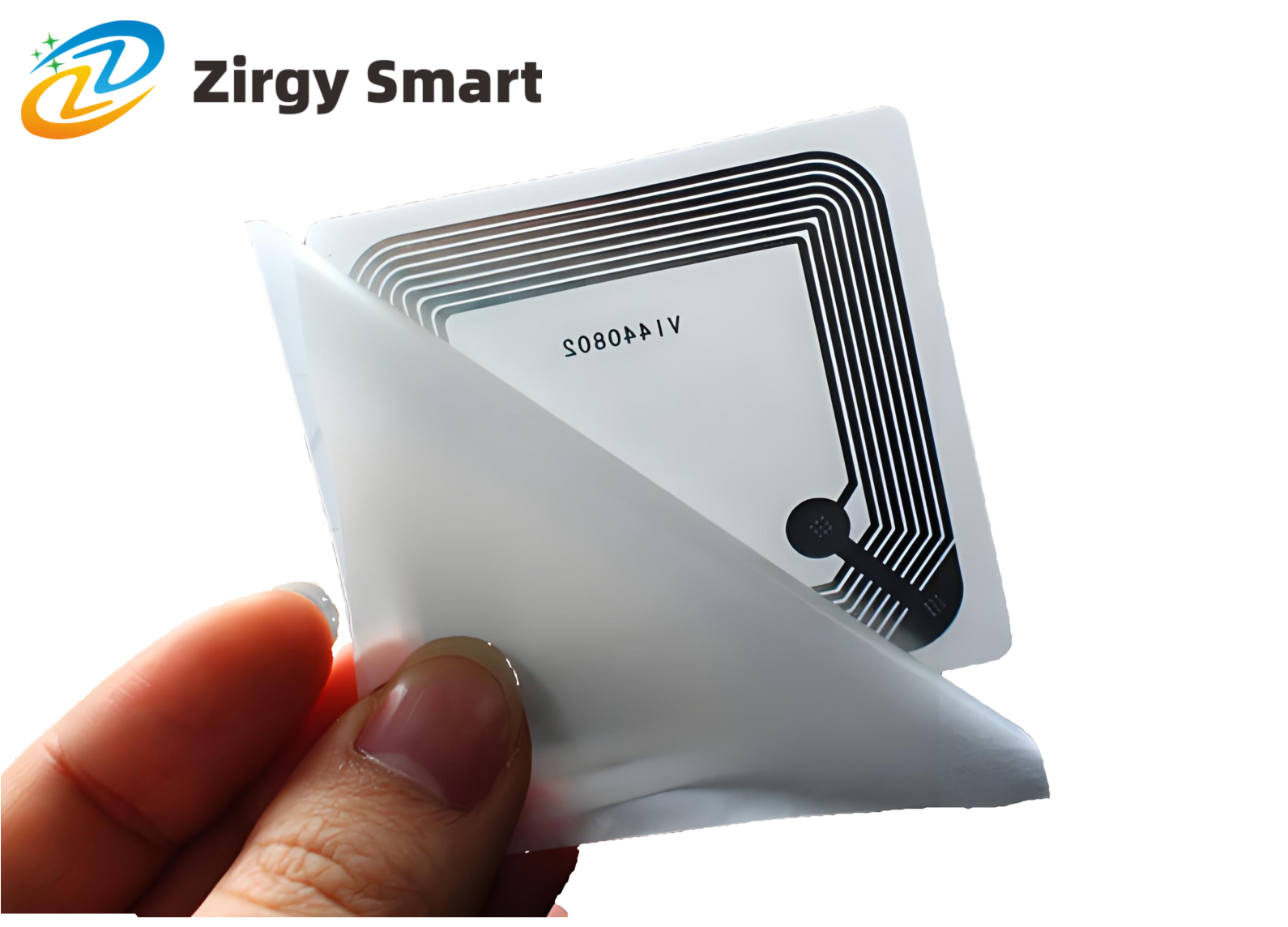

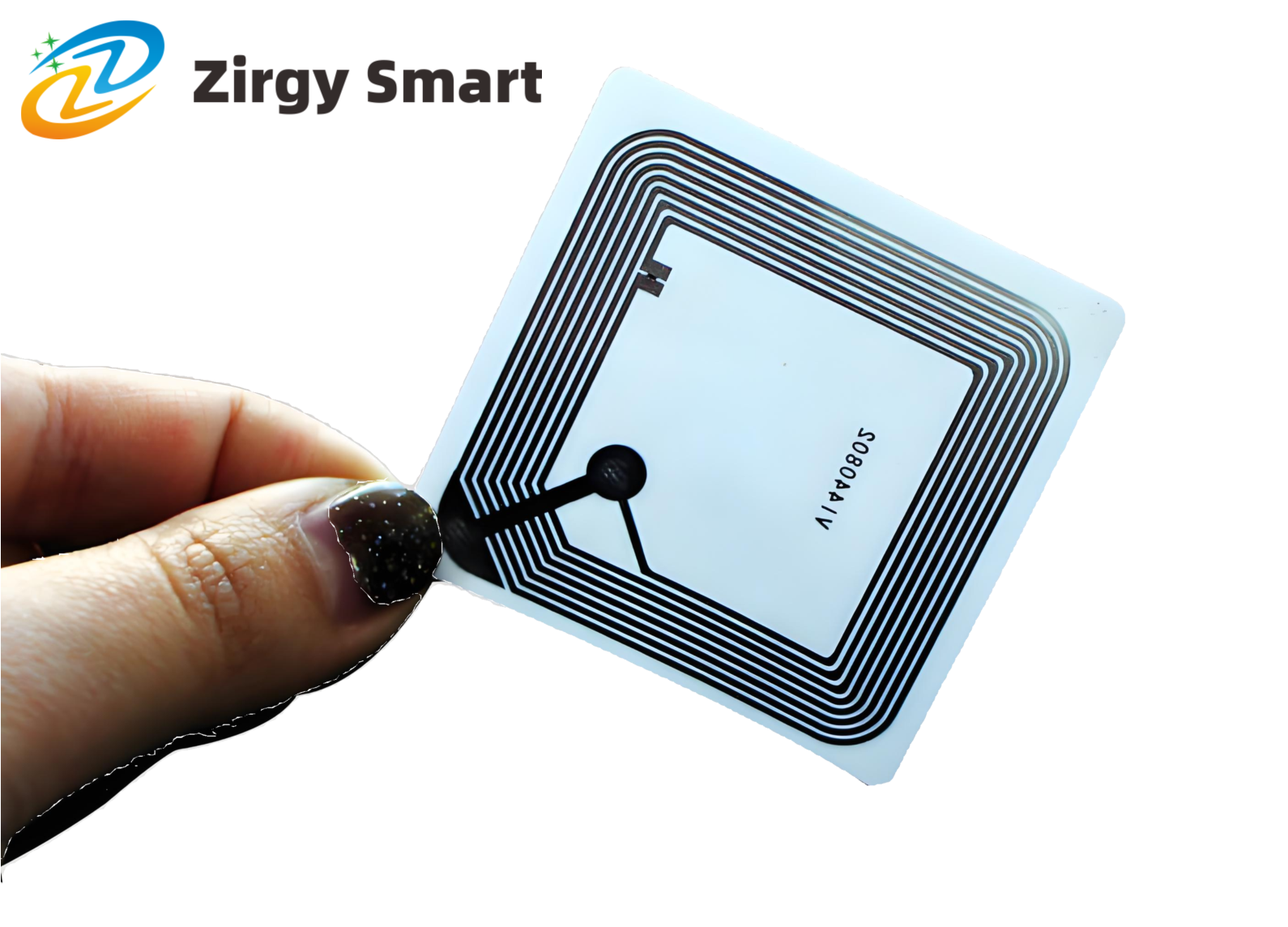

2.Real-shot display

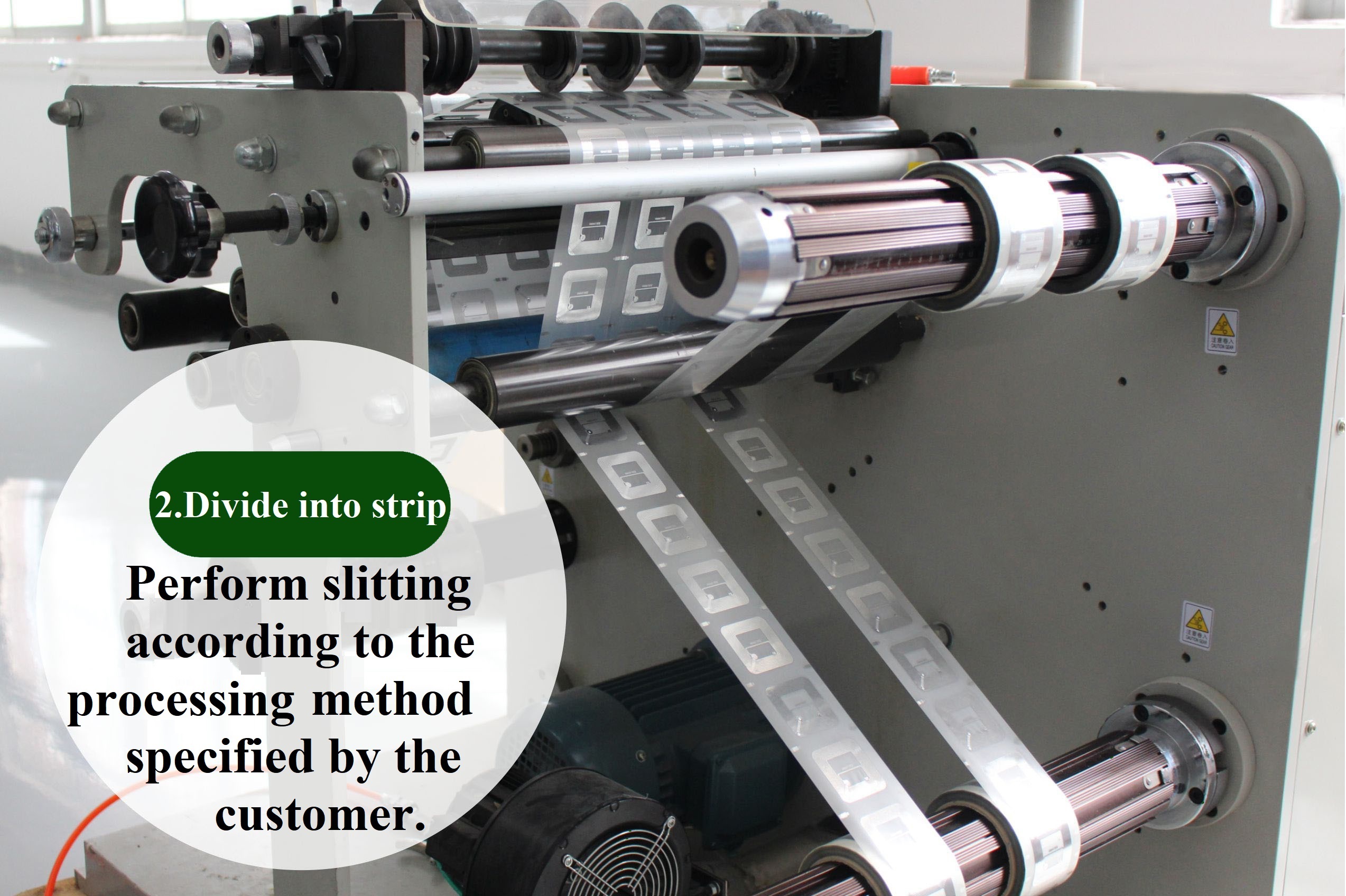

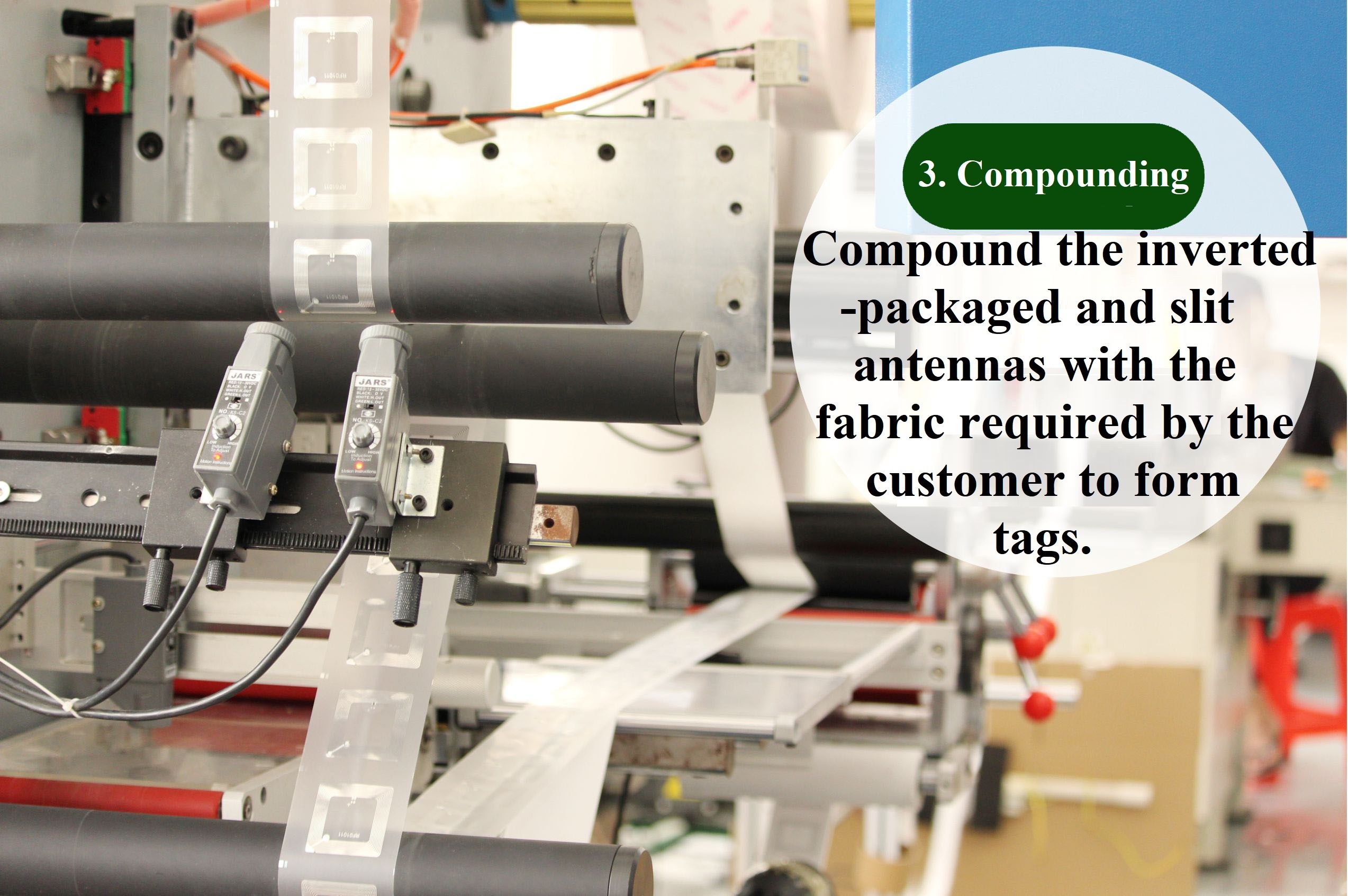

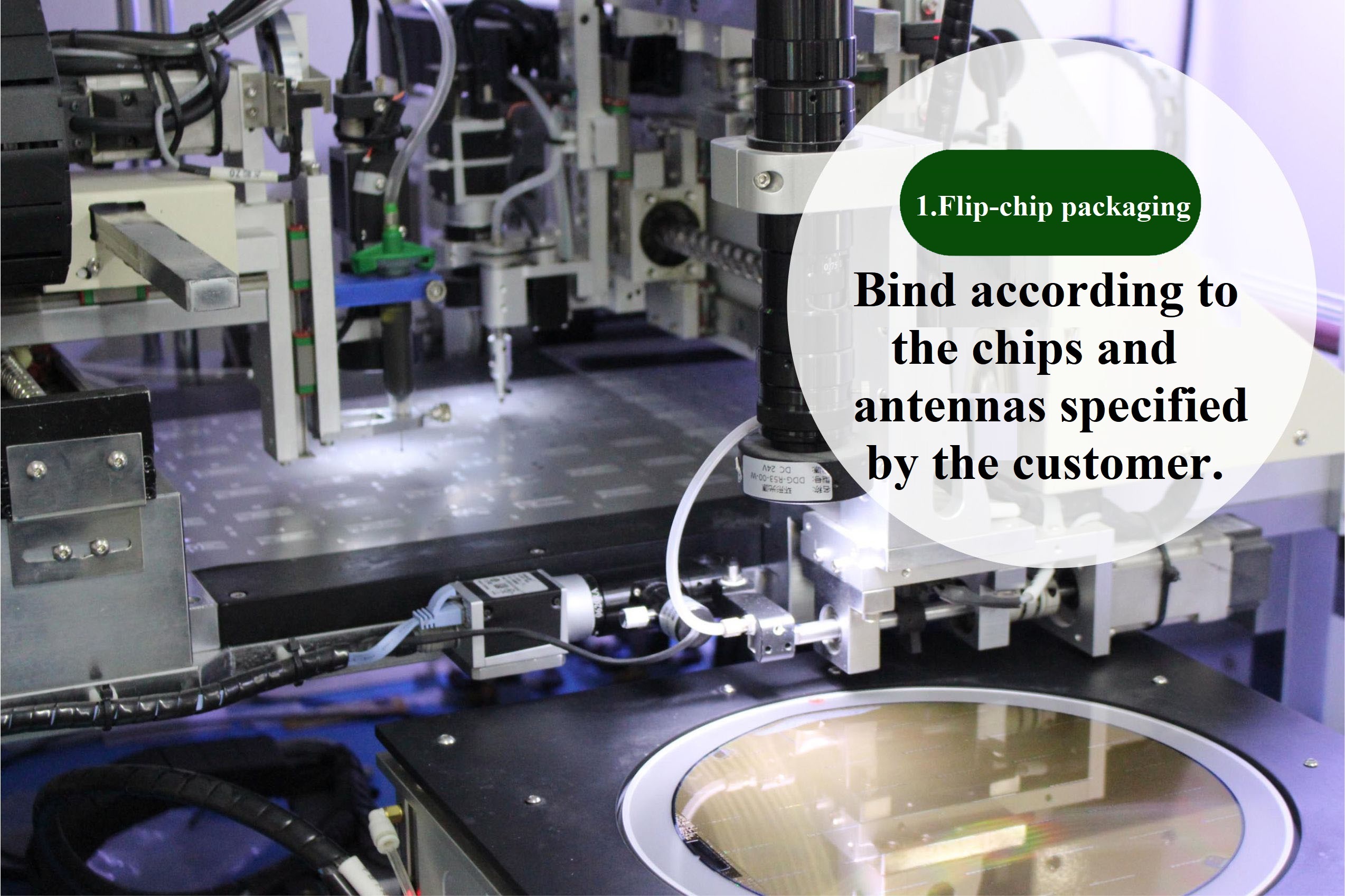

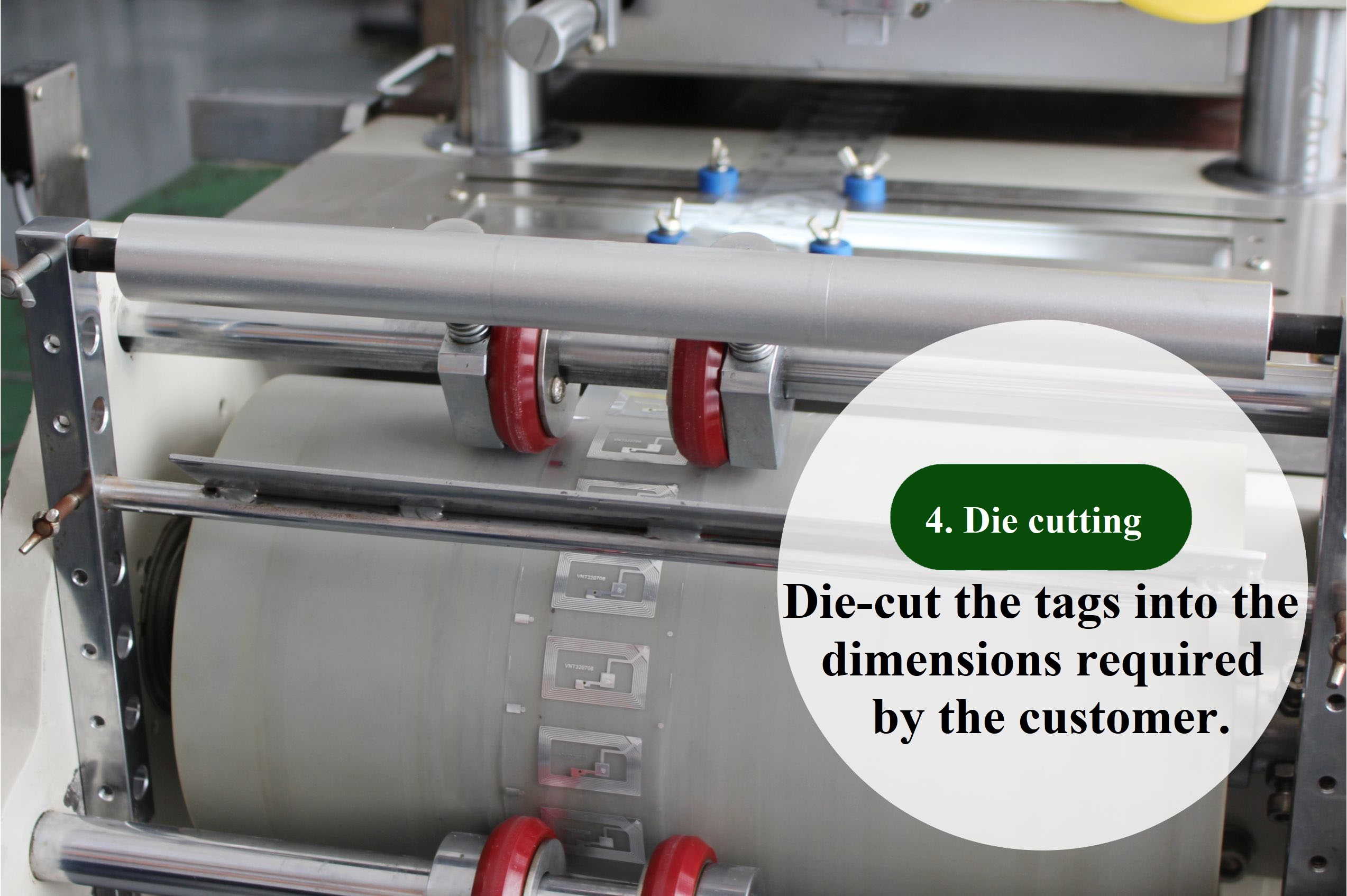

Ⅳ Production process -- high frequency fragile label I-code X 50*50mm
