Ⅰ Chip features - ultra-high frequency fragile label H47(M4E) 50*50mm
● Comply with EPC Gen2 (V1.2.0) and ISO/IEC18000-6C standards
● Universal label: operating frequency 860MHz-960MHz
●800 bit non-volatile memory
● 96-bit EPC
● 32-bit access and confuse passwords
● Pre-programmed specific unchangeable 64-bit serial number
● User storage can be managed in 64-bit blocks and can be permanently locked and protected with access passwords
● Support for all mandatory and selectable commands, including single-level commands
● There are customized commands for high-speed data writing, and EPC codes of 30 labels can be written per second
● Low power read and write operations
● Excellent working distance, up to 10 meters with appropriate antennas
Ⅱ Technical parameters -- ultra-high frequency fragile label H47(M4E) 50*50mm
Name: Ultrahigh frequency fragile label H47(M4E) 50*50mm
Optional chip: Impin/Monza 4E
Antenna size: 44*44mm
Label size: 50*50mm
Communication protocol: ISO/IEC18000-6C EPC Class1 Gen2
Operating frequency: 860-960MHz
Storage capacity: 128Bits
Read and write times: ≥ 100,000 times
Data retention: ≥50 years
Optional fabric: PET
Ⅲ Product display -- Ultra-high frequency fragile label H47(M4E) 50*50mm

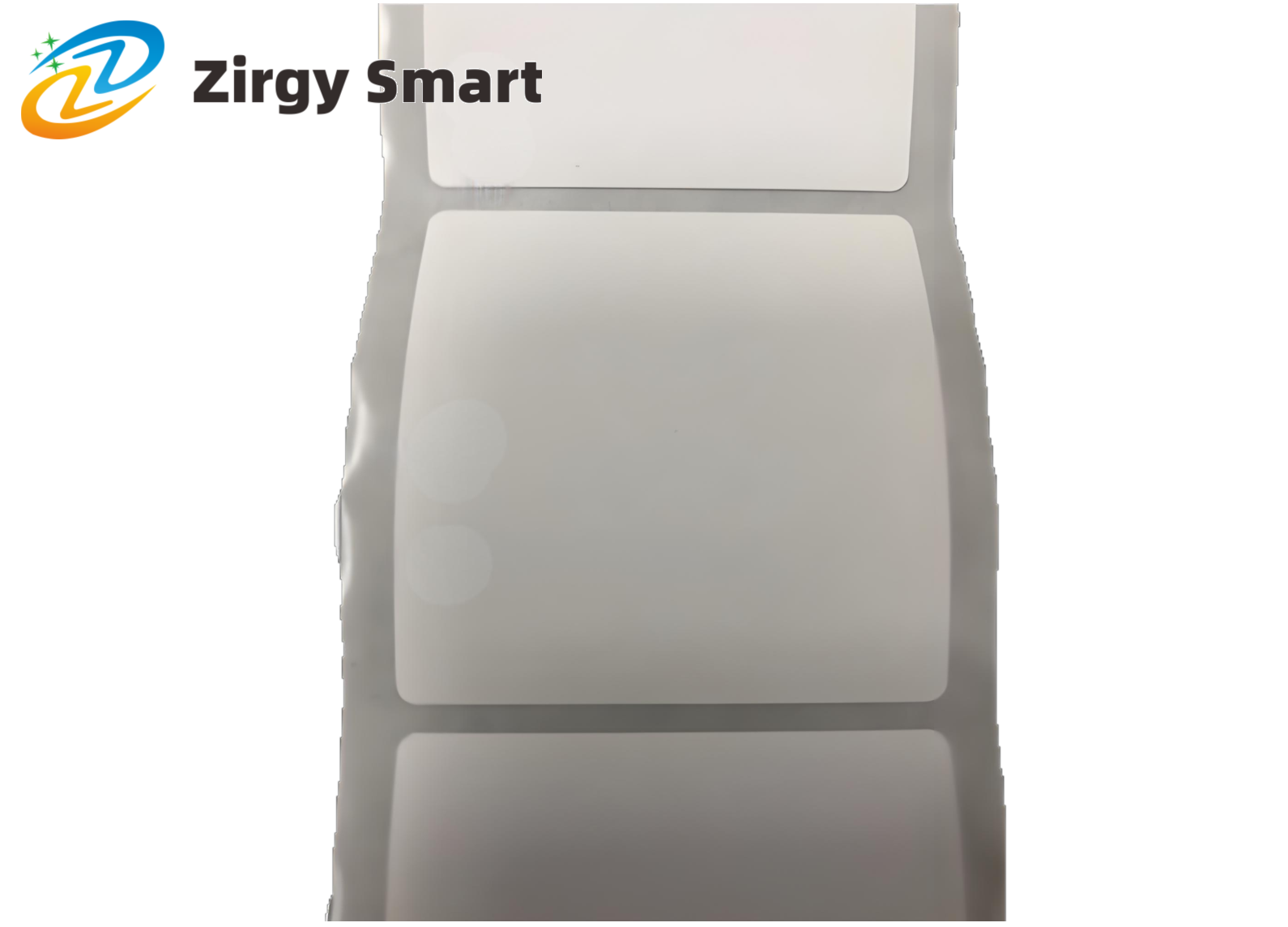

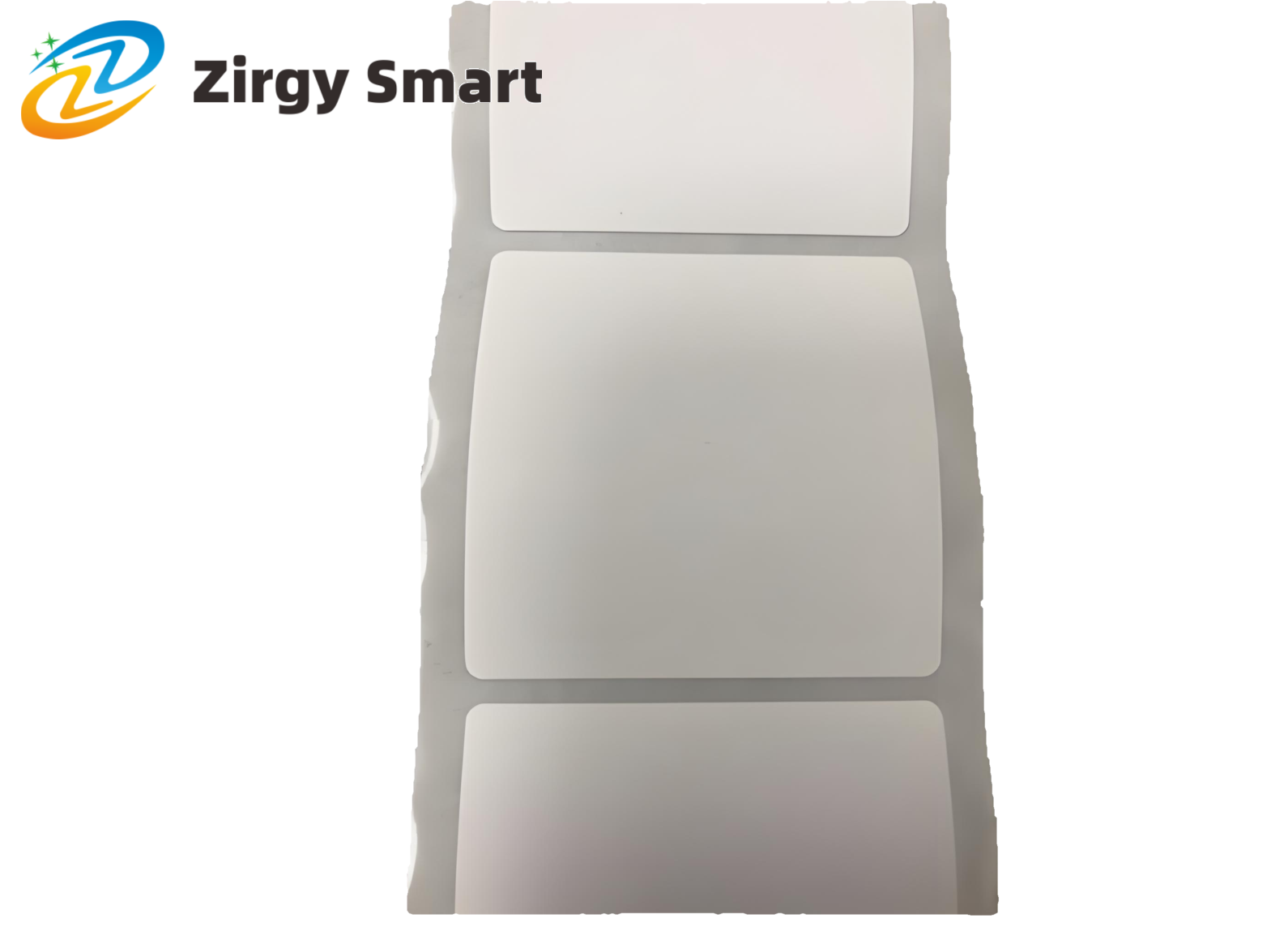

Real-shot display

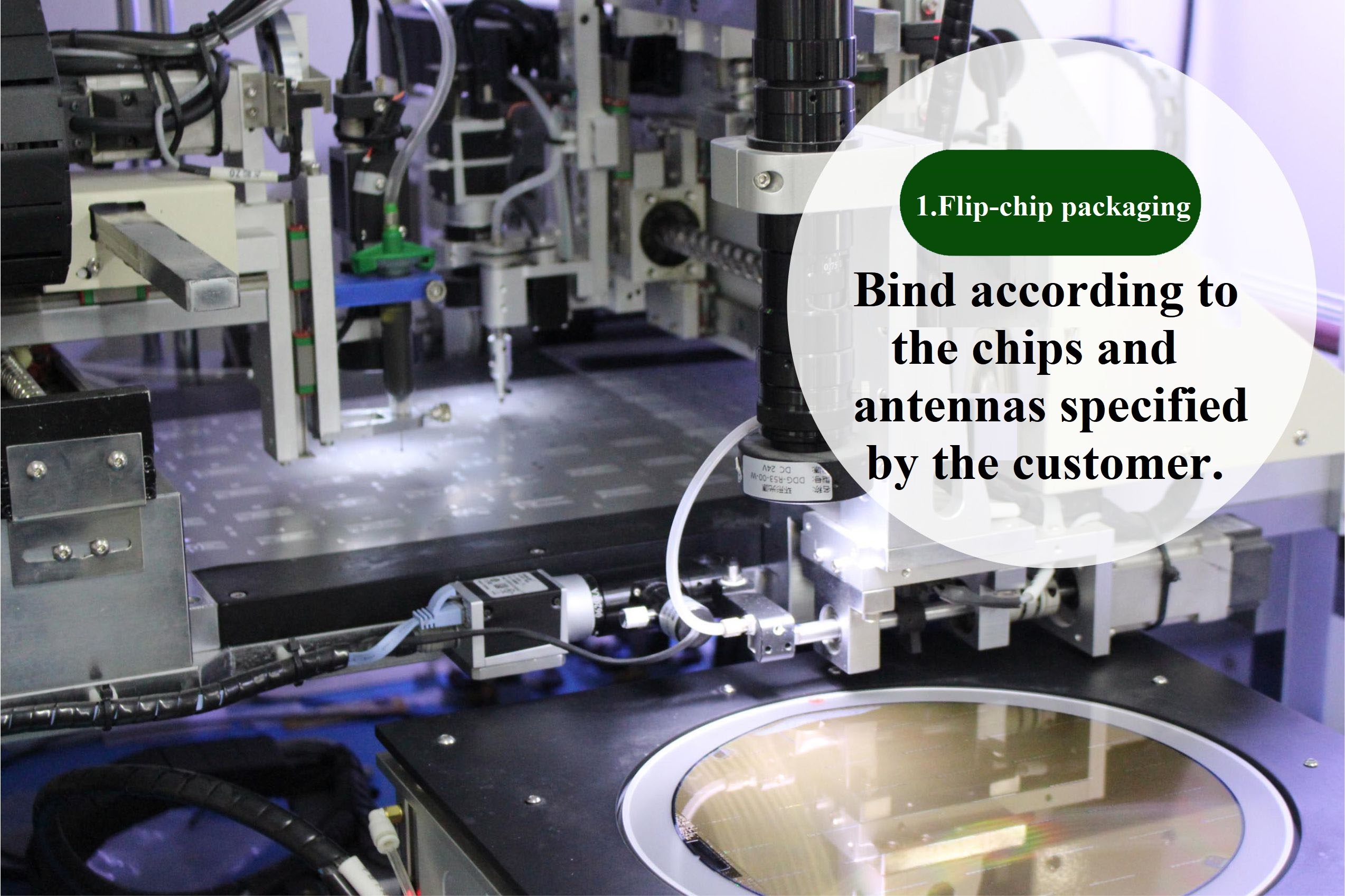

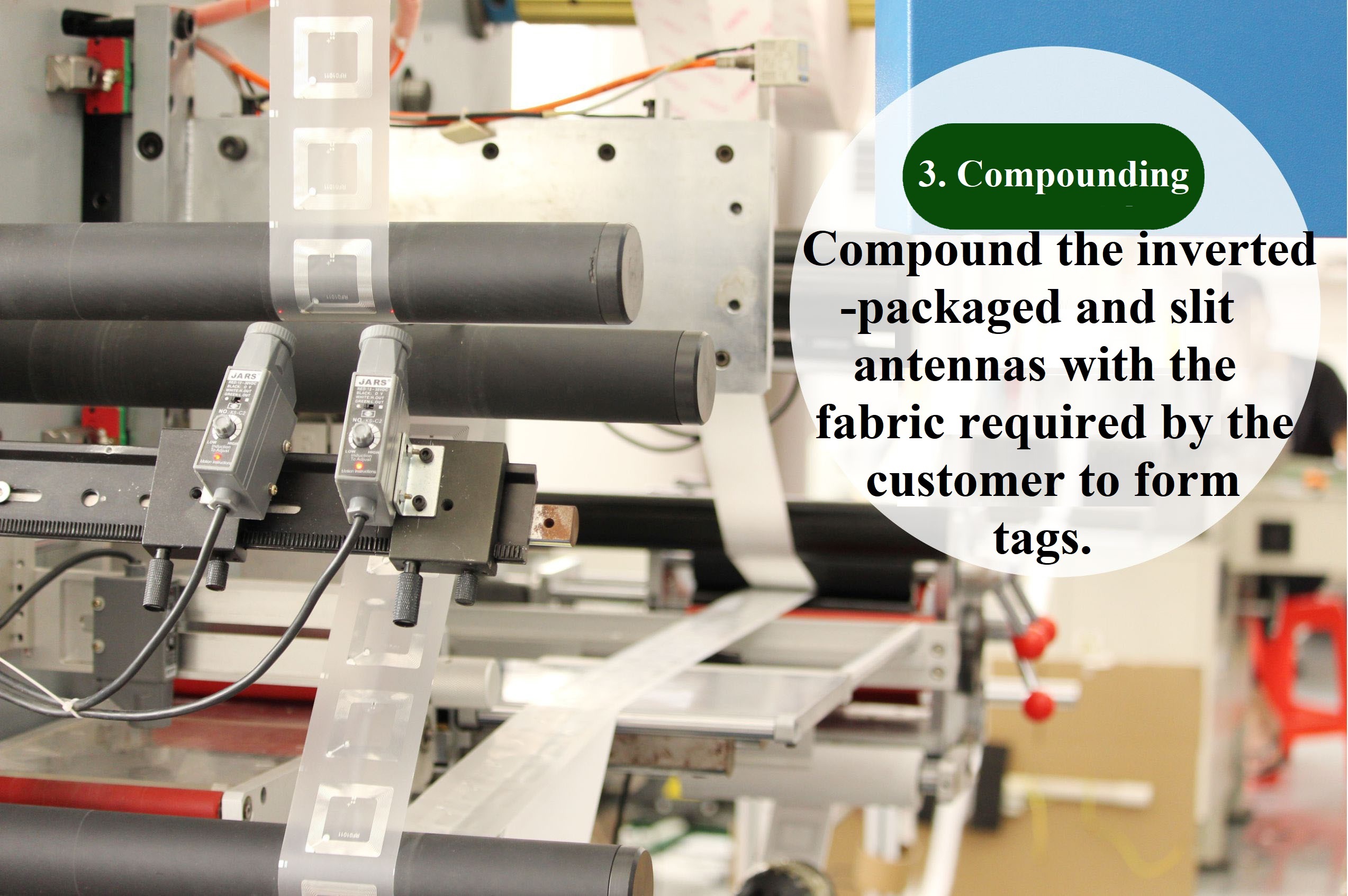

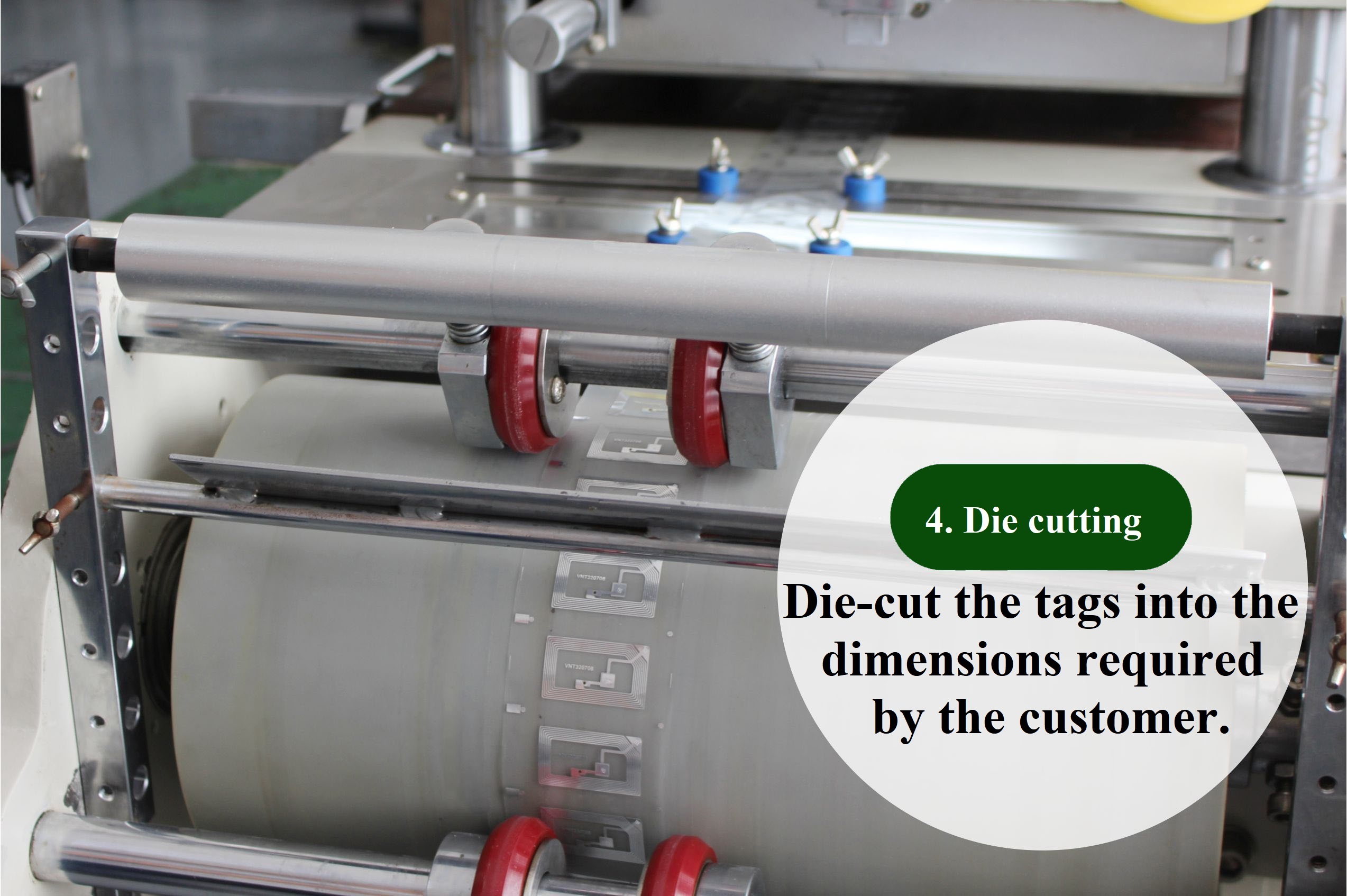

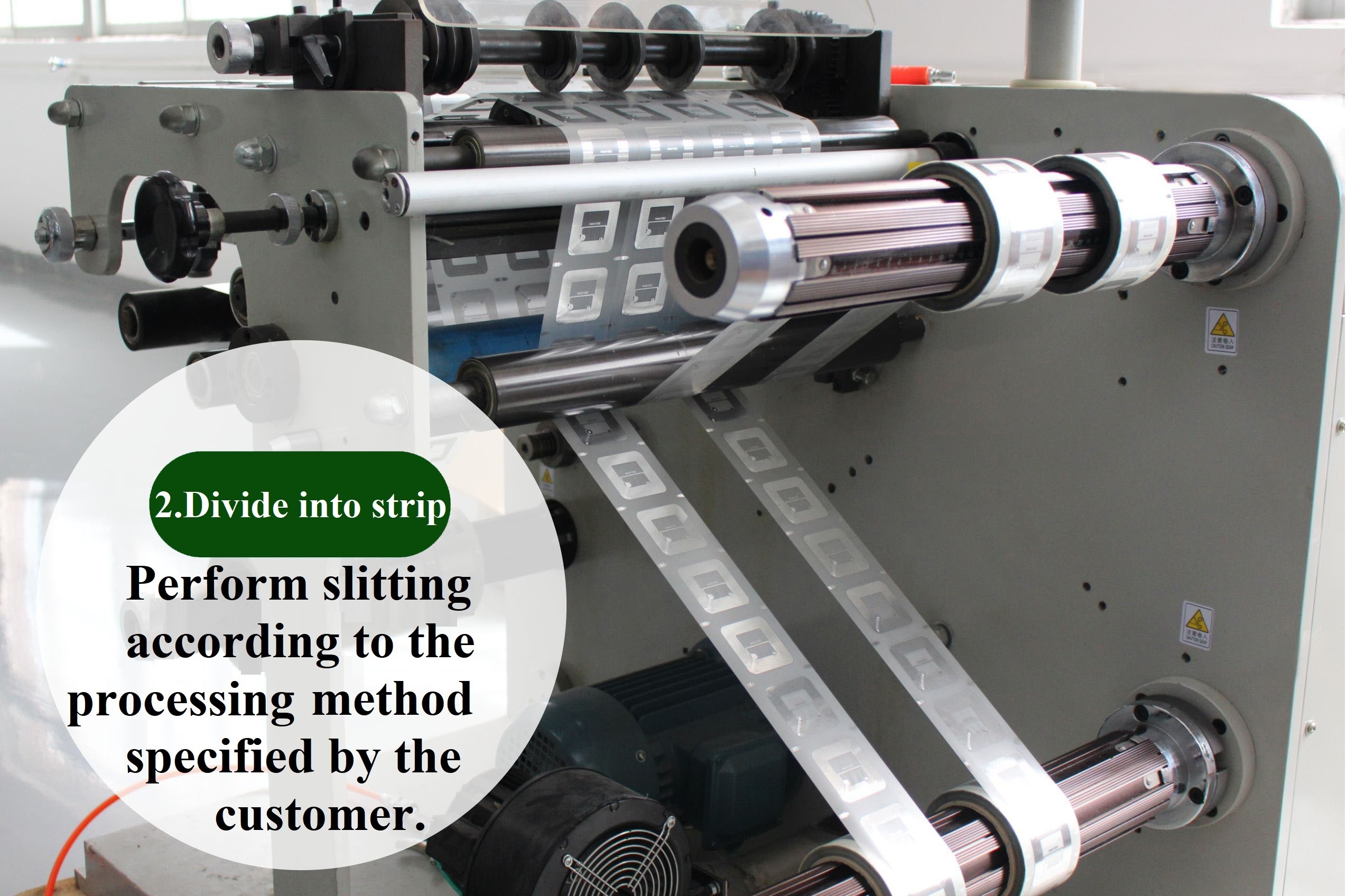

Ⅳ Production process - UHF fragile label H47(M4E) 50*50mm
