Ⅰ Chip features - high frequency fragile label FM1108 86*54mm
● Compliant with ISO/IEC 1443A
● Working efficiency 13.56MHz
● Communication baud rate 106kbit/s
● Non-contact data and energy transmission (no power required)
● Operating distance not less than 100m (related to antenna size)
● Half duplex communication mode
● Encryption algorithm conforms to M1 standard
● Typical processing time <100ms
Ⅱ Technical parameters -- high frequency fragile label FM1108 86*54mm
Name: High-frequency fragile label FM1108 86*54mm
Optional chip: FM1108
Antenna size: 76*45mm
Label size: 86*54mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 8Kbit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Ⅲ Product display -- High frequency fragile label FM1108 86*54mm
1.Sectional display
2.Real-shot display

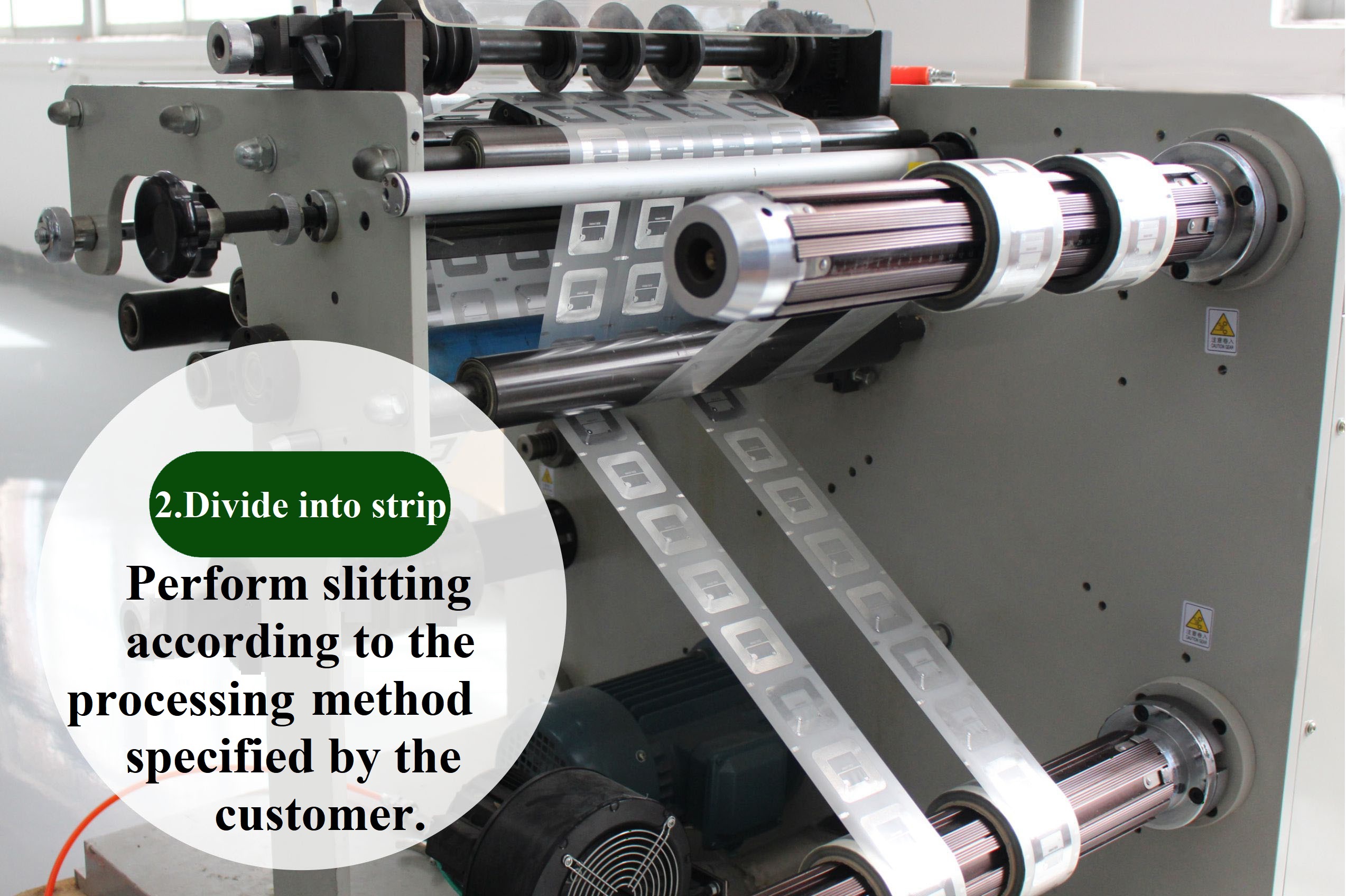

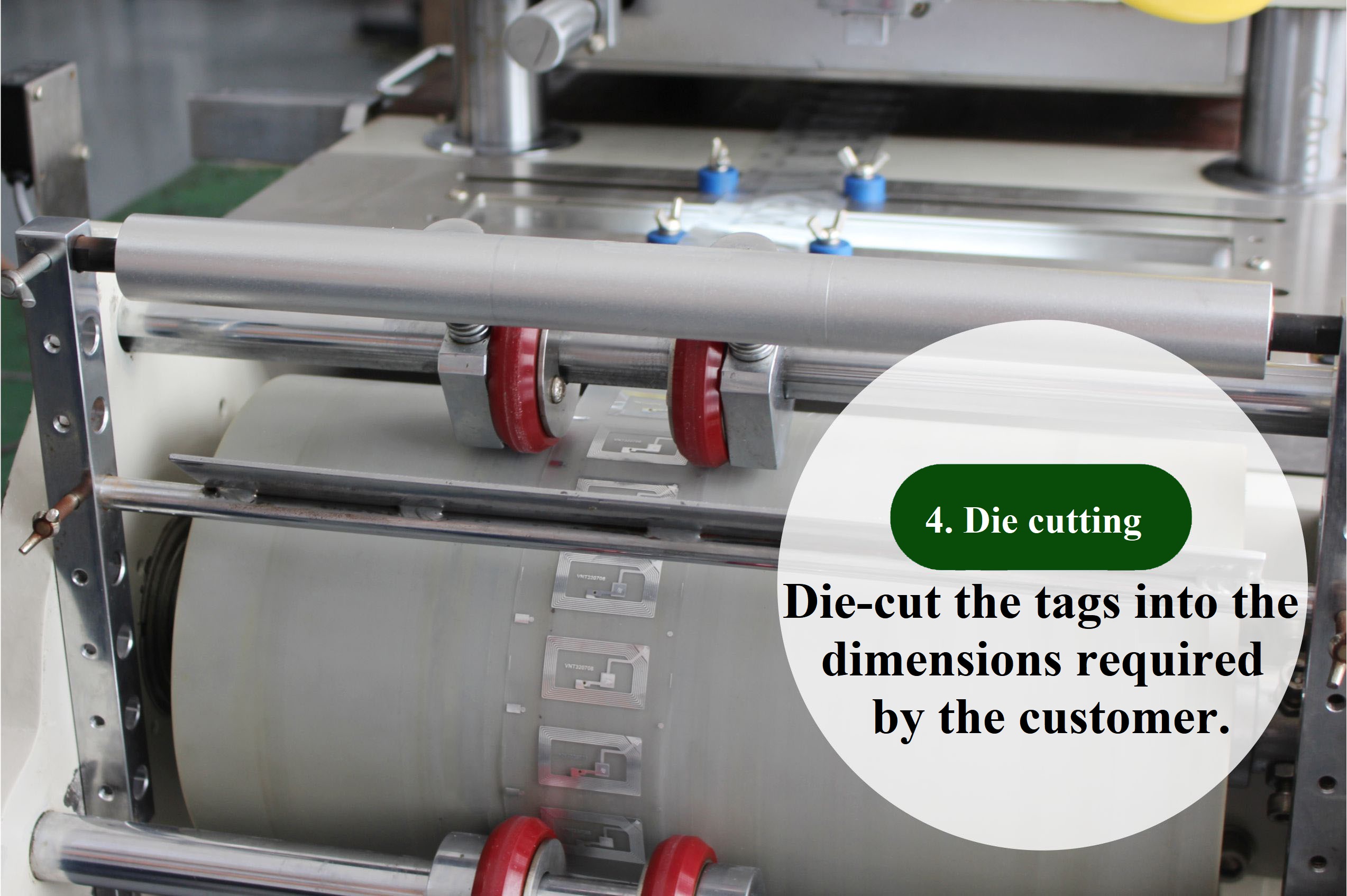

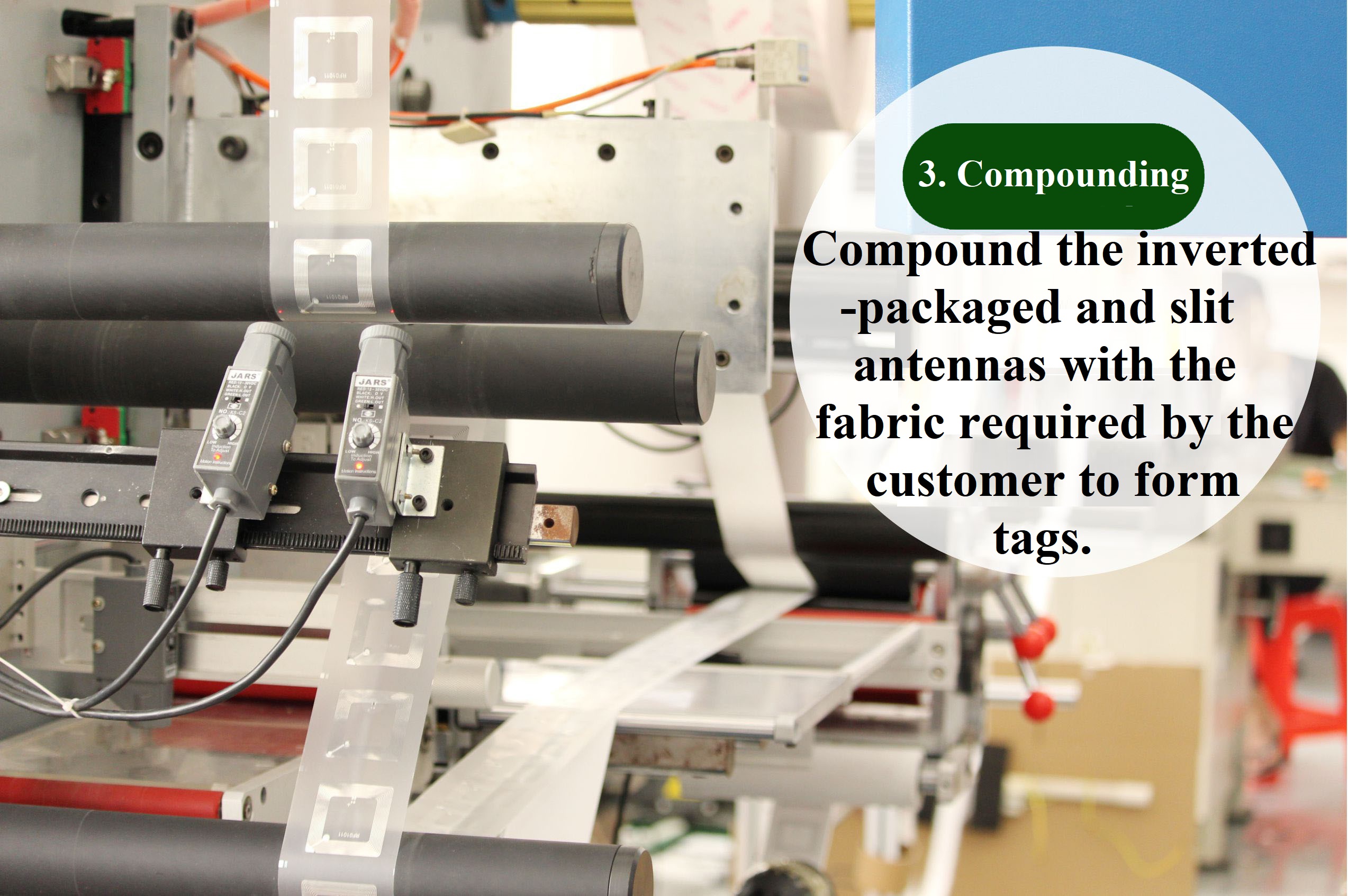

Ⅳ Production process -- high frequency fragile label FM1108 86*54mm
