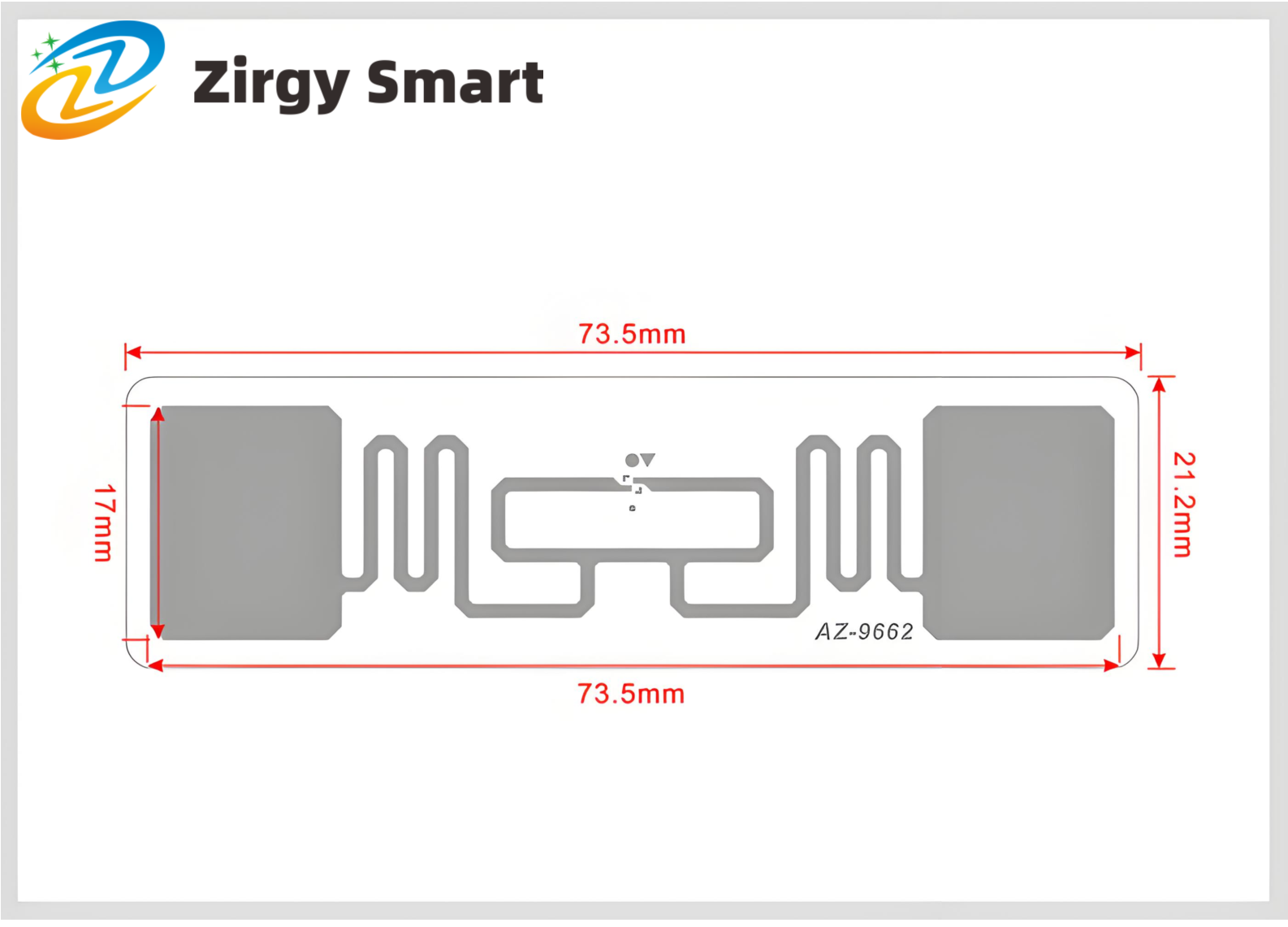

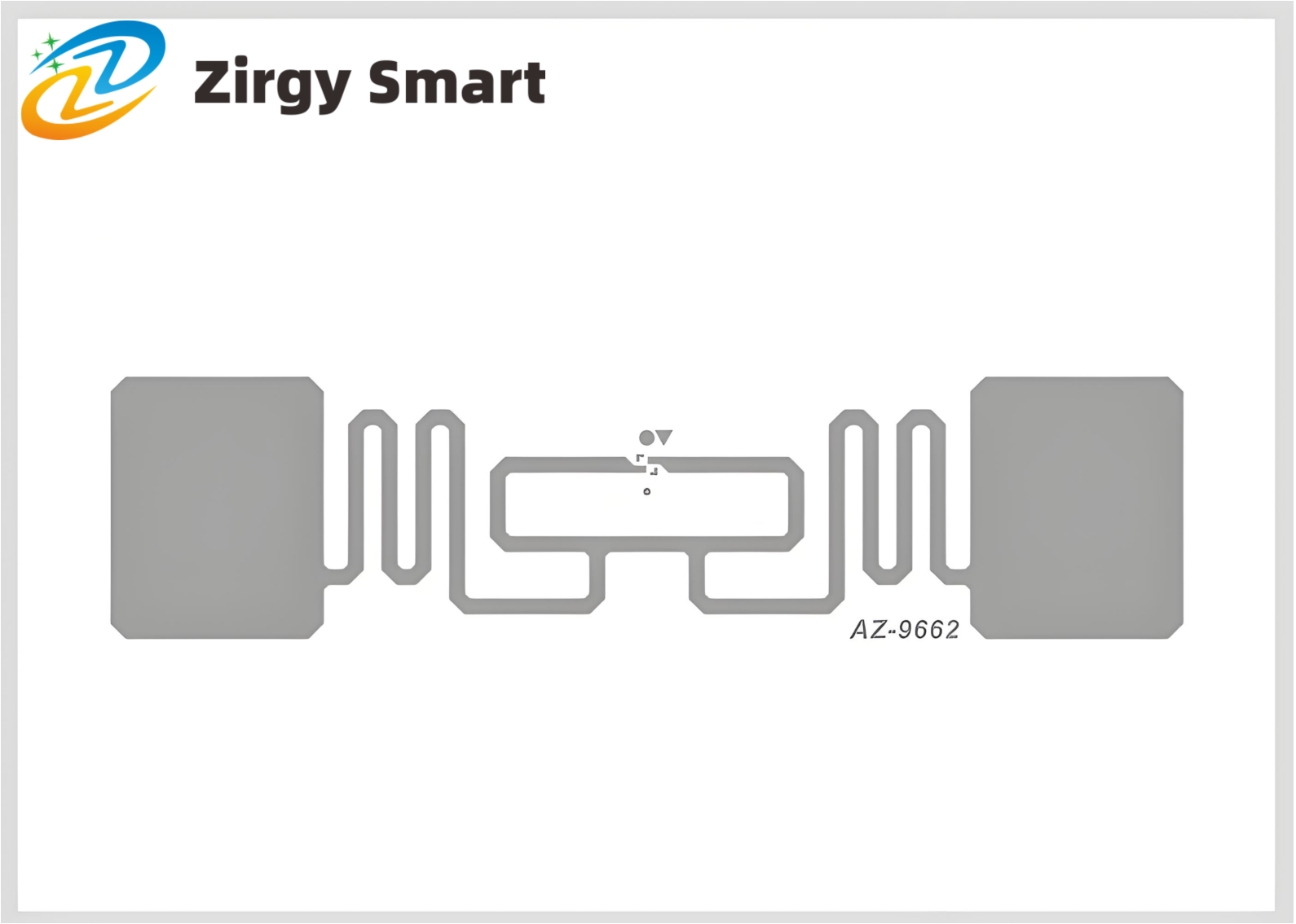

Ⅰ Chip features - ultra-high frequency fragile label AZ 9662 73*23mm

● Comply with EPC Gen2 (V1.2.0) and ISO/IEC18000-6C standards
● Universal label: operating frequency 860MHz-960MHz
●800 bit non-volatile memory
● 96-bit EPC
●512 bit User Memory
● 64-bit specific TID (unalterable)
● 32-bit access and confuse passwords
● Pre-programmed specific unchangeable 64-bit serial number
● User storage can be managed in 64-bit blocks and can be permanently locked and protected with access passwords
● Support for all mandatory and selectable commands, including single-level commands
● There are customized commands for high-speed data writing, and EPC codes of 30 labels can be written per second
● Low power read and write operations
● Excellent working distance, up to 10 meters with appropriate antennas

Ⅱ Technical parameters -- ultra-high frequency fragile label AZ 9662 73*23mm
