Ⅰ Product application——Flexible anti-metal tag, which can be printed with American standard/European standard
Name: flexible anti-metal tags, which can be printed with American standard/Eupopean standard ZJ-F2020
* Product certification
* Asset traceability
* Logistic traceability
* Expensive item anti-counterfeiting
* Medical asset management
* Product certification
* Asset traceability
* Logistic traceability
* Expensive item anti-counterfeiting
* Medical asset management
Ⅱ Main features——Flexible anti-metal tag, which can be printed with American standard/European standard
The flexible anti-metal label can be printed with American standards or European standards. The ZJ-F2020 model is compatible with the EPC Class1 Gen2 (ISO 18000-6C) standard. It is suitable for usage environments rich in metals and liquids. It can be encapsulated into any kind of printed labels, barcodes, or graphic labels. Its thin and light appearance, similar to that of paper, enables it to be easily attached to curved objects, such as cylinder bottles, pipelines, metal containers, and fixed assets.
Ⅲ Technical parameters——Flexible anti-metal tag, which can be printed with American standard/European standard
| Protocol | EPC Class1 Gen2; ISO18000-6C passive ultra-high frequency RFID tag |
| Operating frequency | 860-960 MHz |
| Chip type | Impinj Monza R6-P |
| Memory | 32-bit user memory 48-bit serialized TID 128-bits EPC |
| Application temperature | -40°F to +185°F (-40°C to + 85°C) |
| Operating temperature | -40°F to +185°F (-40°C to + 85°C) |
| Weight (pcs) | 0.125 kg (500 pcs) |
| Dimension / Tolerance(mm) | 20(+/- 1) x 20(+/- 0.8) x 0.85(+/- 0.1) |
| The width of the web | 22(+/- 1)mm |
| Tag | 25(+/- 0.8)mm |
| Dimensions of blank area between tags | 10(+/- 0.1)mm |
| Dimension of R-corner | 1.5(+/- 0.2)mm |
| Printing performance | Excellent |
| Reading distance on metal surface | 0.5m |
| Reading distance on liquid surface | 0.5m |
| Surface material | White PET |
| Colour standard | White |
| Adhesive backing material | High intensive adhesive backing |
| Standard packaging | 500 pieces per roll |
| Inner core diameter | 3 in (76.2 mm) |
| Outer roll diameter | 3 in (76.2 mm) |
| Outer roll diameter | 8 in (203 mm) |
| Supported printer | Zebra RZ400/R110Xi4, SATO CL4NX,Toshiba SX-5 |
Ⅳ Product display——flexible anti-metal tag, which can be printed with American standard/European standard

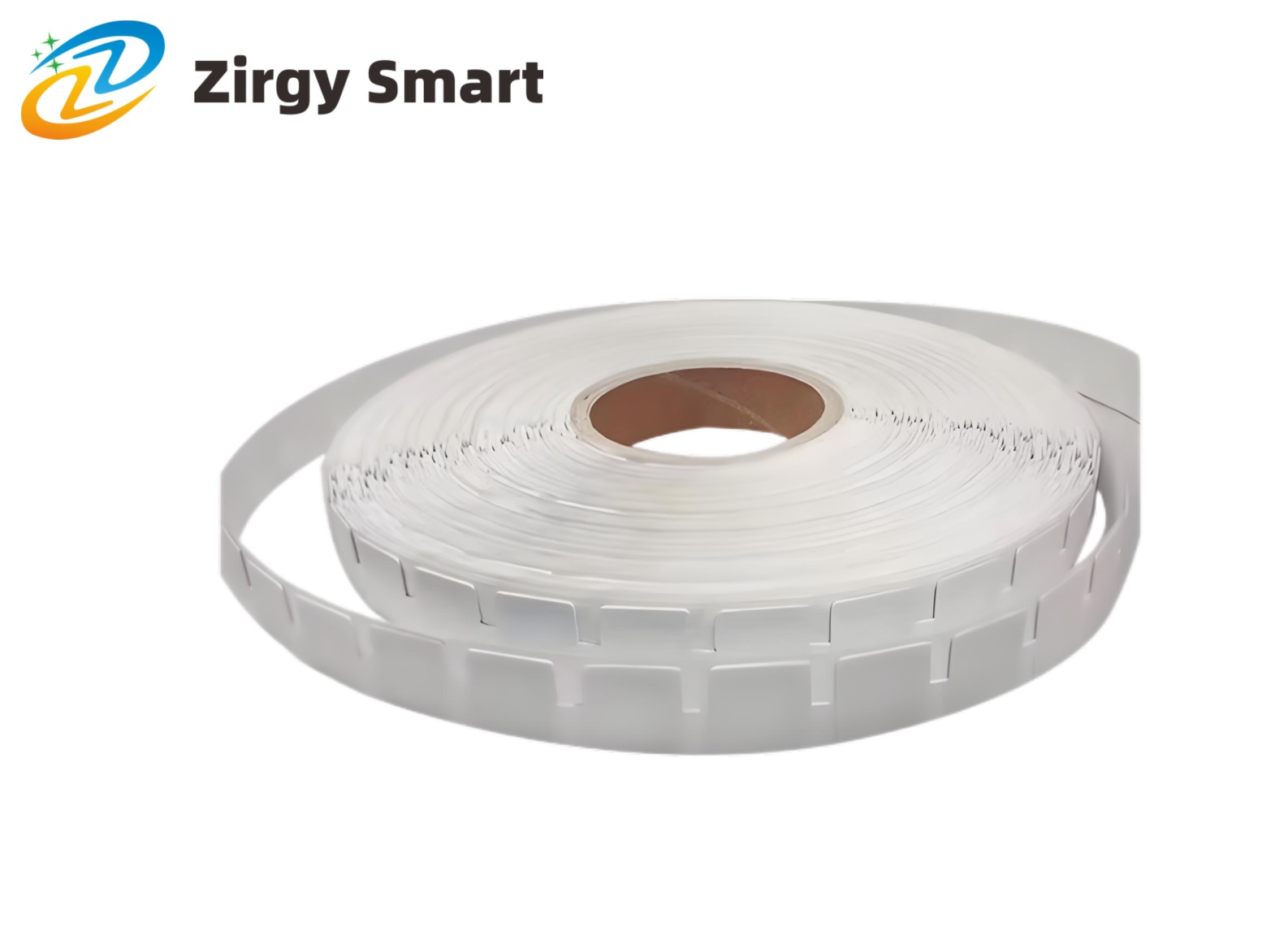

Real-shot display
