Ⅰ Technical parameters -- State Grid power RFID tag
Name: State Grid power RFID tag ZJ7025
Label parameter

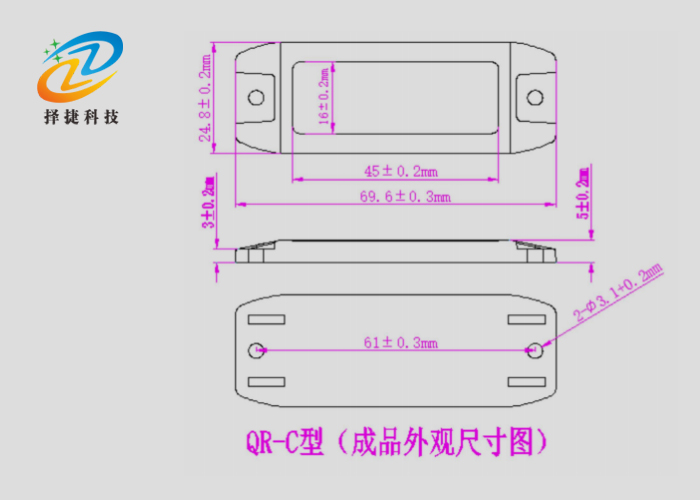

Label size: 69.6 x 24.8 x 5mm
Antenna size: 92.5*18.8mm(±0.2mm)
Label material: PC plastic
Antenna material: PI copper
Operating frequency: 915MHZ~930MHZ
Working agreement: ISO 18000-6C
Tag chip: ZJXP21
Chip memory capacity: EPC:256 bits/ TID: 96 bits/ USER: 64 1920bit
Working mode: Check or read and write
Reprogramming: 100,000 times
Stored: 10 years
Operating temperature: -40℃~85℃
Shipment quantity: depends on actual demand
Reading distance test: A reader using Tagformance-Read Range with antenna port conduction power of 29.15dBm, antenna gain of 6dBi, receiving sensitivity < -75 DBM at the antenna end of the reader, linearly polarized antenna, Label sensitivity ≤ -10dbm in standard camera obscura environment.
Ⅱ Installation test method -- State Grid power RFID tag
1: The label is attached to the metal plate for testing. Metal plate thickness ≥1.0mm; Metal plate size 20cm*20cm
2: Full plate adhesive test on the back of the label (double-sided adhesive model: 3M 5952 / thickness: 1.0mm), the label is attached to the metal plate for testing. Metal plate thickness ≥1.0mm; Metal plate size 20cm*20cm.
Ⅲ Product display -- State Grid power RFID tag
