Ⅰ Technical parameters - UHF anti-metal label
Name: UHF anti-metal tag ZJ6019
Chip type: Alien Higgs-4
Label size: 60*19mm
Label thickness: 4.8mm
Communication protocol: EPC Class1 Gen2,ISO18000-6C
Storage: EPC 128bits, USER128bits,TID64bits
Function: Read/write (user programmed)
Operating frequency: (US standard) 902-928MHz, (European standard) 865-868MHz
Data retention: 50 years
Application surface: metal surface
Reading distance (4 W fixed machine) : 6.3 m (US standard 902-928MHz), metal surface; 6.5 m (Euro 865-868MHz), non-metal surface
Reading distance (2-watt handheld) : 4.5 m (US standard 902-928MHz), metal surface; 4.6 m (Euro 865-868MHz), non-metal surface
Material: PPS
Installation method: Back glue or screw
Weight: 13 grams
Warranty period: One year
Write times: 100,000 times
Storage temperature: -55℃ to 200℃
Operating temperature: -40℃ to 150℃
Waterproof and dustproof class: IP67
Certification: Reach certification, RoHS certification, CE certification
Chip type: Alien Higgs-4
Label size: 60*19mm
Label thickness: 4.8mm
Communication protocol: EPC Class1 Gen2,ISO18000-6C
Storage: EPC 128bits, USER128bits,TID64bits
Function: Read/write (user programmed)
Operating frequency: (US standard) 902-928MHz, (European standard) 865-868MHz
Data retention: 50 years
Application surface: metal surface
Reading distance (4 W fixed machine) : 6.3 m (US standard 902-928MHz), metal surface; 6.5 m (Euro 865-868MHz), non-metal surface
Reading distance (2-watt handheld) : 4.5 m (US standard 902-928MHz), metal surface; 4.6 m (Euro 865-868MHz), non-metal surface
Material: PPS
Installation method: Back glue or screw
Weight: 13 grams
Warranty period: One year
Write times: 100,000 times
Storage temperature: -55℃ to 200℃
Operating temperature: -40℃ to 150℃
Waterproof and dustproof class: IP67
Certification: Reach certification, RoHS certification, CE certification
Ⅱ Product display -- UHF anti-metal label

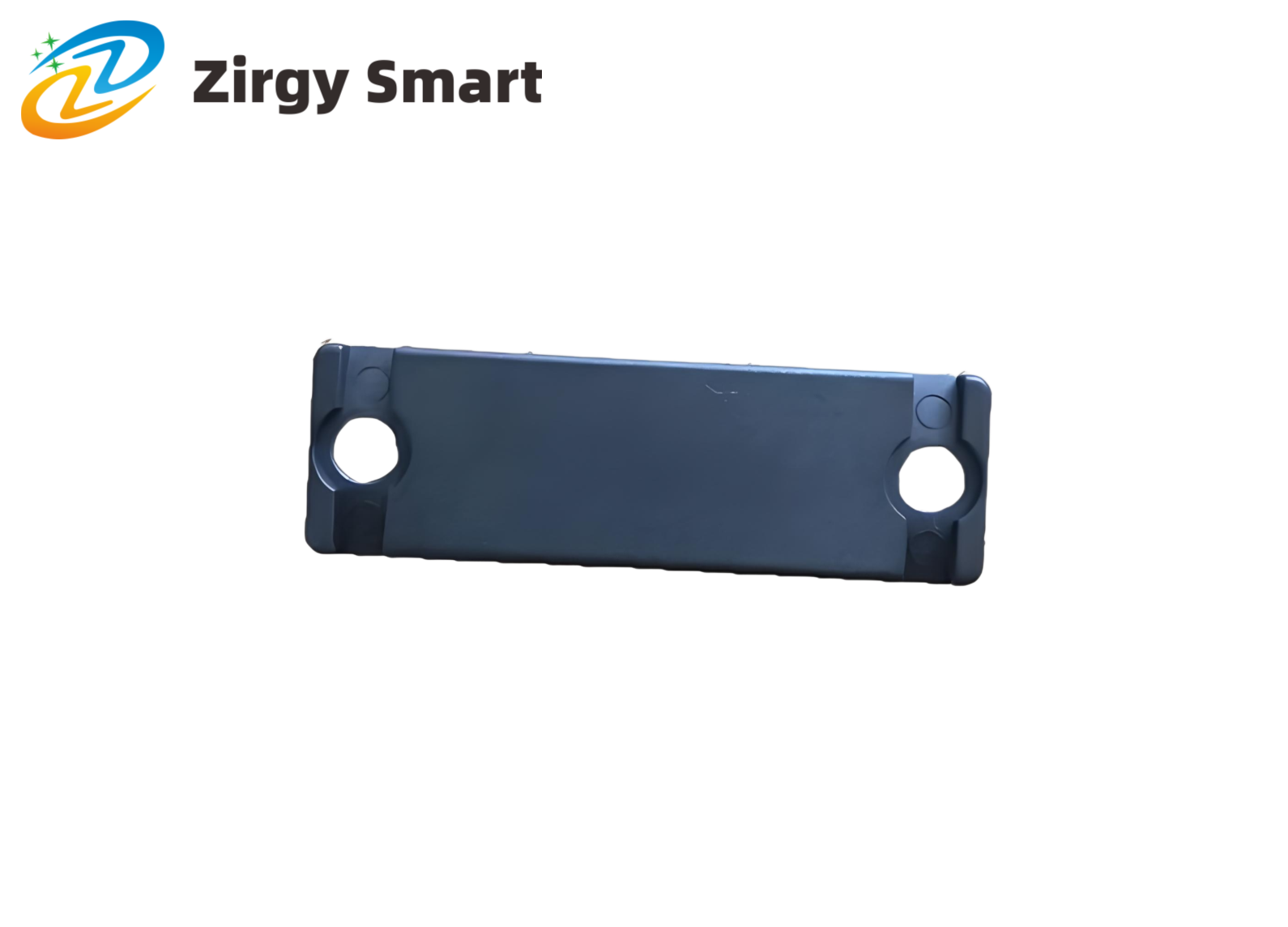

Real-shot display
