Ⅰ Product Overview -- ABS anti-metal label ZJ13522
Name: ABS anti-metal label ZJ13522
ABS anti-metal label ZJ13522 adopts ABS injection molding package, moisture-proof, waterproof, suitable for asset management, manhole cover management, mold management and so on.
ABS anti-metal label ZJ13522 adopts ABS injection molding package, moisture-proof, waterproof, suitable for asset management, manhole cover management, mold management and so on.
Ⅱ Product features -- ABS anti-metal label ZJ13522
* Universal label, operating frequency 860~960MHz
* Comply with EPC Class1 Gen2 technical specifications
* Can work on metal surface
Ⅲ Product application -- ABS anti-metal label ZJ13522
It can be packaged into different colors of anti-metal adhesive labels according to customer requirements
Can be used for logistics, warehousing and asset management, can be used for power inspection, urban manhole cover management
Common chip frequency:
Ultra-high frequency (Dry inlay H3-9640)
Ultrasonic package, 3M double-sided adhesive
Ⅳ Technical parameters -- ABS anti-metal label ZJ13522
| Product model | ZJ13522 |
| Chip type | H3, etc. |
| Operating frequency | 860-960MHz |
| Protocol standard | ISO18000-6C，EPC-Gen2 |
| Read-write times | More than 1,000,000 times |
| Dimensions (customizable) | 134.5*21.5*12.5mm |
| Material | ABS |
| Colour (customizable) | Black |
| Operating frequency | 860-960MHz |
| Chemical resistance | Meet IP67 standard, waterproof, sun protection |
| Antistatic | Prevent electrostatic breakdown, withstand voltage above 5000V |
| Operating temperature | -20℃ - 75℃ |
| Storage temperature | -40℃ - 90℃ |
| Useful life | More than 10 years |
| Installation method | Back adhesive (pressure sensitive adhesive /3M adhesive) or screws fixed |
| Large read distance | 2-10CM (HF), 2-10M (UHF) |
| Weight | 15±0.1g |
ⅤProduct display -- ABS anti-metal label ZJ13522

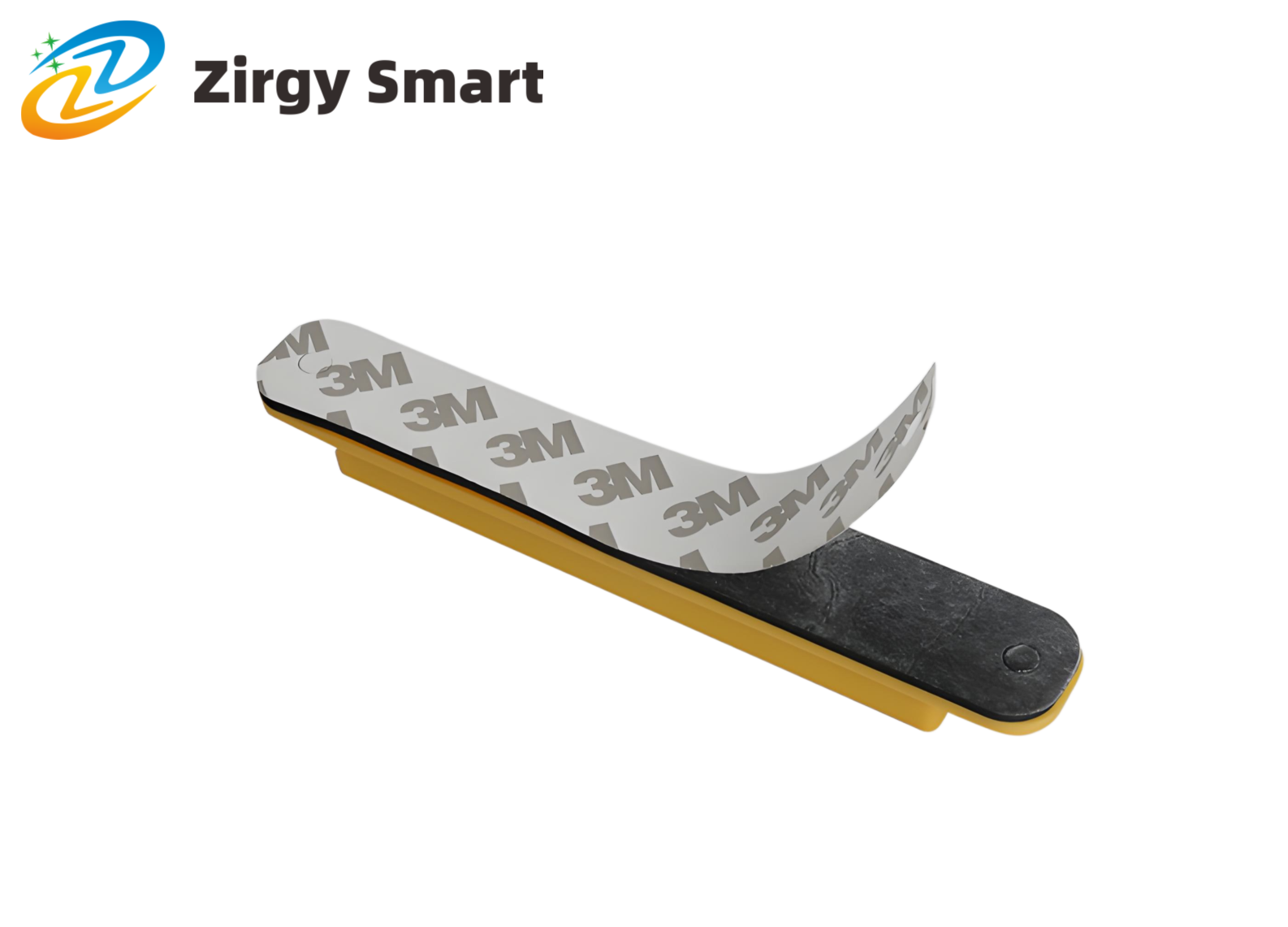

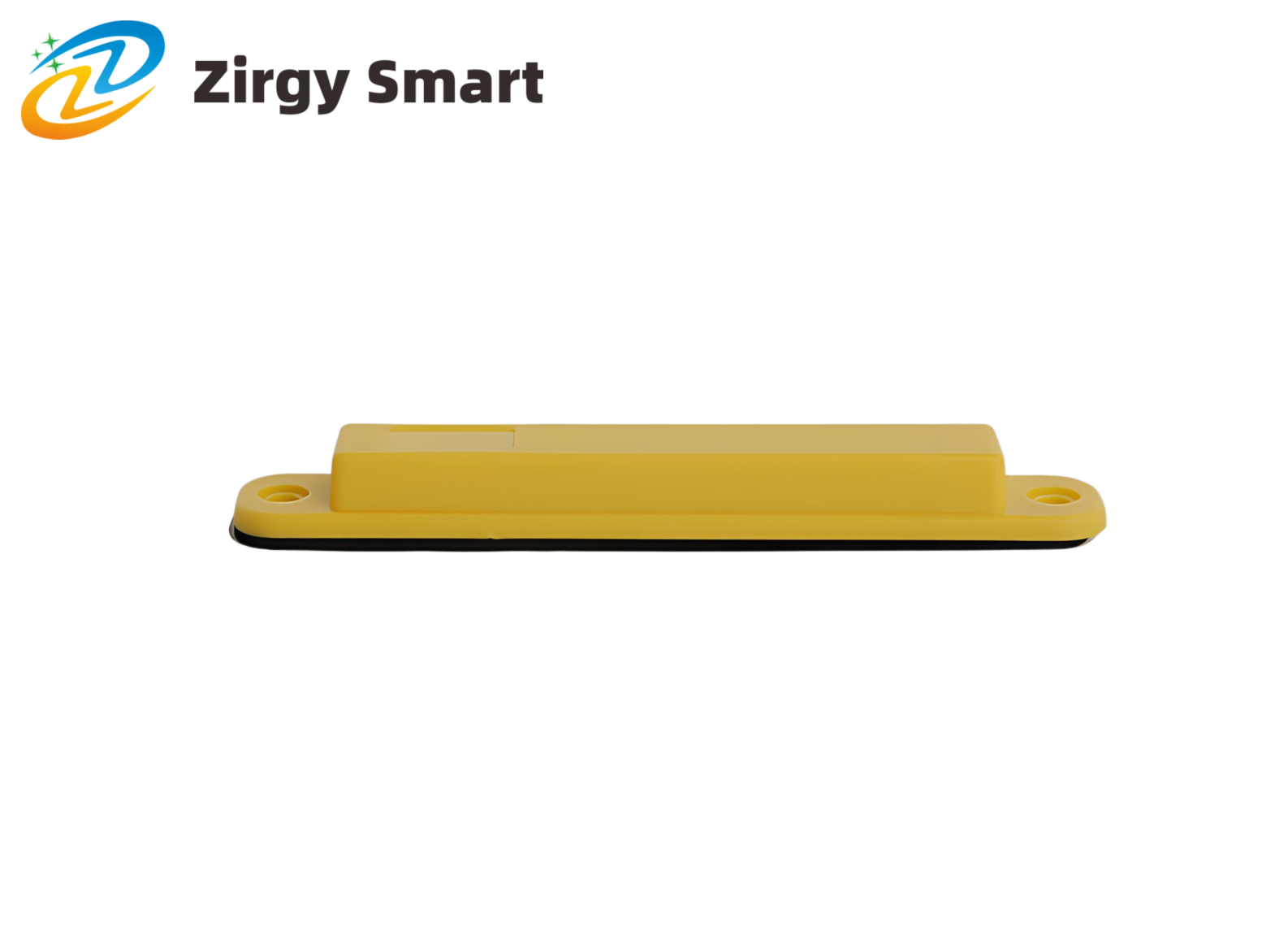

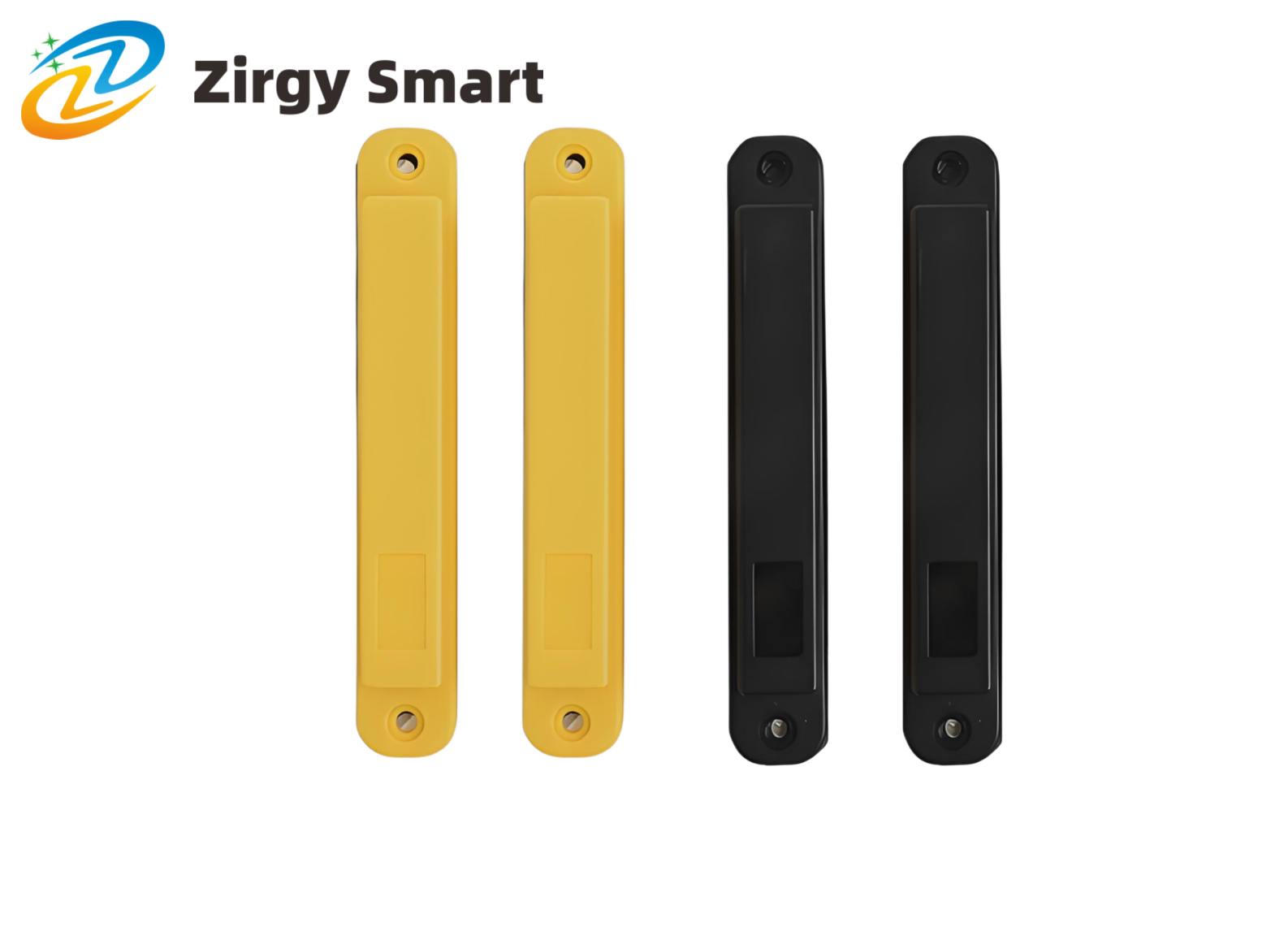

Real-shot display
