Ⅰ Product features - PPS high temperature washing electronic label
Name: PPS high temperature washing electronic label RI-X008 Diameter 25.5mm
* Excellent environmental adaptability
* It has the characteristics of high sensitivity, strong anti-interference ability, and excellent multi-label read and write performance
Ⅱ Product Description -- PPS high temperature washing electronic label
PPS High temperature washing electronic label RI-X008 Adopts PPS plastic packaging electronic label, with high temperature resistance, flame retardant, chemical corrosion resistance, wear resistance and many other advantages. Widely used in laundry, high-grade clothing, school uniforms, special clothing, clothing production management, product tracking, warehouse inventory, automotive engine maintenance signs, chemical raw material management and other harsh environments. The label is extremely thin and can be sewn in a small cloth bag or directly on the textile to be managed, and the sewing position is easy to find.
Ⅲ Product parameters -- PPS high temperature washing electronic label
| Chip | Alien H3 |
| Memory size | EPC memory 96 bits, User memory 512 bits |
| Protocol | ISO 18000-6C, EPC Class 1 Gen 2 |
| Frequency | 860～960MHZ |
| Read distance | More than 2m (depending on read-write device) |
| Dimensions | Diameter 25.5mm, thickness 2.7mm |
| Weight | 2.2g |
| Material | PPS |
| Temperature | Storage: -40℃ to +100℃, 10% to 95% (RH) Operating: -20℃ to +85℃, 10% to 95% (RH) |
Ⅳ Product display -- PPS high temperature washing electronic label

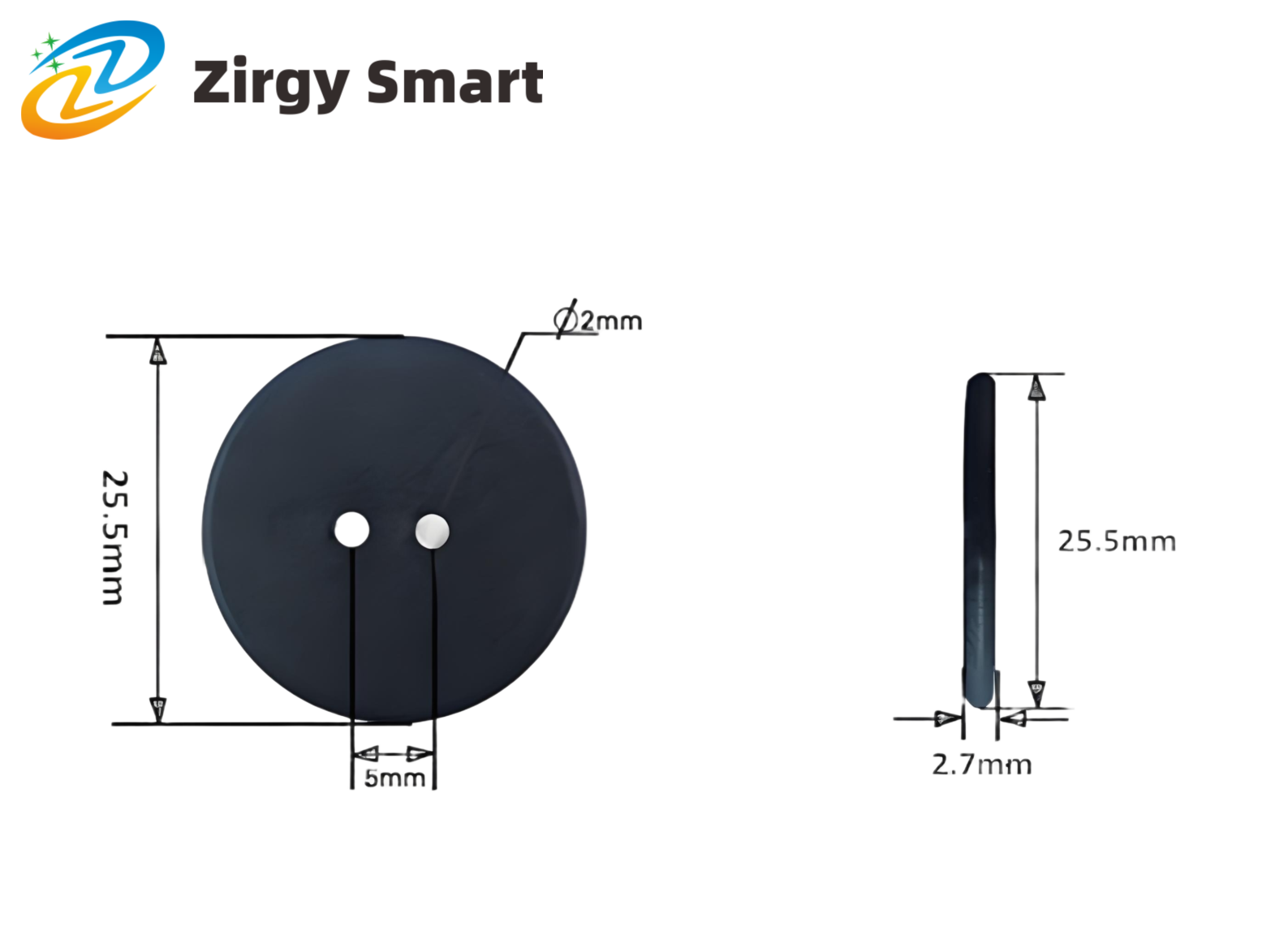

1.Sectional picture

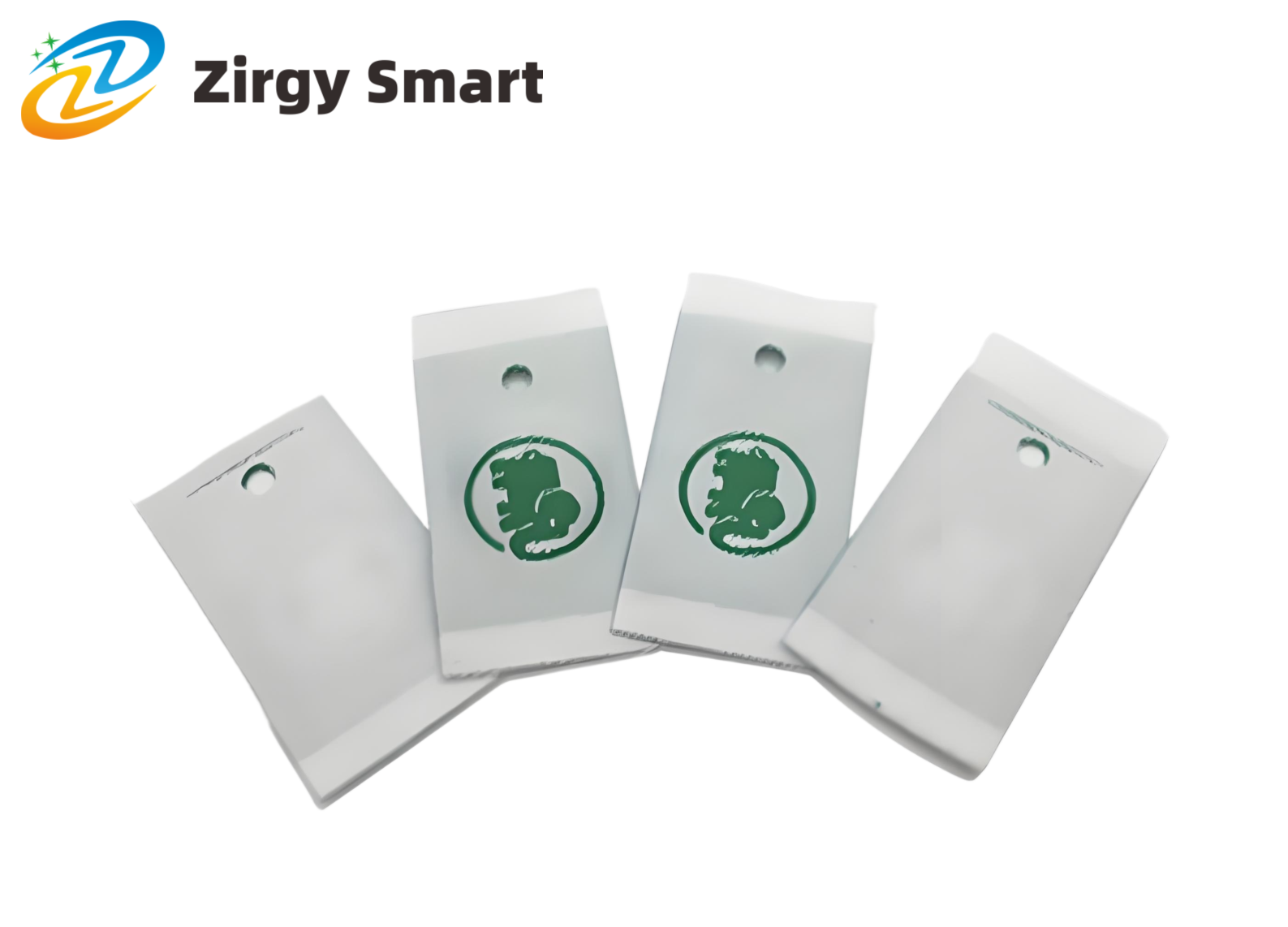

2.Real-shot display
