I Chip features -- NFC electronic tag Ntag216

● Contactless energy and data transmission
● Working efficiency 13.56MHz
● Data transmission rate is 106kbit/s
● Data integrity is 16-bit CRC, parity check, bit coding, bit counting
● Working distance up to 100 mm (depending on various parameters such as field strength and antenna geometry)
●7 byte serial number (according to ISO/IEC14443-3 protocol)
● UID ASCⅡ image for automatic serialization of NDEF messages
● Trigger an automatic NFC counter when reading a command
The FAST READ feature allows scanning full NDEF messages with a single fast-read command, reducing overhead in high-throughput production environments

II Technical parameters -- NFC electronic tag Ntag216

Name: NFC electronic tag Ntag 216 56mm x 18mm
Optional chip: NTAG216
Antenna size: None
Label size: 56mm x 18mm
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -10℃-65℃

III Product display -- NFC electronic tag Ntag216

1.Sectional display

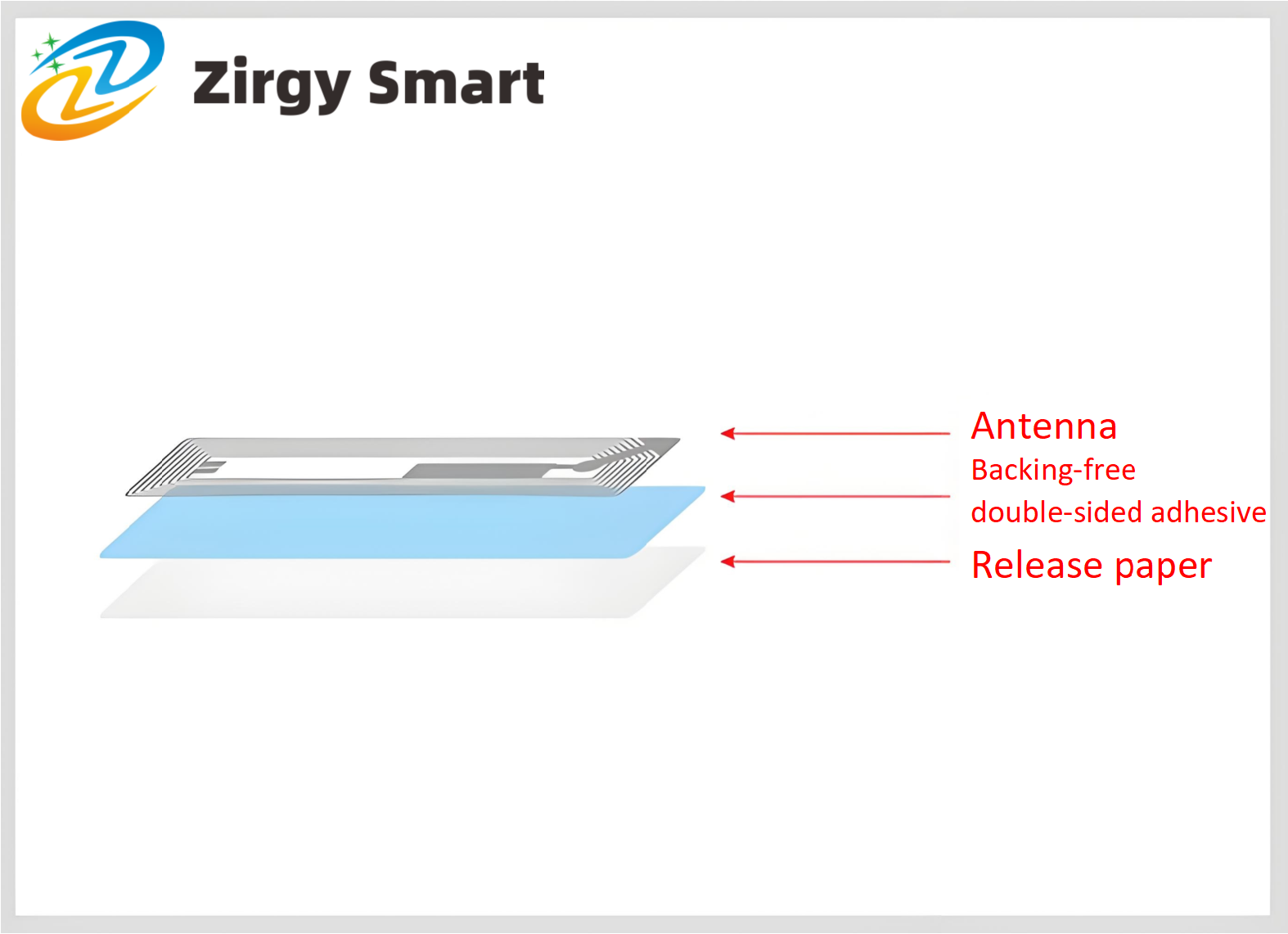

NFC electronic tag Ntag 216 56*18mm analysis Figure 1

NFC electronic tag Ntag 216 56*18mm analysis Figure 2

NFC electronic tag Ntag 216 56*18mm analysis Figure 3

2.Real-shot display

NFC electronic tag Ntag 216 56*18mm real shot display Figure 1

NFC electronic tag Ntag 216 56*18mm real shot display Figure 2

NFC electronic tag Ntag 216 56*18mm real shot display Figure 3

NFC electronic tag Ntag 216 56*18mm real shot display Figure 4

NFC electronic tag Ntag 216 56*18mm real shot display Figure 5

IV Production process -- NFC electronic tag Ntag216

NFC electronic label Ntag 216 56*18mm production process inverted packaging diagram

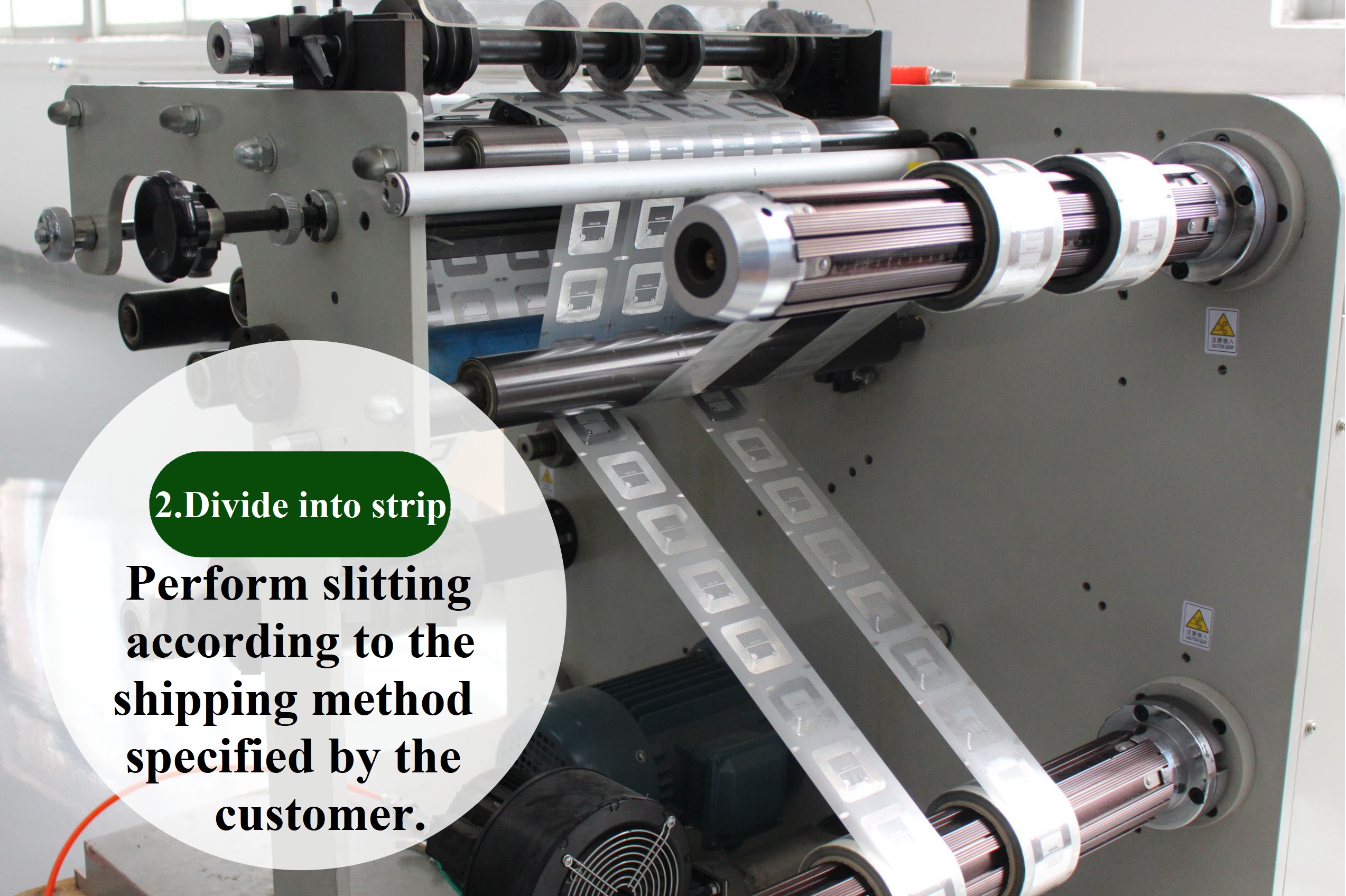

NFC electronic label Ntag 216 56*18mm production process strip diagram

Composite diagram of NFC electronic tag Ntag 216 56*18mm production process

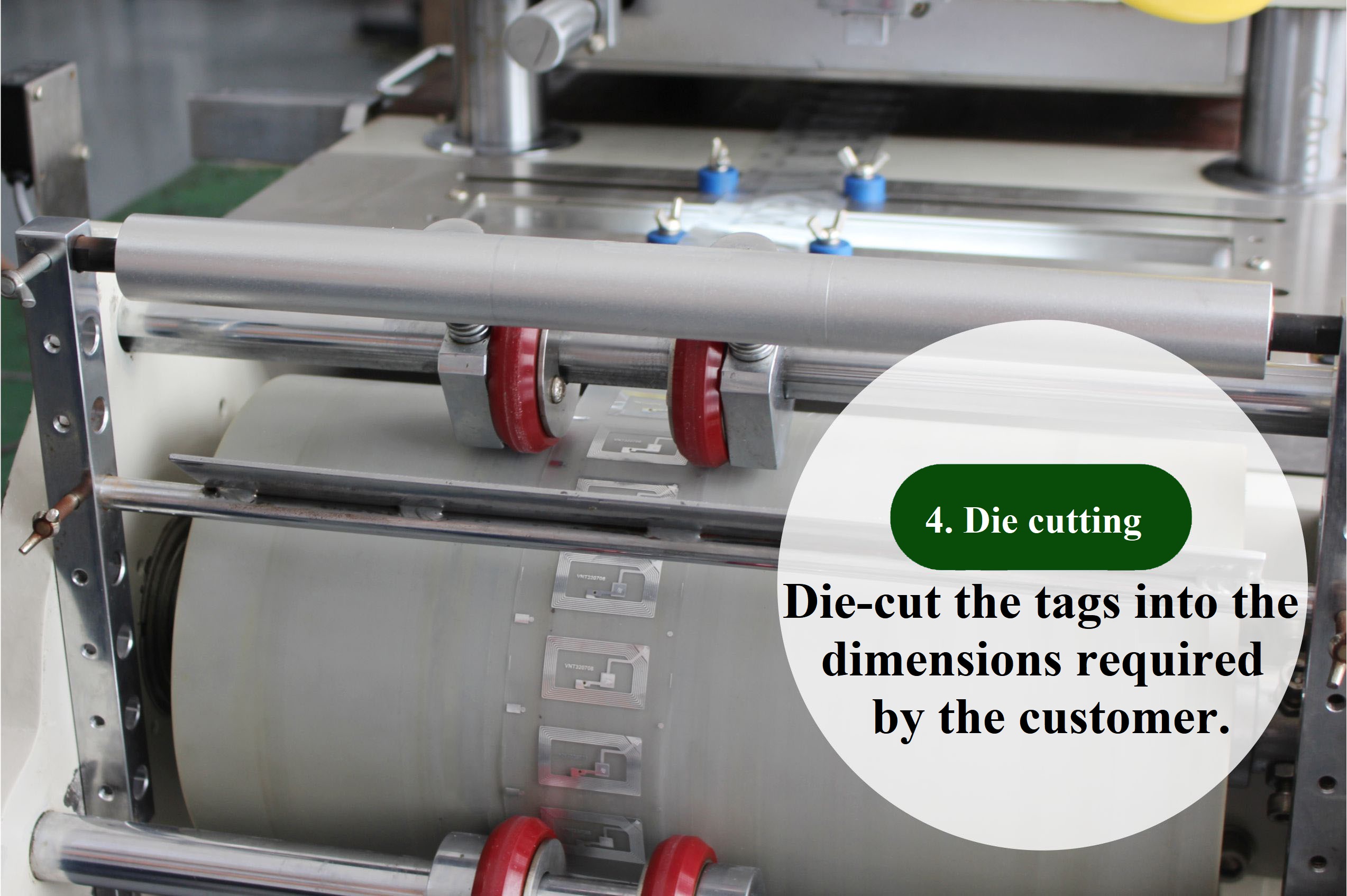

NFC electronic label Ntag 216 56*18mm production process die-cutting diagram
