Ⅰ Chip features——Dry inlay HF I-code X 45*45mm
● Non-contact data and energy transmission (no power required)
● Operating frequency: 13.56MHz
● Working distance: up to 1.5m (depending on antenna geometry)
● Fast data transfer: up to 53kbit/s
● High data integrity: 16-bit CRC, frames
● True collision resistance
● Password Protected Electronic Goods (EAS)
● Password Protected Application Series Identifiers (AFI)
● Data Storage Format Identifier (DSFID)
Ⅱ Technical parameters -- Dry inlay high frequency I-code X 45*45mm
Name: Dry inlay High Frequency I-code X 45*45mm
Optional chip: I code X
Antenna size: 45*45mm
Label size: None
Communication protocol: 15693 protocol
Operating frequency: 13.56MHz
Storage capacity: 1024bit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-75℃
Ⅲ Product display -- Dry inlay high frequency I-code X 45*45mm

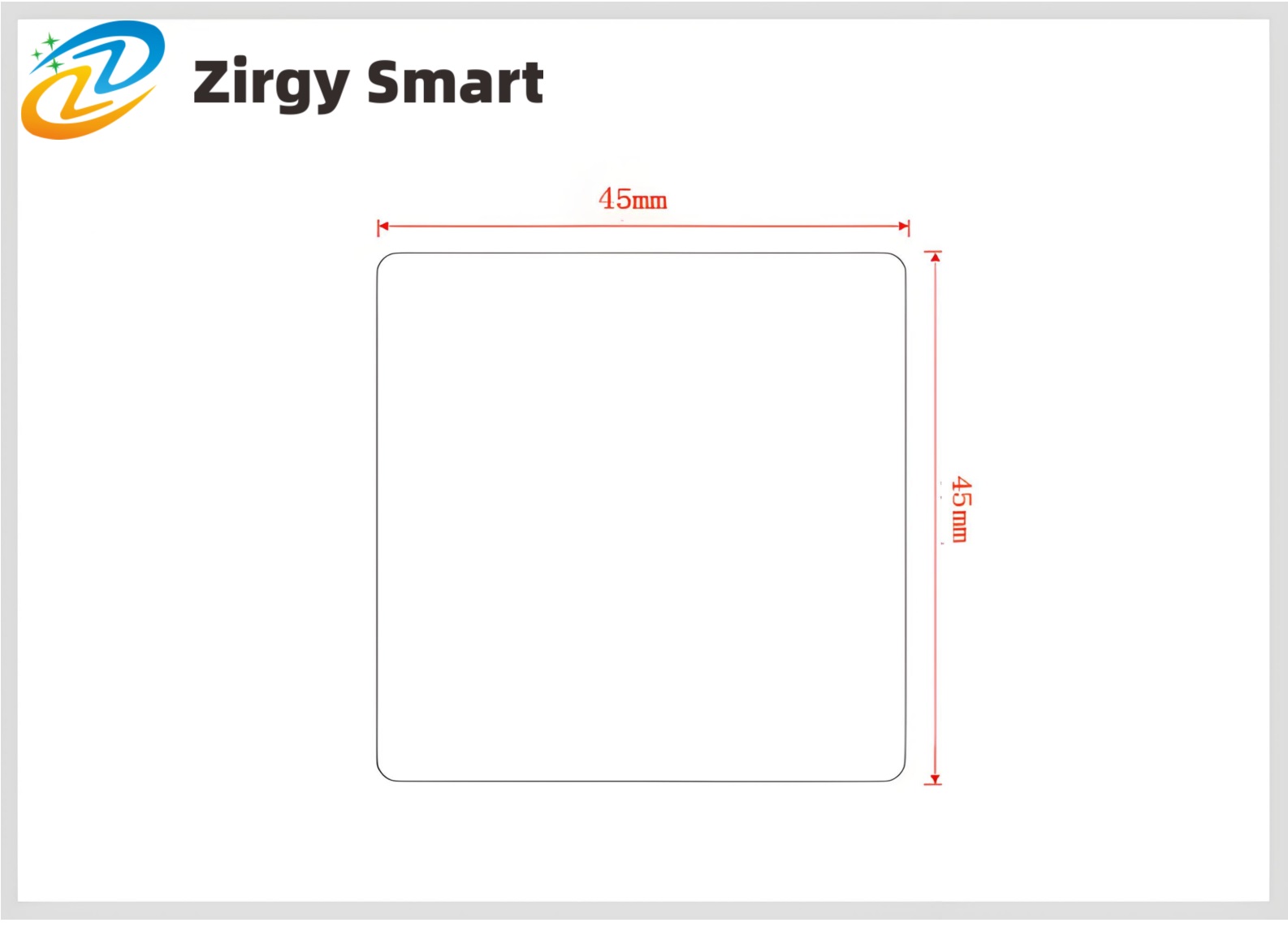

1.Sectional display
2.Real-shot display
Ⅳ Antenna display - Dry inlay high frequency I-code X 45*45mm
Ⅴ Production process -- Dry inlay high frequency I-code X 45*45mm
