Ⅰ Chip features -- Dry inlay high-frequency FM1108 diameter 22mm
- Compliant with ISO/IEC 1443A
- Working efficiency 13.56MHz
- Communication baud rate 106kbit/s
- Non-contact data and energy transmission (no power required)
- Operating distance not less than 100m (related to antenna size)
- Half duplex communication mode
- Encryption algorithm conforms to M1 standard
- Typical processing time <100ms
Ⅱ Technical parameters -- Dry inlay high frequency FM1108 diameter 22mm
Name: Dry inlay FM1108 Diameter 22mm
Optional chip: FM1108
Antenna size: Φ22mm
Label size: None
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 8Kbit
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Ⅲ Product display -- Dry inlay FM1108 diameter 22mm
1.Sectional display

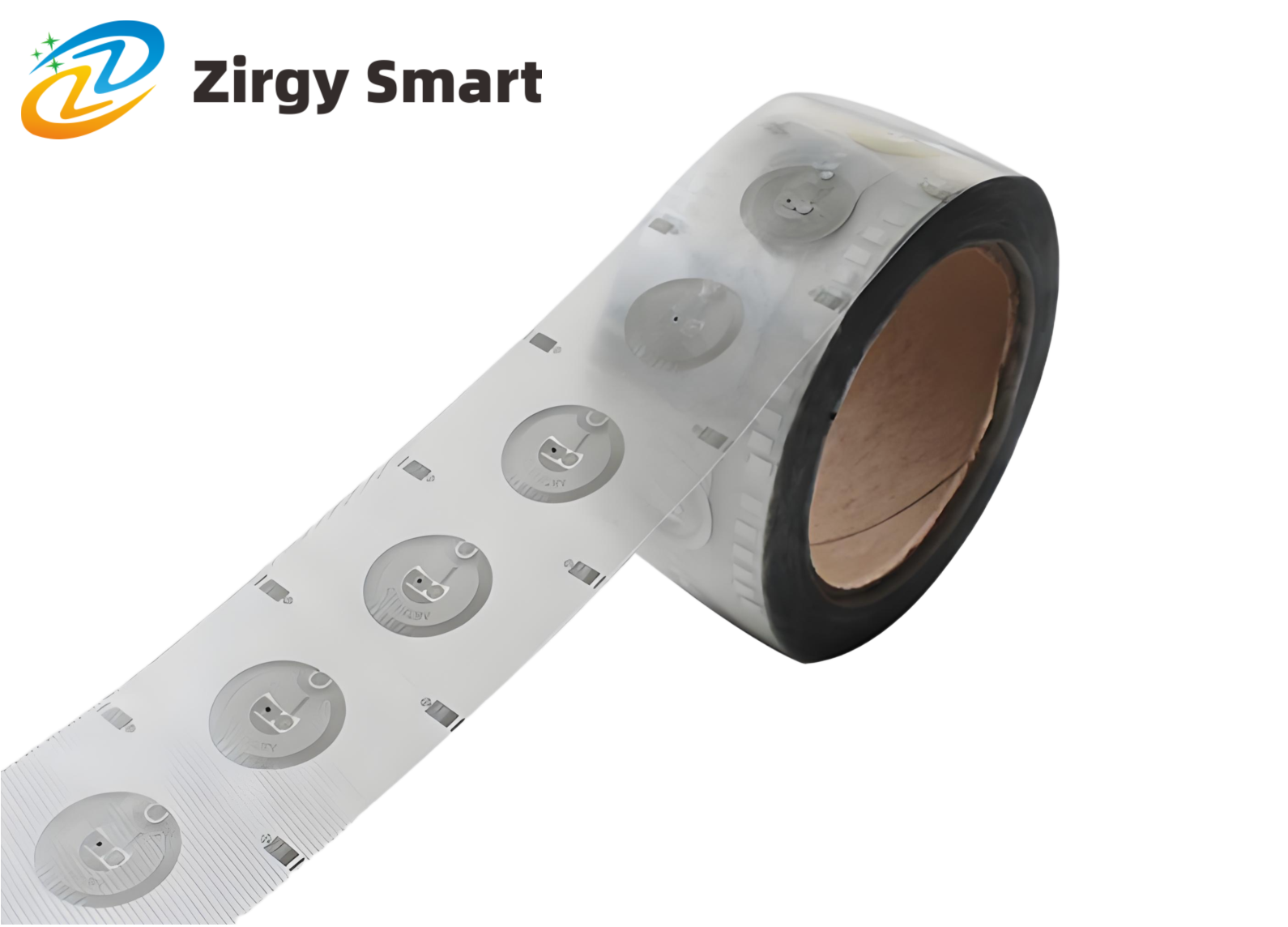

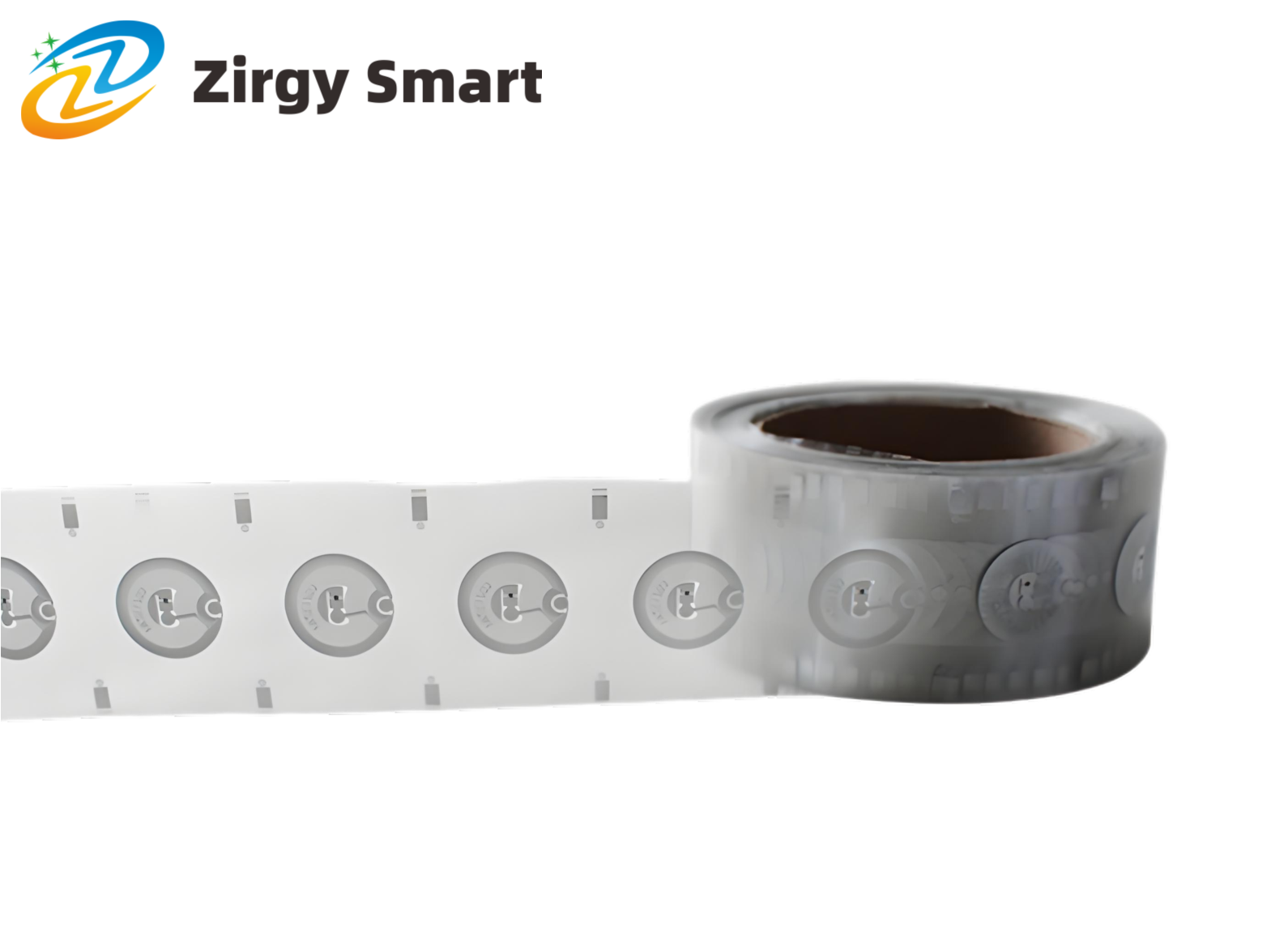

2.Real-shot display

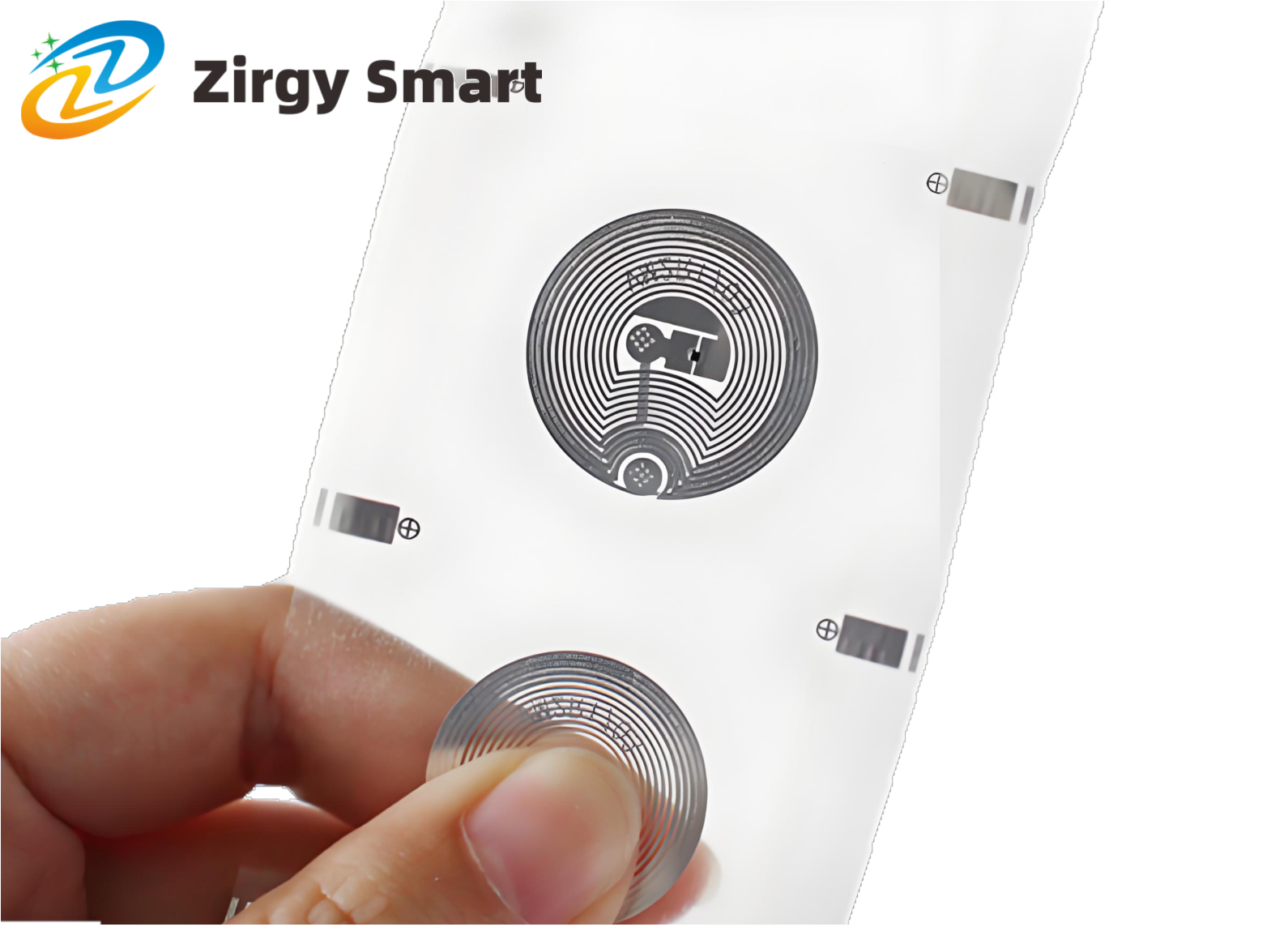

Ⅳ Antenna display - Dry inlay high frequency FM1108 diameter 22mm
Ⅴ Production process - Dry inlay FM1108 diameter 22mm
