I Product introduction--Miniature industrial code carrier ZJ0805
This product is encapsulated with high-quality engineering plastic, featuring excellent quality and performance. It has the advantages of stable structure, high temperature resistance, non-toxicity, flame retardancy, chemical corrosion resistance, and good insulation performance. It can be used in rigid and durable mechanical products, as well as in electrical products that require heat resistance and flame retardancy. It is also applicable in chemical devices with requirements for corrosion resistance. It has a wide range of applications in scenarios such as material sorting, workpiece identification, control and tracking of glass products, machining management, tool management, mold management, and fixture management.
II Product features--Miniature industrial code carrier ZJ0805
Installation method: It can be embedded and installed in a hole with a diameter of φ8mm.
It can be used in environments with the presence of metal.
III Application scenarios--Miniature industrial code carrier ZJ0805

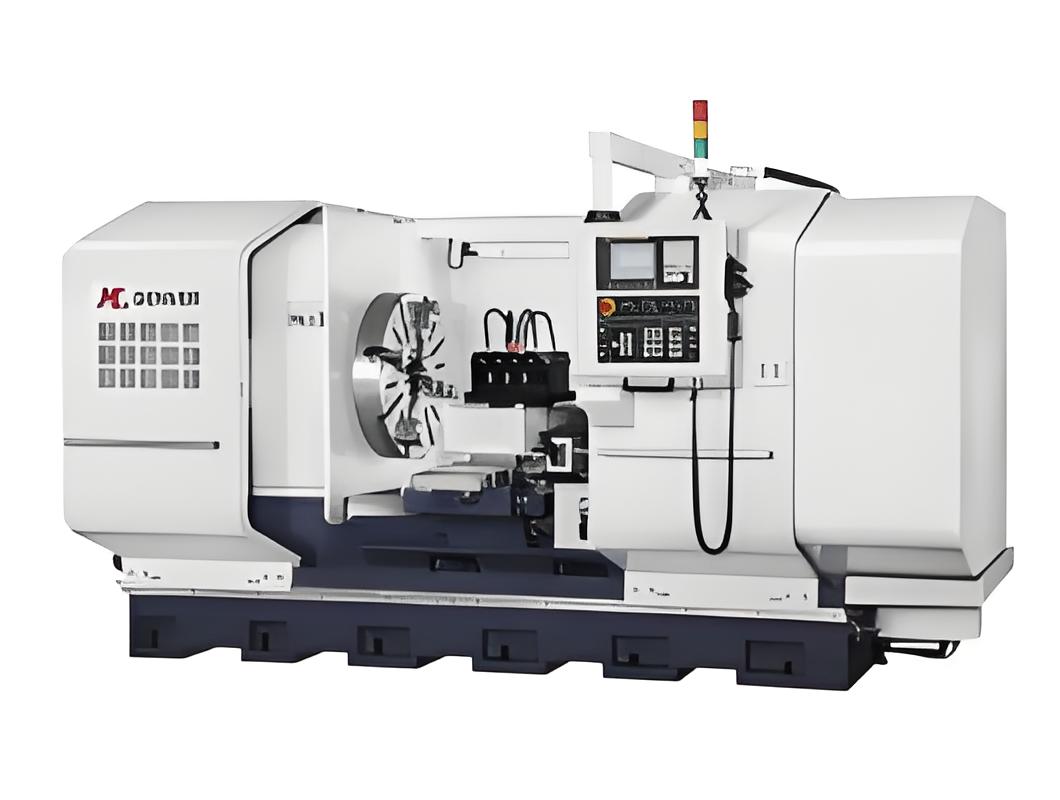

-Machining management

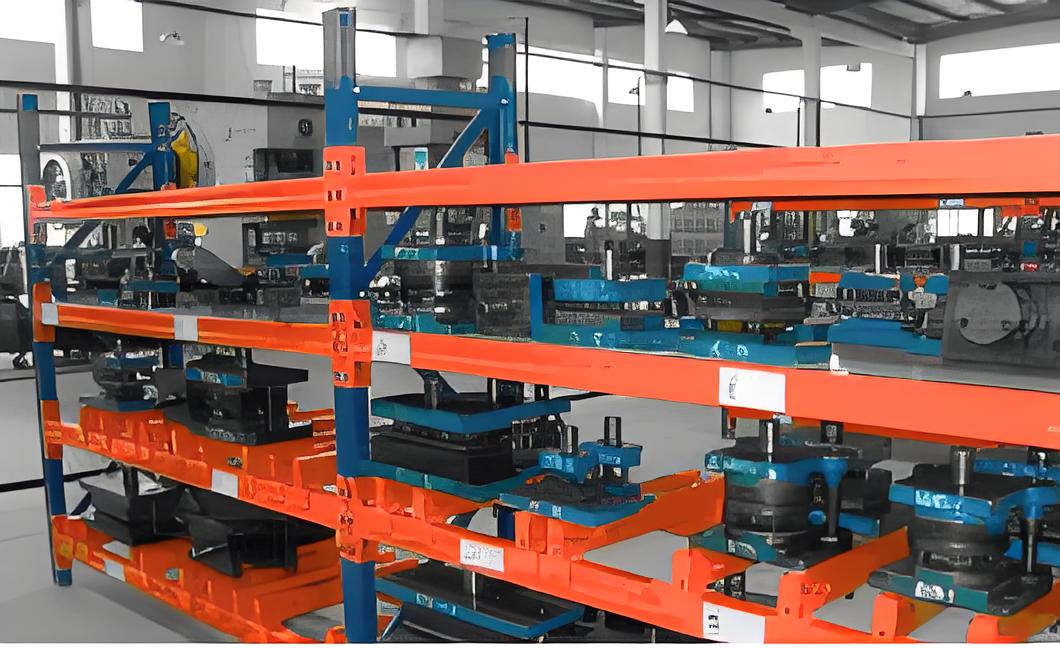

-Die management

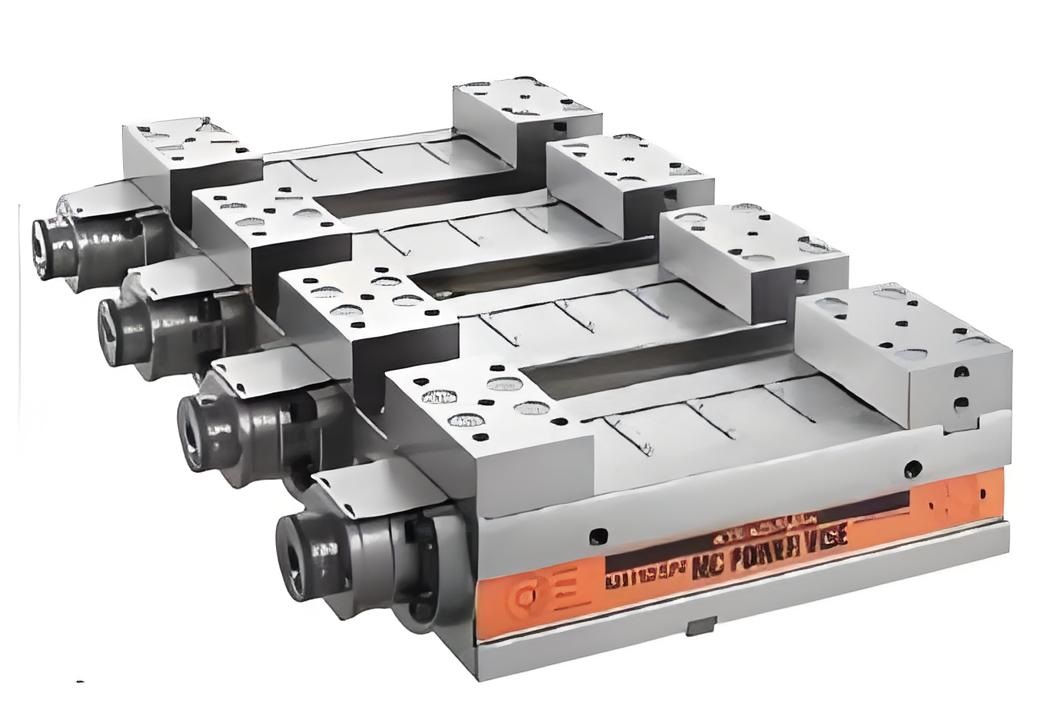

-Jig management
IV Technical parameters--Miniature industrial code carrier ZJ0805
-Model: ZJ0805
-Encapsulation material: PPS
-Production process: Sealant potting
-Colour: Black
-Product appearance: φ8mm X 5mm
-Weight: 0.5g
-Operating temperature: -20℃ ~ 70℃
-Heat-tolerant temperature: Long-term: 180℃ 60 minutes; short-term: 250℃ 10 minutes
-Protection against dust and water: IP68
-Chip: I CODE SLIX
-Protocol: ISO15693
-Frequency: 13.56MHZ
-Operating mode: Readable and writeable
-Data storage time: > 10 years
-Erasable and writable times: >100,000 times
-Operating temperature during communication: -20℃ to +65℃ (no freezing)
-Storage ambient temperature (for data retention): -30℃ to +75℃ (no freezing)
-Test distance: >28mm (in non-metallic environment): >15mm (embedded in metal slot, in metallic environment)
-The test distance varies depending on the environment and the reader.

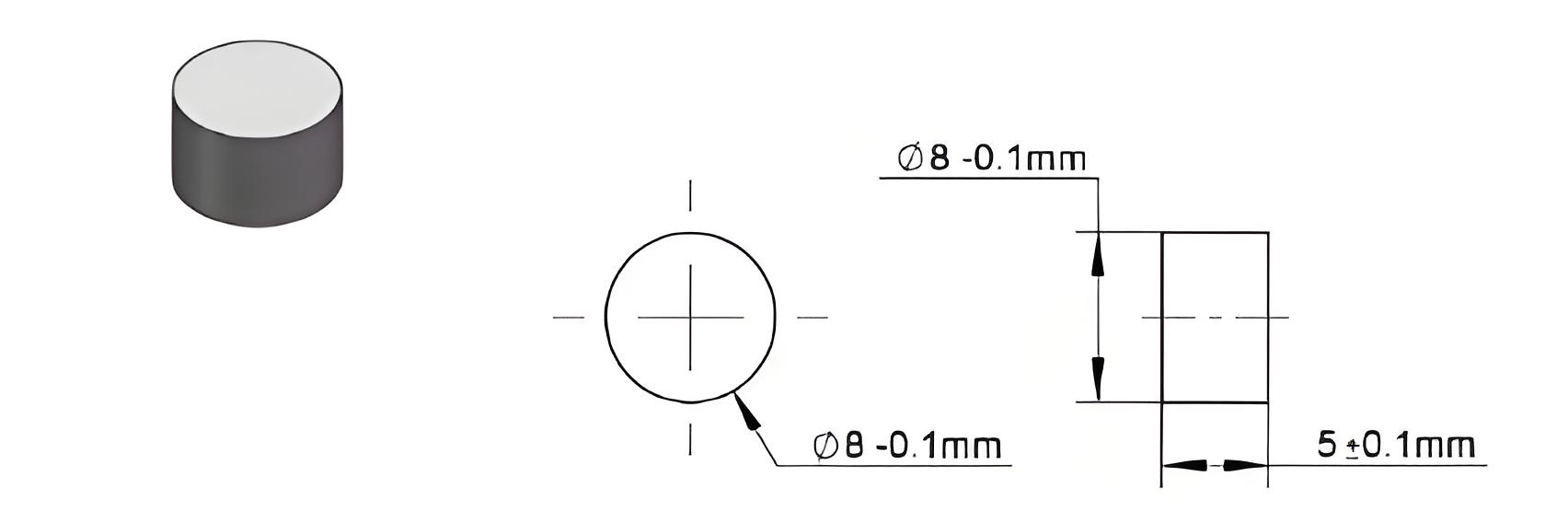

V Mechanical dimensions--Miniature industrial code carrier ZJ0805
Mechanical dimension: φ8mm X 5mm
VI Product display--Miniature industrial code carrier ZJ0805
