Ⅰ Fundamental parameters——Waterproof and washable nylon woven tag ZJ7530
Name: Waterproof and washable nylon woven tag ZJ7530
Optional chip: lmpinj R6pAntenna dimensions: 42*16mm
Tag dimensions: 75*30mm
Operating frequency: 840MHz-960MHz
Operating temperature: -40～85℃
Storage temperature: -55～125℃
Data retention: More than ten years
Ⅱ Chip features——Waterproof and washable nylon woven tag ZJ7530
- Customized based on EPCgen2 (V1.2.0) and ISO/IEC18000- 6C protocols
- Operating frequency: 840MHz-960MHz
- Storage capacity
The capacity of TID area is 96 bits
The capacity of user area is 32 bits
The retention area is 64 bits

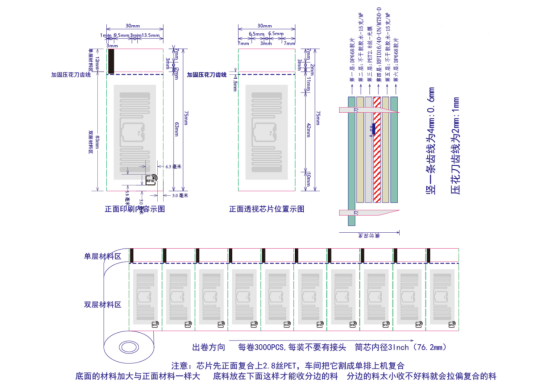

Ⅱ Product display——Waterproof and washable nylon woven tag ZJ7530
The retention area is 64 bits
- The basic storage unit is a word (16 bits), the storage area of the chip is managed in blocks and can be locked and protected by passwords respectively.
- Supports all mandatory and optional commands.
- Low-power consumption reading and writing operations.
Ⅱ Product display——Waterproof and washable nylon woven tag ZJ7530
