Ⅰ Product Overview and Application description - RFID dual frequency hard label
Name: RFID dual-band hard label ZJ36061
Product Overview and Application description: ZJ36061 product set EAS alarm performance and RFID performance in one body, mainly used in clothing anti-theft and anti-theft, with excellent reading and writing performance, products with nails used, can withstand greater tension and pressure, the surface can be printed, coding.
Product Overview and Application description: ZJ36061 product set EAS alarm performance and RFID performance in one body, mainly used in clothing anti-theft and anti-theft, with excellent reading and writing performance, products with nails used, can withstand greater tension and pressure, the surface can be printed, coding.
Ⅱ Product parameters -- RFID dual frequency hard label
| Pyshical Specification | |||
| Dimension (mm/in) | 68.8*30.5*20.5 mm | ||
| Encasement | ABS | ||
| Color | Grey customized | ||
| Lock | NO.4.7 | ||
| Printing | Laser/printing | ||
| Mount way | Use with nails | ||
| Quality Assurance | / | ||
| Electrical Specification | |||
| Protocol | ISO/IEC 18000-6C | EPC Class1 Gen2 | |
| Operation Frequency | Continuous frequency | ||
| Integrated Circuit(IC) | Monza 4QT | R6P | |
| EPC Memory | 128bits | 128bits | |
| User Memory | 512bits | 32bits | |
| Tid | 96bits | 48bits | |
| Access Password | 32bits | 32bits | |
| Kill Password | 32bits | 32bits | |
| RFID Read Range | ≥4 meters | ＞5 meters | |
| EAS Detection Range | AM≥0.8m,RF≥0.9m | ||
| Expected read cycles | 100,000 times | ||
| Data retention | 10 years | ||
| Packing information | |||
| Packing Format | Packing | ||
| Weight per pieces | 12.6g | ||
| Quantity per box | 1000 | ||
| Box Dimension | 56.3*36*23cm | ||
| Weight per box | 13.8kg | ||
| Quality Assurance | 100 read t 1OO%edit an 1OO% performance tes | ||
| Environmental | |||
| Operating Temperature | -20-60℃ | ||
| Operating Humidity | 30%～70% | ||
| Storage Temperature | -20-60℃ | ||
| Storage Humidity | 30%～70% | ||
| IP Rating | IP54 | ||
| Shock and Vibration | / | ||
| Chemical resistance | / | ||
| Expected lifetime | 10 years | ||
| Guarantee | 2 years | ||
| Certificate | CE RoHS | ||
Ⅲ Product display -- RFID dual frequency hard label
Ⅳ Product view -- RFID dual frequency hard label

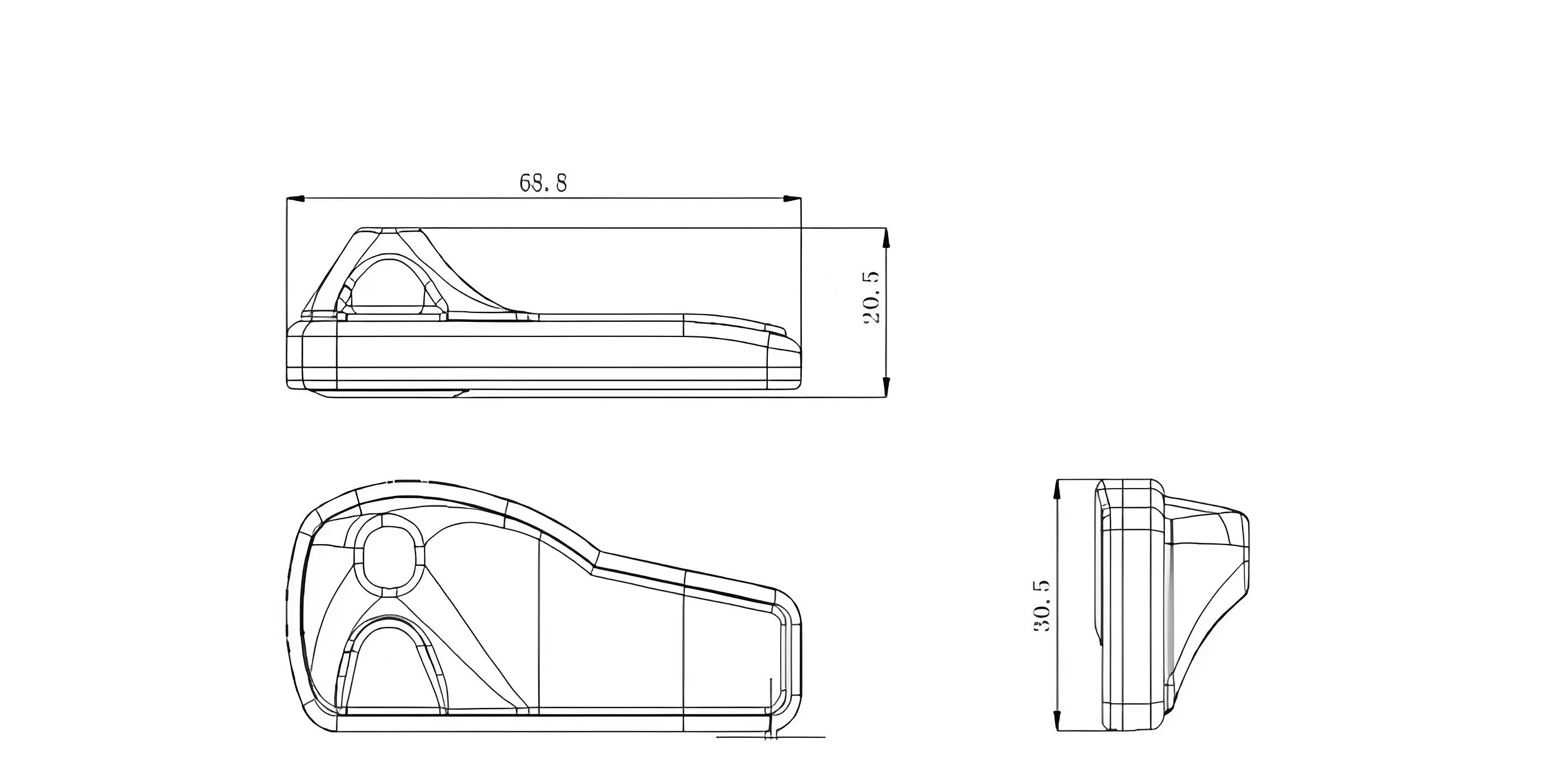

Ⅴ Product size diagram -- RFID dual frequency hard label
