Ⅰ Main features - ceramic label 1309
Ceramic label 1309 is a classic of miniaturized ceramic label, smaller size but provide excellent read and write performance, in the metal label handheld device can read more than 1m, for medical machinery management, gun management, IT asset management and other fields have extraordinary applications, the label can also support embedded applications, suitable for harsh working environment, waterproof and anti-pollution non-vulnerable.
Ⅱ Technical parameters -- Ceramic label 1309
Name: Ceramic label 1309
Chip type: Alinen-H3
Label size: 13*9*3mm
Communication protocol: Epc Glass 1 Gen2 ISO18000-6C
Storage structure: 96-bit-EPC bits; 512-bit user memory
Function: Read/write (user programmed)
Operating frequency: 905-928MHz (EU)
Data retention: 3 years
Cycle time: 100,000 cycles at 77 ° F (25 ° C)
Read rate: 300 tags per second for 96-EPC bit number
Chip type: Alinen-H3
Label size: 13*9*3mm
Communication protocol: Epc Glass 1 Gen2 ISO18000-6C
Storage structure: 96-bit-EPC bits; 512-bit user memory
Function: Read/write (user programmed)
Operating frequency: 905-928MHz (EU)
Data retention: 3 years
Cycle time: 100,000 cycles at 77 ° F (25 ° C)
Read rate: 300 tags per second for 96-EPC bit number
Ⅲ Product display -- Ceramic label 1309

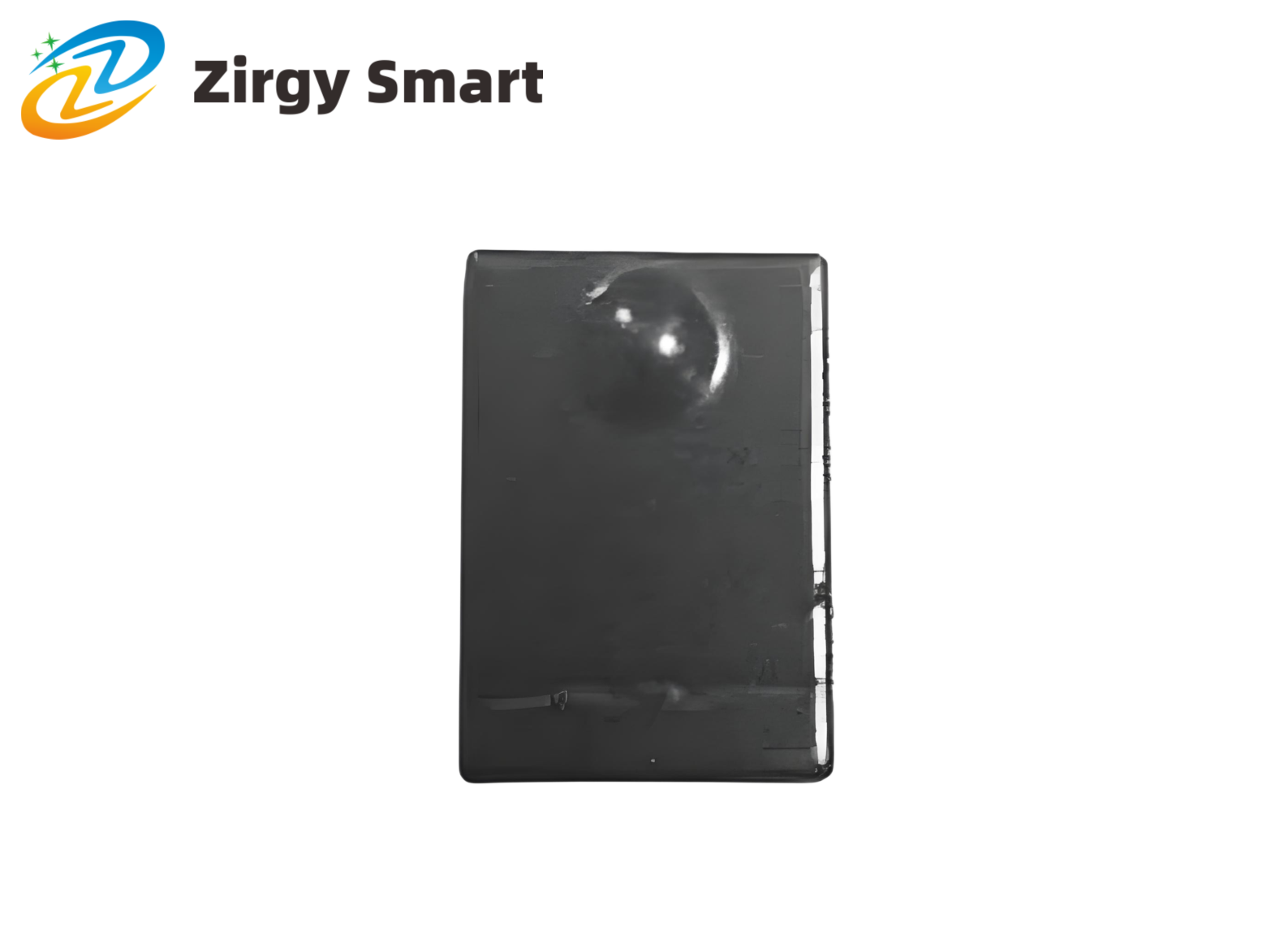

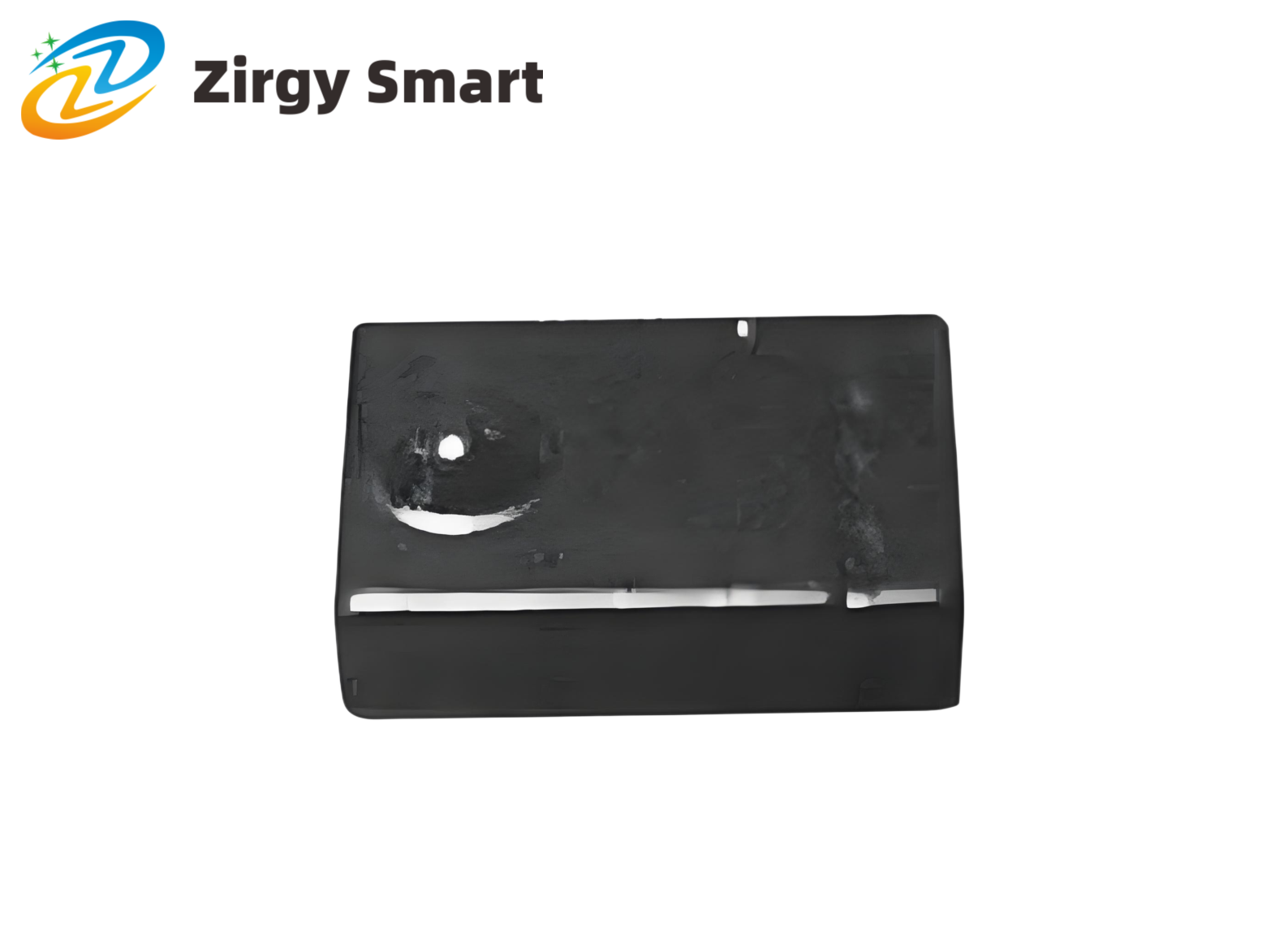

Real-shot display
