Ⅰ Technical parameters -- RFID anti-counterfeiting ear active item tag
● Product features
The RFID anti-counterfeiting ear active item tag ZJA-06 can operate at multiple frequencies. 2.4GHz can be identified from a distance, making it more secure. The label card is automatically generated
The signal can be identified by the RFID remote reader without triggering. IC/ID cards or low-frequency 125K frequencies can also be added on request. Mainly for assets
Item location, tracking, search and other applications.
· Reading distance: Long reading distance (0-100 meters)
· Anti-electromagnetic interference: 10V/ m0.1 ~1000MHz AM electromagnetic wave
· Customization: Low frequency 125K can be customized, high power 2.4G (reading distance 0-160 meters)
● Specifications and parameters
| Standby operating current | Dynamic operating current | Operating voltage | Battery specification | Battery useful life | Impact capacity | Reception sensitivity |
| <5uA | <12mA(pulse mode) | 3V | Cr2450 | 2〜3年 | >2000PCS | -80dBm〜-90dBm |
| Emission time | Reading method | 2.4G recognition distance | 125k activation distance | |||
| Active fires once per second/passive fires 3-4 times per second | Active/passive/active/passive combination mode | 1-3 meters | ||||

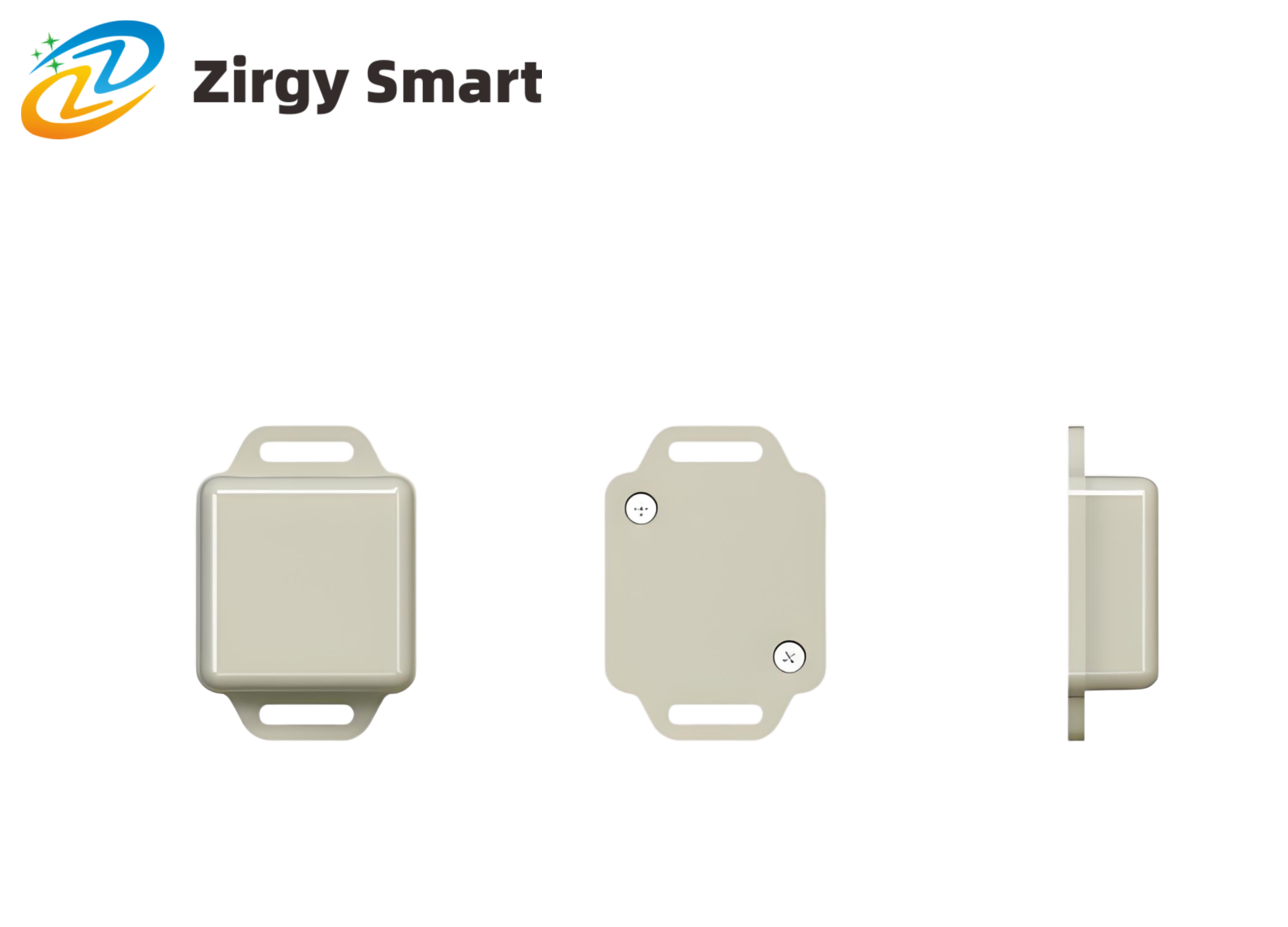

ⅡProduct display -- RFID anti-counterfeiting ear active item tag
Real-shot display
