ⅠProduct parameters -- Knife-edge anti-tear adhesive RFID anti-counterfeiting label
Name: Knife-edge anti-tear adhesive RFID anti-counterfeiting label ZJ8025 80mm*25mm

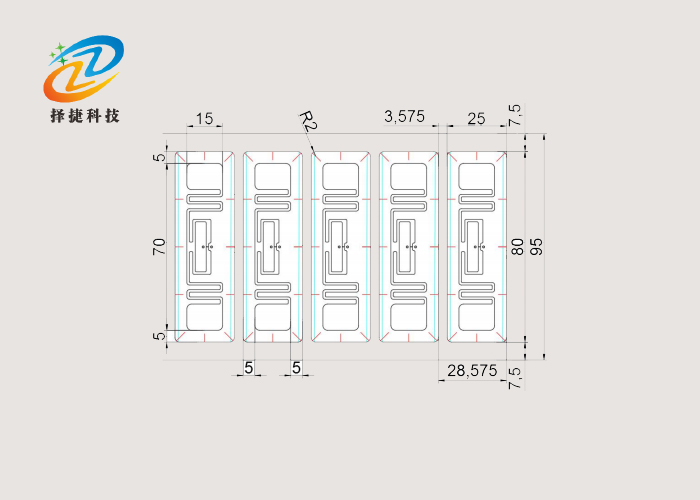

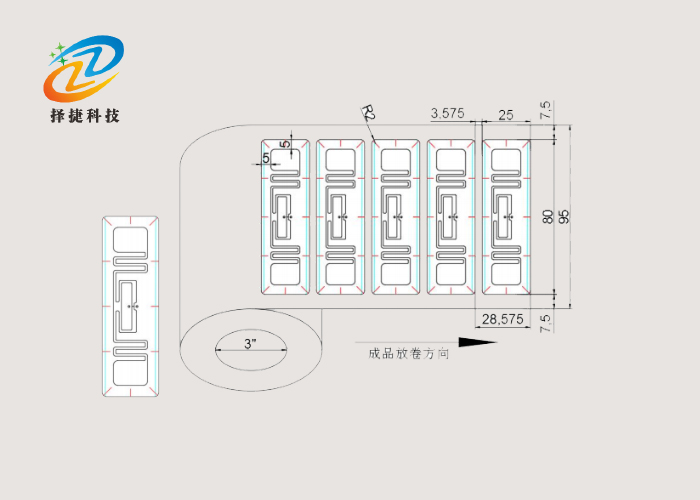

● Dimensional error
| ID | Items | Specific parameters |
| 1 | Transponder length | 15±0.20 |
| 2 | Transponder width | 70±0.20 |
| 3 | Distance from the right of the transponder to the right of the tag | 5±1.0 |
| 4 | Distance from the left of the transponder to the left of the tag | 5±1.0 |
| 5 | Tag length | 25±0.20 |
| 6 | Tag width | 80±0.20 |
| 7 | Label fillet radius | R=2±0.50 |
| 8 | Distance from top of label to top of release paper | 7.5±1.0 |
| 9 | Distance from bottom of label to bottom of release paper | 7.5±1.0 |
| 10 | Tag pitch | 28.575±0.5 |
| 11 | Distance between adjacent labels | 3.575±0.5 |
| 12 | Release paper width | 95±1.00 |
| 13 | Paper core tube inner diameter | 3(76.20±0.50) |
| 14 | Finished outside diameter | ≦196 |
| 15 | Distance from transponder top to tag top | 5±1.0 |
| 16 | Distance from below transponder to below tag | 5±1.0 |
| 17 | Antenna length | 15±0.20 |
| 18 | Antenna width | 70±0.20 |

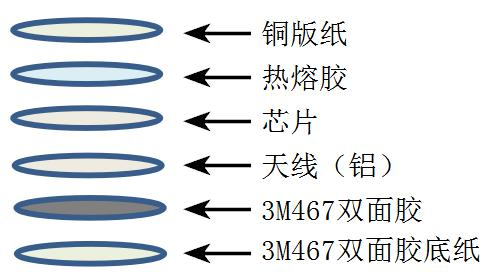

● Structure
● Electrical features
| Items | Descriptions | Marks | |
| Chip | UCODE 8 | ||
| Substrate material | PET(50µm) | ||
| Antenna manufacturing process | 铝蚀刻AI（9µm） | ||
| Compliant standards | ISO/IEC 18000-6C EPC Class1 Gen2 | ||
| Chip storage area | EPC | 128 Bits | Readable and writable |
| TID | 48 Bits | Readable and unwritable | |
| Unique TID | 48 Bits | Readable and unwritable | |
| Password area | 64 Bits | Readable and writable | |
| User area | None | \ | |
| Applicable carrier frequency | 860～960MHz | ||
| Reading distance | \ | \ | |
| Working mode | Passive | ||
| Chip useful life | Write 100,000 times and keep the data for 10 years | ||
| Anti-static (ESD) performance of the chip | 2000V | Human Body Model (HBM) | |
● Environmental requirements
Label temperature/humidity :[10℃ t ~ 40℃] 20% ~ 80%
Temperature/humidity after labeling: [-20℃ to 50℃] 20% ~ 80%
Note: Varies depending on the material being pasted
Shelf life of the finished product: under the condition of temperature 23±5℃ relative humidity 50±10%, sealed packaging with anti-static bag can be stored for one year.
● Job use alert
Waterproof during handling and use. Do not impact or squeeze or bend the chip.
● Packaging
| 1 | Shipping method | Roll, vacuum packing |
| 2 | Volume of take-up | 2500±2/ volume |
| 3 | Packing method | 4 rolls/box (subject to actual shipment); |
| 4 | Package picture |  |
| 5 | Special requirements | The box was sealed without a gap. |
Ⅱ Product picture -- Knife-edge anti-tear adhesive RFID anti-counterfeiting label

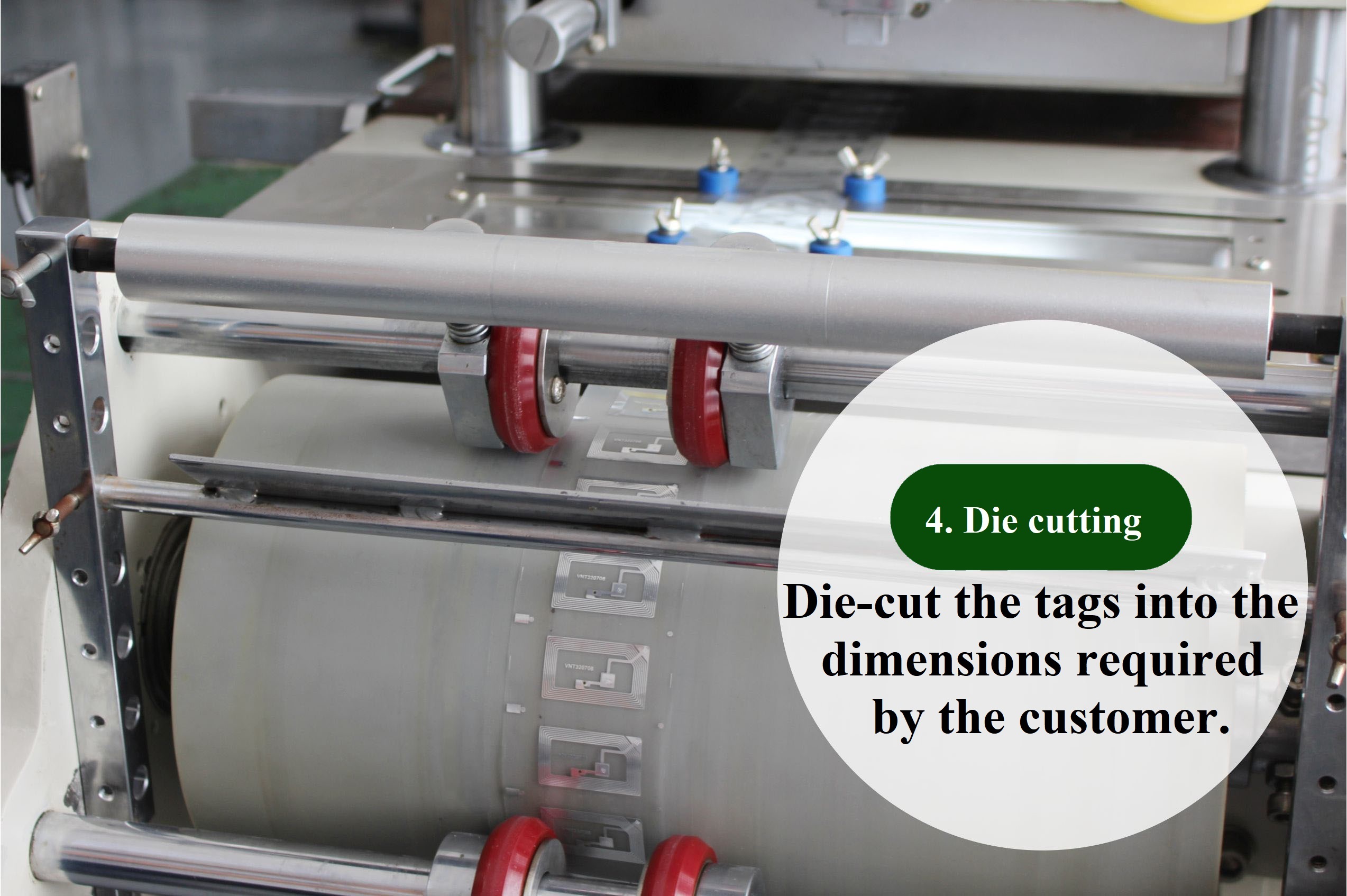

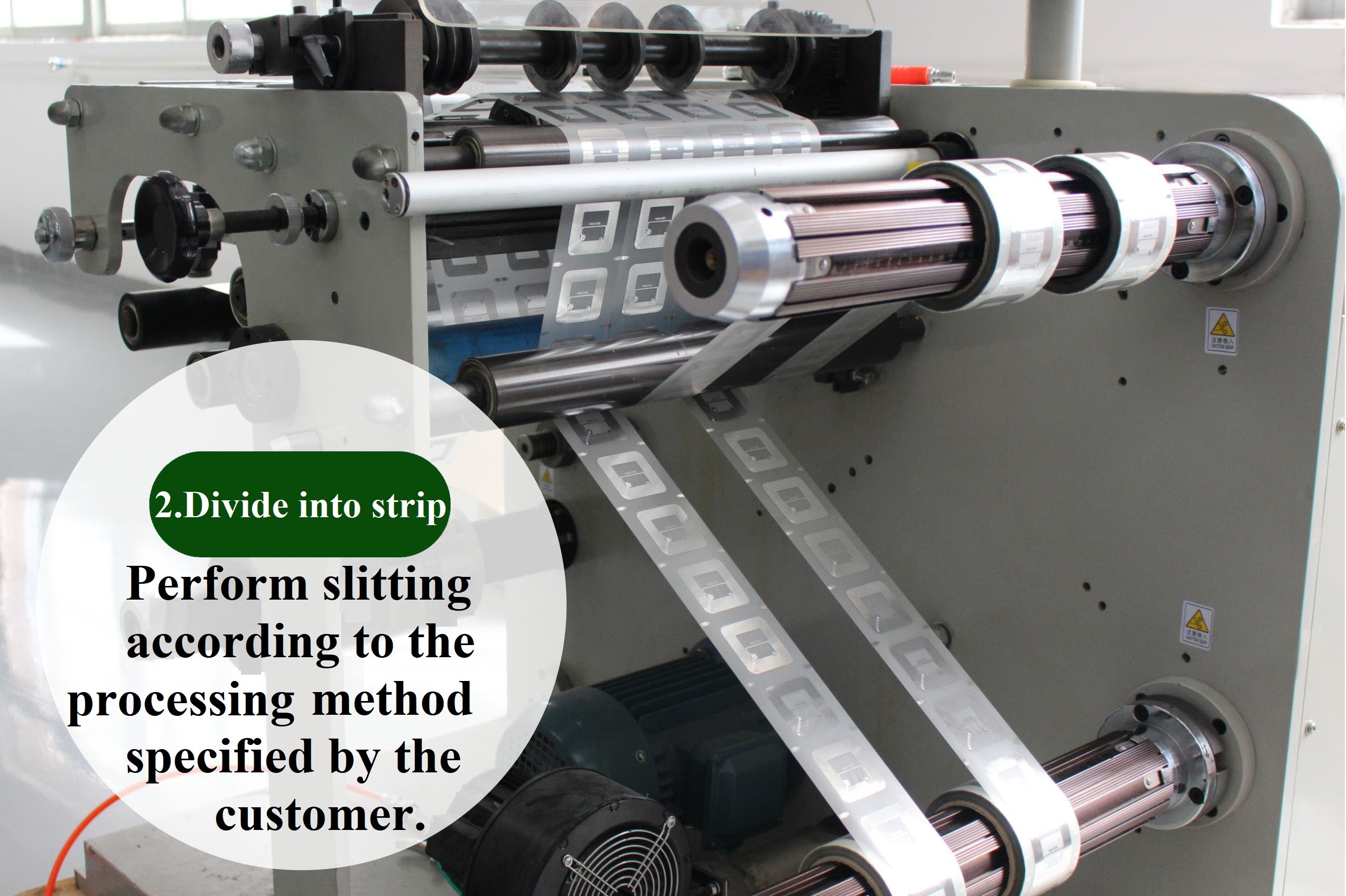

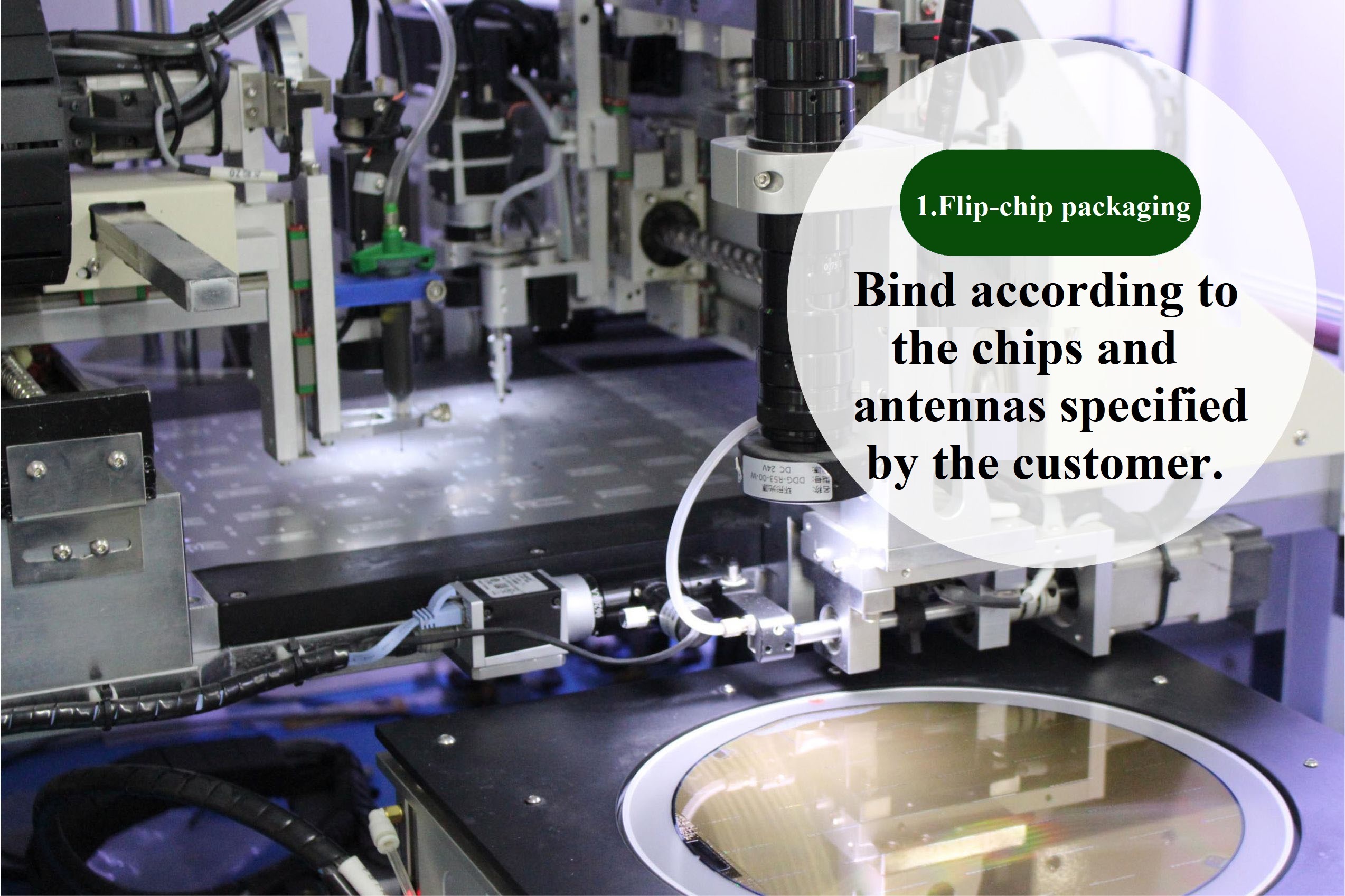

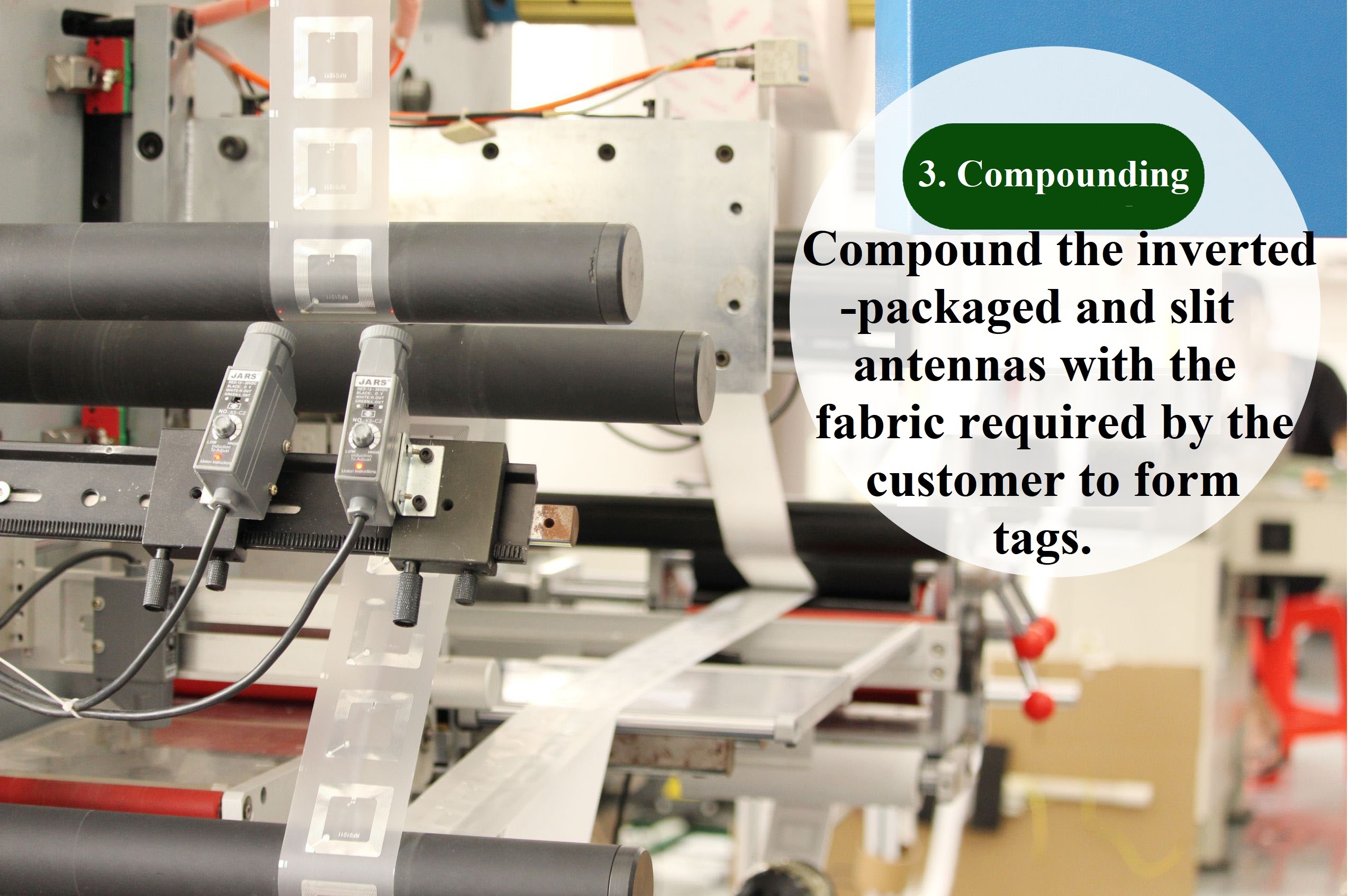

Ⅲ Production process -- knife-edge anti-tear adhesive RFID anti-counterfeiting label
