Ⅰ Product application - Soft washing RFID anti-counterfeiting label
* Industrial washing management
* Linen rental management
* Standard clothing management and washing management
* Service rental and washing management
*Hospital linen and washing management
* Military clothing and bedding management
* Railway linen management and washing management
* Police clothing management
* People Management
* Access Control
* Fire clothing and soft material management
Other applications requiring soft and pressure resistant products
Ⅱ Main features - soft washing RFID anti-counterfeiting label
* Soft washing labels can be customized according to customer requirements
* Soft, no damage to textiles, feel good
* Chip module size is one of the smallest in the international market
* Can withstand pressure of 60Bars
* One of the few models on the global market that can withstand 180 degrees 30 minutes, 200 times of pre-drying process
* Impinj chip, with spectrum modulation function, can achieve excellent group reading performance by the reader and software optimization in the system application
Ⅲ Product advantage - soft washing RFID anti-counterfeiting label
* Truly up to and beyond 200 industrial wash lives
* All materials and designs are verified for reliability and application
* Full power verification and write verification before delivery
Ⅳ Technical parameters -- soft washing RFID anti-counterfeiting label
| Air interface protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | 845~ 950MHz (worldwide) |
| Chip | NXP Ucode7M |
| Storage area | EPC 96bits,User 32bits |
| Read-write support | Yes |
| Data storage | 20 years |
| Useful life and quality warranty | 200 industrial washes or 2 years (whichever comes first) |
| Material | Textile |
| Dimensions | Length 70mm × Width10mm × Maxmum thickness 1.5 mm (Maximum thickness at chip position only) |
| Storage temperature | -40℃~ +85℃ |
| Usage temperature | 1) Washing: 90℃(194οF), 15 minutes, 200 times 2) High temperature pre-drying: 180℃(320οF), 30 minutes, 200 times 3) Ironing: 180℃(356οF), 10 seconds, 200 times 4) High temperature disinfection: 135℃(275οF), 20 minutes, 200 times (This product does not support medical MRI test, the company has other products that can pass MRI test) |
| Peak compressive strength | 60 bars |
| Product type | Piece |

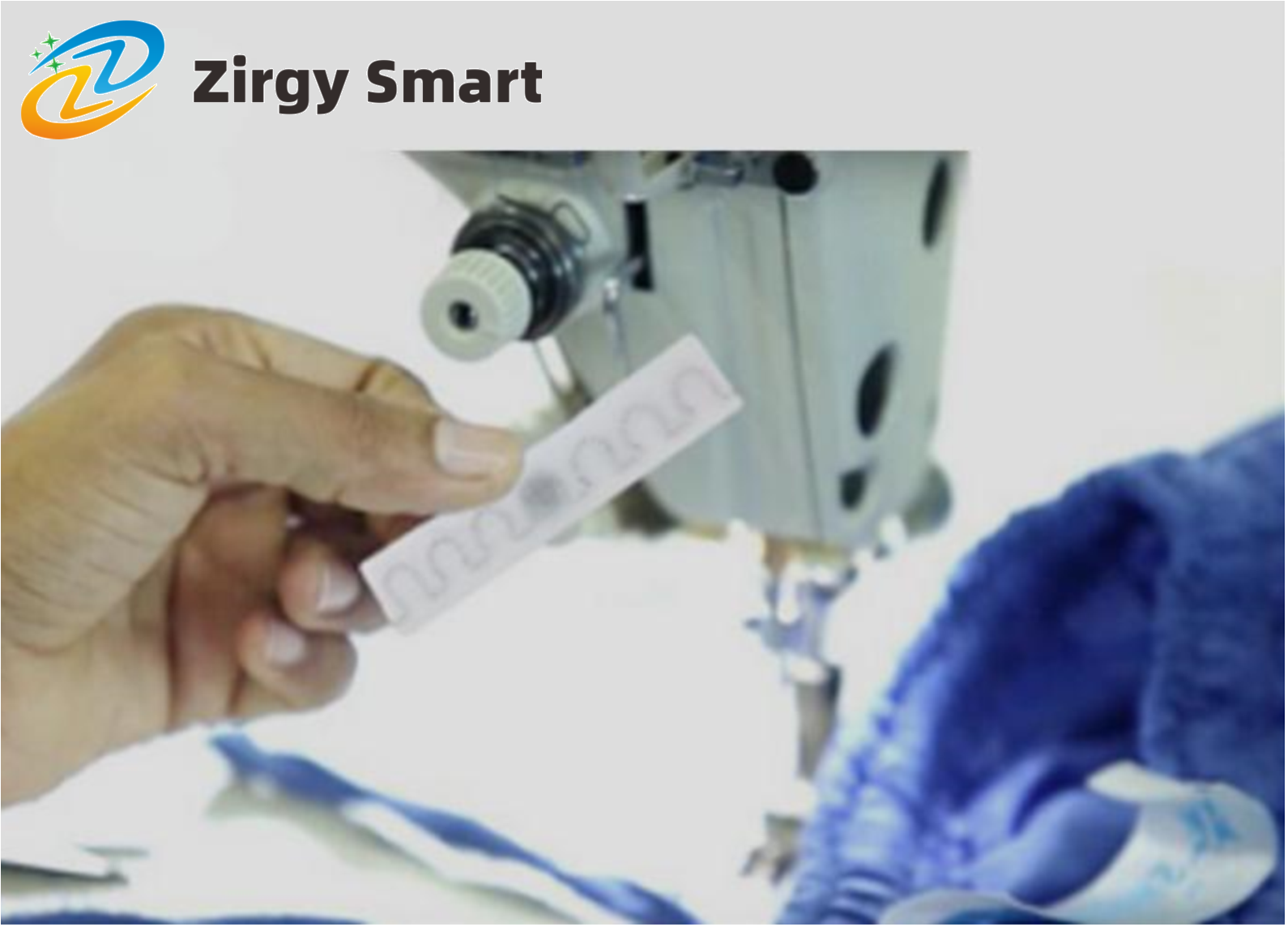

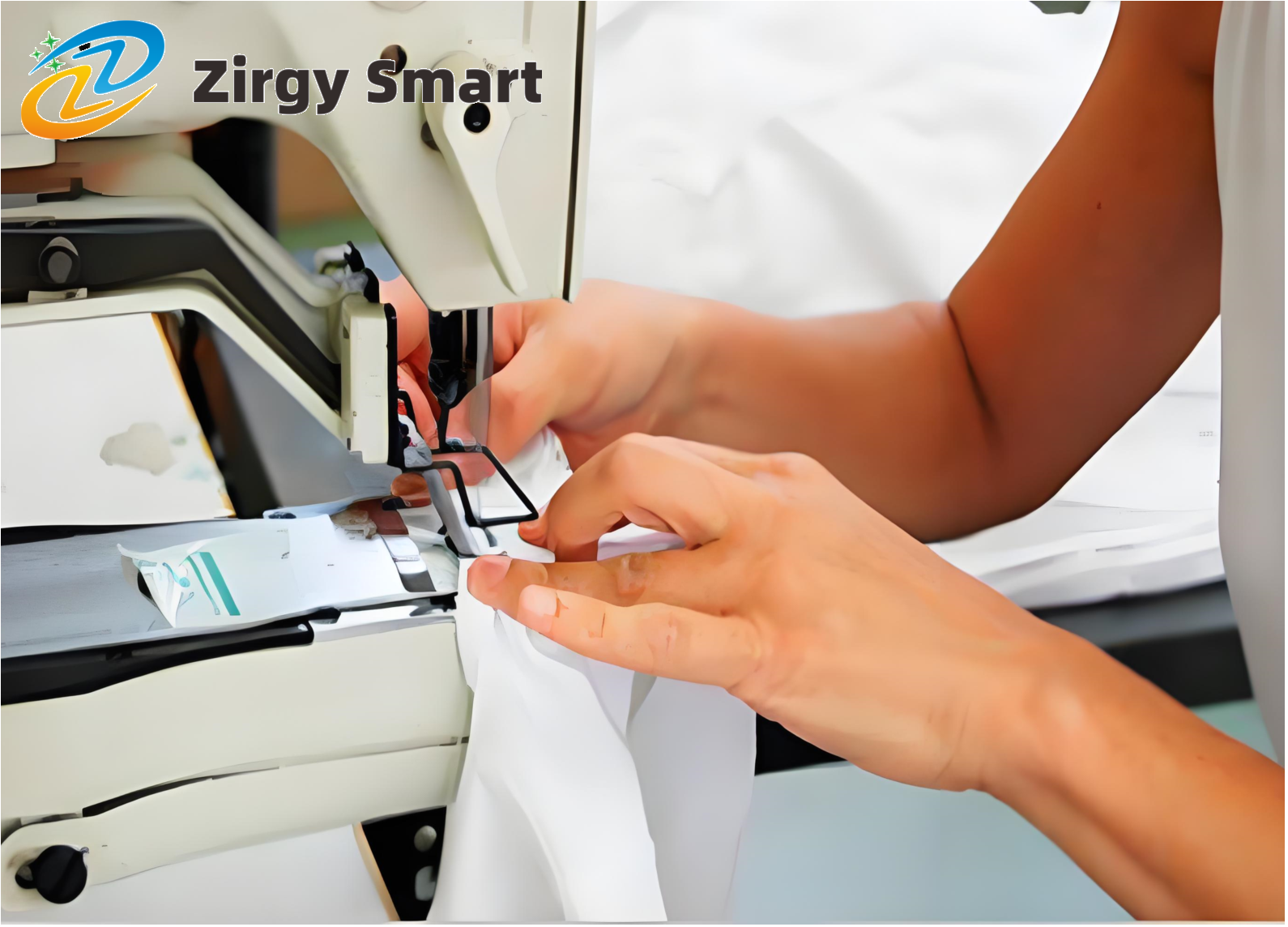

| Installation method | Sew into the hem, or sew into the woven sleeve (do not sew to the wire or chip module during sewing) |
| Weight | About 0.6 gram/piece |
| Paqcking method | Esd bag and carton packing |
| Colour | White |
| Power supply method | Passive |
| Chemical characteristics | Can withstand all chemicals in normal industrial washing processes |
| RoHS | Compliant |
| Reading distance* | Fixed interrogator: More than 5.5 meters (ERP=2W) Handheld device: More than 2 meters (by ATID AT880 handheld device) |
| Polarization method | Linear polarized |
Ⅴ Product display -- Soft wash RFID anti-counterfeiting label

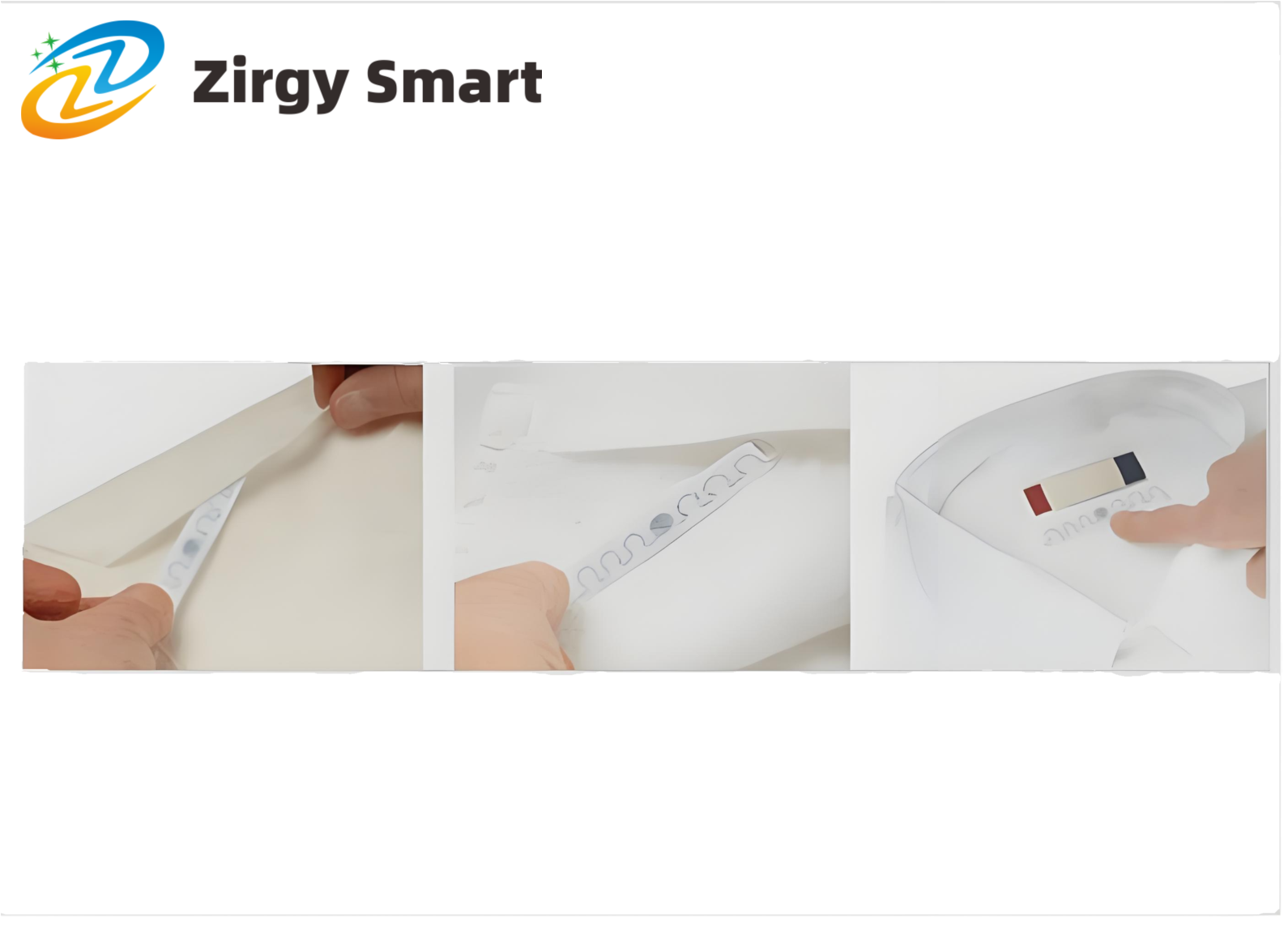

Real-shot display
