Ⅰ Chip features -- RFID anti-counterfeiting tag high frequency Ntag 213 diameter 21mm
● Contactless energy and data transmission
● Working efficiency 13.56MHz
● Data transmission rate is 106kbit/s
● Data integrity is 16-bit CRC, parity check, bit coding, bit counting
● Working distance up to 100 mm (depending on various parameters such as field strength and antenna geometry)
●7 byte serial number (according to ISO/IEC14443-3 protocol)
● UID ASCⅡ image for automatic serialization of NDEF messages
● Trigger an automatic NFC counter when reading a command
The FAST READ feature allows scanning full NDEF messages with a single fast-read command, reducing overhead in high-throughput production environments
● Working efficiency 13.56MHz
● Data transmission rate is 106kbit/s
● Data integrity is 16-bit CRC, parity check, bit coding, bit counting
● Working distance up to 100 mm (depending on various parameters such as field strength and antenna geometry)
●7 byte serial number (according to ISO/IEC14443-3 protocol)
● UID ASCⅡ image for automatic serialization of NDEF messages
● Trigger an automatic NFC counter when reading a command
The FAST READ feature allows scanning full NDEF messages with a single fast-read command, reducing overhead in high-throughput production environments
Ⅱ Technical parameters -- RFID anti-counterfeiting tag high frequency Ntag 213 diameter 21mm
Name: RFID anti-counterfeiting tag High frequency Ntag 213 diameter 21mm
Optional chip: NTAG213
Antenna size: Φ21mm
Label size: None
Communication protocol: ISO14443A
Operating frequency: 13.56MHz
Storage capacity: 144byte
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -10℃-65℃
Ⅲ Product display -- RFID anti-counterfeiting label high frequency Ntag 213 diameter 21mm

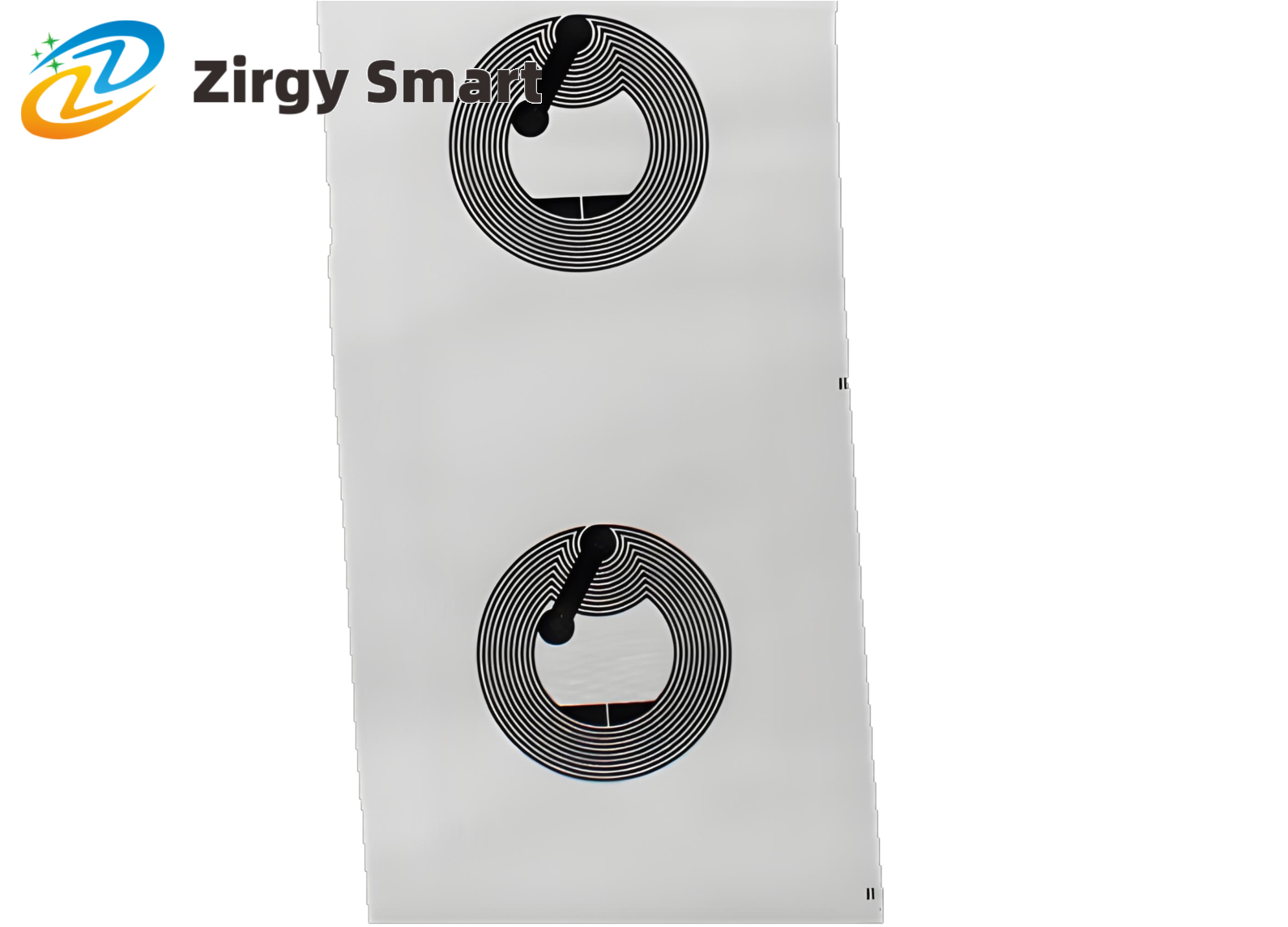

1.Sectional display

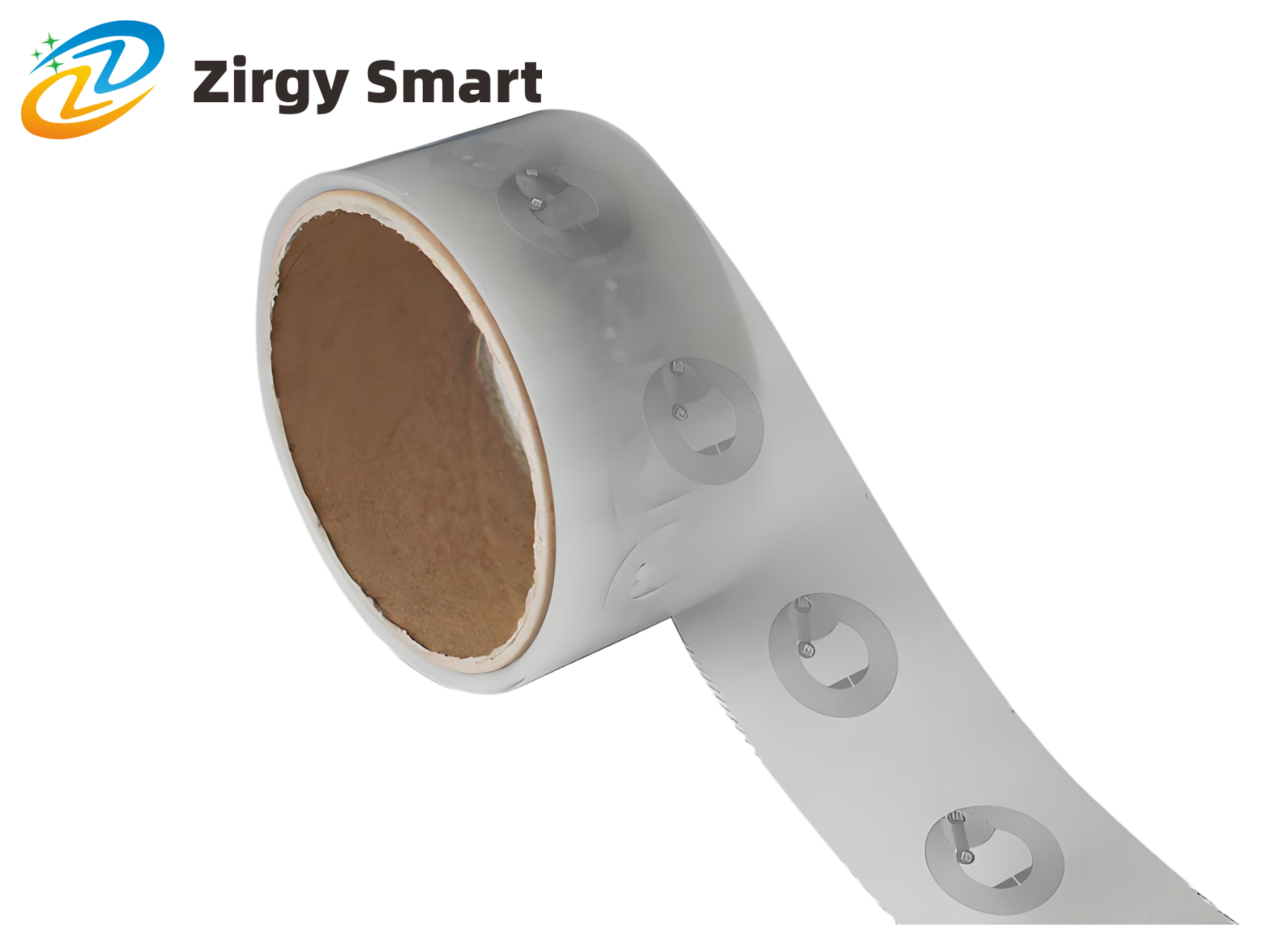

2.Real-shot display

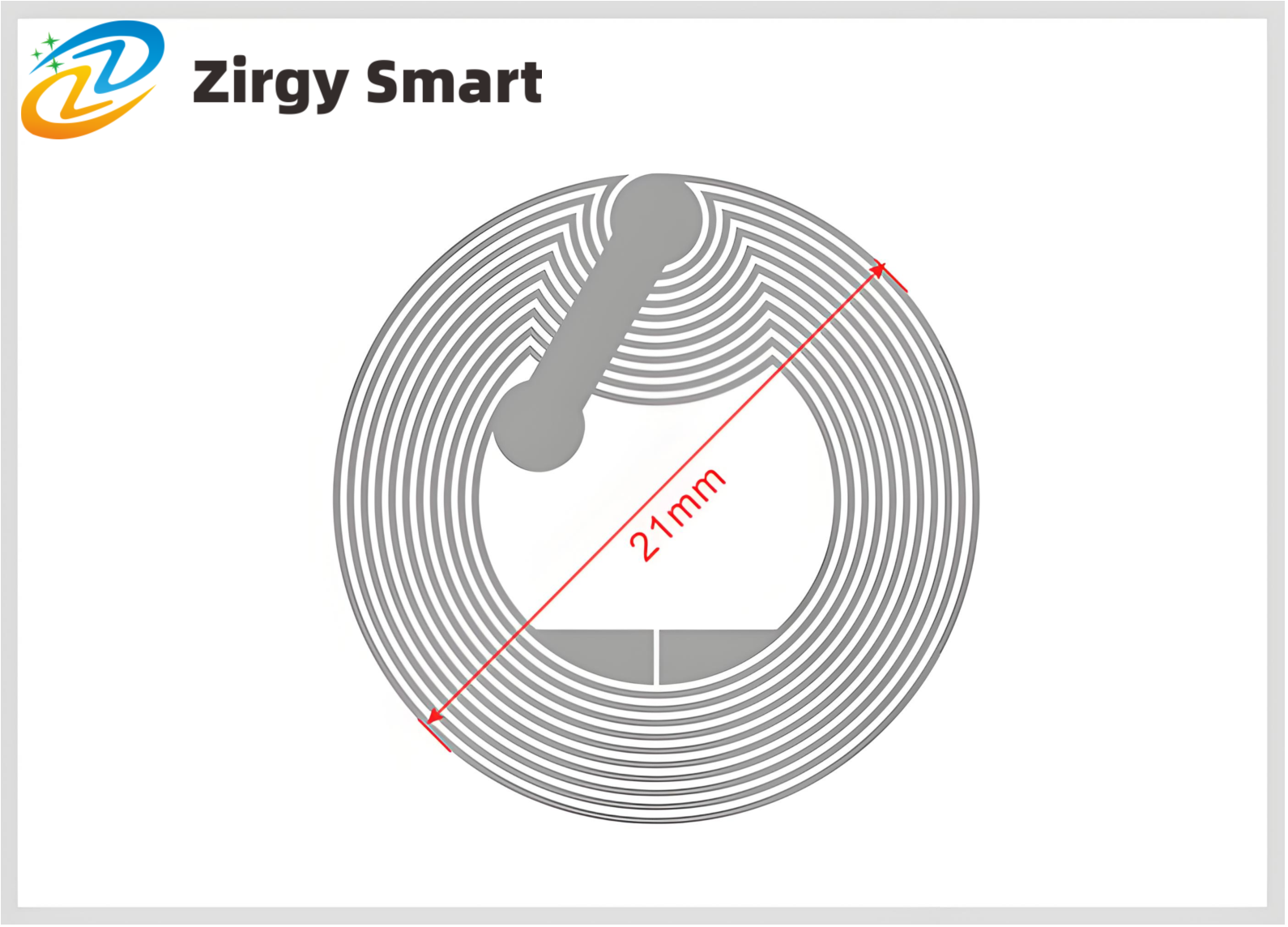

Ⅳ Antenna display -- RFID anti-counterfeiting tag high frequency Ntag 213 diameter 21mm
Ⅴ Production process -- RFID anti-counterfeiting tag high frequency Ntag 213 diameter 21mm
