Ⅰ Chip features - RFID blank PET anti-counterfeiting tag UHF
● Comply with EPC Gen2 (V1.2.0) and ISO/IEC18000-6C standards
● Universal label: operating frequency 860MHz-960MHz
●800 bit non-volatile memory
● 96-bit EPC
●512 bit User Memory
● 64-bit Unique TID (unalterable)
● 32-bit access and confuse passwords
● Pre-programmed unique unchangeable 64-bit serial number
● User storage can be managed in 64-bit blocks and can be permanently locked and protected with an access password
● Support for all mandatory and selectable commands, including single-level commands
● There are customized commands for high-speed data writing, and EPC codes of 30 labels can be written per second
● Low power read and write operations
● Excellent working distance, up to 10 meters with appropriate antennas
Ⅱ Technical parameters -- RFID blank PET anti-counterfeiting tag UHF
Name: RFID blank PET anti-counterfeiting label UHF AZ9629 25*25mm
Optional chip: H3
Antenna size: 22.5*22.5mm
Label size: 25*25mm
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Optional chip: H3
Antenna size: 22.5*22.5mm
Label size: 25*25mm
Communication protocol: ISO18000-6C
Operating frequency: 860-960MHz
Storage capacity: 512Bits
Read and write times: ≥ 100,000 times
Data retention: ≥10 years
Optional fabric: None
Operating temperature: -20℃-65℃
Ⅲ Product display -- RFID blank PET anti-counterfeiting tag UHF

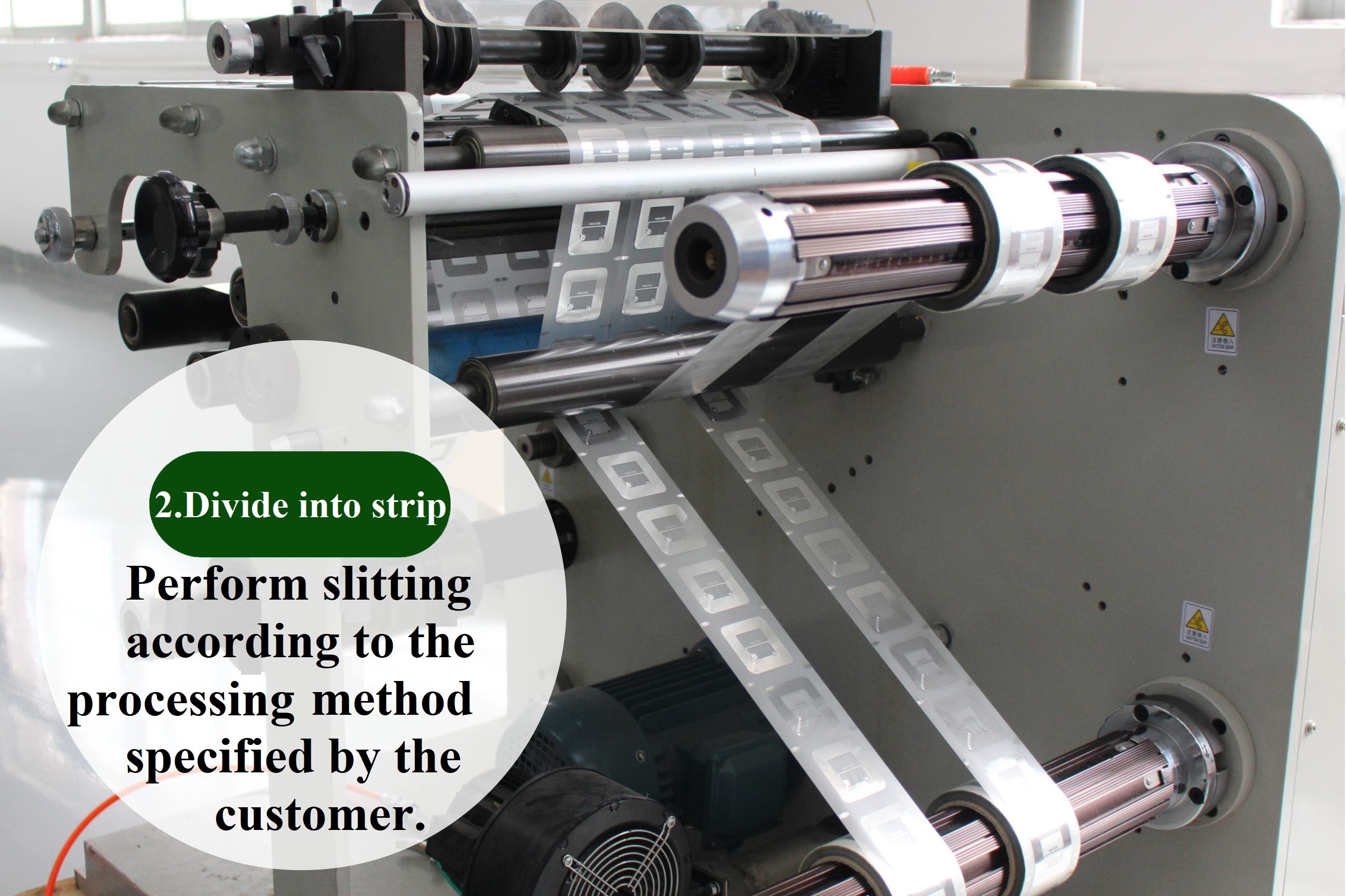

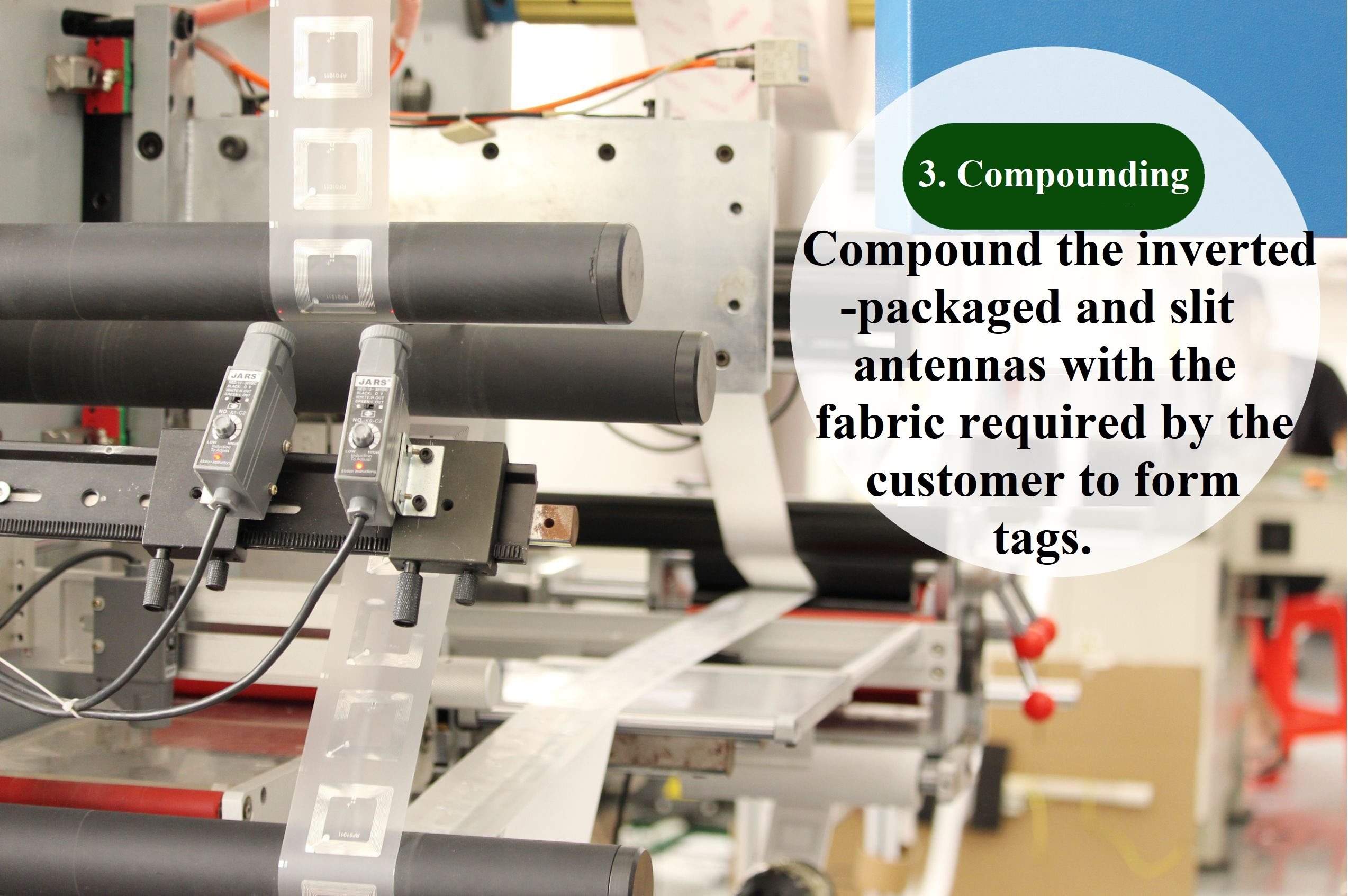

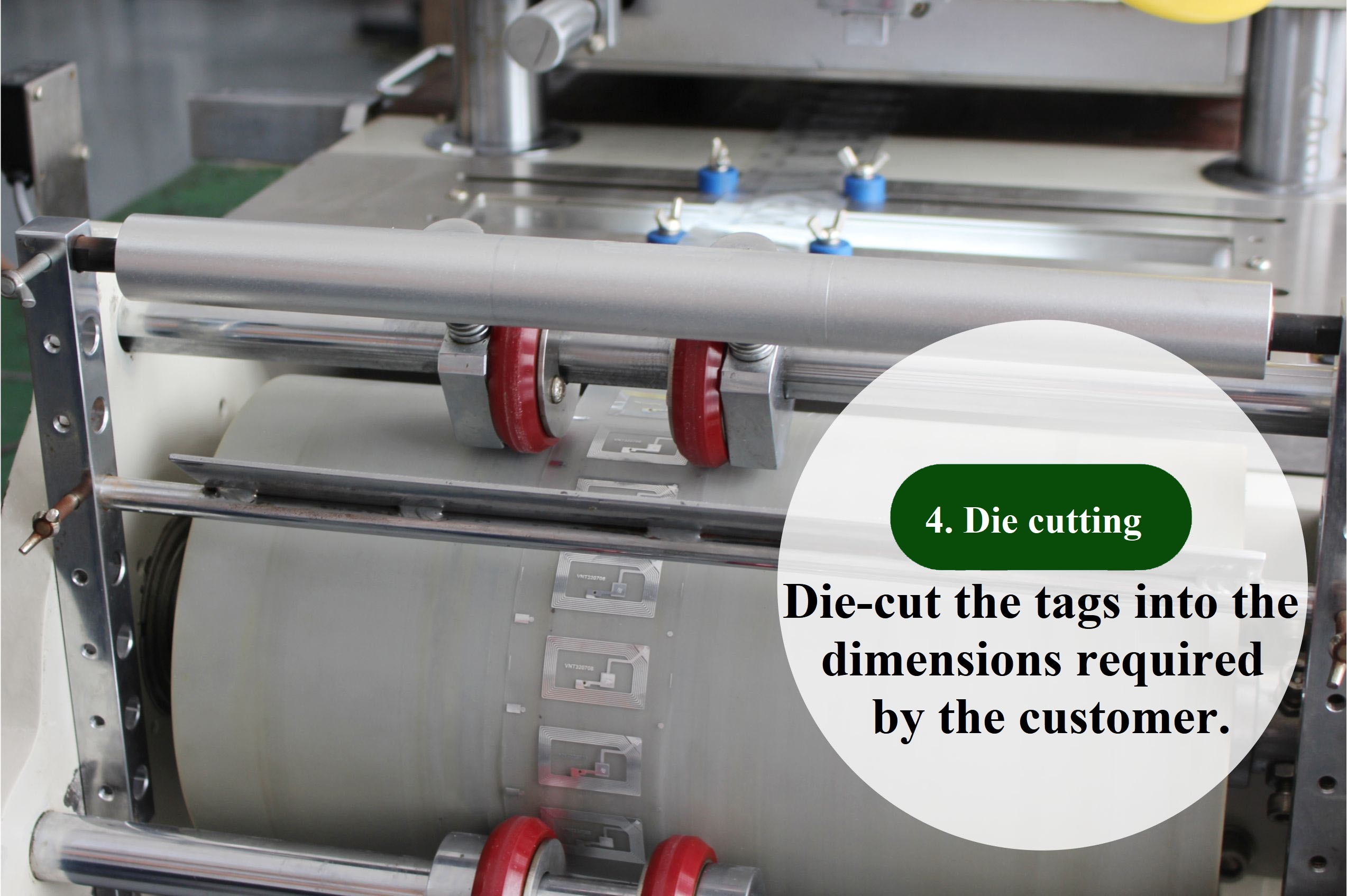

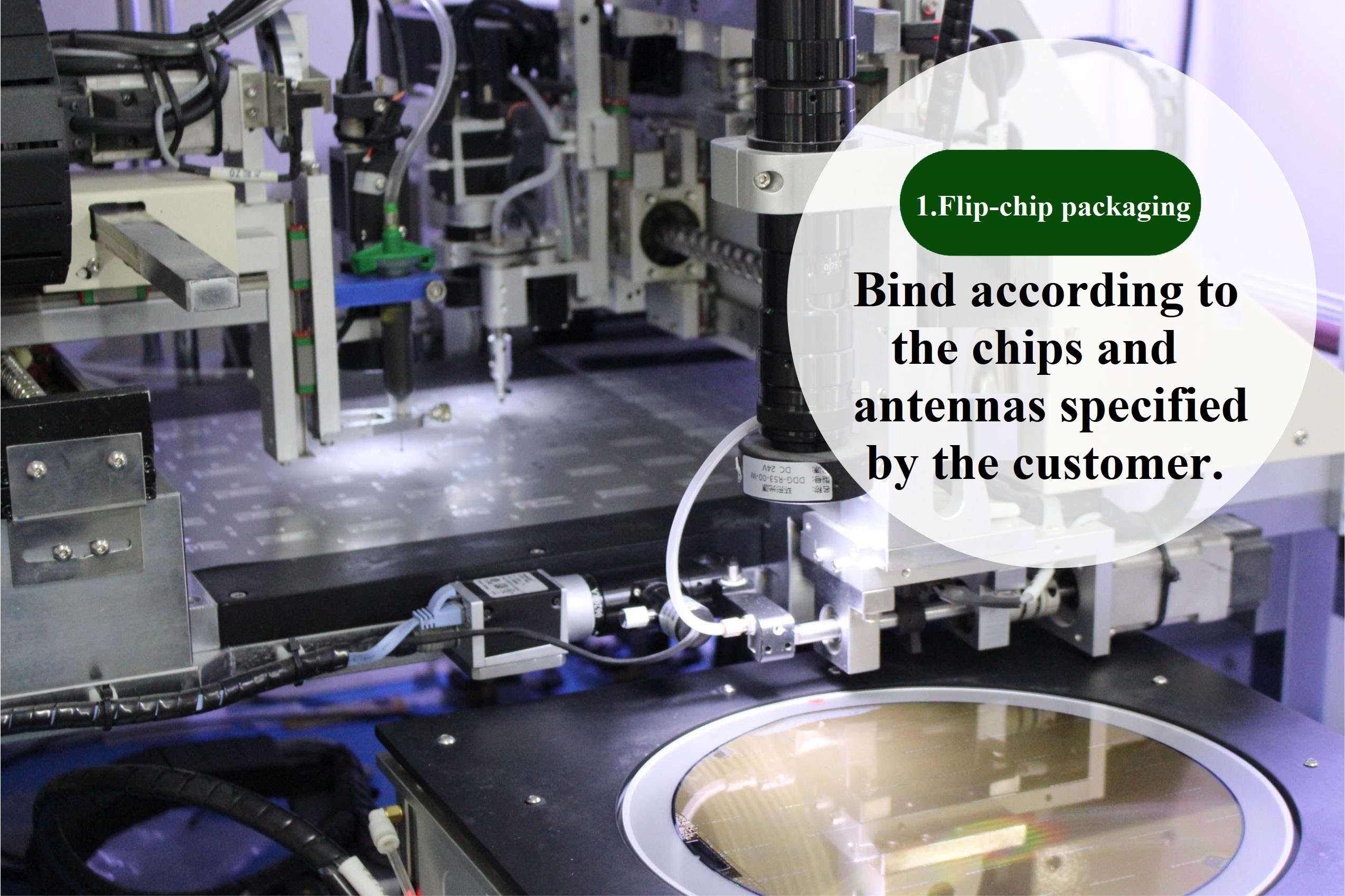

Ⅳ Production process -- RFID blank PET anti-counterfeiting tag UHF
