Ⅰ Product Overview - Implantable label ZJDW13
Name: Implantable tag ZJDW13
The implantable tag ZJDW13 contains syringes and glass tube animal chips, specially designed for animal management, packaged with high-performance imported RFID chips such as EM4305, sterilized by EO (ethylene oxide), certified by the "International Animal Coding Committee" ICAR, in line with ISO11784/11785 international standard. The current bioglass material is used to effectively prevent ionization and zero rejection of animals. Effective management and control of animal growth and breeding, tracking and management of animal growth process. Applicable to cats, dogs, laboratory rats, pet mink, raccoon dogs, foxes, golden arowana, salmon, horses, rabbits, pigs, cattle, sheep and so on.
The implantable tag ZJDW13 contains syringes and glass tube animal chips, specially designed for animal management, packaged with high-performance imported RFID chips such as EM4305, sterilized by EO (ethylene oxide), certified by the "International Animal Coding Committee" ICAR, in line with ISO11784/11785 international standard. The current bioglass material is used to effectively prevent ionization and zero rejection of animals. Effective management and control of animal growth and breeding, tracking and management of animal growth process. Applicable to cats, dogs, laboratory rats, pet mink, raccoon dogs, foxes, golden arowana, salmon, horses, rabbits, pigs, cattle, sheep and so on.
Ⅱ Main parameters - implantable tag ZJDW13
| Product parameters | |
| Material | Polypropylene |
| Colour | The tube/tube is white |

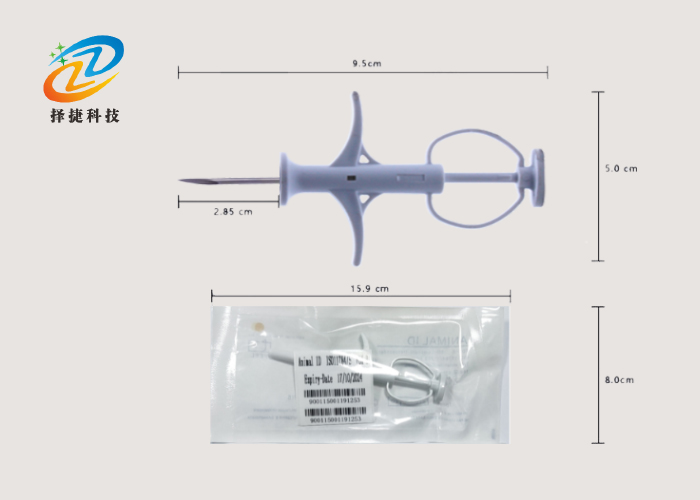

| Dimensions | 100*50*11mm |
| Structure | Needle and cylinder are connected with special fastener (not easy to disassemble), push rod with fastener can automatically rebound (with prompt sound) |
| Spicule | The needle is equipped with a thimble to prevent the chip from falling out and being lost |
| Needle | Medical 304 stainless steel |
| Use | Disposable |
| Electronic chip | |
| Frequency | 134.2K/125Khz/13.56Mhz |
| Type | EM4305/TK/Hitags/NFC |
| Dimensions | Φ2.12*12mm, φ1.4*8mm, φ1.25*7mm, φ2.12*8mm |
| Data | Readable, writable |
| Material | Inside: lead-free non-toxic material, outside: biological glass package |
| Surface | The surface of the chip is specially coated to prevent dissociation under the skin of the animal |
| Weight | 0.5g (φ2.12*12mm) |
| Memory | 512bit |
| Compliant standard | ISO11784/11785 |
| Packing instruction | |
| Packing bag | Breathable paper plastic bag for medical use |
| Disinfection method | EO (ethylene oxide) disinfection, valid for five years |
| Package visibility | Disinfection date, effective use date, 15-digit code (in barcode form) |
| Weight | 35g |
| Temperature | Operating temperature: -20℃-50℃, storage temperature: -40℃-70℃ |
Ⅳ Installation method -- Implantable label ZJDW13
It is injected directly under the skin of the animal by a professional using a special syringe and implanted horizontally at a 45° Angle.

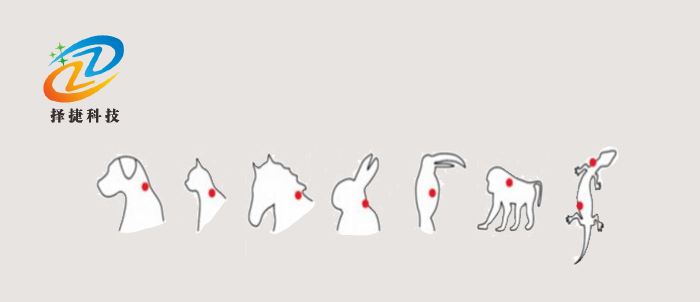

The basic implantation of special animals is roughly marked as follows:
The basic implantation of special animals is roughly marked as follows:
Ⅴ Product display

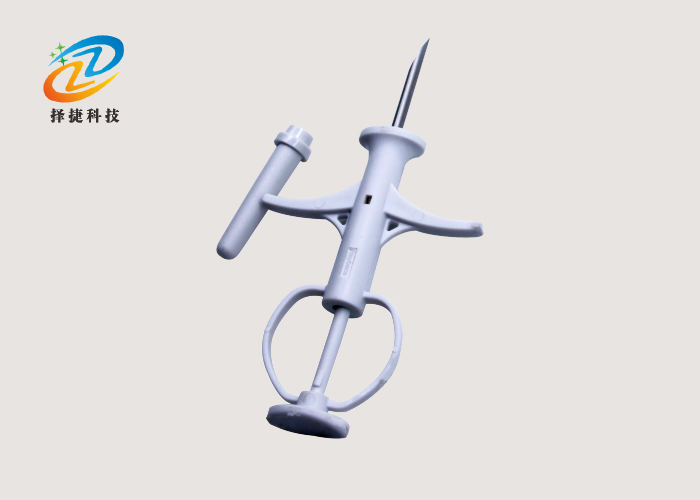

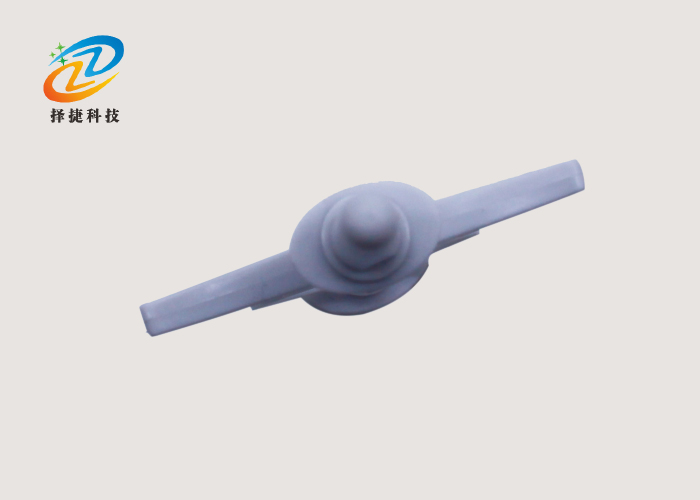

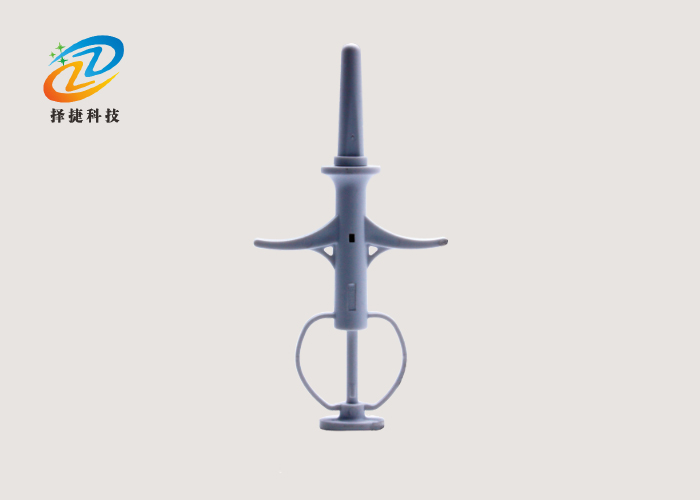

Real-shot display
