I Product introduction -- 2.4G badge active tag


Name: 2.4G badge active tag ZJYY8755

2.4GHz badge tag ZJYY8755, using ultra-low power design, longer label life; Effective visual identification distance of more than 100 meters; Simple structure, small, light, can be worn on the user's chest through the lanyard; Frequency hopping mode, anti-collision and anti-interference ability.
Can be widely used in school information (student access to school gate management), personnel management, personnel attendance and other applications.

II Product features -- 2.4G badge active tag


● Ultra-low power consumption design, longer service life;
● Effective visual identification distance of more than 100 meters;
● Frequency hopping working mode, anti-collision and anti-interference ability is stronger
● Ultrasonic packaging process, waterproof class up to IP54;
● Small and light, easy to wear;


III Technical parameters -- 2.4G badge active tag


Model ZJYY8755
Operating frequency 2.4GHz2.5GHz
Modulation method GFSK
Communication rate 1Mbits/S
Emission power 0~7dBm
Recognition distance 100 meters
Battery type CR2025*2
Static current <1uA
Emission current <20mA
Useful life 1~3 years
Battery changeability Unchangeable
Operating temperature -20℃~+60℃
Storage temperature   -40℃ to +80℃
Operating humidity 5% ~ 95%(no condensation)
Protection rating  IP54
External dimensions (L*W*H) 87*55*5mm
Weight 19g
Material ABS
Colour White

IV Product Display -- 2.4G badge active tag

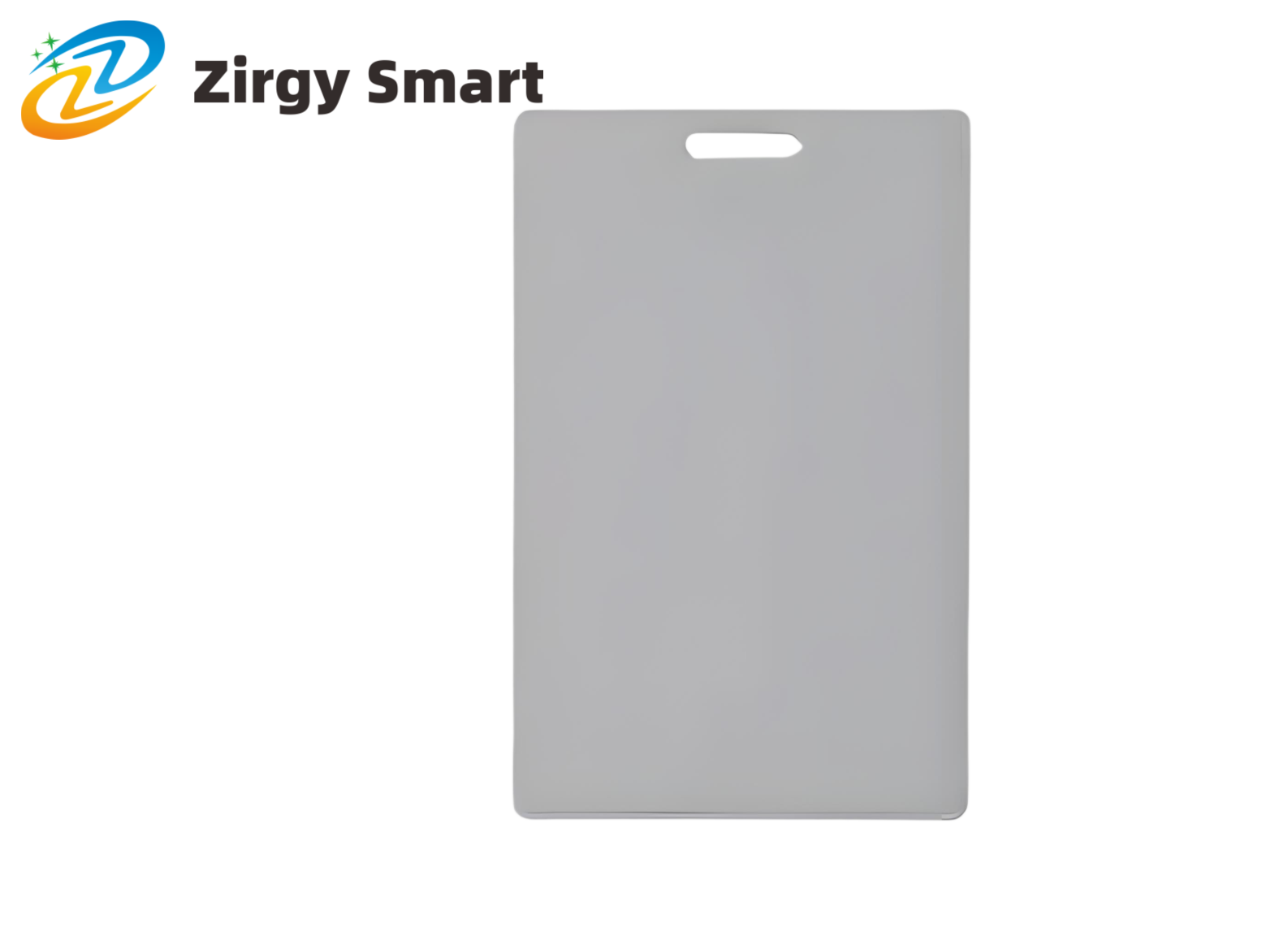

Dual-frequency active tag card (built-in high-frequency chip) ZJA-82 product display


Dual-frequency active tag card (built-in high-frequency chip) ZJA-82 product display
