I Product introduction -- 2.4G tamper-proof label
2.4GHz anti-detachable label ZJYY3838FC, with ultra-low power consumption design, longer label service life; Effective visual identification distance of more than 200 meters; Simple structure, small, light, can be fixed by screws, magnets, back glue and other ways; Frequency hopping mode, anti-collision and anti-interference ability.
It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, asset management, medical system, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting system and production process control and other applications.
II Product features -- 2.4G tamper-proof label
* Ultra-low power design, longer service life;
* Effective visual identification distance of more than 200 meters;
* With anti-demolition function to avoid the label being removed maliciously;
* Ultrasonic packaging process, waterproof grade up to IP54;
* Small and light, a variety of installation methods, can be installed on the fixed assets of enterprises by screws, magnets, backglue and other fixed ways;
III Basic parameters -- 2.4G tamper-proof label
| Product model | ZJYY3838FC |
| Product type | 2.4G tamper-proof tag |
| Operating frequency | 2.4GHz～2.5GHz |
| Product material | ABS plastic |
| Weight | 15g |
| Communication rate | 1Mbits/S |
| Emission power | 0~7dBm |
| Operating temperature | -20℃ to +60℃ |
| Storage temperature | -40℃ to +80℃ |
| Operating humidity | 5% ~ 95% (no condensation) |
| Battery type | CR2450 |
| Static current | <2uA |
| Emission current | <20mA |
| Useful life | 1~5 years |
| External dimensions (L*W*H) | 38*38*14mm |

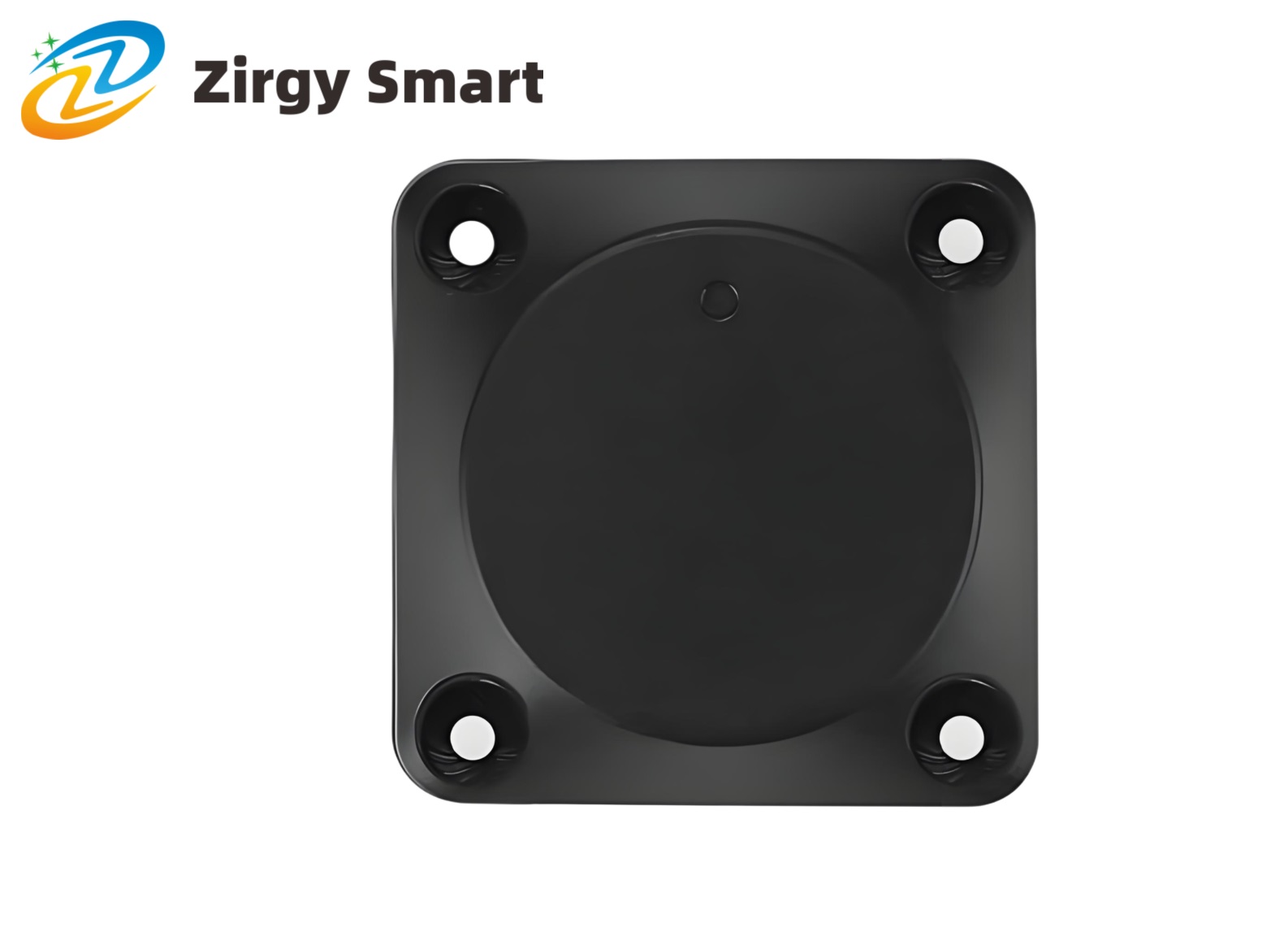

IV Product display -- 2.4G active RFID anti-demolition electronic tag
