Ⅰ Product introduction -- Ship management active tags
Name: Ship Management Active Tag ZJA-80
Ship Management Active Tag ZJA-80 is an ultra-low power, high performance 2.45GHz active electronic tag that sends a dedicated ID number at a preset time.
It has the characteristics of high receiving sensitivity and long identification distance, and the battery can be replaced according to the application requirements. Applicable to school information management, vehicle management, asset management,
Personnel management, production line management, logistics and traceability management, anti-counterfeiting tracking management, mine management and ship management.
Ⅱ Product features - Active tags for ship management
● Ultra-low power consumption, long service life;
● Button battery power supply, battery can be replaced;
● IP65 protection grade;
● Long identification distance, high sensitivity;
● Read-write type with large capacity storage area for data writing and storage;
● Dual-band card, compatible with 13.56MHz band, supporting ISO15693, ISO14443A and ISO14443B protocols.
Ⅲ Technical specifications - Active tags for ship management
| Model | ZJA-80 |
| Type | Read-only type |
| Radio frequency chip | nRF wireless product series |
| Operating frequency | 2400MHz~2500MHz |
| Antenna | PCB unipolar antenna |
| Output power | -18dBm~0dBm |
| Reception sensitivity | -90dBm |
| Recognition distance | 20~200m (decided by antenna) |
| Operating current | Less than 18uA |
| Battery useful lfie | 3.0V battery, with a useful life of 3 years (battery is changeable) |
| Battery alarm | Low battery alarm function |
| Material | ABS, V0 fire rating |
| Protection rating | IP65 |
| External dimensions | 85mm*54mm*5mm |
| Weight | 25g |
| Operating temperature | -20℃~+60℃ |
| Tags of other category | |
| Read-write type (ZJA-80W) | tags4KB memory area with a write life of 100,000 times |
| Dual-frequency type (ZJA-80H) |
Integrated 13.56MHz label |
| Supports ISO15693, ISO14443A and ISO14443B protocols, and can choose one of three applications | |
Ⅳ Product display - Active tags for ship management

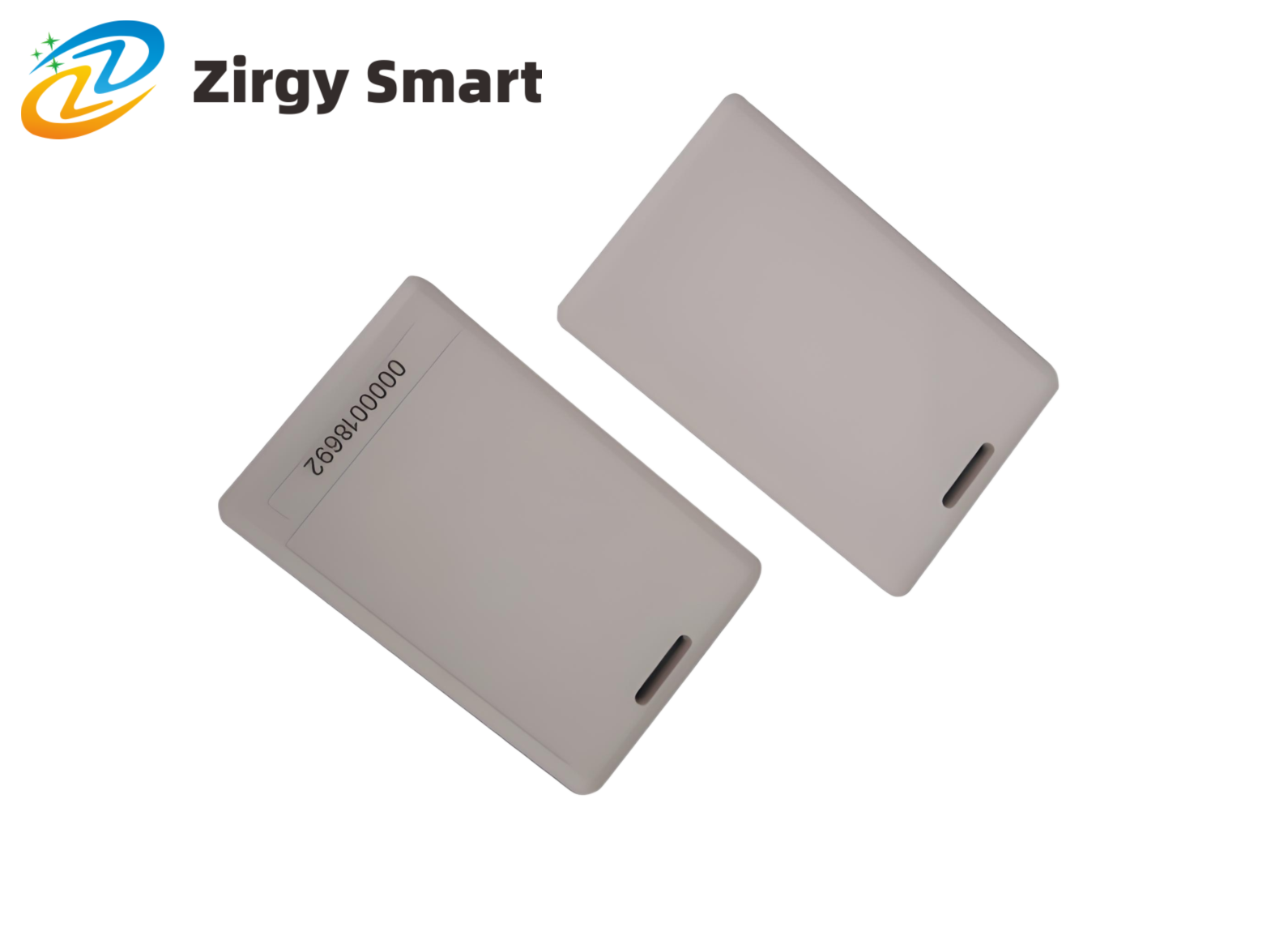

Real-shot display
