Ⅰ Technical parameters -- active sound and light anti-demolition label
● Product features
Active acousto-optic anti-demolition tag ZJA-60 is a remote identification tag specially developed for the positioning and tracking of asset items and the search and management of warehouse items. The tag has a number of operating bands, 2.4GH can be recognized at a distance, but also can integrate low-frequency 125K excitation function, quasi-positioning. The label features acoustic and optical positioning feedback, physical anti-disassembly of metal cable ties, alarm of rolling tape detachment, waterproof, and easy installation.
· Reading distance: Long reading distance (0-100 meters)
· Disassembly resistance: metal strip anti-tension physical design, cut metal strip sound and light alarm
· Customization: Customized low frequency 125K, acousto-optic function, lockout battery replacement cover, etc
● Specifications
| Standby operating current | Dynamic operating current | Operating voltage | Battery specification | Battery useful life | Impact capacity | Reception sensitivty |
| <5uA | <12mA(pulse mode) | 3V | Cr2450×1 | 2〜3 years | >200PCS | -80dBm〜-90dBm |
| Emission time | Reading method | 2.4G recognition distance | 125k activation distance | |||
| Actively once per second/passively 3-4 times per second | Acitve/passive/combination of active and passive | 0-100 meters | 1-3 meters | |||
Ⅱ Product dsiplay -- active sound and light anti-demolition label

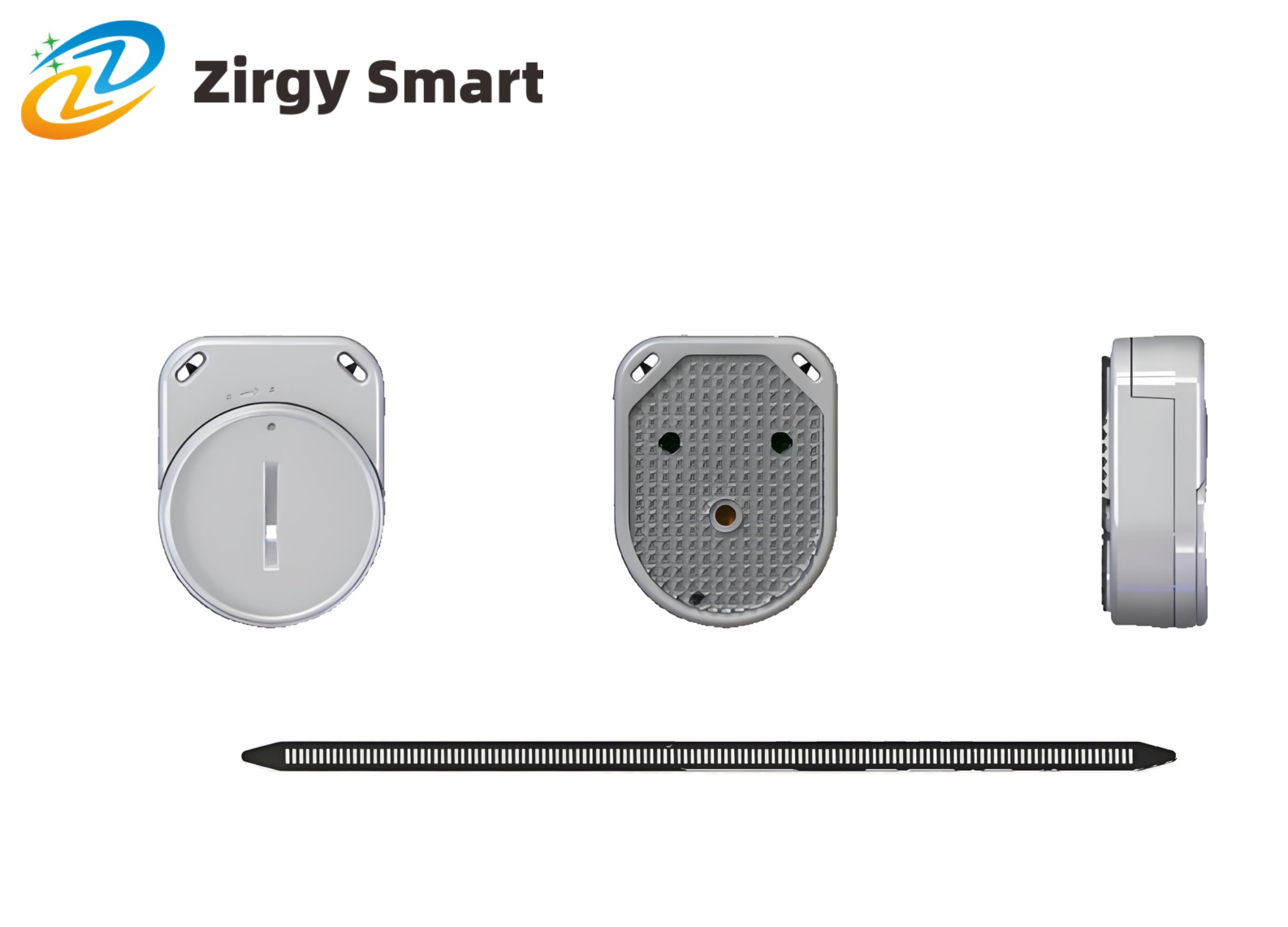

Real-shot display
