Ⅰ Product introduction -- 2.4G active RFID anti-demolition electronic tag
Name: 2.4G active RFID anti-demolition electronic tag ZJA-53
The 2.4G active RFID anti-detachable electronic tag ZJA-53 consists of a 2.4GHz radio frequency chip, a low-power CPU, two buttons, a shell, a cover, a self-adhesive and a battery. The two buttons are used to prevent disassembly. If either of the two buttons is loose, the label is removed. Even if the label is attached again, the label disassembly status flag cannot be cleared. The label does not send information when it is not in use. If the two buttons of the label are pressed at the same time, the label enters the working state. The ID number is sent out periodically, but the activation mark inside the label is cleared. The tag is to be used when the activation device is activated and the activation flag is set. It is suitable for personnel attendance positioning, tunnel construction personnel attendance positioning, mine attendance positioning, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system, etc.
The 2.4G active RFID anti-detachable electronic tag ZJA-53 consists of a 2.4GHz radio frequency chip, a low-power CPU, two buttons, a shell, a cover, a self-adhesive and a battery. The two buttons are used to prevent disassembly. If either of the two buttons is loose, the label is removed. Even if the label is attached again, the label disassembly status flag cannot be cleared. The label does not send information when it is not in use. If the two buttons of the label are pressed at the same time, the label enters the working state. The ID number is sent out periodically, but the activation mark inside the label is cleared. The tag is to be used when the activation device is activated and the activation flag is set. It is suitable for personnel attendance positioning, tunnel construction personnel attendance positioning, mine attendance positioning, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system, etc.
Ⅱ Basic parameters -- 2.4G active RFID anti-demolition electronic tag
| Product model | ZJA-53 |
| Product type | 2.4G active RFID tamper-proof label |
| Operating frequency | 2.4GHz |
| Product material | ABS plastic |
| Product colour | Grey |
| ID | 4 bytes |
| User area | 32*16 bytes |
| Function 1 | With anti-demolition function (two buttons to complete) |
| Function 2 | Self-adhesive function |
| Function 3 | Tags do not work without pasting; When the two buttons are pressed at the same time, the label periodically sends out the ID number. |
| Function 4 | Activate tag into activated status |
| Activation | Should be activated by activating device |
| Power supply | CR2450 button battery |
| Rated power | 1W |
| Operating temperature (℃) | -25℃ ～ +75℃ |
| Storage temperature (℃) | -40℃ ～ +85℃ |
| Operating humidity | 小于 95％ |
| Device dimensions | 78mm×32mm×6mm |
| Device weight | 0.05kg |
| Package dimensions | 350mm×150mm×50mm |
| Packing quantity | 100 |
| Packing weight | 5kg |
Ⅲ Product display -- 2.4G active RFID anti-demolition electronic tag

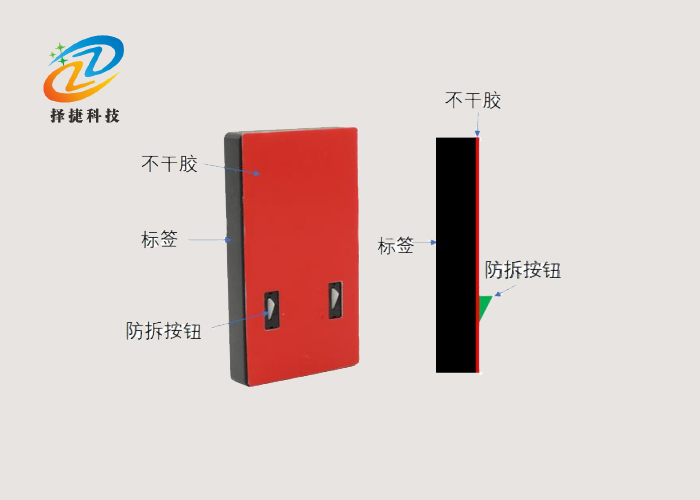

Constitution diagram

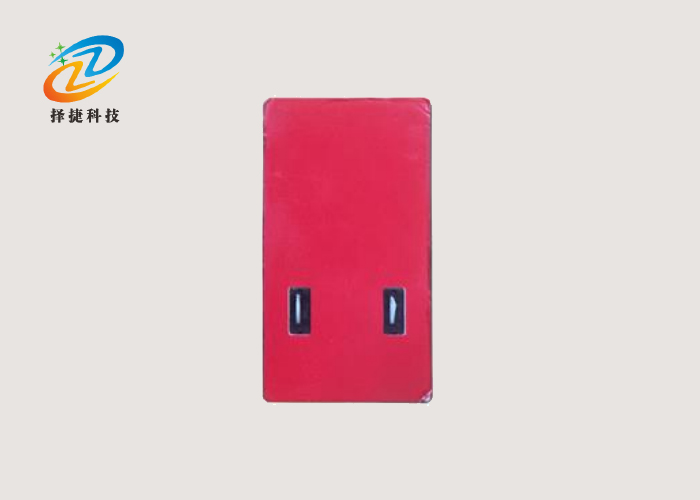

Real-shot display--front side

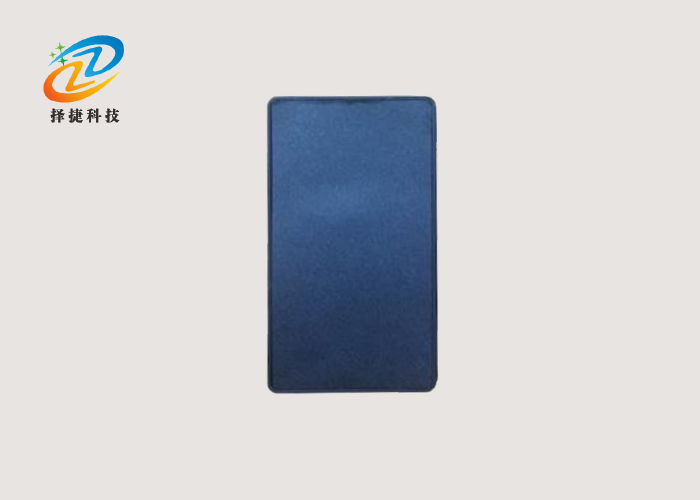

Back side

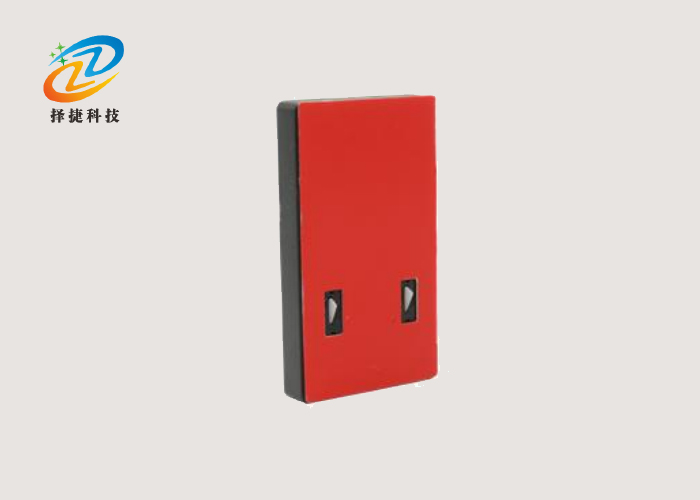

Side
