Ⅰ Product Introduction -- Active Anti-theft label (3 years)
Name: Active Anti-theft Tag (3 years) ZJA-51
Active anti-theft tag (3 years) ZJA-51 is mainly used in asset management, electric vehicle anti-theft, car tracking, etc.
Ⅱ Product Features -- Active anti-theft label (3 years)
● Label ID number 8 bytes;
● Read-only type;
● Non-replaceable battery (one-time use);
● Waterproof grade: IP67;
● Long label life;
● Wide operating temperature range;
● Long reading distance.
Ⅲ Technical parameters -- Active anti-theft tag (3 years)
● Working frequency: 2.4GHz-2.5GHz(factory Settings);
● Working mode: active;
● Transmission power: less than 1mW (0dBm) (factory Settings);
● Working voltage: 3V (1 section CR2450);
● Static (standby) working current: < 1uA;
● Maximum working current (transmitting signal) : <15mA;
● Launch time: 0.25ms;
● Reading mode: read-only;
● Read and write distance: 0-250 meters (related to the acquisition equipment);
● Working years: 8 years (theoretical value);
● Working voltage: 3V;
● Query time: 1s;
● Collision ability: with strong anti-collision ability, the number of cards can be read at the same time >2000;
● Working temperature: -25 ~70℃;
● Storage temperature: -40 ~85℃;
● Working humidity: less than 95%;
● Dimensions: 39mm×39mm×8mm;
● Weight: 80g.
Ⅳ Product display -- Active Anti-theft label (3 years)
Product size drawing

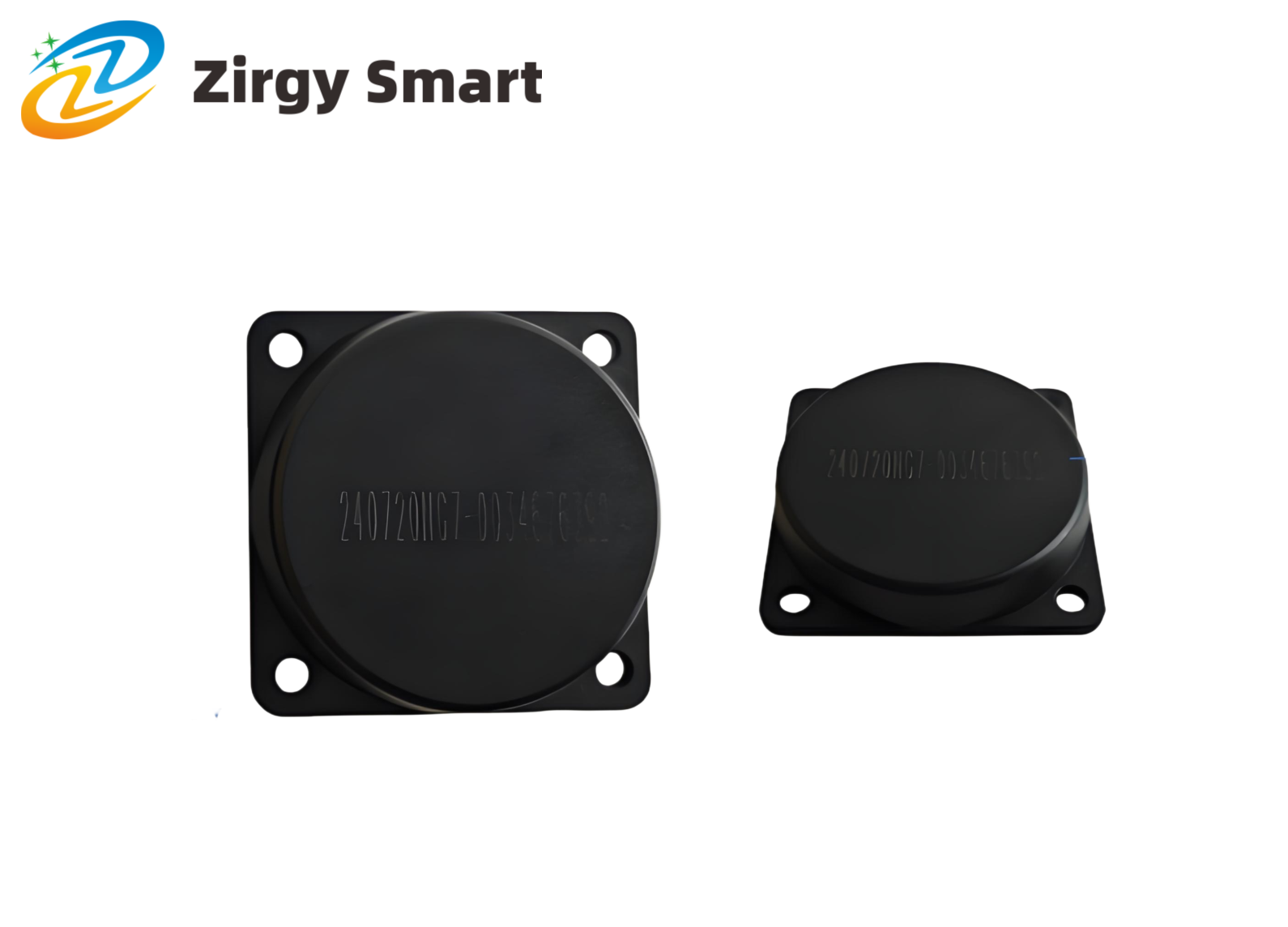

Real-shot display
