Ⅰ Technical parameters - baby protective bracelet


Name: Baby protective bracelet ZJA-23


● Product features

Baby protective bracelet ZJA-23 is an RFID electronic product used in the hospital baby anti-theft system. This product uses an environmentally friendly and soft wrist strap to wear on the baby's feet, which will not cause discomfort to the baby. The baby protective label has anti-pull design of the wristband, alarm of accidental cutting of the wristband, alarm of the wristband from the baby's skin and other anti-theft measures. It is responsible for collecting the baby's position coordinates in the protection system and transmitting the data to the system in coordination with the reader.
· Reading distance: Long reading distance (0-50 meters)
· Dual anti-disassembly: wristband cutting alarm and human skin sensing function
· Safety: The shell uses waterproof design, and the wrist strap uses soft materials that will not cause discomfort to the baby

● Specifications

Standby operating current Dynamic operating current Operating voltage Battery specification Battery useful life Impact capacity
<5uA <18mA(pulse mode) 3V 2032 rechargeable battery 3〜5 years >200PCS
Emission time Reception sensitivity Reading method 2.4G recognition distance Other parameters
Actively once per second/passively 3-4 times per second -80dBm〜-90dBm Read only 0-50 meters Low battery warning


Product display - Baby protective bracelet


Real-shot display

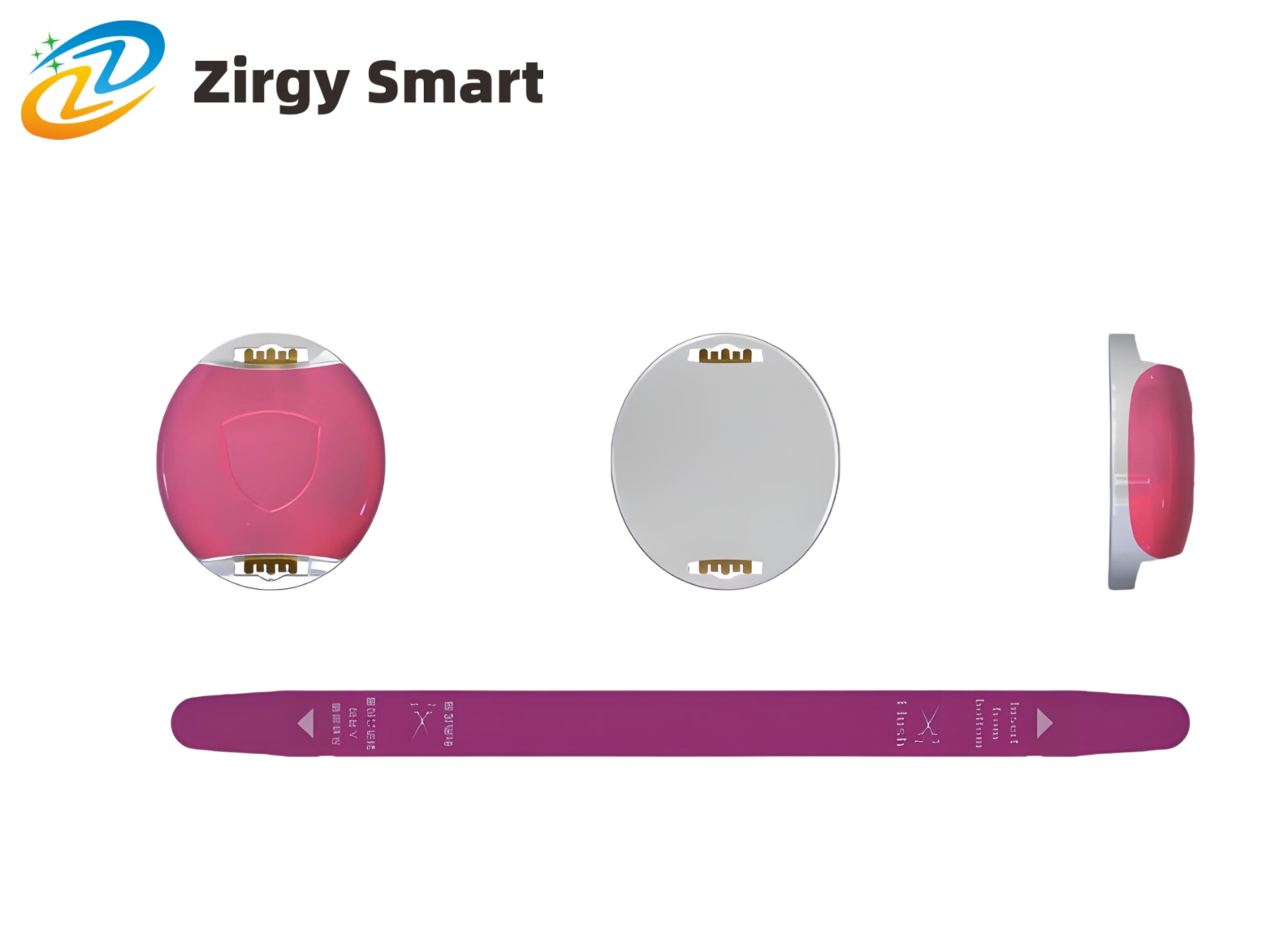

Baby protective bracelet ZJA-23 real shot show Figure 1

Baby protective bracelet ZJA-23 real shot display figure 2
