Ⅰ Technical parameters -- round active school badge label
Name: Round active school badge label ZJA-08
● Product features
The circular active school badge label ZJA-08 is mainly used for long-distance attendance of school students to make a logo style. With a large capacity battery, the service life is up to 3 years, and has the characteristics of long launch distance, strong penetration, waterproof, small size, easy to wear.
· Reading distance: Long reading distance (0-100 meters)
· Anti-electromagnetic interference: 10V/ m0.1 ~1000MHz AM electromagnetic wave
· Customization: Low frequency 125K can be customized, and the school LOGO and pattern can be printed according to customer needs
● Specifications
| Standby operating current | Dynamic operating current | Operating voltage | Battery specification | Battery useful life | Impact capacity | Reception sensitivity |
| <5uA | <12mA(pulse mode) | 3V | Cr2430×1 | 2〜3 years | >200PCS | -80dBm〜-90dBm |
| Emission time | Reading method | 2.4G recognition distance | 125k activation distance | |||
| Actively once per second/passively 3-4 times per second | Active/passive/combination of active and passive | 0-100 meters | 1-3 meters | |||

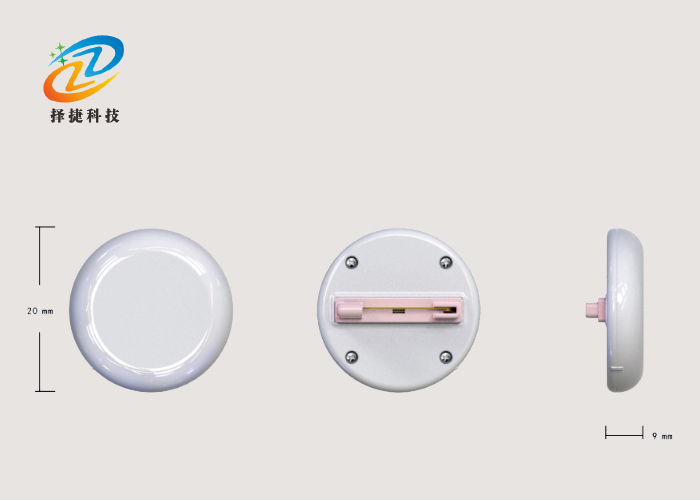

Ⅱ Product display - round active school badge label

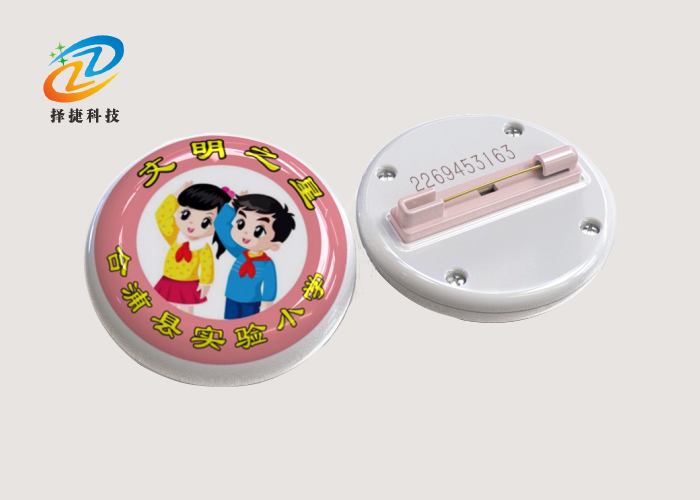

Real-shot display
