Ⅰ Technical parameters——Ultra-thin card active tag
Name: Ultra-thin card active tag ZJA-03
● Product features
The ultra-thin card active tag ZJA-03 is an RFID semi-active electronic tag based on the 2.45GHz frequency band. The tag is usually in a dormant state. When used in conjunction with our company's low-frequency 125K activator, the 2.4G long-distance base station can effectively control the sensing distance. It is often used in application solutions such as campus all-in-one cards, access control all-in-one cards, asset management, personnel positioning in hospitals, personnel positioning in prisons, personnel positioning in tunnels, etc.
・Security: Anti-cracking encryption processing, and the tag actively sends signals.
・Stability: Fast speed, strong sensitivity, and long reading distance.
・Ultra-low power consumption: It can work with low power replenishment, the battery service life is more than 3 years, and the battery is replaceable.
・Anti-collision property: With advanced anti-collision technology, it can identify more than 200 tags simultaneously.
・Customizability: High frequency and ultra-high frequency can be added through customization.
● Specification and parameters
| Standby operating current | Dynamic operating current | Operating voltage | Battery specification | Battery useful life | Collision resistance ability | Reception sensitivity |
| <5uA | < 18 mA (pulse mode) | 3V | Cr2032 x 2 | 3〜5 years | >2000PCS | -80dBm〜-90dBm |
| Transmission time | Reading method | 2. 4G identification distance | 125k activation distance | Customized high frequency | Customized ultra-high frequency | |
| Actively transmit once per second; passively transmit 3 to 4 times per second. | Read-only | 0-100 meters | 1-3 meters | 13.56MHz | 860MHz to 960MH | |

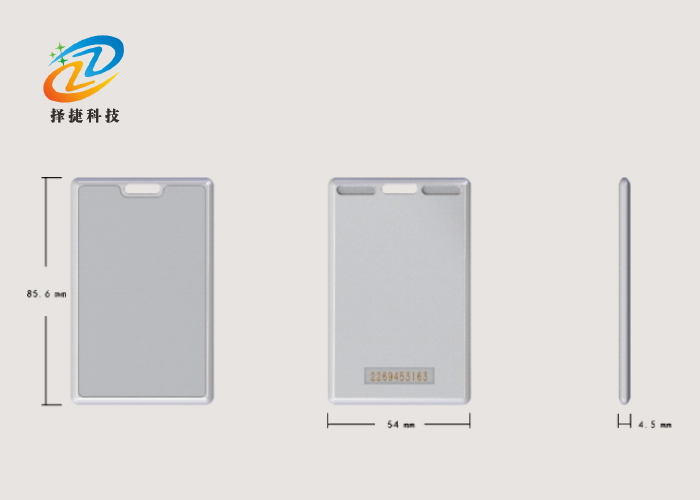

Ⅱ Product display——Ultra-thin card active tag

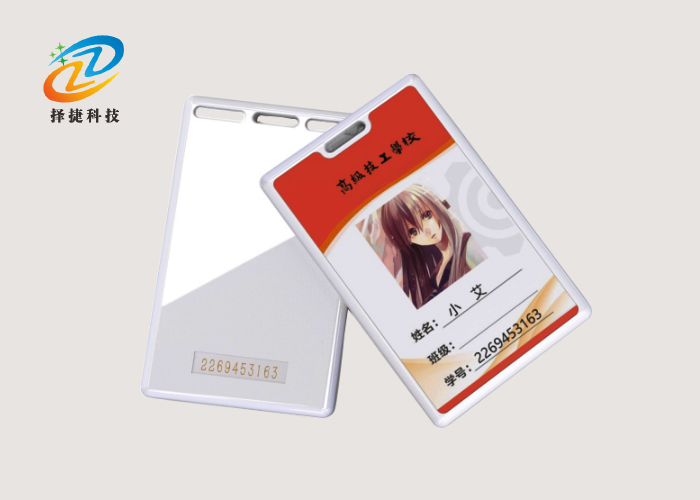

Real-shot display
