I Technical parameters -- 2.4G card active tag
● Product features
2.4G card active tag is based on 2.45GHz band RFID active active electronic tag, with our company 2.4G remote high base station identification. Available for campus one
Card, access control card, asset management, hospital personnel positioning, prison personnel positioning, tunnel personnel positioning and other fields.
· Security: anti-cracking encryption processing, label active signal
· Stability: fast speed, strong sensitivity, long reading distance
· Ultra-low power consumption: low continuous operation, battery life greater than 3 years, battery replaceable.
· Anti-surge: advanced anti-collision technology, can identify more than 200 labels at the same time;
· Customization: Low frequency, high frequency and ultra-high frequency can be customized.
● Specifications
| Standby operating current | Dynamic operating current | Operating voltage | Battery specification | Battery useful life | Impact capacity | Emission power |
| <5uA | 12mA(pulse mode) | 3V | Cr2032 x 2 | 3〜5 years | >2000PCS | 4dBm (factory setting) |
| Emission time | Reading mode | 2.4G recognition distance | Customized low frequency | Customized high frequency | Customized ultra-high frequency | |
| Actively once per second/passively 3-4 times per second | Read only | 0-100 meters | 125k | 13.56MHz | 860MHz to 960MH | |

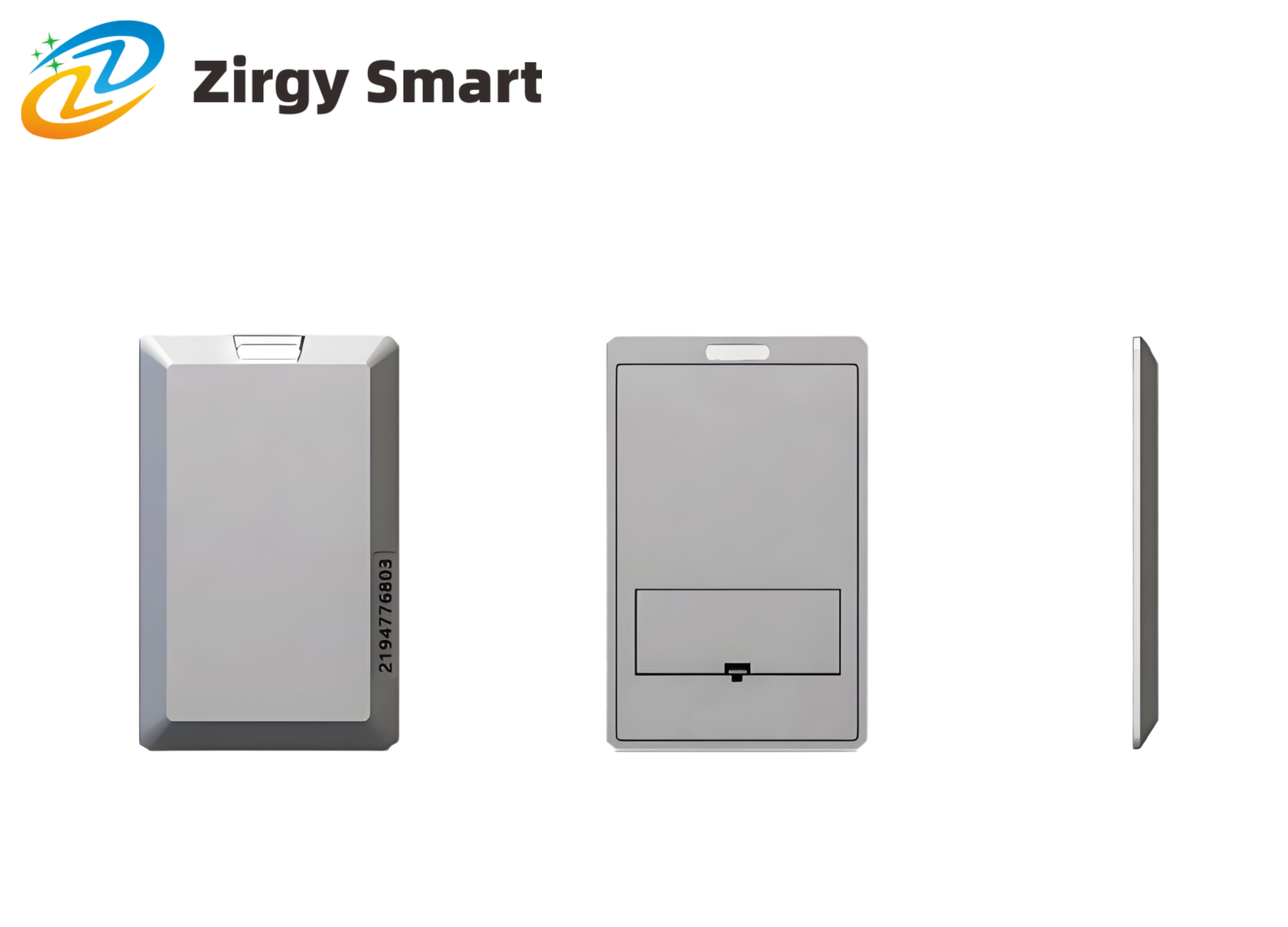

II Product display -- 2.4G card active label
Real-shot display
