Ⅰ Product introduction
Name: UHF split type reader 16-channel ZJF603-16A
UHF split reader 16-channel ZJF603-16A is a high-performance UHF UHF electronic label reader, designed with independent intellectual property rights, combined with proprietary efficient signal processing algorithms, while maintaining high literacy rate, to achieve fast reading and writing processing of electronic labels. It can be widely used in various radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
UHF split reader 16-channel ZJF603-16A is a high-performance UHF UHF electronic label reader, designed with independent intellectual property rights, combined with proprietary efficient signal processing algorithms, while maintaining high literacy rate, to achieve fast reading and writing processing of electronic labels. It can be widely used in various radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
Ⅱ Product features
● Independent intellectual property design;
● Working frequency 840 ~ 960MHz (can be adjusted according to different countries or regions);
● Support EPC CLASS1 G2, ISO18000-6C standard electronic labels;
● Work in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode, support RSSI function, peak tag inspection speed is greater than 100 times/second;
● Output power up to 17dBm (adjustable);
● Support 4 external SMA antenna interfaces;
● Support response mode and real-time inspection mode;
● Label cache capacity: 20 @ Max 96bitsEPC;
● Support EPC and TID two anti-conflict modes;
Low power consumption design, single +8-25V power supply;
● Support RS232, network port, USB, trigger and other communication interfaces, optional 4G, WiFi, Bluetooth, etc.
● Provide dynamic link library (DLL) and demo software source code, support C, C#, Java, Delphi, VB, Linux, ARM, Python, NodeJS,
Modbus and other development languages;
● Exquisite and compact design to meet the needs of a variety of applications. Under different national or regional standards and different environments, the parameters and functions of this card reader may exist
Differences are subject to prior notice.
● Working frequency 840 ~ 960MHz (can be adjusted according to different countries or regions);
● Support EPC CLASS1 G2, ISO18000-6C standard electronic labels;
● Work in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode, support RSSI function, peak tag inspection speed is greater than 100 times/second;
● Output power up to 17dBm (adjustable);
● Support 4 external SMA antenna interfaces;
● Support response mode and real-time inspection mode;
● Label cache capacity: 20 @ Max 96bitsEPC;
● Support EPC and TID two anti-conflict modes;
Low power consumption design, single +8-25V power supply;
● Support RS232, network port, USB, trigger and other communication interfaces, optional 4G, WiFi, Bluetooth, etc.
● Provide dynamic link library (DLL) and demo software source code, support C, C#, Java, Delphi, VB, Linux, ARM, Python, NodeJS,
Modbus and other development languages;
● Exquisite and compact design to meet the needs of a variety of applications. Under different national or regional standards and different environments, the parameters and functions of this card reader may exist
Differences are subject to prior notice.
Ⅲ Main technical parameters
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 12 | V |
| Operating temperature | TOPR | -20～+55 | ℃ |
| Storage temperature | TSTR | -30～+70 | ℃ |
| Specifications (unless otherwise specified, the specifications shown are taken from TA = 25℃ and VCC = 12V operating conditions) | |||
| Items ITEM | Symbols | Values | Units |
| Power supply voltage | VCC | 8～25 (12 typical) | V |
| Operating current | IC | 0.5～1.2 (0.5 typical) | A |
| Operating frequency | FREQ | 840～960 (860~868 typical) (902~928 typical) |
MHz |
| Dimensions | L × W × H | 200 × 152 × 34 | mm |
● Power supply interface DC JACK
| Serial numbers | Symbols | Descriptions |
| Central | PWR | Positive 12V power supply |
| Outer | GND | ground |
● Serial communication interface RS232 (DB5 Female)
| Serial numbers | Symbols | Descriptions |
| 1 | VCC | Power supply |
| 2 | GND | Ground |
| 3 | TXD | Serial communication data output |
| 4 | RXD | Serial communication data input |
| 5 | GND | Ground |
● SMA antenna interface ANT1~ANT16
● Optional antenna
1. UHF circular polarized 5Dbi antenna (860mhz-960mhz)
2. UHF circular polarized 6dBi antenna (PCB board/860mhz-960mhz)
3. UHF linear polarization 9Db antenna (902mhz-960mhz/ circular polarization optional)
4. UHF line-polarized 12Db antenna (902mhz-960mhz/ circular polarization optional)
Ⅳ Product real-shot

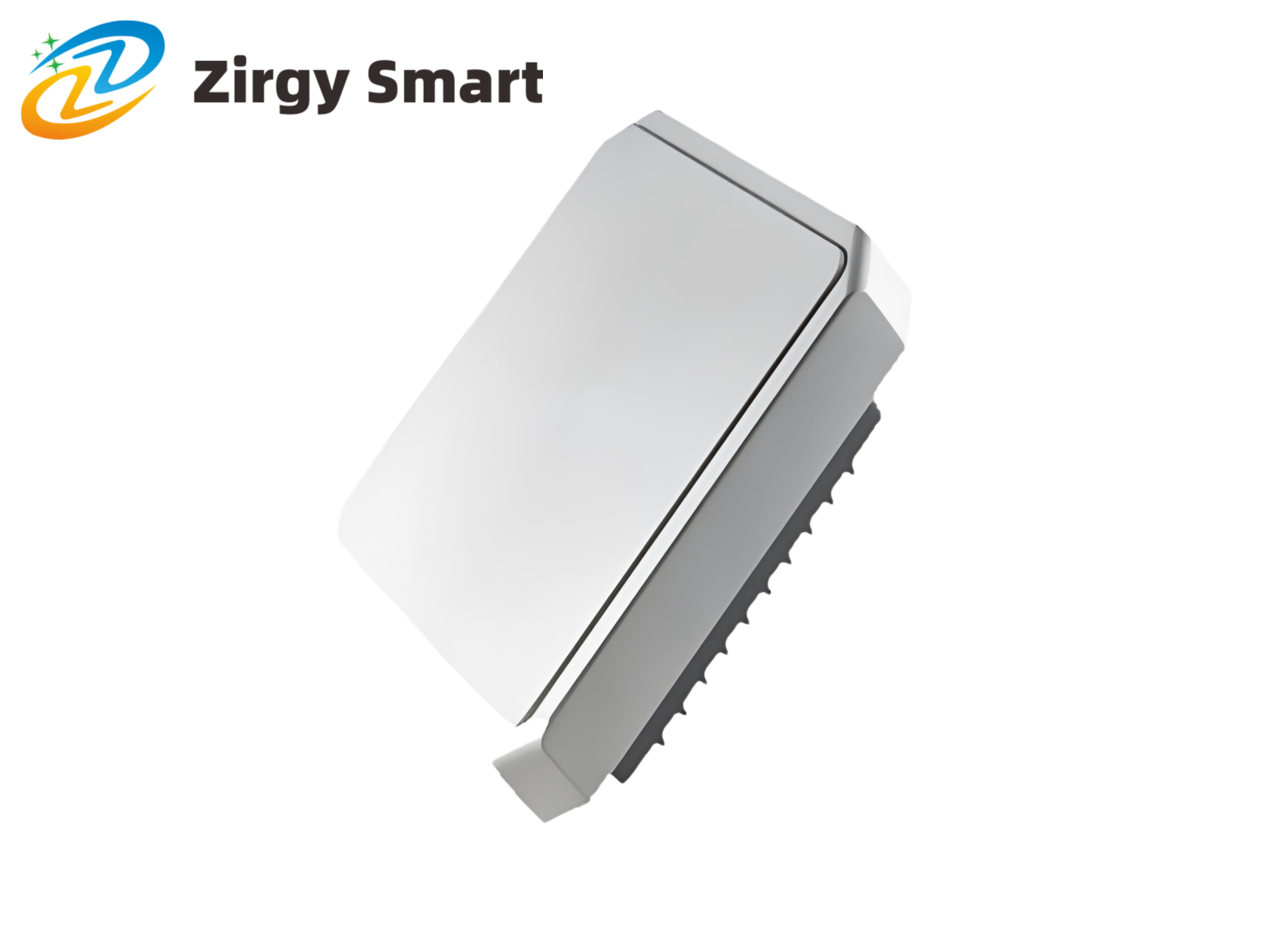

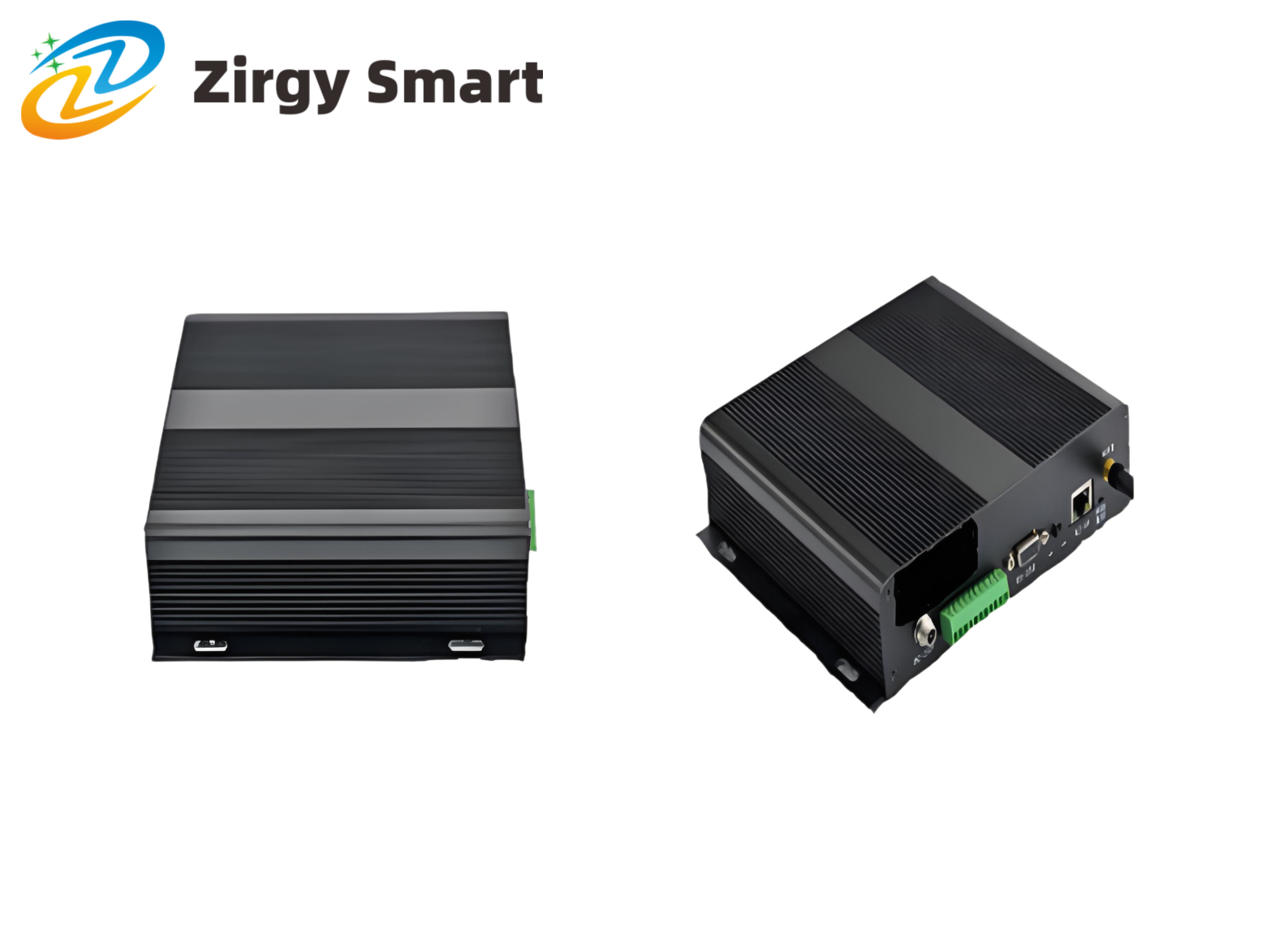

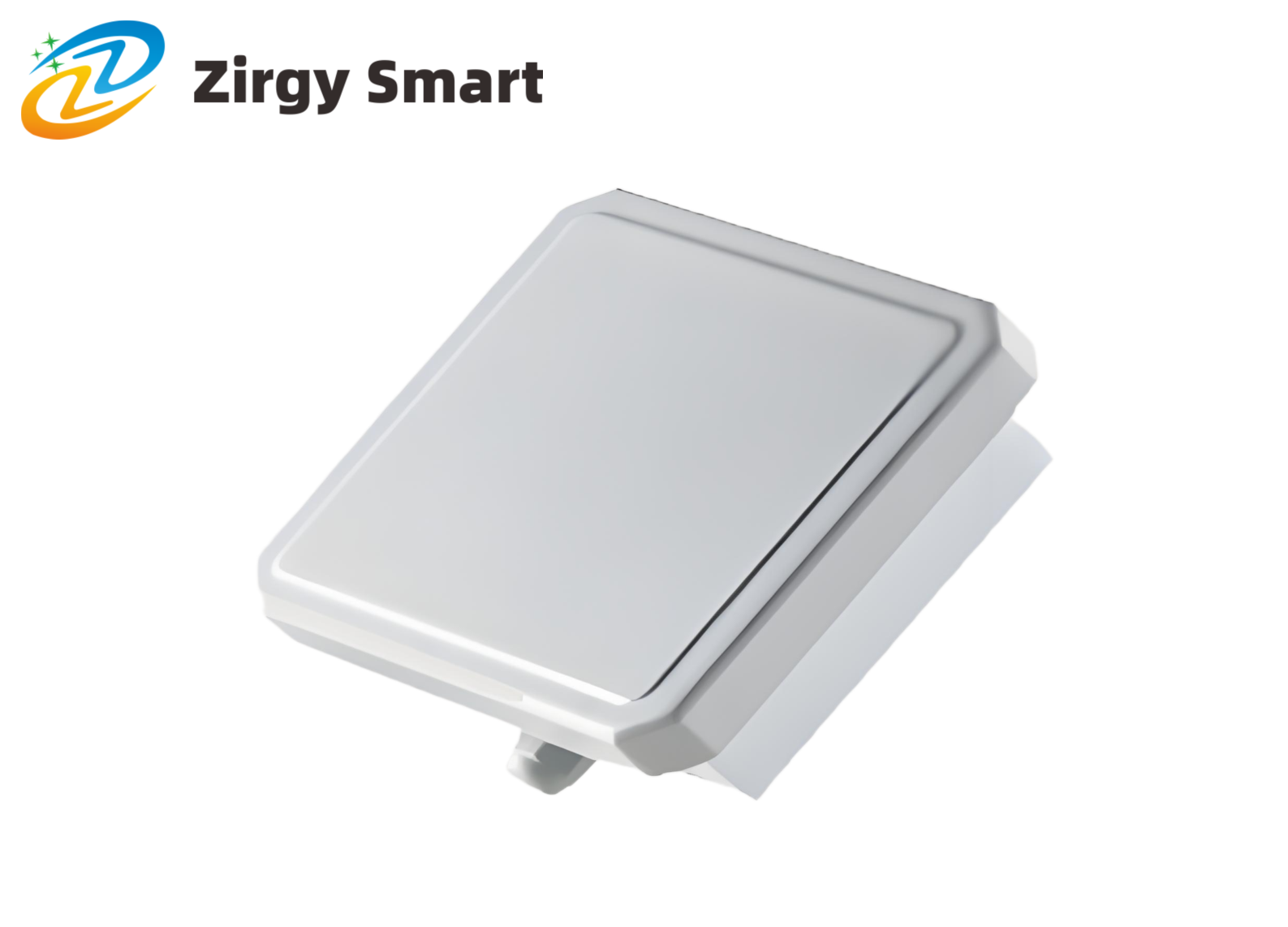

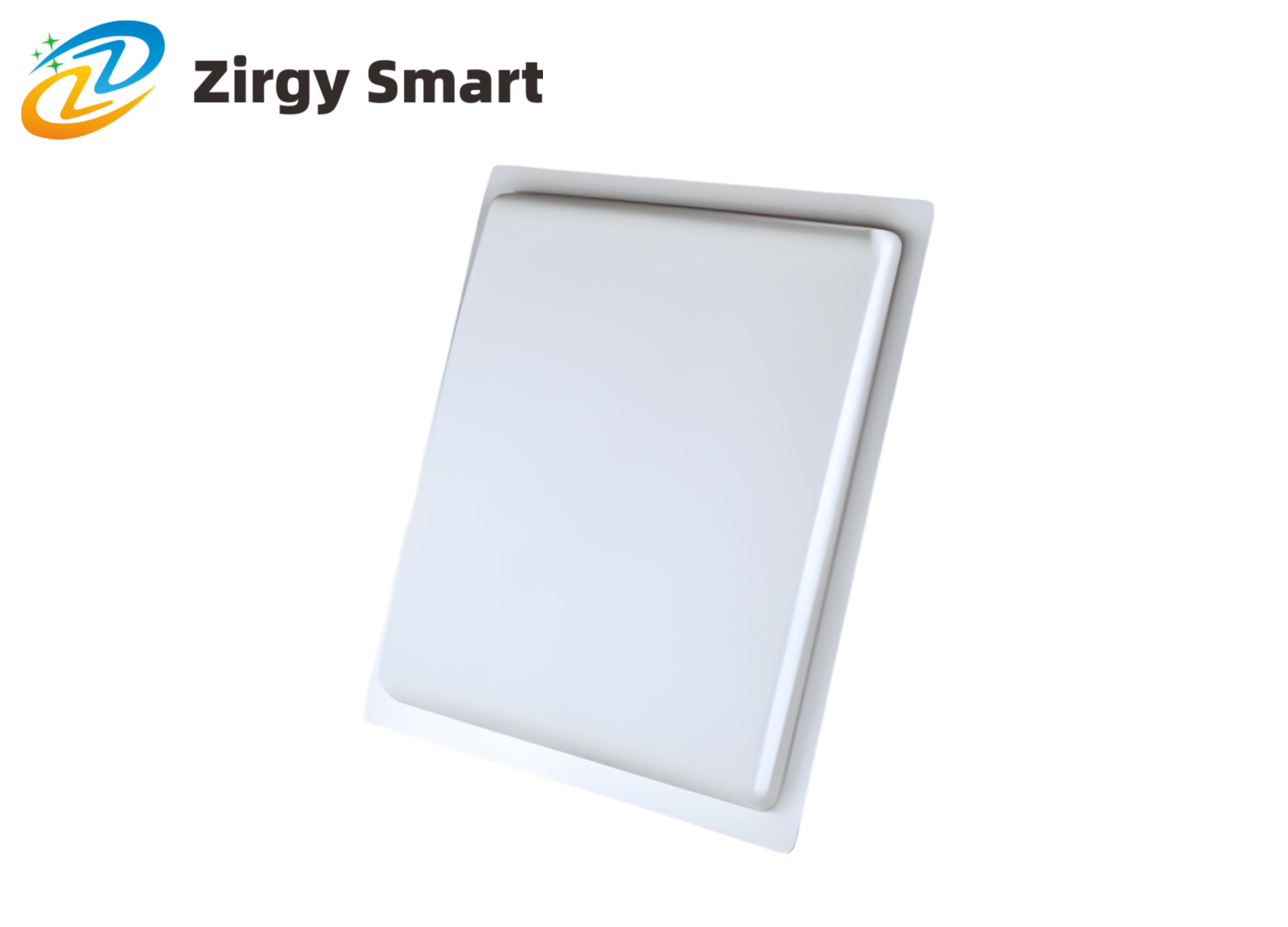

Real-shot display
