Ⅰ Product introduction
Name: UHF 16-channel splitter ZJF202-16A
UHF 16-channel split machine ZJF202-16A is a high-performance UHF UHF electronic label reader, designed with independent intellectual property rights, combined with proprietary efficient signal processing algorithm, while maintaining high literacy rate, to achieve fast reading and writing processing of electronic labels. It can be widely used in various radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
UHF 16-channel split machine ZJF202-16A is a high-performance UHF UHF electronic label reader, designed with independent intellectual property rights, combined with proprietary efficient signal processing algorithm, while maintaining high literacy rate, to achieve fast reading and writing processing of electronic labels. It can be widely used in various radio frequency identification (RFID) systems such as logistics, access control systems, anti-counterfeiting systems and production process control.
Ⅱ Product features
● The core chip of RF module adopts Impinj R2000
● High performance multi-label recognition algorithm
● A small number of label optimization algorithms
● Class dual CPU architecture design
● Fast 4 antenna polling function
● Hardware crash monitoring
● RF power amplifier PA protection function
● PA high power output capability
● Antenna connection detection function
● Simple and efficient hardware and software interface
● Onboard temperature sensor
● Excellent label reading performance
● Simple and efficient instruction system
● Excellent heat dissipation design
● High performance multi-label recognition algorithm
● A small number of label optimization algorithms
● Class dual CPU architecture design
● Fast 4 antenna polling function
● Hardware crash monitoring
● RF power amplifier PA protection function
● PA high power output capability
● Antenna connection detection function
● Simple and efficient hardware and software interface
● Onboard temperature sensor
● Excellent label reading performance
● Simple and efficient instruction system
● Excellent heat dissipation design
Ⅲ Product parameters
| Model | ZJF202-16A |
| Type | Uhf 16-channel split machine |
| Dimensions | 200(L) x 204(W) x 30mm(H) |
| Weight | 850g |
| Shell material | Aluminum |
| Input voltage | DC12V～24V |
| Standby status current | <70mA |
| Sleep status current | <100uA |
| Operating current | 800mA / -5%@DC 12V Input (33dBm output power average working current) |
| Operating temperature | - 30°C ～+70°C |
| Storage temperature | - 40 °C～+ 85°C |
| Operating humidity | < 95% ( + 25°C) |
| Air interface protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Operating spectrum range | 860MHz ～960MHz |
| Output power | 0 ～33dBm |
| Output power accuracy | +/- 1dB |
| Output power flatness | +/- 0.25dB |
| Reception sensitivity | < -85dBm |
| Inventory counting peak rate | 700 pieces per second |
| Tag RSSI | Supported |
| Antenna connection protection | Supported |
| Environmental temperature monitoring | Supported |
| Operating mode | Single unit/integrated type |
| Communication interface | RS232 or TCP/IP |
| GPIO | 2 lines for input, 2 lines for output |
| Communication baud rate | Default 115200bps (configurable 38400 or 460800) |
| Heat dissipation mode | Air cooling |
| Supported operating area | US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan |
Note: Under different national or regional standards and different environments, the parameters and functions of this card issuer may be different without prior notice
Ⅳ Product display

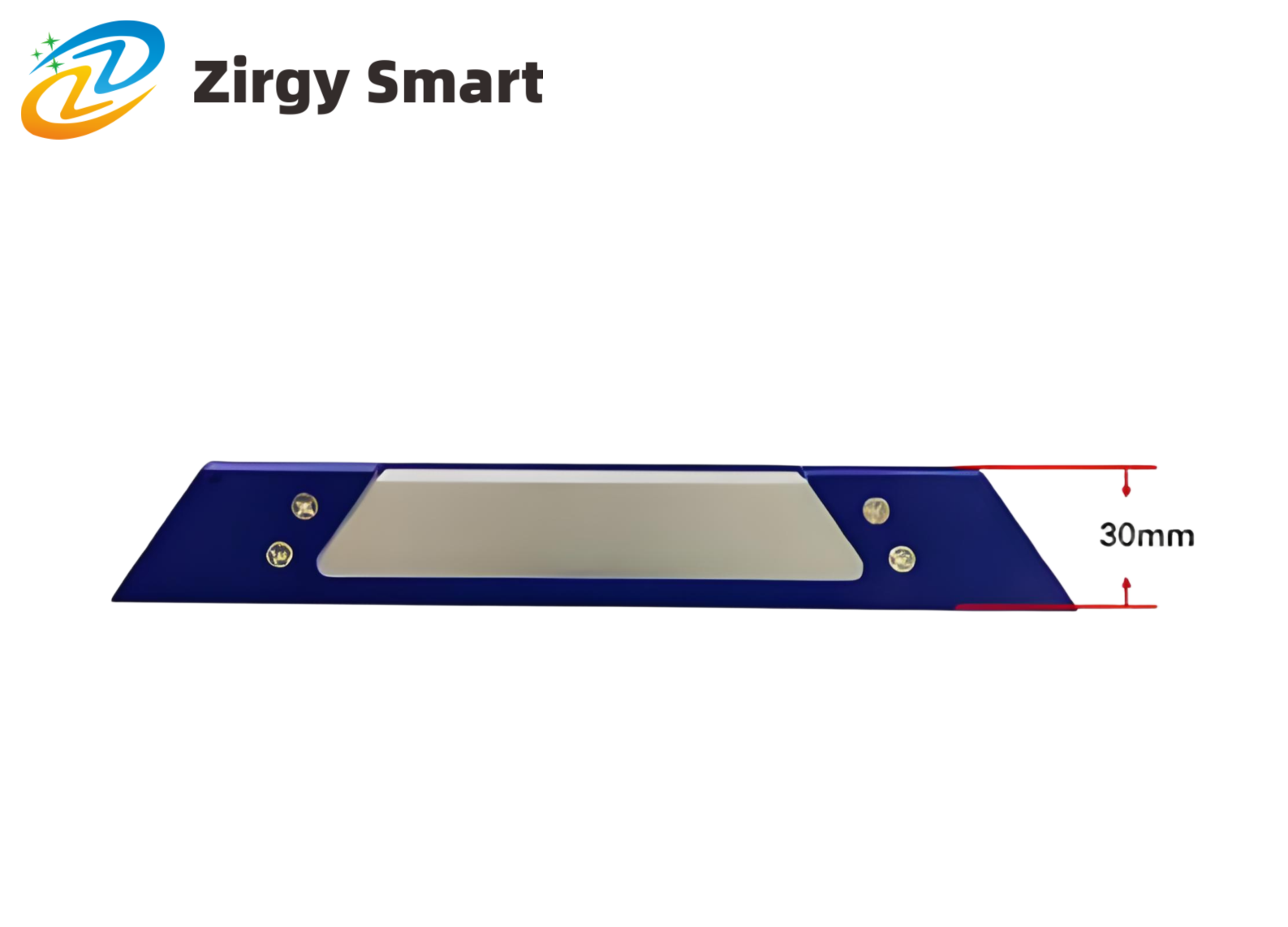

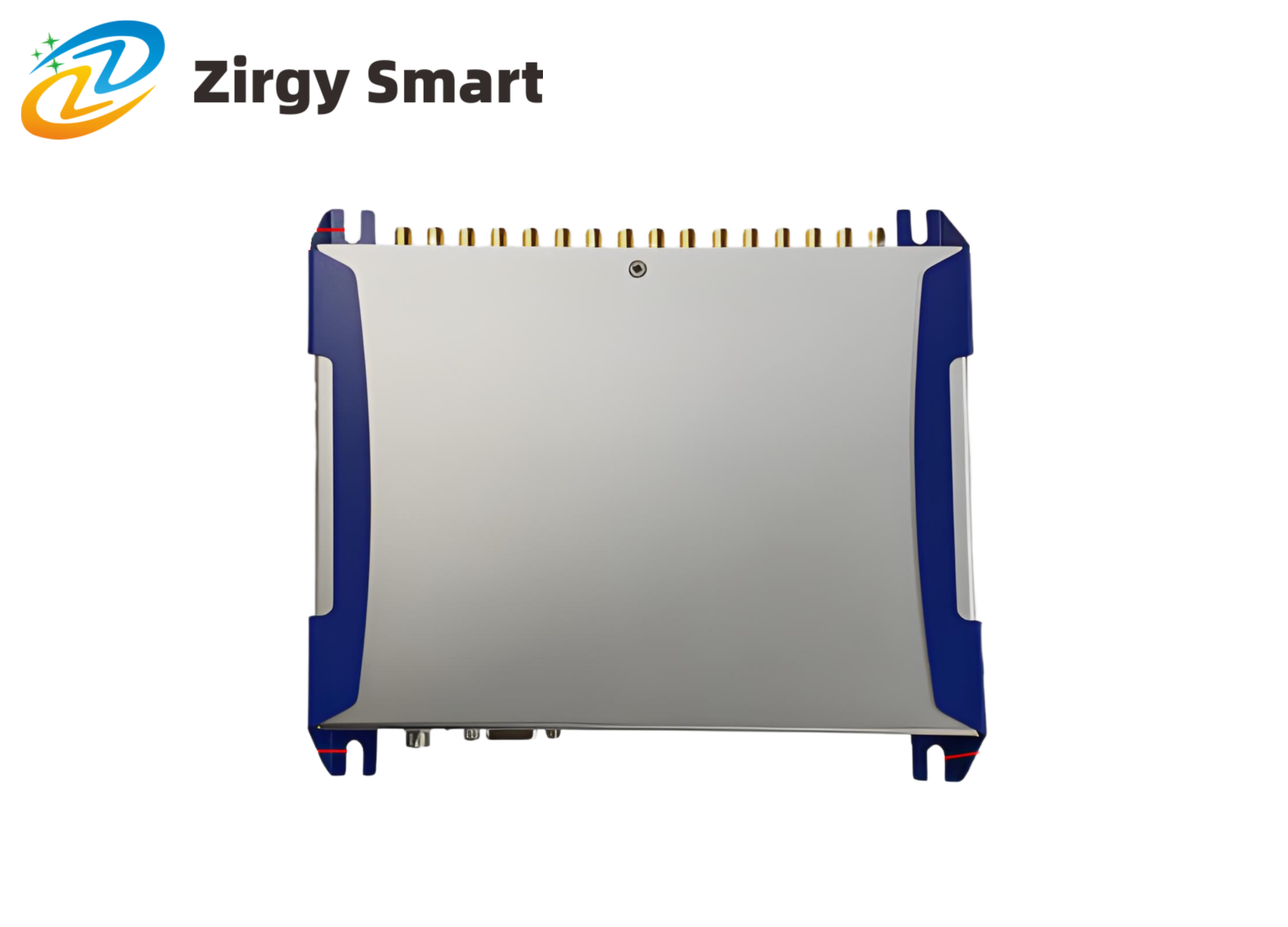

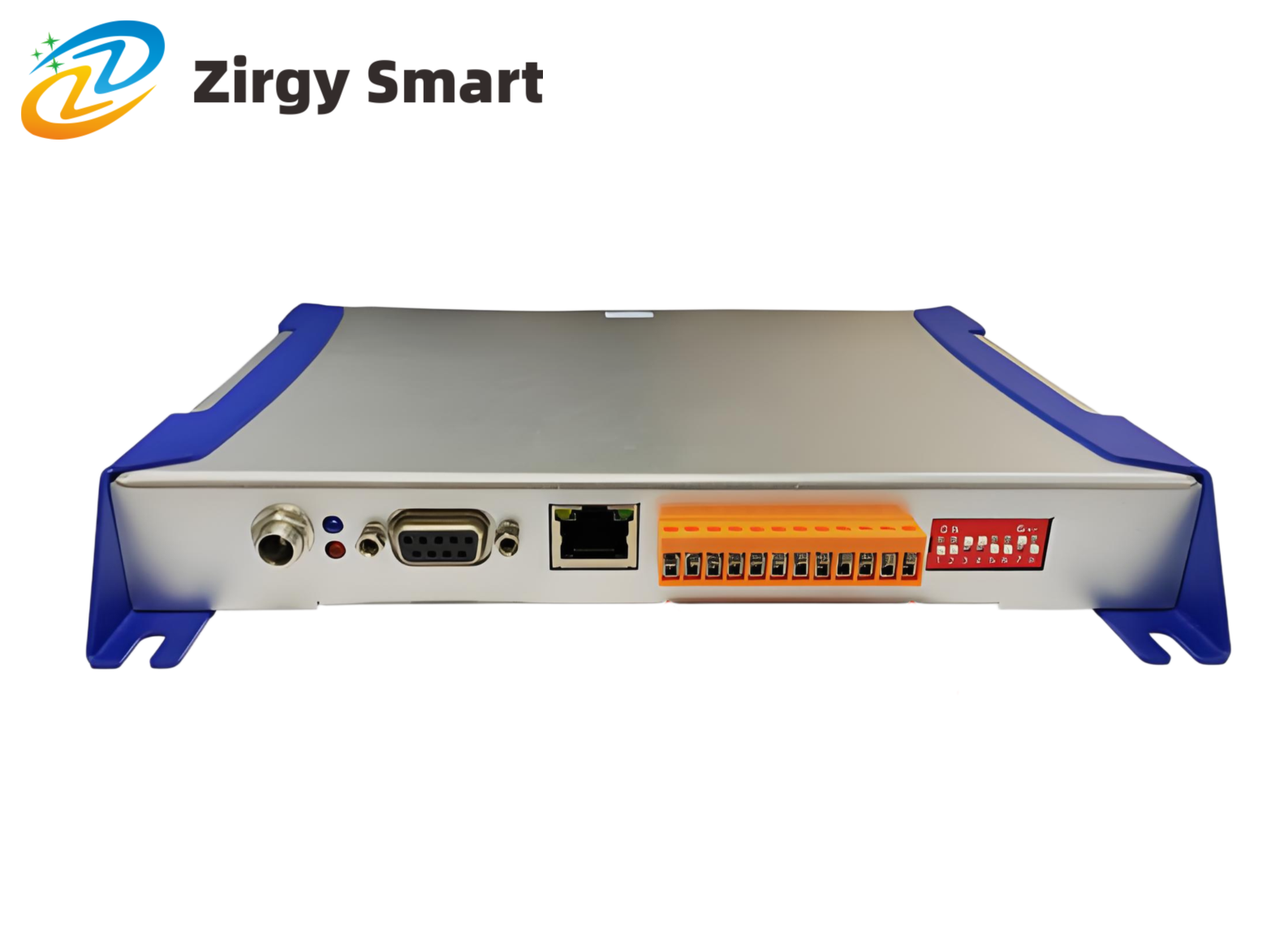

Real-shot display
