Ⅰ Technical parameters
Name: Remote UHF electronic label splitter ZJ-F503-4A/IP
● Product features and advantages
Independent intellectual property design; Operating frequency 840 ~ 960MHz (can be adjusted according to different countries or regions); Based on the Impinj R2000 read and write engine design, electronic labels that comply with EPC CLASS1 G2 and ISO18000-6B standards are fully supported. Operates in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode, supports RSSI function, and the peak label inspection speed is greater than 700 photos/second; Output power up to 33dBm (adjustable); Support 4 external TNC antenna interfaces, support antenna automatic fine-tuning and antenna detection; Support response mode and real-time inspection mode; Label cache capacity: 1000 @ Max 96bitsEPC; Support EPC and TID two conflict prevention modes; Low power consumption design, single +9V power supply, POE power supply is optional; Support RS232, USB (Slave), optional RJ45 (TCP/IP) and other communication interfaces; Provide dynamic link library (DLL) and demo software source code to support secondary development; Exquisite and compact design to meet the needs of a variety of applications. It is suitable for various radio frequency identification (RFID) systems such as logistics, access control system, anti-counterfeiting system and production process control.
● Product features and advantages
Independent intellectual property design; Operating frequency 840 ~ 960MHz (can be adjusted according to different countries or regions); Based on the Impinj R2000 read and write engine design, electronic labels that comply with EPC CLASS1 G2 and ISO18000-6B standards are fully supported. Operates in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode, supports RSSI function, and the peak label inspection speed is greater than 700 photos/second; Output power up to 33dBm (adjustable); Support 4 external TNC antenna interfaces, support antenna automatic fine-tuning and antenna detection; Support response mode and real-time inspection mode; Label cache capacity: 1000 @ Max 96bitsEPC; Support EPC and TID two conflict prevention modes; Low power consumption design, single +9V power supply, POE power supply is optional; Support RS232, USB (Slave), optional RJ45 (TCP/IP) and other communication interfaces; Provide dynamic link library (DLL) and demo software source code to support secondary development; Exquisite and compact design to meet the needs of a variety of applications. It is suitable for various radio frequency identification (RFID) systems such as logistics, access control system, anti-counterfeiting system and production process control.
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 16 | V |
| Operating temperature | TOPR | -20～+55 | ℃ |
| Storage temperature | TSTR | -20～+85 | ℃ |
| Specifications (unless otherwise specified, the specifications shown are taken from TA = 25℃ and VCC = 9V operating conditions) | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 8～12 (9 typical) | V |
| Operating current | IC | 0.5～1.2 | A |
| Operating frequency | FREQ | 840～960 (860～868 typical) (902～928 typical) |
MHz |

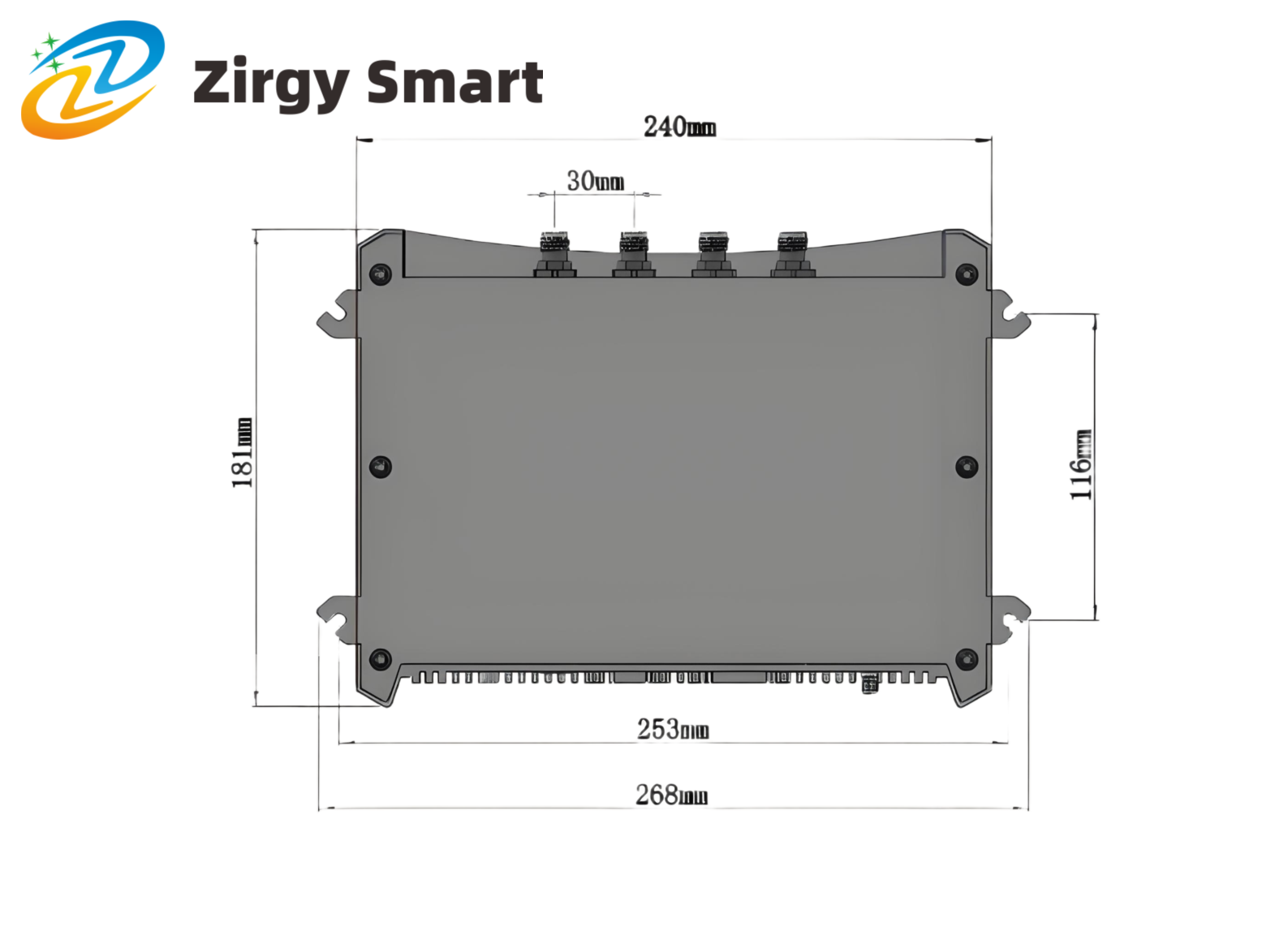

| Dimensions | L x W x H | 268 x181 x28 | mm |
● Technical parameters
| Operating frequency: 840-960MHz |
| Power supply voltage: 16V |
| Output power: 33dBm (adjustable) |
| Operating temperature: -20~+55℃ |
| Storage temperature: -20~+85℃ |
| Power consumption: Low power consumption design, single +9V power supply, POE power supply is optional |
| Operating current: 0.5-1.2A |
| Interface: Support RS232, USB (Slave), optional RJ45 (TCP/IP) and other communication interfaces |

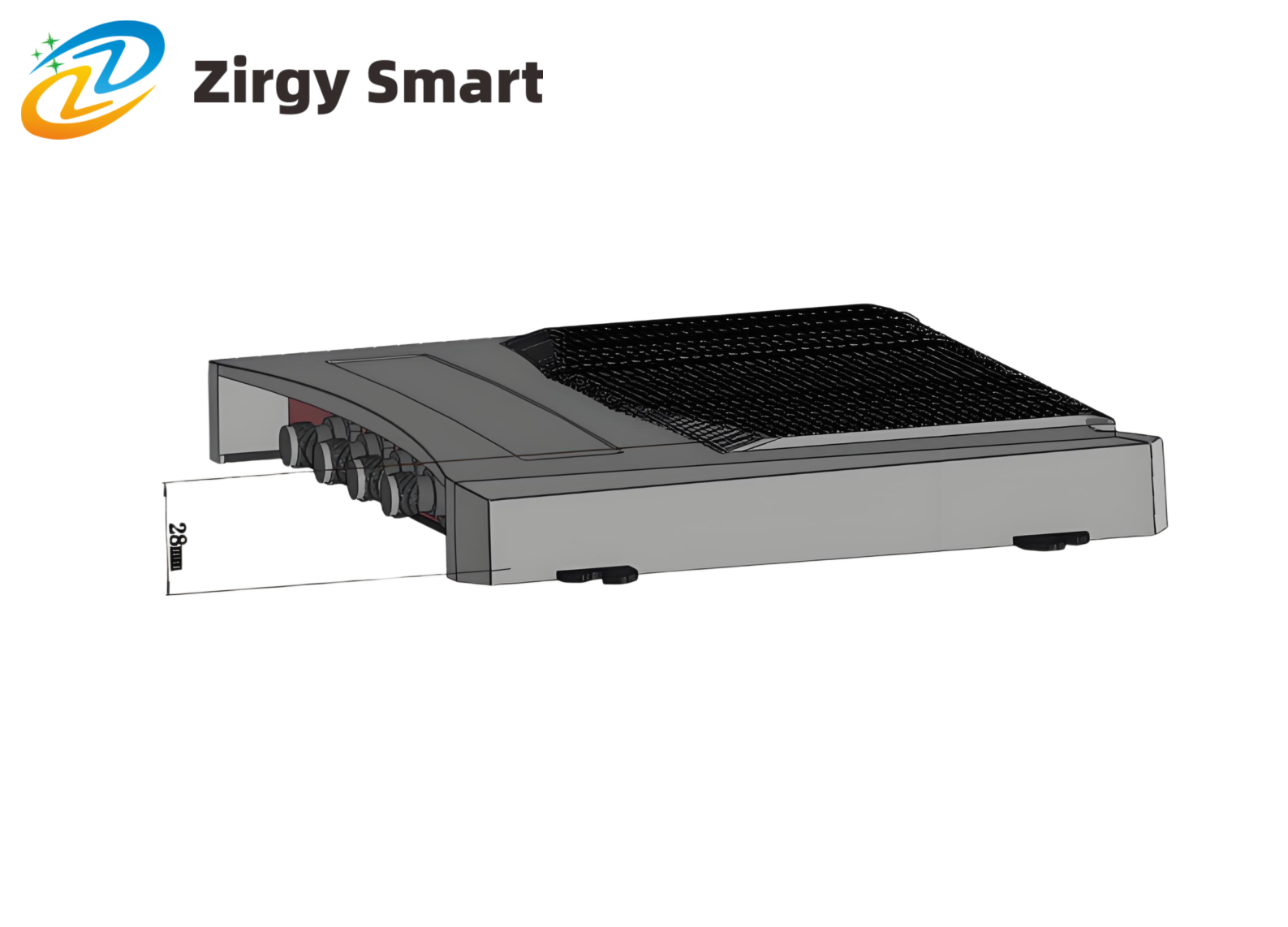

| Dimensions: 268*181*28mm |
| Weight: 1180G |
| Supports four external TNC antenna interfaces, and supports automatic antenna fine-tuning and antenna detection |
● In different domestic or regional standards and different environments, the parameters and functions of this card reader may be different without prior notice
Ⅱ Product display
Real-shot display
