Ⅰ RFID card reader ZJ606-12DBI
● Features and advantages of the product
The RFID card reader ZJ606-12DBI is designed with independent intellectual property rights. Based on the R2000 design, it fully supports electronic tags conforming to the EPC CLASS1 G2 standard and has an excellent multi-tag anti-collision function. The operating frequency is 860～928MHz (which can be adjusted according to the requirements of different countries or regions). It works in the mode of frequency hopping spread spectrum (FHSS) or fixed-frequency transmission. The output power can reach up to 30dBm (adjustable). It is equipped with a built-in 12dBi linear/circularly polarized antenna, and the typical reading distance is 20 meters. It supports multiple working modes, such as the automatic mode and the interactive response mode. With a low-power consumption design, it is powered by a single +9V power supply. It supports multiple user interfaces, including RS232, RS485, Wiegand, etc. A TCPIP network interface is optional. The effective distance is related to the electronic tags and the working environment. It is applicable to a variety of wireless radio frequency identification (RFID) systems, such as logistics systems, access control systems, anti-counterfeiting systems, and production process control systems.
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 16 | V |
| Operating temperature | TOPR | -10～+55 | ℃ |
| Storage temperature | TSTR | -20～+75 | ℃ |
| Specifications (Unless otherwise specified, the indicated specifications are obtained under the operating conditions of TA = 25°C and VCC = +9V) | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 8～12 (9 typical) | V |
| Operating current | IC | 450～1500 | mA |
| Operating frequency | FREQ | 902～928 | MHz |
| Interfaces | |||
| Items | Description | ||
| Red | +9V | ||
| Black | GND | ||
| Yellow | Wiegand DATA0 | ||
| Blue | Wiegand DATA1 | ||
| Purple | RS485 R+ | ||
| Orange | RS485 R- | ||
| Brown | GND | ||
| White | RS232 RXD | ||
| Green | RS232 TXD | ||
| Grey | Reserved | ||
| Note: For the model RRU1881TCP configured with a TCPIP network interface, an additional standard RJ45 network socket is provided. | |||

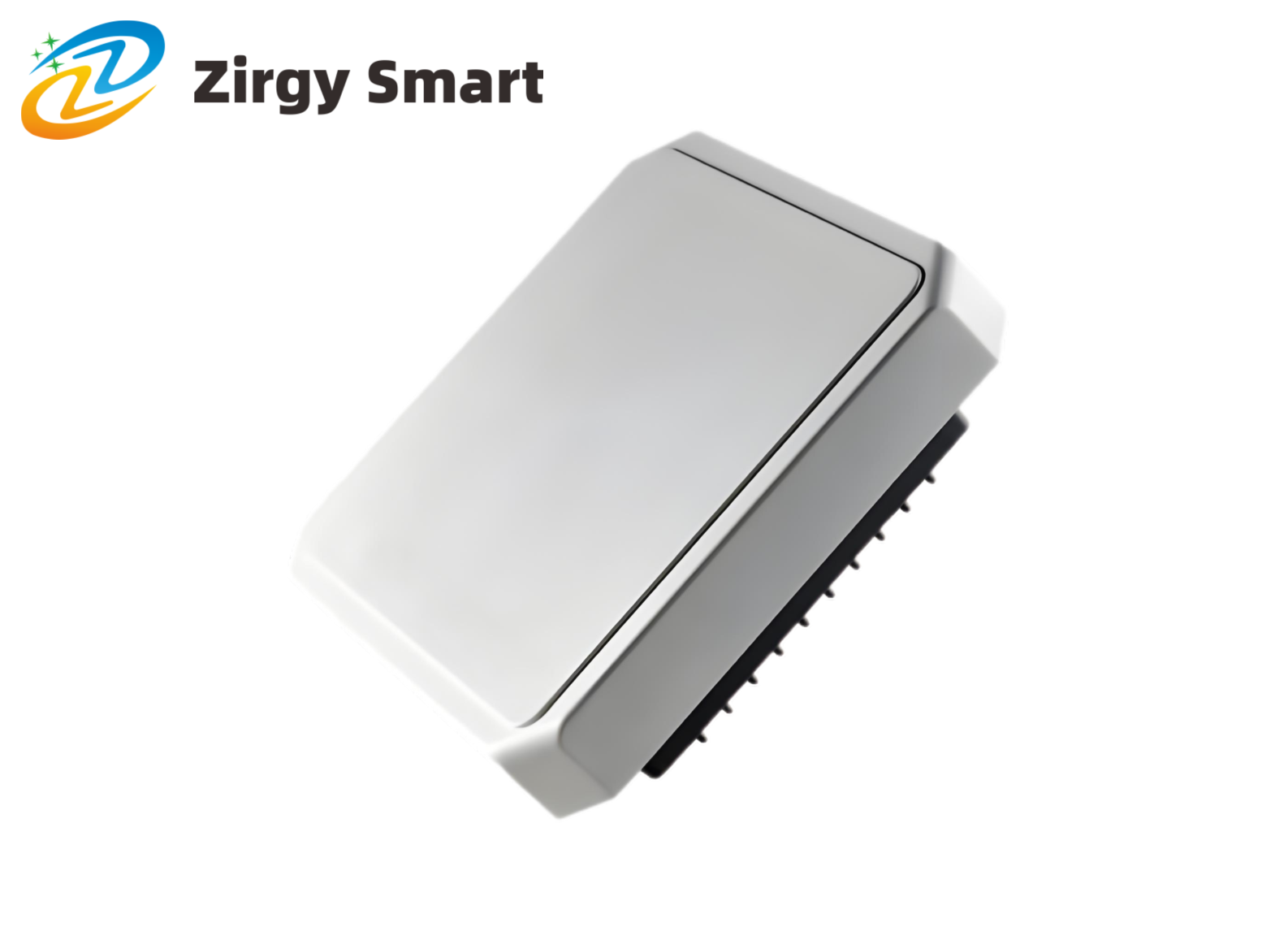

● Real-shot display
Ⅱ RFID card reader ZJ602-9DBI
● Features and advantages of the product
Designed with the company's independent intellectual property rights, it fully supports the EPC C1G2 (ISO18000-6C) protocol. The operating frequency is 840～960MHz (which can be adjusted according to the requirements of different countries or regions). It works in the mode of frequency hopping spread spectrum (FHSS) or fixed-frequency transmission. The output power is adjustable through software, with a step interval of 1dB, and the maximum is 30dBm. There are various antenna configuration options such as 5dBi, 9dBi, 12dBi, etc., and the typical reading distance is 8 to 35 meters. The peak tag interrogation speed is >700 tags per second, and the tag buffer can hold 1000 tags @ 96bit EPC. It has an MMCX-type antenna interface. With a low-power consumption design and a wide operating voltage range, it is powered by a single +3.7V~+5V supply. It supports an RS232 serial communication interface (3.3V TTL level) and has high stability. It is cooled by an external heat sink through air cooling. It supports development in languages such as C#, C++, and Delphi, and can identify UHF passive temperature tags (ZJ-301T module). The parameters and functions of this interrogator module may vary depending on the standards of different countries or regions and different environments. It is applied to a variety of application fields of wireless radio frequency identification (RFID) systems, such as production management in Industry 4.0, museums, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting identification management of vehicle license plates, vehicle marshalling and dispatching management, intelligent parking lot management, inspection management of vehicles entering and exiting ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and container management at docks.
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 5.5 | V |
| Operating temperature | TOPR | -20～+65 | ℃ |
| Storage temperature | TSTR | 30～+75 | ℃ |
| Operating humdity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 3.7～5.25 (5 typical) | V |
| Operating current | IC | 1500 | mA |
| Operating frequency | FREQ | 860～960 | MHz |
| Radio frequency output power | PRF | 0～33 | dBm |
| Radio frequency output power accuracy | APRF | +/-1 | dB |
| Radio frequency output power flatness | FPRF | +/-0.2 | dB |
| Reception sensitivity | SR | -85 | dBm |
● Wire interfaces
| Power supply | CND | 232 | 232 | GND | Wiegand |
| TXD | RXD | DATA0 | |||
| Red | Black | White | Purple | Brown | Yellow |
| Wiegand | CND | 485 | 485 | Trigger | Trigger |
| DATA1 | A+ | B- | T+ | T- | |
| Dark green | Grey | Pink | Orange | Light green | Blue |
| Note: For the models configured with a TCPIP network interface, an additional standard RJ45 network socket is provided; relays, Bluetooth, and WiFi can be customized. | |||||
● Other parameters
| Specification and dimension: 260*260*95mm |
| Product weight: 2.00kg |
| Reading and writing distance: 15-25m |
| Protection standard: IP-65 |
| Operating power supply: DC12V 25W adapter (converted from AC220V, 50Hz) |
| Trigger interface: 1 input interface |
| Reading and writing mode: multi-card (tag) nide, reading speed ＜ 0.1 second |
| The displacement speed of the tag: ≤ 100 kilometers per hour |
| Directional card reading area: Refer to the configured antenna pattern. |
| Communication interface 1: RS232、RS485 |
| Communication Interface 2: Relay, Network Port Output/RJ45 (TCP/IP is optional, and WIFI, etc. can be customized) |
| Operating power supply: DC12V/2A adapter (converted from AC220V, 50Hz) |

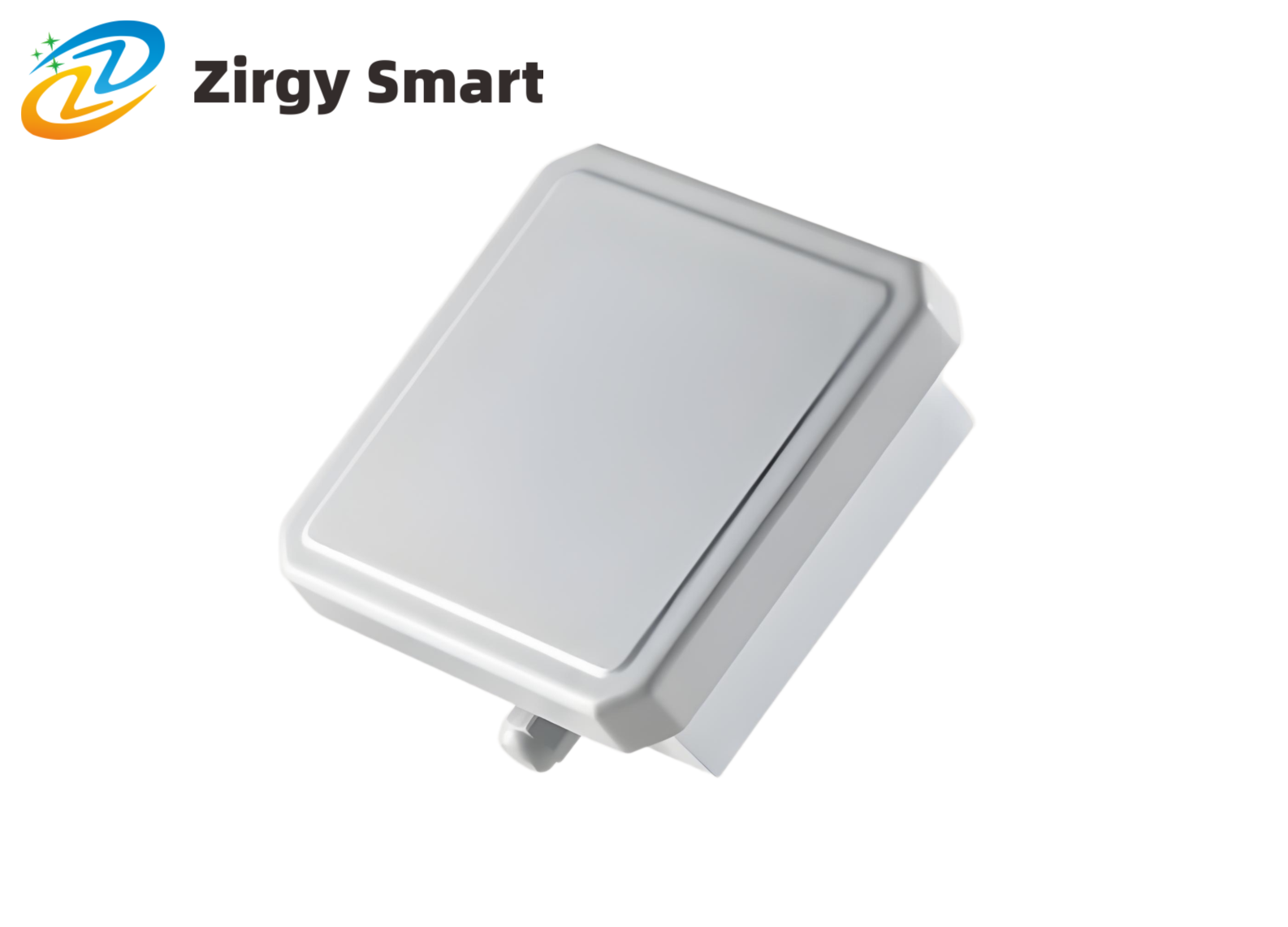

● Real-shot display
Ⅲ RFID card reader ZJ602-6DBI
● Features and advantages of the products
Designed with the company's independent intellectual property rights, it fully supports the EPC C1G2 (ISO18000-6C) protocol. The operating frequency is 840-960MHz (which can be adjusted according to the requirements of different countries or regions). It operates in the mode of frequency hopping spread spectrum (FHSS) or fixed-frequency transmission. The output power is adjustable via software, with a step interval of 1dB and a maximum of 30dBm. There are various antenna configuration options such as 5dBi, 9dBi, 12dBi, etc., and the typical reading distance is 8-35 meters. The peak tag interrogation speed is > 700 tags per second. The tag buffer can hold 1000 tags @ 96bit EPC, and it has an MMCX-type antenna interface. With a low-power consumption design and a wide operating voltage range, it is powered by a single +3.7V to +5V power supply. It supports an RS232 serial communication interface (3.3V TTL level), featuring high stability. It is cooled by air through an external heat sink. It supports development in languages such as C#, C++, and Delphi, and can identify UHF passive temperature tags (ZJ-301T module). The parameters and functions of this reader-writer module may vary depending on the standards of different countries or regions and different environments. It is applicable to a variety of application fields of wireless radio frequency identification (RFID) systems, such as production management in Industry 4.0, museum management, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting identification management of vehicle license plates, vehicle marshalling and dispatching management, intelligent parking lot management, inspection management of vehicles entering and exiting ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and container management at docks.
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 5.5 | V |
| Operating temperature | TOPR | -20～+65 | ℃ |
| Storage temperature | TSTR | 30～+75 | ℃ |
| Operating humidity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 3.7～5.25 (5 typical) | V |
| Operating current | IC | 1500 | mA |
| Operating frequency | FREQ | 860～960 | MHz |
| Radio frequency output power | PRF | 0～33 | dBm |
| Radio frequency output power accuracy | APRF | +/-1 | dB |
| Radio frequency output power flatness | FPRF | +/-0.2 | dB |
| Reception sensitivity | SR | -85 | dBm |
● Wire interfaces
| Power supply | CND | 232 | 232 | GND | Wiegand |
| TXD | RXD | DATA0 | |||
| Red | Black | White | Purple | Brown | Yellow |
| Wiegand | CND | 485 | 485 | Trigger | Trigger |
| DATA1 | A+ | B- | T+ | T- | |
| Dark green | Grey | Pink | Orange | Light green | Blue |
| Note: For models configured with a TCP/IP network interface, a standard RJ45 network socket is additionally provided; relays, Bluetooth, and WiFi can be customized. | |||||
● Other parameters
| Specification and dimension: 130*130*55mm |
| Product weight: 1.00kg |
| Reading and writing distance: 3-5m |
| Protection standard: IP-65 |
| Operating power supply: DC12V 25W adaptor (converted from AC220, 50Hz) |
| Trigger interface: 1 input interface |
| Reading and writing mode: multi-card (tag) mode, reading and writing speed ＜ 0.1 second |
| Displacement speed of the tag: ≤100 kilometers per hour |
| Directional card reading area: Refer to the configured antenna pattern. |
| Communication interface 1: RS232, RS485 |
| Communication interface 2: Relay, network port output/RJ45 (TCP/IP is optional, and WIFI, etc. can be customized) |
| Operating power supply: DC12V/2A adapter (converted from AC220, 50Hz) |
● Real-shot display
Ⅳ RFID card reader ZJ602-2DBI
● Features and advantages of the product
The RFID card reader ZJ602-2DBI is a high-performance UHF reader-writer device. Designed with independent intellectual property rights and combined with its own efficient signal processing algorithm, it can achieve fast reading and writing processing of electronic tags while maintaining a high reading rate. It is widely applied to various application fields of wireless radio frequency identification (RFID) systems, such as production management in Industry 4.0, museum management, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting identification management of vehicle license plates, vehicle marshalling and dispatching management, intelligent parking lot management, inspection management of vehicles entering and exiting ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and container management at docks.
● Electrical features
| Extrreme parameters | |||
| Items | Symbols | Values | Units |
| Power suppply voltage | VCC | 5 | V |
| Operating temperature | TOPR | -20~+65 | ℃ |
| Storage temperature | TSTR | -30~+75 | ℃ |
| Operating humidity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 4.5～5.5 (5 typical) | V |
| Operating current | IC | 1.5 | A |
| Operating frequency | FREQ | 902～928 | MHz |
● Real-shot display
Ⅴ RFID card reader ZJ5021-8A
● Features and advantages of the products
The RFID card reader ZJ5021-8A is mainly applicable to various wireless radio frequency identification (RFID) systems, such as logistics systems, access control systems, anti-counterfeiting systems, and production process control systems.
● Technical parameters
| Operating frequency: 840-960MHz |
| Power supply voltage: 16V |
| Output power: 33dBm (adjustable) |
| Operating temperature: -20~+55℃ |
| Storage temperature: -20~+85℃ |
| Power consumption: Designed with low power consumption, it is powered by a single +9V power supply. The POE power supply mode is optional. |
| Operating current: 0.5-1.2A |
| Interface: It supports various communication interfaces such as RS232, USB (Slave), and RJ45 (TCP/IP) which is optional. |
| Specificaton and dimension: 268/240*181*28mm |
| It supports 8 external TNC antenna interfaces and antenna detection. |
● Real-shot display
Ⅵ RFID card reader ZJF603-4A
● Features and advantages of the product
Designed with independent intellectual property rights. The operating frequency is 840-960MHz (which can be adjusted according to the requirements of different countries or regions). Designed based on the Impinj R2000 reader-writer engine, it fully supports electronic tags that comply with the standards of EPC CLASS1 G2 and ISO18000-6C. It operates in the mode of frequency hopping spread spectrum (FHSS) or fixed-frequency transmission, supports the RSSI function, and the peak tag inspection speed is greater than 700 times per second. The output power reaches up to 30dBm (adjustable). It supports 4 external SMA antenna interfaces. It supports both the response working mode and the real-time inspection working mode. Tag buffer capacity: 1000 tags @ the longest 96bits EPC. It supports two anti-collision modes, namely EPC and TID. With a low-power consumption design, it is powered by a single +8-25V power supply. It supports the RS232 communication interface. A dynamic link library (DLL) and the source code of the demonstration software are provided, and secondary development is supported. With a delicate and compact design, it meets the requirements of various application scenarios. The parameters and functions of this card reader may vary depending on the standards of different countries or regions and different environments, and no further notice will be given. It is applicable to a variety of wireless radio frequency identification (RFID) systems, such as logistics systems, access control systems, anti-counterfeiting systems, and production process control systems.
● Electrical features
| Extreme parameters | ||||
| Items | Symbols | Values | Units | |
| Power supply voltage | VCC | 12 | V | |
| Operating temperature | TOPR | -20～+55 | ℃ | |
| Storage temperature | TSTR | -30～+70 | ℃ | |
| Specifications (Unless otherwise specified, the indicated specifications are obtained under the working conditions of TA = 25°C and VCC = +12V) | ||||
| Items | Symbols | Values | Units | |
| Power supply voltage | VCC | 8～25 (12 typical) | V | |
| Operating current | IC | 0.5～1.2 (0.5 typical) | A | |
| Operating frequency | FREQ | 840～960 (860～868 typical) (902～928 typical) |
MHz | |
| Dimension | L × W × H | 200×152×34 | mm | |
| Power supply interface DC JACK | ||||
| Serial numbers | Symbols | Descriptions | ||
| Central | PWR | +12V power supply | ||
| Outer | GND | Ground | ||
| Serial communication interface RS232 (DB5 Female) | ||||
| Serial numbers | Symbols | Descriptions | ||
| 1 | VCC | Power supply | ||
| 2 | GND | Ground | ||
| 3 | TXD | Serial communication data output | ||
| 4 | RXD | Serial communication data input | ||
| 5 | GND | Ground | ||
| SMA antenna interface ANT1~ANT8 | ||||
| Optional antenna | ||||
| UHF circularly polarized 5Db antenna (860MHz - 960MHz), with a reading distance of 3 to 10 meters, which depends on the length of the antenna feeder. | ||||
| UHF linearly polarized 12Db antenna (902MHz - 960MHz), (circular polarization is optional), with a reading distance of 10 to 35 meters, which depends on the length of the antenna feeder. | ||||

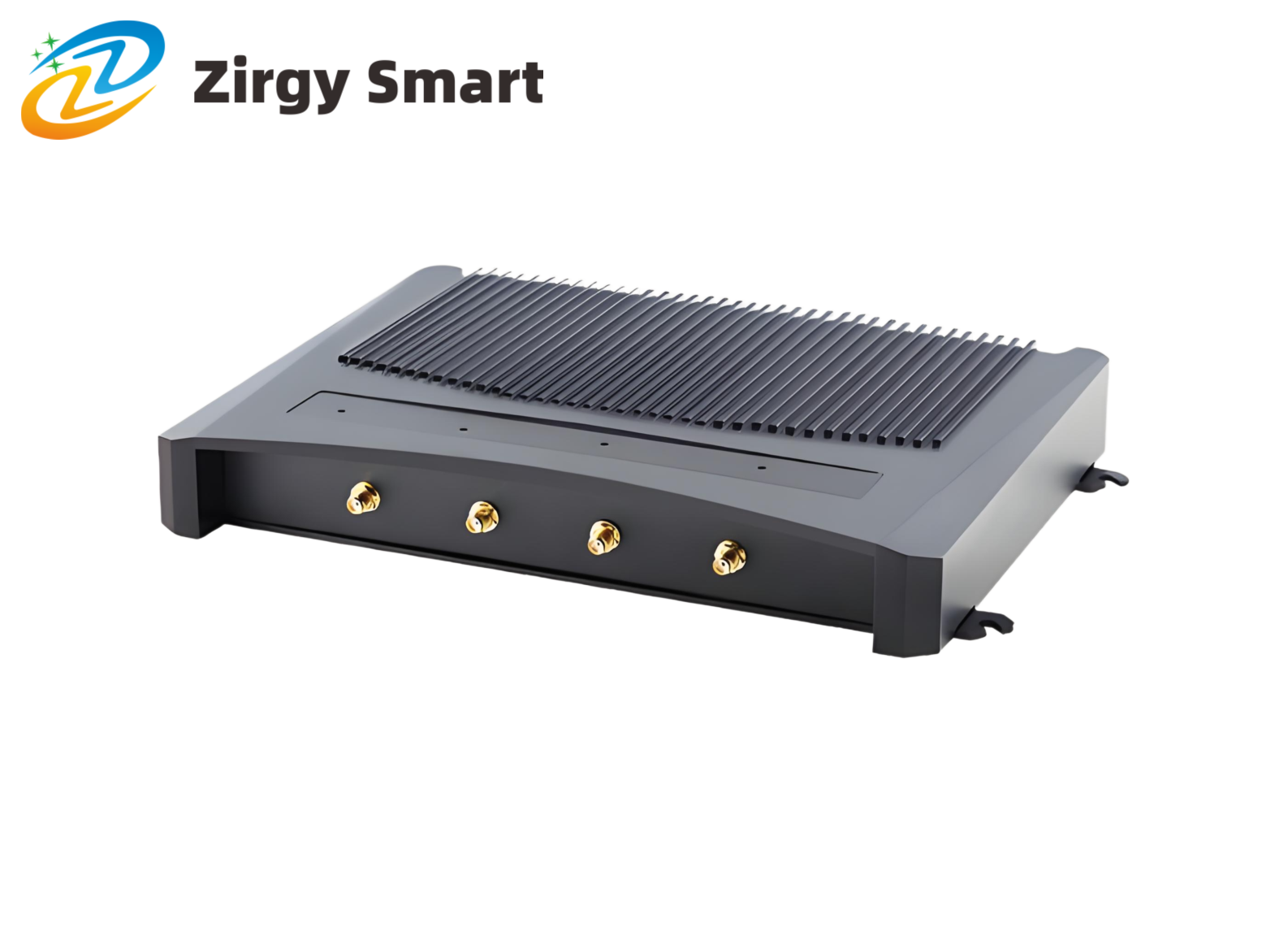

● Real-shot display
Ⅶ RFID card reader ZJF603-2A
● Features and advantages of the product
The RFID card reader ZJF603-2A is a high-performance UHF reader-writer device. Designed with independent intellectual property rights and combined with its own efficient signal processing algorithm, it can achieve fast reading and writing processing of electronic tags while maintaining a high reading rate; and it can also achieve fast reading and writing processing of electronic tags while maintaining a relatively high reading rate. It is widely applied to various application fields of wireless radio frequency identification (RFID) systems, such as production management in Industry 4.0, museum management, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting identification management of vehicle license plates, vehicle marshalling and dispatching management, intelligent parking lot management, inspection management of vehicles entering and exiting ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and container management at docks.
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 5 | V |
| Operating temperature | TOPR | -20~+65 | ℃ |
| Storage temperature | TSTR | -30~+75 | ℃ |
| Operating humidity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 4.5～5.5 (5 typical) | V |
| Operating current | IC | 1.5 | A |
| Operating frequency | FREQ | 902～928 | MHz |
● Real-shot display
Ⅷ RFID card reader ZJ205-2DBI
● Features and advantages of the products
The RFID card reader ZJ205-2DBI product complies with the technical standards of EPC CLASS 1 GEN 2 and ISO 18000-6C. It has a reading and writing distance of 0.3-0.5 meters, enabling fast reading and automatic card writing (the reading distance can be adjusted according to needs). The transmitting power can be set through the communication interface, and the reading and writing distance can be adjusted to meet complex on-site requirements. The configuration parameters can be adjusted, and the single-tag reading and writing data can be uploaded in a timely manner. The card issuer is designed with one trigger input, which can identify tags when an external trigger event occurs, meeting the requirements of environmental protection and reducing energy consumption. The reader-writer is designed with an external non-volatile storage space. In a closed application system, the tag IDs issued by this system can be pre-stored in the memory. When the reader-writer identifies a tag ID, it will compare it with the ID stored in the machine, and execute the predefined actions of the reader-writer or the actions designed by the user according to the comparison result. High-standard components are used, and a wide-temperature design is adopted to ensure the stability and consistency of all parameters. It is especially suitable for applications such as parking lot management, production line management, and personnel management.
● Technical parameters
| Specification and dimension: 122*98*27mm |
| Product weight: 0.50kg |
| Protection standard: IP-53 |
| Operating environment: Temperature: -30℃ ~ 70℃ , Humidity: 5% ~ 90% no condensation |
| Storage environment: Temperature: -40℃ ~ 80℃ |
| Operating frequency: 40～960MHz(adjustable), frequency hopping spread spectrum (FHSS) or fixed frequency transmission. |
| Transmitting power: The maximum is 17dBm and it is adjustable. |
| Communication interface: Output via USB interface. |
| Trigger interface: 1 input interface |
| Wireless interface: EPC CLASS 1 GEN 2 standard |
| Reading and writing mode: Single card (tag) mode, with a reading and writing speed of less than 0.1 second. |
| Tag displacement speed: ≤ 100 kilometers per hour |
| The farthest card reading distance: 0.5 meters (reading a single tag AZ9662, equipped with a 2DB ceramic antenna) |
| Recommended card reading distance: 0.3 meters (reading a single tag AZ9662, and the stable standard is based on this distance) |
| Directional card reading area: Refer to the configured antenna pattern. |
| Configured antenna: Built-in 2dBi circularly polarized gain antenna (840-960MHZ) |

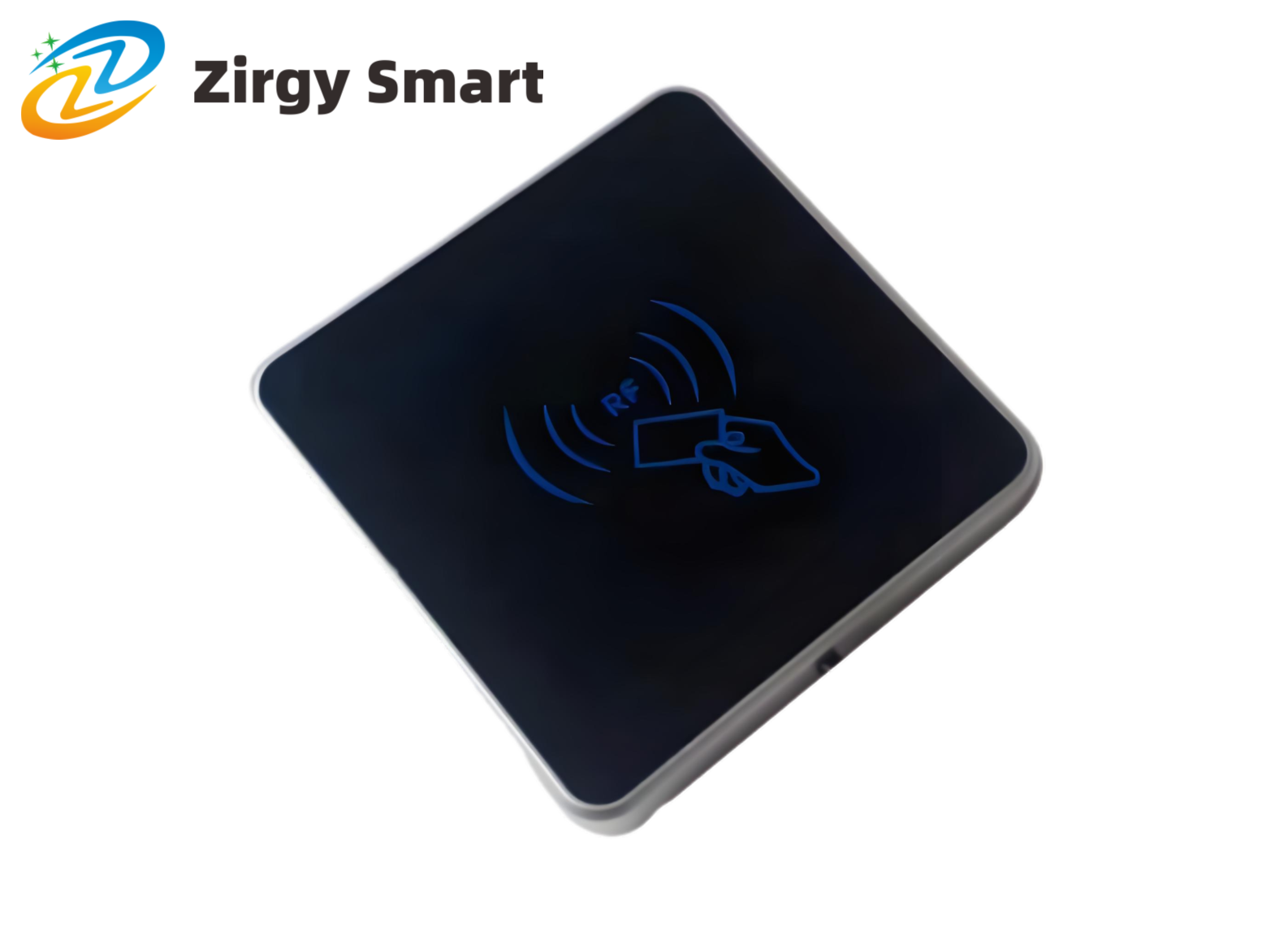

● Real-shot display
Ⅸ RFID card reader ZJ403
● Product introduction
The RFID card reader ZJ403 is a high-performance UHF reader-writer device. Designed with independent intellectual property rights and combined with its own efficient signal processing algorithm, it can achieve fast reading and writing processing of electronic tags while maintaining a high reading rate. It can be widely applied to various application fields of wireless radio frequency identification (RFID) systems, such as production management in Industry 4.0, museum management, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting identification management of vehicle license plates, vehicle marshalling and dispatching management, intelligent parking lot management, inspection management of vehicles entering and exiting ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and container management at docks.
● Product features
* Designed with independent intellectual property rights;
* Fully supports electronic tags that comply with the UHF EPC Gen2 (ISO18000-6C) protocol;
* Advanced tag collision handling algorithm with a high reading rate;
* Operating frequency: FCC 902～928MHz, CE 865～868MHz (which can be adjusted according to the requirements of different countries or regions)
* Operates in the mode of frequency hopping spread spectrum (FHSS) with a wide spectrum or fixed-frequency transmission;
* Output power: The maximum is 17dBm (adjustable);
* Built-in transceiver antenna, the reading distance is < 500mm, and the writing distance is < 200mm.
* If the USB interface is optionally configured, the USB interface can supply power, eliminating the need for an external power supply.
* Supports the USB2.0 interface, in the driverless USB mode and the driverless USB emulation keyboard mode. (RS232, RS485\USB are optional).
* Fully supports electronic tags that comply with the UHF EPC Gen2 (ISO18000-6C) protocol;
* Advanced tag collision handling algorithm with a high reading rate;
* Operating frequency: FCC 902～928MHz, CE 865～868MHz (which can be adjusted according to the requirements of different countries or regions)
* Operates in the mode of frequency hopping spread spectrum (FHSS) with a wide spectrum or fixed-frequency transmission;
* Output power: The maximum is 17dBm (adjustable);
* Built-in transceiver antenna, the reading distance is < 500mm, and the writing distance is < 200mm.
* If the USB interface is optionally configured, the USB interface can supply power, eliminating the need for an external power supply.
* Supports the USB2.0 interface, in the driverless USB mode and the driverless USB emulation keyboard mode. (RS232, RS485\USB are optional).
● Product parameters
| Model | ZJ403 |
| Type | Ultra-high frequency interrogator |
| External dimenison | 86*86*22mm |
| Weight | 200g |
| Shell material | PVC powder coating |
| Device colour | White + black |
| Operating temperature | -20~+60℃ |
| Storage temperature | -30~+70℃ |
| Operating humidity | -25~85% |
| Operating frequency | 865MHz - 928MHz (supporting frequency bands in China, the United States, South Korea, Europe, etc.) |
| Antenna specification | 2 dbi built-in circular polarized ceramic antenna |
| Output power | 0 - 17dBm |
| Card reading distance* | 0-50cm (related to the card and the card reading environment) |
| Card writing distance* | 0-20cm (related to the card and the card reading environment) |
| Card reading speed | 100 times per second |
| Type of reading and writing card | ISO18000-6C (EPC C1G2) |
| Built-in antenna | Yes |
| Built-in LED | Blue LED |
| Built-in speaker | Buzzer |
| Operating voltage | Powered by USB interface, DC +5V |
| Operating current | Lower than 200mA (5V input) / 1W |
| Communication interface | It supports the USB2.0 interface, the driverless USB mode and the driverless USB emulation keyboard mode. RS232 (standard), RS485 (optional), USB (optional). |
| Development kit | Provide the dynamic link library (DLL) and the source code of the demonstration software, and support secondary development. It supports development languages such as C++, C#, Java, Delphi, VB, Linux, ARM, Python, NodeJS, Modbus, etc. |
| Commnuication interface | RS232 and RS485 can be customized. |
● Real-shot display
