Ⅰ Product introduction
Name: Ultra-high frequency RFID interrogator ZJ501-8DBI
The ultra-high frequency RFID interrogator ZJ501-8DBI is mainly applicable to various wireless radio frequency identification systems such as logistics, access control systems, anti-counterfeiting systems, and production process control.
Ⅱ Product features
| Operating frequency: 902-928MHz |
| Power supply voltage: 16V |
| Output power: 30dBm (adjustable） |
| Operating temperature: -10~+55℃ |
| Storage temperature: -20~+75℃ |
| Reading distance: 9m |
| Operating current: 450-1500mA |
| Interface: It supports various user interfaces such as RS232, RS485, and Wiegand. A TCP/IP network interface is optional. |
| Specification and dimension: 260*260*57mm |
| Weight: 1300g |
● Under the standards of different countries or regions and in different environments, the parameters and functions of this card reader may vary. No additional notice will be given.

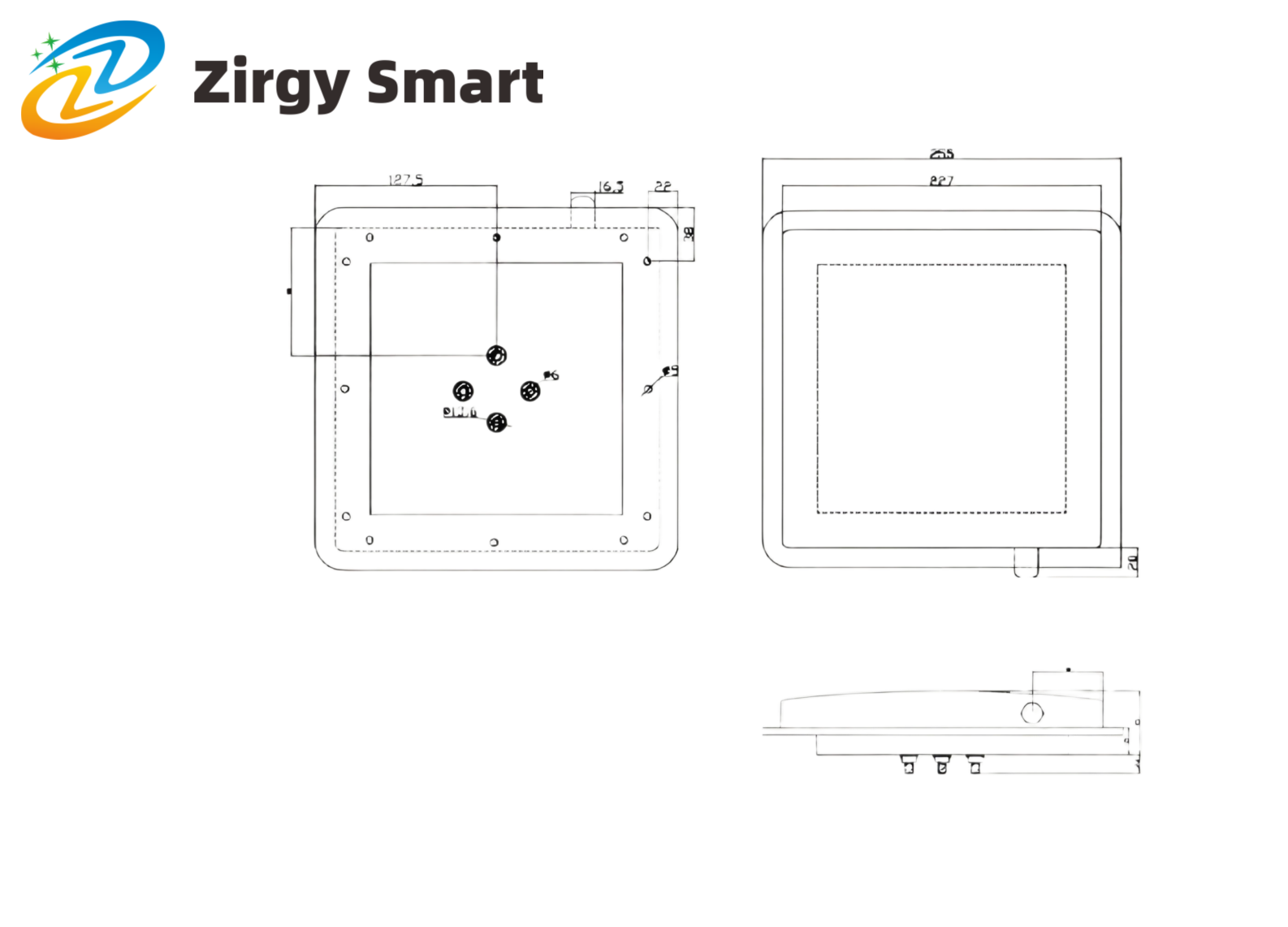

Ⅲ Product display
Real-shot display
