ⅠTechnical parameters
Name: RFID ultra-high frequency interrogator ZJ0605-5DBI
The RFID ultra-high frequency interrogator ZJ0605-5DBI is designed with independent intellectual property rights. It is compatible with electronic tags that conform to the technical standards of EPC CLASS 1 GEN 2 and ISO 18000-6C. The operating frequency is 902～928MHz (which can be adjusted according to the requirements of different countries or regions). It operates in the mode of frequency hopping spread spectrum (FHSS) or fixed-frequency transmission. The output power can reach up to 30dBm (adjustable) / (the output power of the card issuer can reach up to 17dBm). There are various antenna configuration options such as 5dbi, 8dbi, 12dbi, etc., and the typical reading distance is 5 to 30 meters. It supports multiple working modes, including automatic mode, interactive response mode, trigger mode, etc. With a low-power consumption design, it is powered by a +12V/2A power supply. It supports development in languages such as C#. It supports multiple user interfaces, including RS232, RS485, Wiegand 26/34, etc., and a TCPIP network interface is optional. The effective distance is related to the antenna (5DBI, 8DBI, 12DBI), UHF electronic tags, and the local working environment. It is applicable to a variety of application fields of wireless radio frequency identification (RFID) systems, such as production management in Industry 4.0, museums, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting identification management of vehicle license plates, vehicle marshalling and dispatching management, intelligent parking lot management, inspection management of vehicles entering and exiting ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and container management at docks.
Ⅱ Product parameters
● Electric features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 12 | V |
| Operating temperature | TOPR | -20～+65 | ℃ |
| Storage temperature | TSTR | -30～+75 | ℃ |
| Operating humidity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 9～24 (12 typical） | V |
| Operating current | IC | 1.5 | A |
| Operating frequency | FREQ | 902～928 | MHz |
● Wire interface
| Power supply | CND | 232 | 232 | GND | Wiegand |
| TXD | RXD | DATA0 | |||
| Red | Black | White | Purple | Brown | Yellow |
| Wiegand | CND | 485 | 485 | Trigger | Trigger |
| DATA1 | A+ | B- | T+ | T- | |
| Dark green | Grey | Pink | Orange | Light green | Blue |
| Note: For the models configured with a TCP/IP network interface, there is an additional standard RJ45 network socket. Relays, Bluetooth, and Wi-Fi can be customized. | |||||
● Other parameters
| Specification and dimension: 210*210*70mm |
| Product weight: 1.50kg |
| Reading and writing distance: 5-10m |
| Protection standard: IP-65 |
| Operating power supply: DC12V 25W adaptor (converted from AC220V, 50Hz) |
| Triggert interface: 1 input interface |
| Read-write mode: Single card (tag) mode, and the read-write speed is less than 0.1 second. |
| The displacement speed of the tag: ≤ 100 kilometers per hour |
| Directional card reading area: Refer to the antenna pattern of the configured antenna. |
● The parameters and functions of this card reader may vary depending on the standards of different countries or regions and different environments, and no further notice will be given.
Ⅲ Product display

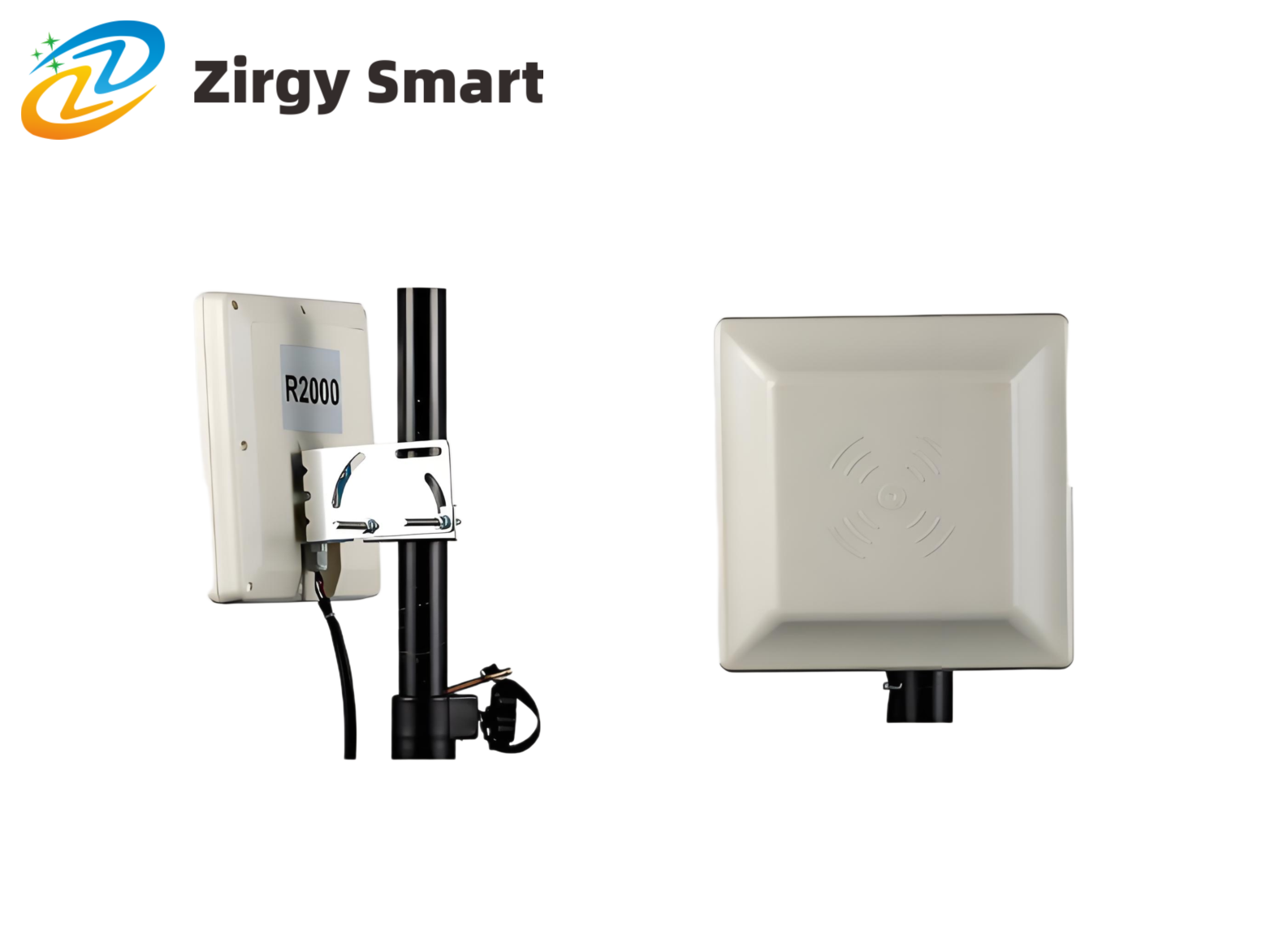

Real-shot display
