Ⅰ Product introduction
Name: Module of RFID ultra-high frequency interrogator
Designed with the company's independent intellectual property rights, it fully supports the EPC C1G2 (ISO18000-6C) protocol. The operating frequency is 840～960MHz (which can be adjusted according to the requirements of different countries or regions), and it operates in the mode of frequency-hopping spread spectrum (FHSS) or fixed-frequency transmission. The output power can be adjusted by software, with a step interval of 1dB, up to a maximum of 30dBm. There are various antenna configuration options such as 5dBi, 9dBi, 12dBi, etc. The typical reading distance is (8 meters - 35 meters), the peak tag query speed is > 700 tags per second, the tag buffer can hold 1000 tags @ 96bit EPC, it has an MMCX-type antenna interface, features a low-power consumption design, has a wide operating voltage range, and is powered by a single +3.7V~+5V power supply. It supports the RS232 serial communication interface (3.3V TTL level), has high stability, and uses an external heat sink for air cooling. It supports development in C#, C++, and Delphi languages; it can identify UHF passive temperature tags (ZJ-301T module); the parameters and functions of this reading and writing module may vary depending on the standards of different countries or regions and different environments. It is usually applied in various application fields of radio frequency identification systems, such as Industry 4.0 production management, museums, clothing management, tobacco logistics, food and drug management, library management, anti-counterfeiting license plate identification management, vehicle marshalling and dispatching management, intelligent parking lot management, inspection and management of vehicles entering and leaving ports, supervision and identification management of goods entering and leaving warehouses, identification management of luggage and parcels, anti-counterfeiting management of branded goods, and management of containers at docks.
● Electrical features
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 5.5 | V |
| Operating temperature | TOPR | -20～+65 | ℃ |
| Storage temperature | TSTR | 30～+75 | ℃ |
| Operating humidity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 3.7～5.25 (5 typical) | V |
| Operating current | IC | 1500 | mA |
| Operating frequency | FREQ | 860～960 | MHz |
| Radio frequency output power | PRF | 0～33 | dBm |
| Radio frequency output power accuracy | APRF | +/-1 | dB |
| Radio frequency output power flatness | FPRF | +/-0.2 | dB |
| Reception sensitivity | SR | -85 | dBm |
● Wire interface
| Power | CND | 232 | 232 | GND | Wiegand |
| TXD | RXD | DATA0 | |||
| Red | Black | White | Purple | Brown | Yellow |
| Wiegand | CND | 485 | 485 | Trigger | Trigger |
| DATA1 | A+ | B- | T+ | T- | |
| Dark green | Grey | Pink | Orange | Light green | Blue |
| Note: For the models configured with a TCP/IP network interface, a standard RJ45 network socket is additionally provided; relays, Bluetooth, and WiFi can be customized. | |||||
● Other parameters
| Reading distance: 25-35m |
| Protection standard: IP-65 |
| Operating power: DC12V 25W adapter (converted from AC220V, 50Hz) |
| Trigger interface: 1 input port |
| Reading and writing mode: Multi-card (tag) mode, and the reading and writing speed is less than 0.1 second. |
| Tag displacement speed: ≤ 100 km/h |
| Directional card reading area: Refer to the configured antenna pattern. |
| Communication interface 1: RS232、RS485 |
| Communication interface 2: Relay, network port output/RJ45 (TCP/IP is optional, and WIFI can be customized, etc.) |
| Operating power: DC12V/2A adapter (Converted from AC220, 50Hz) |
Ⅱ Product display

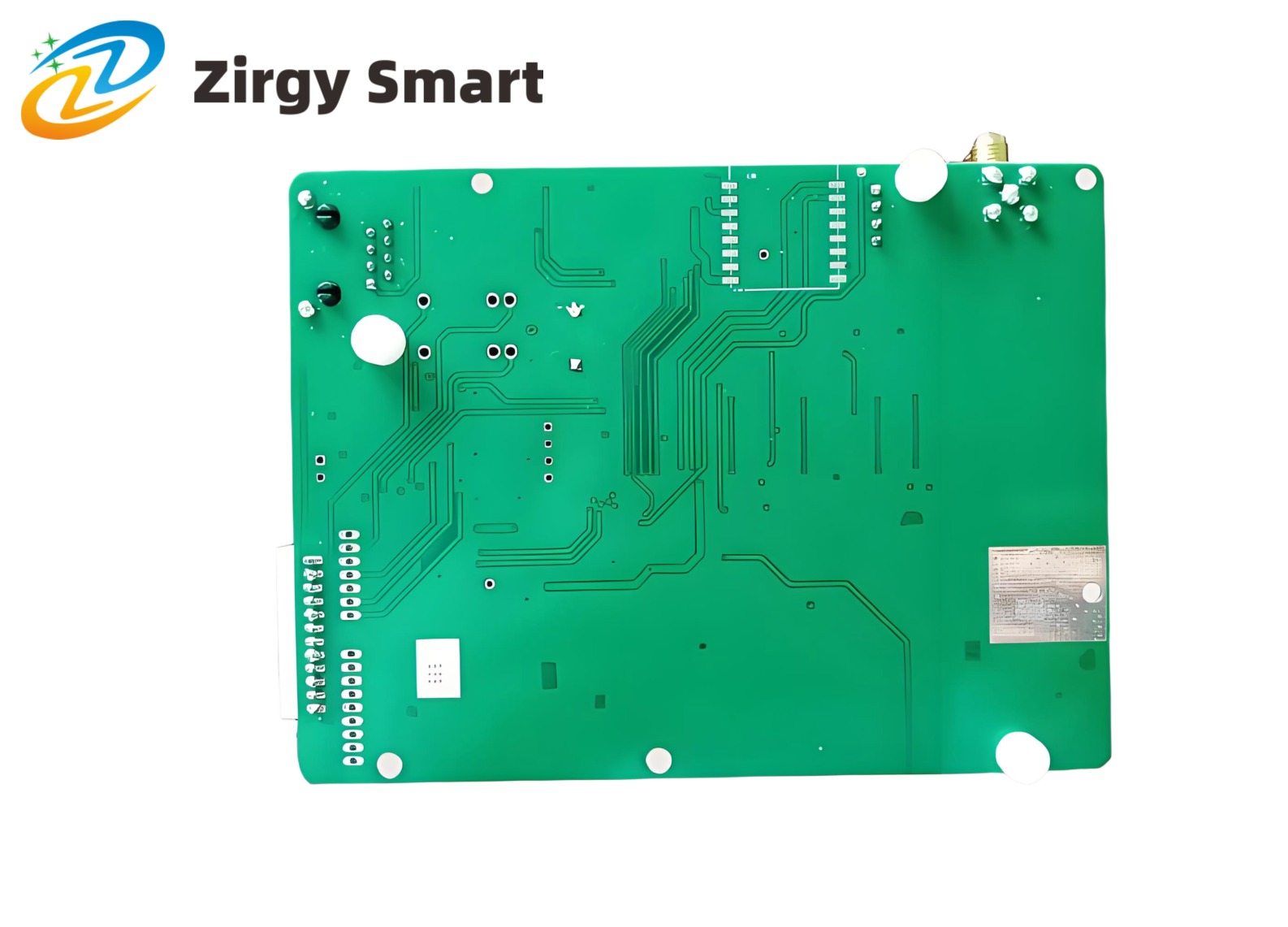

Real-shot display
