Ⅰ Product introduction
Name: Beautiful high performance WIFI remote UHF integrated reader ZJYTJ01-8DBI
ZJYTJ01-8DBI is a high-performance UHF band ISO18000-6C (EPC C1G2) protocol electronic label reader, designed with independent intellectual property rights, combined with a proprietary efficient electronic label collision processing algorithm, while maintaining high literacy, to achieve fast reading and writing processing of electronic labels. It can be widely used in a variety of radio frequency identification (RFID) systems such as asset identification, logistics, personal identification, intelligent parking lot, access control system, anti-counterfeiting system and production process control.
Application scenarios
Asset management
Intelligent parking lot
Electric vehicle management
Personal identification
Asset management
Intelligent parking lot
Electric vehicle management
Personal identification
Ⅱ Product features
● Independent intellectual property design;
● Full support for UHF EPC Gen2(ISO18000-6C) protocol electronic tags;
● Operating frequency GB: 920~925MHz, GB: 840~845MHz, FCC 902 ~ 928MHz, ETSI: 865~868MHz (optional);
● Port output power: 33dBm (adjustable);
● Power consumption: 11W@*33dBm;
● Built-in 8dBi circular polarized antenna, continuous label reading distance (read EPC code) : 0~15 meters. The success rate of 100 consecutive reads is greater than 95% (without interference environment);
● Continuous label writing distance (write EPC code) : 0~8 meters, continuous write 100 times write success rate is greater than 90%;
● Test conditions: 8dBi linearly polarized antenna, RF continuous cable insertion loss less than 1dB, standard label (sensitivity better than *18dBm);● Support active mode, command mode, trigger mode, password working mode;
● Card reading rate: >300 times/second;
● I/0 interface: 2 optocoupler input, 3 relay switch;
● Power supply: 9V ~ 30V (power capacity is not less than 30W);
● Rich communication interface: RJ45, WIFI, RS232, RS485, Wi-Fi, Bluetooth can be customized POE, 4G;
● Full support for UHF EPC Gen2(ISO18000-6C) protocol electronic tags;
● Operating frequency GB: 920~925MHz, GB: 840~845MHz, FCC 902 ~ 928MHz, ETSI: 865~868MHz (optional);
● Port output power: 33dBm (adjustable);
● Power consumption: 11W@*33dBm;
● Built-in 8dBi circular polarized antenna, continuous label reading distance (read EPC code) : 0~15 meters. The success rate of 100 consecutive reads is greater than 95% (without interference environment);
● Continuous label writing distance (write EPC code) : 0~8 meters, continuous write 100 times write success rate is greater than 90%;
● Test conditions: 8dBi linearly polarized antenna, RF continuous cable insertion loss less than 1dB, standard label (sensitivity better than *18dBm);● Support active mode, command mode, trigger mode, password working mode;
● Card reading rate: >300 times/second;
● I/0 interface: 2 optocoupler input, 3 relay switch;
● Power supply: 9V ~ 30V (power capacity is not less than 30W);
● Rich communication interface: RJ45, WIFI, RS232, RS485, Wi-Fi, Bluetooth can be customized POE, 4G;
Ⅲ Specifications and parameters
| Model | ZJYTJ01-8DBI |
| Name | Beautiful and high performance WIFI long-distance ultra-high frequency integrated reader |
| Dimensions | 220 x 220 x 56mm |
| Shell material | Engineering plastic |
| Power supply | DC24V (power capacity is not less than 60 watts) |
| Protocols | ISO/IEC18000-6C / IEC18000-6B /EPC C1Gen2 |
| Frequency | GB,920MHz ~ 925MHz, GB,840MHz ~ 845MHz, FCC,902MHz ~ 928MHz, ETSI, 865MHz ~ 868MHz, JP,916MHz ~ 920MHz optional |
| Output power | ≤ 33dBm |
| External interface | RJ45, WIFI, RS232, RS485, POE (customizable), 4G |
| Operating mode | Broad spectrum frequency modulation (FHSS) or fixed frequency, can be set by software |
| Distance of card reading and writing | Reading distance: 0-15m (related on tag) |
| Antenna | 8dbi circular polarized antenna |
| Operating temperature | -20 - +70°C |
| Storage temperature | -30 - +80°C |
| Atmospheric pressure | 86kPa ~ 108kPa |
| Humidity | 5%-90% RH no condensation |
Ⅳ Interface definition

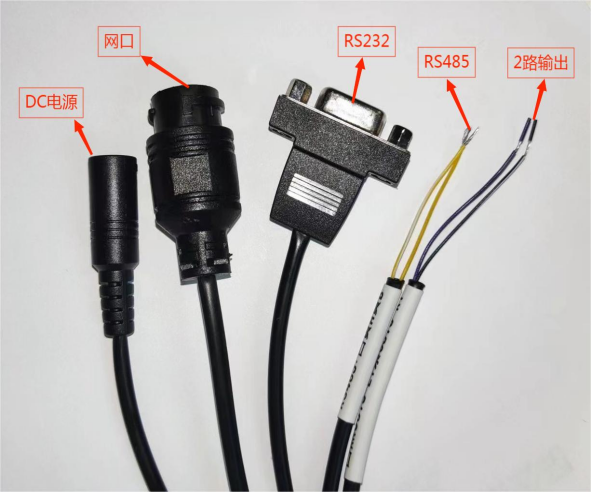

| Colour/interface | Pin definition | Descriptions |
| DC power supply | DC power supply | Power supply: 9V～30V, standard configuration adapter: 12V5A |
| Network port | Network port | Network port data transmission |
| RS232 | RS232 | RS232 serial port connection |
| White, yellow | RS485A | RS485 interface A |
| Yellow | RS485 B | RS485 interface A |
| White, black | OUT3-L1 | One-line output |
| Purple | OUT3-R1 | Another signal output |
Ⅴ Installation method

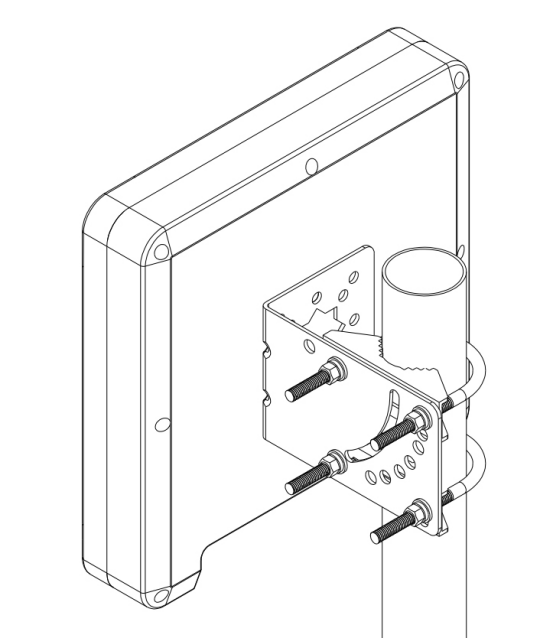

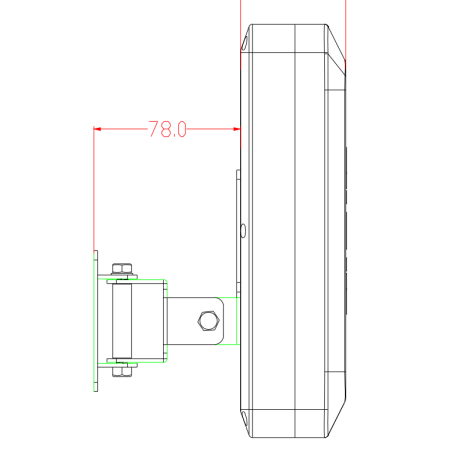

Ceiling/side wall installation ---- The standard installation method
