Ⅰ Product introduction
Name: Remote UHF all-in-one ZJ603-2DBI
Remote UHF integrated machine ZJ603-2DBI independent intellectual property design; Comply with EPC CLASS 1 GEN 2 and ISO 18000-6C technical standard electronic tags; Operating frequency 902 ~ 928MHz (can be adjusted according to different countries or regions); Operates in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode; Output power up to 30dBm (adjustable)/(card issuer output power up to 17dBm); Support automatic mode, interactive response mode, trigger mode and other working modes; Low power design, +12V/2A power supply; Support C# and other language development; Support RS232, RS485, Weigen 26/34 and other user interfaces, optionally TCPIP network interface; The effective range depends on the antenna (1.5DBI, 5DBI, 8 DBI, 12 DBI), UHF electronic tags, and the local operating environment. Suitable for handheld mobile devices, goods and logistics management, warehousing management, animal management, goods anti-counterfeiting, electronic commodity monitoring and manufacturing and processing, production automation and other wireless RFID applications.
Ⅱ Product parameters
Remote UHF integrated machine ZJ603-2DBI independent intellectual property design; Comply with EPC CLASS 1 GEN 2 and ISO 18000-6C technical standard electronic tags; Operating frequency 902 ~ 928MHz (can be adjusted according to different countries or regions); Operates in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode; Output power up to 30dBm (adjustable)/(card issuer output power up to 17dBm); Support automatic mode, interactive response mode, trigger mode and other working modes; Low power design, +12V/2A power supply; Support C# and other language development; Support RS232, RS485, Weigen 26/34 and other user interfaces, optionally TCPIP network interface; The effective range depends on the antenna (1.5DBI, 5DBI, 8 DBI, 12 DBI), UHF electronic tags, and the local operating environment. Suitable for handheld mobile devices, goods and logistics management, warehousing management, animal management, goods anti-counterfeiting, electronic commodity monitoring and manufacturing and processing, production automation and other wireless RFID applications.
Ⅱ Product parameters
● Electrical characteristics
| Extreme parameters | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 9-36 | V |
| Operating temperature | TOPR | -20～+65 | ℃ |
| Storage temperature | TSTR | -30～+75 | ℃ |
| Operating humidity | Rh | +5% ~ +90% no condensation | φ |
| Specification | |||
| Items | Symbols | Values | Units |
| Power supply voltage | VCC | 9～36(12 typical) | V |
| Operating current | IC | 1.5 | A |
| Operating frequency | FREQ | 902～928 | MHz |
● Wire interfaces
| Power supply | CND | 232 | 232 | GND | Wiegand |
| TXD | RXD | DATA0 | |||
| Red | Black | White | Purple | Brown | Yellow |
| Wiegand | CND | 485 | 485 | Trigger | Trigger |
| DATA1 | A+ | B- | T+ | T- | |
| Dark green | Grey | Pink | Orange | Light green | Blue |
| Note: For models equipped with TCPIP network interface, a standard RJ45 network jack is added; Relays, Bluetooth, WiFi can be customized. | |||||
● Other parameters
| Dimensions: 95*95*40mm |
| Product weight: 0.45kg |
| Read-write distance: 2-2.5m |
| Protection standard: IP-65 |
| Operating power supply: DC12V 25W adapter (AC220, 50Hz conversion) |
| Trigger interface: 1 input port |
| Read-write mode: Single card (tag) mode, read-write rate is less than 0.1 second |
| Tag displacement speed: Less than 100 kilometers per hour |
| Directional card reading area: See the configured antenna direction diagram |
● In different domestic or regional standards and different environments, the parameters and functions of this card reader may be different without prior notice
Ⅲ Product display

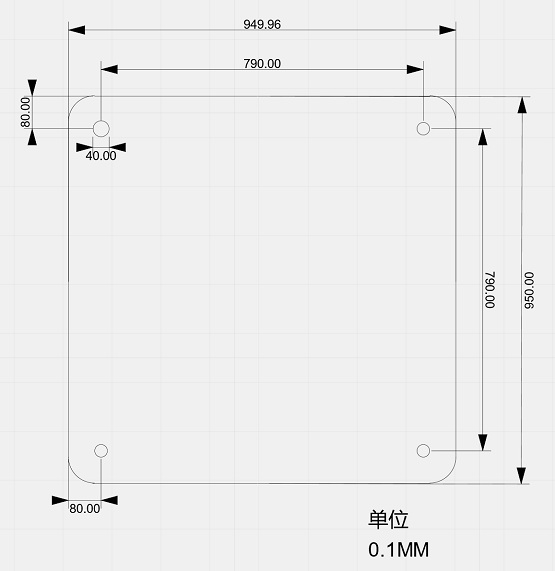

Installation dimension diagram
Real-shot display
