Ⅰ Product introduction
Name: Remote UHF all-in-one ZJ501-9DBI
Remote UHF integrated machine ZJ501-9DBI is mainly used in logistics, access control systems, anti-counterfeiting systems and production process control and other radio frequency identification systems.
Ⅱ Product parameters
| Operating frequency: 902-928MHz |
| Power supply voltage: 16V |
| Output power: 30dBm (adjustable) |
| Operating temperature: -10~+55℃ |
| Storage temperature: -20~+75℃ |
| Reading distance: 9m |
| Operating current: 450-1500mA |
| Interface: Support RS232, RS485, Wiegand and other user interfaces. TCP/IP network interfaces are optional configuration |

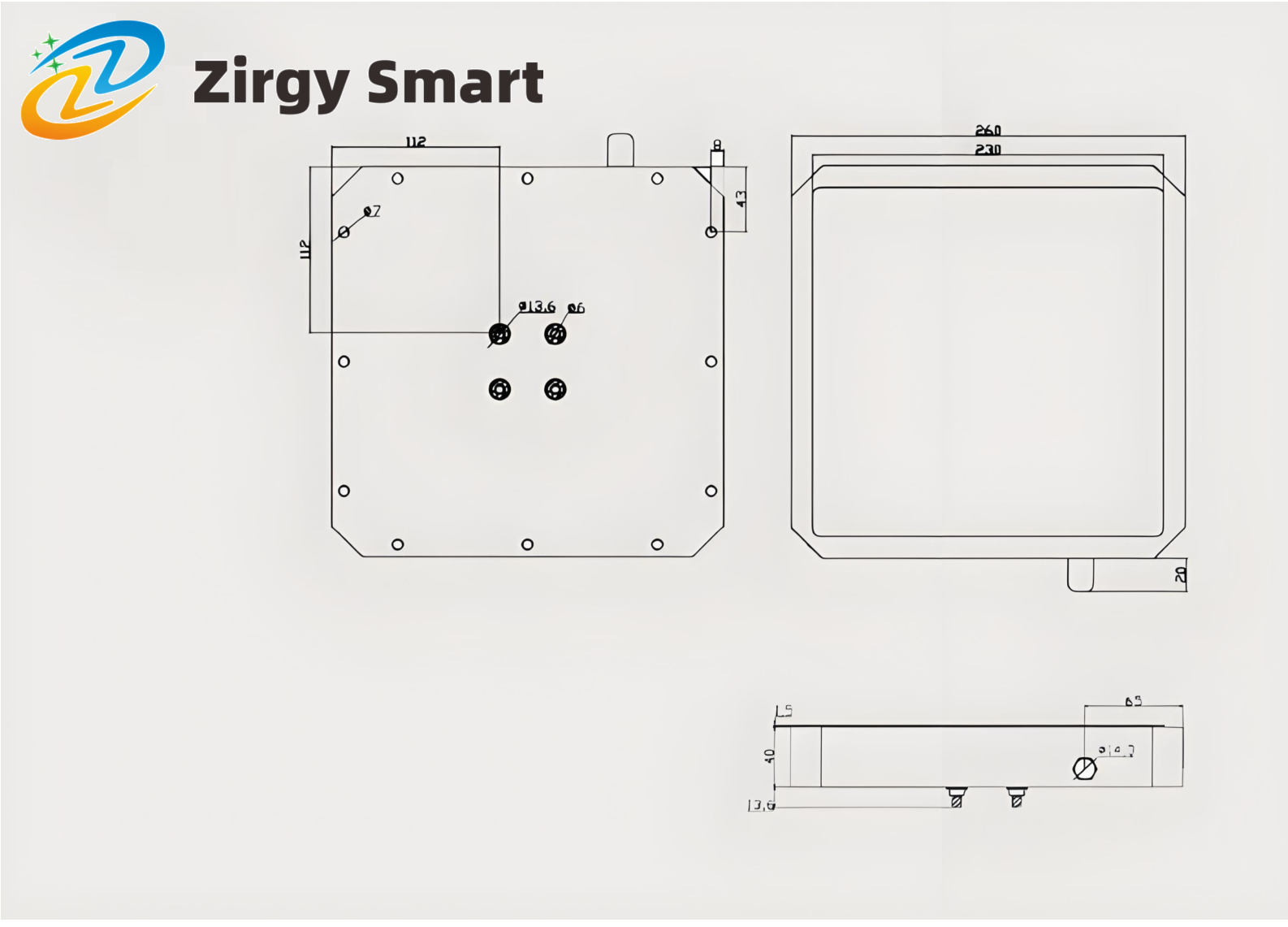

| Dimensions: 260*260*40mm |
| Weight: 1300g |
● In different domestic or regional standards and different environments, the parameters and functions of this card reader may be different without prior notice
Ⅲ Product display

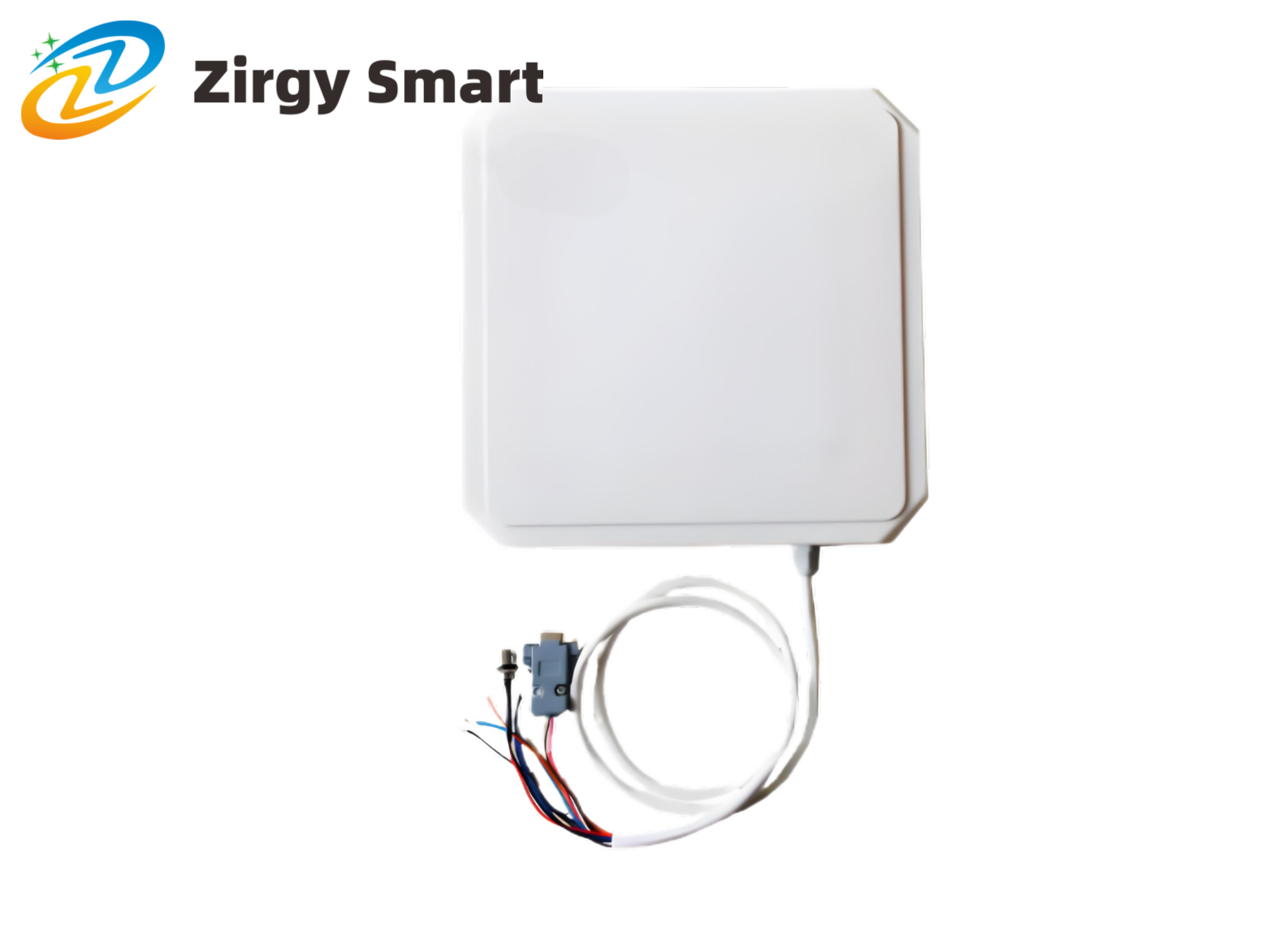

Real-shot display
