I Product introduction
Name: Temperature measurement wristband ZJ-PA22T

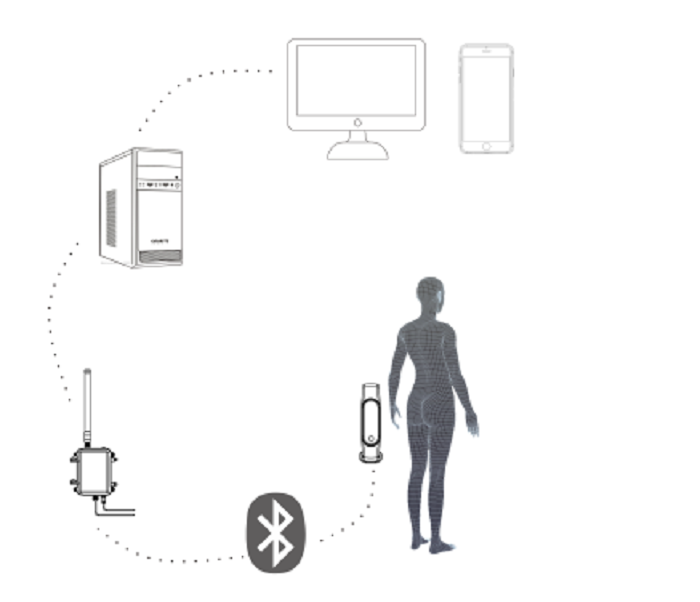

The Temperature Measurement Wristband ZJ-PA22T is a temperature collection device of the intelligent temperature measurement and attendance management system. It is responsible for collecting the temperature of the wearer and uploading it to a mobile phone or receiving the temperature information through a collector, and then transmitting it to the intelligent temperature measurement and attendance management system via the network. It uses the standard low-power Bluetooth 4.0 technology and has 3 broadcast channels. With features such as long-distance identification, anti-collision for multiple wristbands, and low power consumption, it is suitable for use in scenarios of personnel positioning and personnel statistics.
II Product advantages

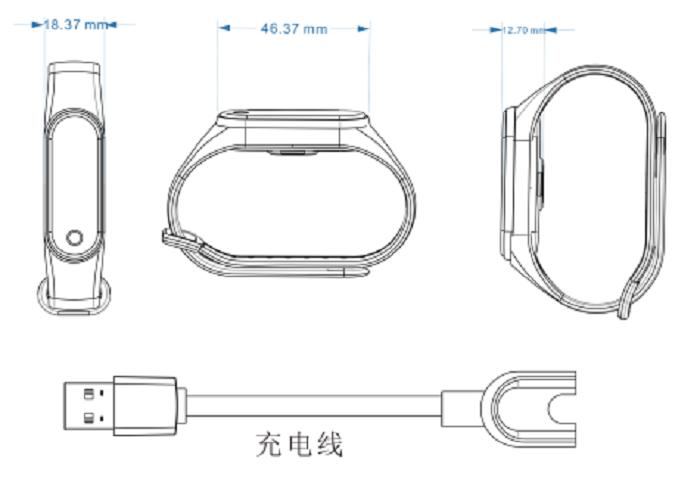

III Appearance and dimensions of the product
IV Parameters and specification of the product
| Physical parameters | Product material | Plastic |
| Product colour | Black (device body, wristband) | |
| Product weight | 15g | |
| Electrical features | Rated power | ≤0.2W |
| Output voltage | 3V | |
| Operating temperature | -10℃ ~+40℃ | |
| Technical parameters | Wireless communication method | Bluetooth |
| Wireless communication standard | wireless 4.2/5.0 | |
| Frequency | 2.402~2.48GHz | |
| Wireless communication distance | ≤10 meters | |
| Temperature measurement accuracy | ±0.1℃ | |
| Operating duration | 120*24 hours | |
| Performance parameters | Static current | <15 uA |
| Emission current | < 18mA (pulse mode) | |
| Average current | < 50uA | |
| Emission power | + 4dBm | |
| Emission time | Broadcast actively once every 60 seconds |
V Instructions for product use and charging
Charging

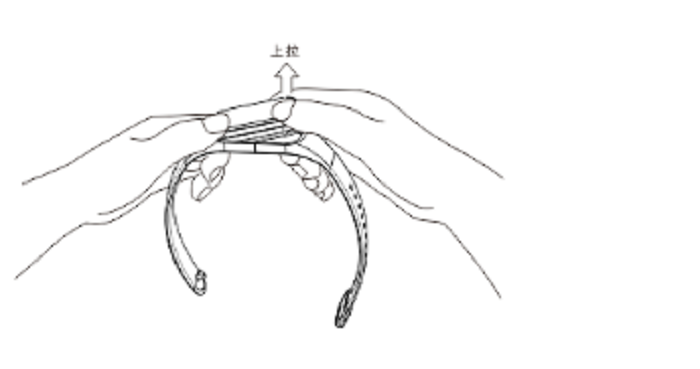

① Pull the main body of the device upward to separate it from the wristband. (Press it downward when installing it in the opposite direction.)

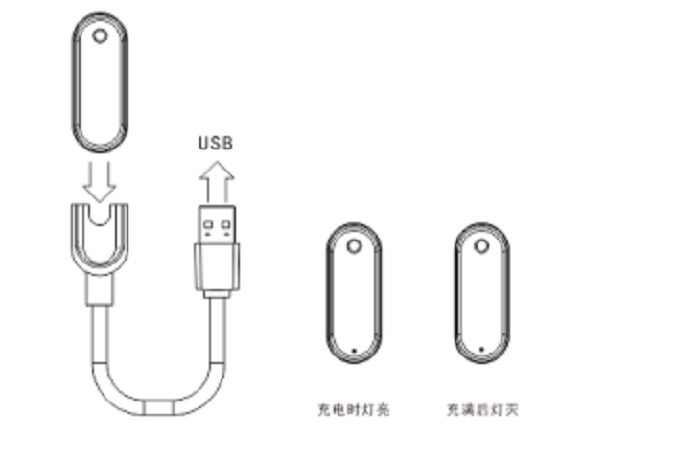

② Insert the main body of the device into the charger as shown. When the indicator light is on, it means that it is charging.
VI Product use instruction

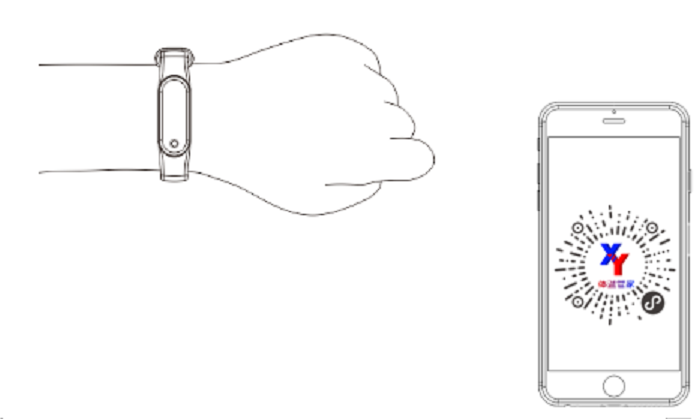

1. Wear the wristband on your wrist and make sure it fits snugly against your wrist.
3. Wear the temperature-measuring wristband. The wristband will actively send the body temperature data to the base station, which will actively collect the body temperature data information of the wristband.

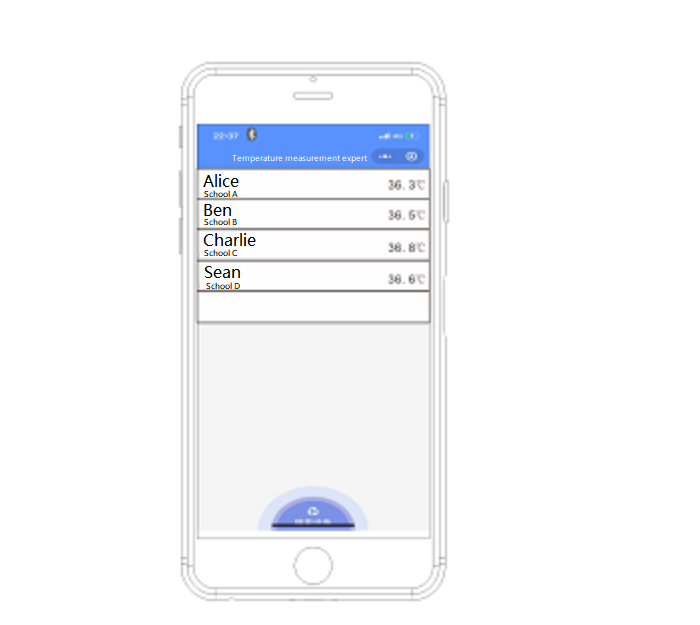

4. Display the body temperature data. (Please wear the wristband 5 minutes in advance before taking the temperature measurement. Otherwise, it may cause the displayed temperature to be lower.)
VII Product application
① The body temperature data is uploaded synchronously for real-time monitoring.
② The data is updated once every minute without interruption.
③ An automatic alarm will be triggered when the body temperature exceeds 37.3 degrees Celsius.
④ Historical alarm information can be obtained.
⑤ Only one person is required to monitor the body temperatures of all individuals wearing the wristbands.
