Ⅰ Product introduction
Name: Temperature measurement wristband ZJ-CWSH01

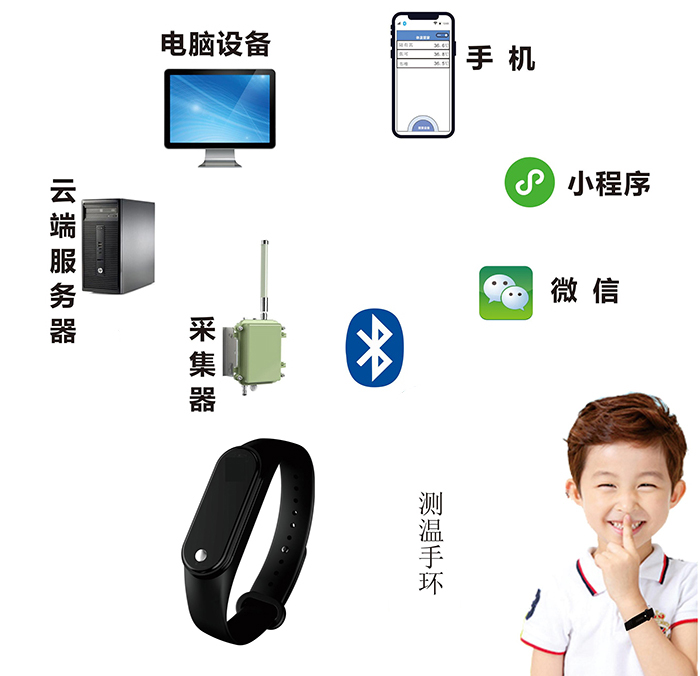

ZJ-CWSH01 temperature measurement wristband is a temperature collection device of the intelligent temperature measurement and attendance management system. It is responsible for collecting the temperature of the person wearing it and uploading the data to a mobile phone. It can also receive temperature information through a collector and can be used independently. It adopts the standard low-power Bluetooth 4.0 technology. It has features such as long-distance recognition, anti-collision for multiple wristbands, and low power consumption. It is also applicable to scenarios where personnel positioning and personnel statistics are required.
Ⅱ Product features
Ⅲ Product parameters and specification
| Physical parameters | |
| Dimensions | 46.5*18.5*12.5mm |
| Product materals | Plastic |
| Screen display | Time, temperature, battery level |
| Product weight | 15g |
| Battery capacity | 90mah |
| Temperature measurement design | Dual temperature detection probes |
| Electrical features | |
| Rated power | ≤0.2W |
| Output voltage | 3V |
| Operating temperature | -10℃ ~+40℃ |
| Technical parameters | |
| Wireless communication method | Bluetooth |
| Wireless communication standard | wireless 4.2/5.0 |
| Frequency | 2.402~2.48GHz |
| Wireless communication distance | ≤10米 |
| Temperature measurement accuracy | ±0.1℃ |
| Operating duration | 15 days |
| Performance parameters | |
| Static current | < 15uA |
| Emission current | < 18mA (pulse mode） |
| Average current | < 50uA |
| Emission power | + 4dBm |
| Emission gap time | Broadcast actively once every 60 seconds |
Ⅳ Instructions for product use and charging
● Charging
1. Pull the main body of the device upward to separate it from the wristband (press it downward when installing it in the opposite direction).
2. Insert the device body into the charger according to the indication. The indicator light turning on means it is charging.
● Use instruction
1. Wear the wristband on your wrist, and make sure the wristband fits snugly against your wrist.
● Use instruction
1. Wear the wristband on your wrist, and make sure the wristband fits snugly against your wrist.

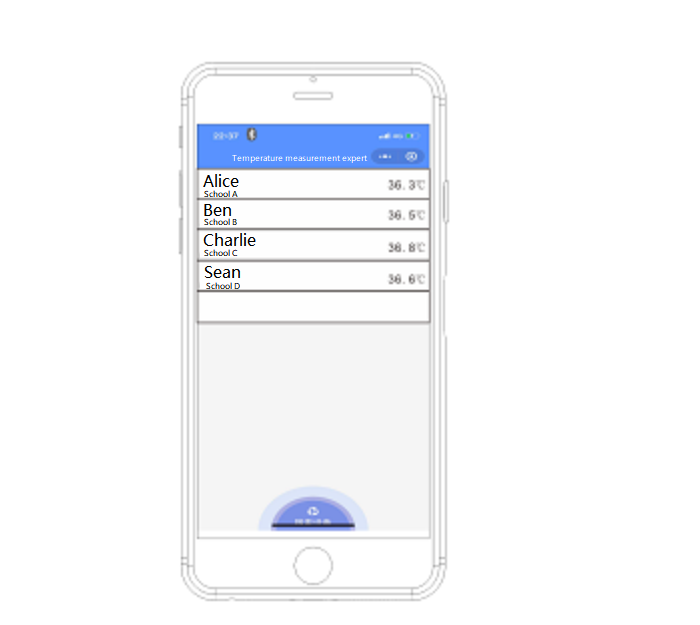

2. Turn on the Bluetooth function of your mobile phone. Enter the WeChat mini-program through WeChat on your mobile phone while wearing the temperature measurement wristband. The wristband will actively send the body temperature data to the mobile phone, or the collector will actively collect the body temperature data information from the wristband.
3. Wear the temperature measurement wristband. The wristband will actively send the body temperature data to the base station, and the base station will actively collect the body temperature data information of the wristband.
4. Display the body temperature data (Please wear the wristband 5 minutes in advance before taking the temperature measurement. Otherwise, it may cause the temperature display to be lower than the actual value).
5. Access http://location.nn3600.com/ on the computer and enter the authorized account to manage the wristband.
Ⅴ Product application
① The body temperature data is synchronously uploaded for real-time monitoring.
② The data is updated once every minute without interruption.
③ An automatic alarm will be triggered when the body temperature exceeds 37.3 degrees Celsius.
④ Historical alarm information can be obtained.
⑤ Only one person is needed to monitor the body temperatures of all the people wearing the wristbands.

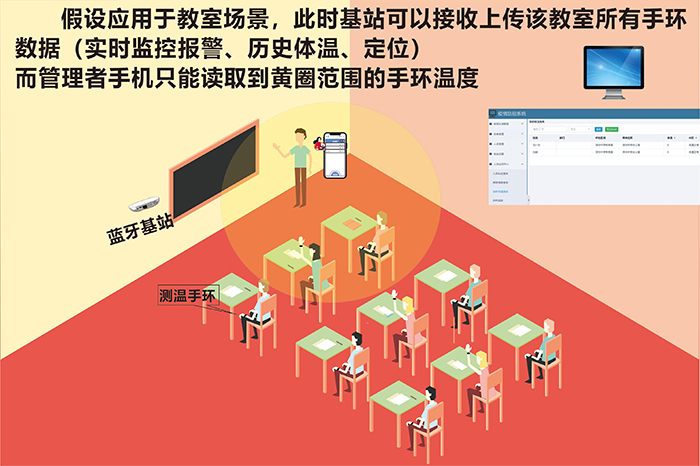

Ⅵ There are many advantages when used in conjunction with the base station
Ⅶ Cautions
● Do not throw it into a fire or store and use it in an environment with a temperature exceeding 85 degrees Celsius!
● Do not damage it with sharp tools.
● Do not place it near corrosive substances.
● Do not arbitrarily change the parameters, specifications, and models of components during maintenance.
● Do not place the wristband in an enclosed space.
● Do not strongly and violently impact the wristband.
● Do not squeeze the wristband with heavy objects with great force.
● It is only waterproof for daily life and should not be submerged in water.
● Wear the wristband 5 minutes in advance before taking the temperature measurement. Otherwise, the temperature display may be lower than the actual value.
● Wet hands will affect the temperature measurement. Wait for more than ten minutes for the temperature to return to normal.
Real-shot display

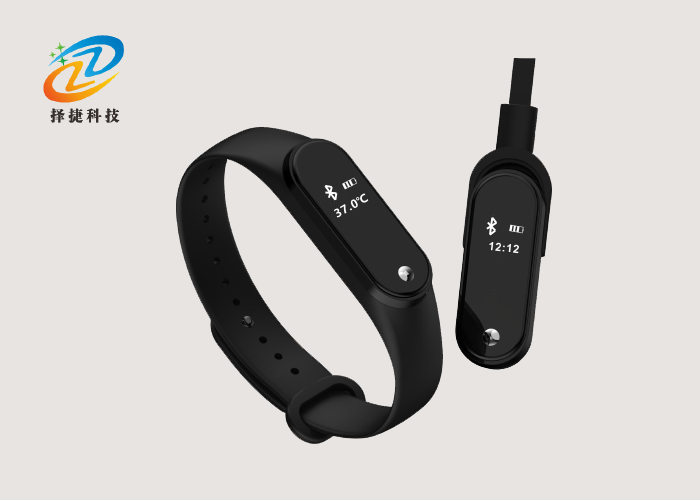

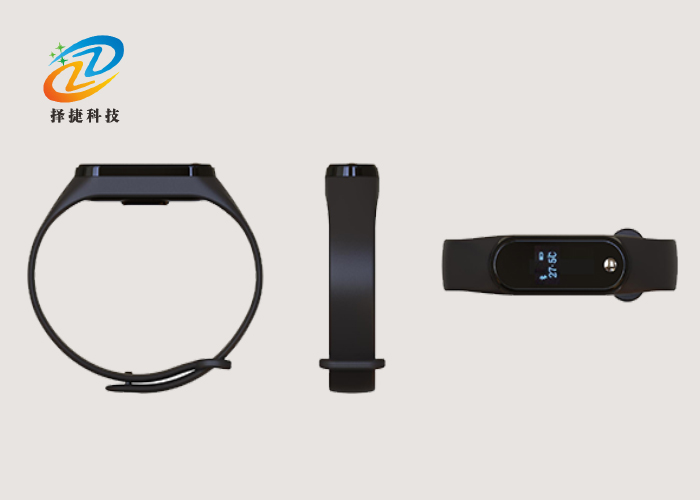

Ⅷ Product display
Real-shot display
